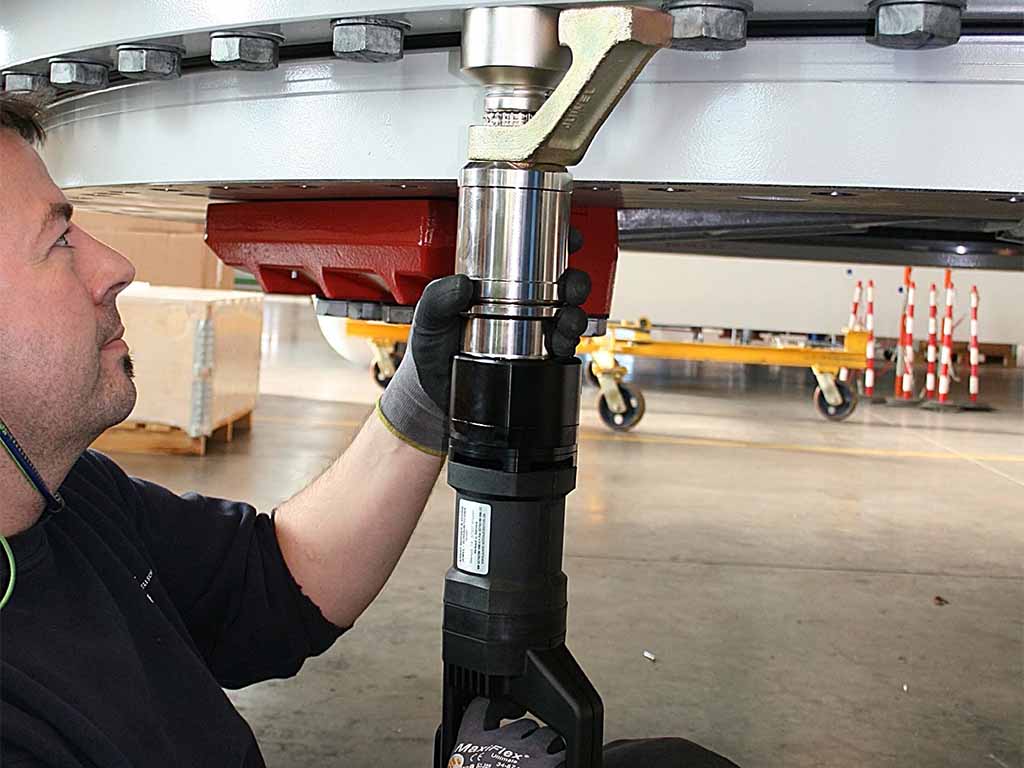

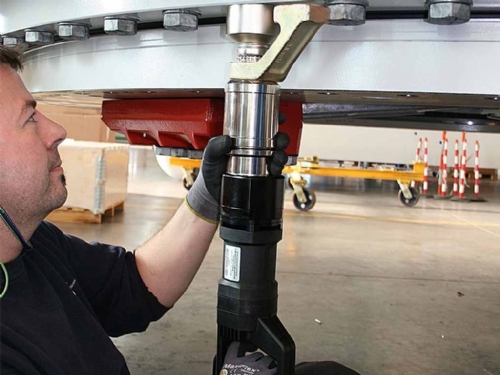

Juwel TES 354 Electric Torque Wrench

3500 N.m Electric Torque Wrench, ±%3.5, Square Drive 1.1/2”

Part No 50 354 130
Model TES-354
Accuracy ±%3.5
Torque Range 360 - 3.500 N.m
Drive 1.1/2" Square
Operation Dir. Clockwise & c.clockwise
Operation Pos. Vertical
Max. Revolution 9 rpm
Power Supply Electricity
Calibration Supplied with the tool
Brand - Origin Juwel / Germany



Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
603222
Verify Security Code:

Features
  • Accuracy up to ±3.5% with cut off system
  • Tightening & loosening capacity up to 10.000 Nm
  • Analog control unit with 200 different torque settings
  • Tool stops when selected torque value reached
  • 2 speed gear mechanism for slow & fast operations
  • Supplied with a Juwel house calibration certificate.
  • Both 220 and 110 volt operation power available
  • Freely rototable gearbox enables ergonomic use
  • Technichal support & calibration service in Turkey

Technical Specifications

Juwel TES Series Standart Type Electric Torque Wrenches

Due to continuous further development, Juwel uses a drive motor characterised by extreme power reserves here. This has a particularly positive effect in the area of "Wear of electromechanical components", e.g. carbon brushes and motor anchors, since these motors are used far below their performance limit.

Furthermore, the deactivation electronic, which has proven its worth for decades, was revised. It is now, among others, characterised by a novel electronic lock of the left-/rightward operation in the area of "Work and process safety".

Part No. Model Torque Range Drive (A) Idle Speed Sizes (mm) Weight
# # N.m inch c/m (rpm) H C D Kg
50 084 100 TES-84 150 - 850 3/4” - 1” 16 530 - 540 55 - 75 88 8.2
50 104 110 TES-104 280 - 1200 1” 14 540 75 88 8.2
50 244 120 TES-244 360 - 2500 1” 10 570 75 88 9.5
50 354 130 TES-354 360 - 3500 1.1/2” 9 580 95 88 10.4
50 504 140 TES-504 700 - 5000 1.1/2” 3 630 95 88 12.6
50 604 150 TES-604 816 - 6000 1.1/2” 6.5 615 110 130 15.9
50 904 160 TES-904 1024 - 10000 1.1/2” 2.5 645 110 130 18.9



  • Available from 200 to 15,000 Nm
  • Freely turning drive unit
  • Quick and precise
  • 2-step gear ri./le.
  • 200 torque settings
  • Modular build with bearings for continuous use

  • With a torque deactivation system with an accuracy of +/- 3.5% at consistent screwing application
  • Quick, precise, safe and low-noise
  • Devices available in 230 Volt and 110 Volt versions
  • Newly designed drive motor characterised by its robust and maintenance-friendly structure as well as by high performance reserves
  • Right- and left-ward rotation and a 2-step gear; adjustable with 200 torque settings
  • Any position of the operating unit possible; drive motor can be freely turned by 360°, which ensures comfortable positioning of the device on the screw connection
  • Can optionally be either with a load release. This leads to independent loosening of the torsion between the push-on socket and the support. The drive motor briefly turns into the opposite direction for this. This option is indispensable for short assembly times and offers best work safety.

Juwel TES Series Electric Torque Wrenches PDF

Juwel TES-354 Electric Torque Wrench - Torque Chart PDF

Juwel TES Serisi Electric Torque Wrench User's Manual PDF
