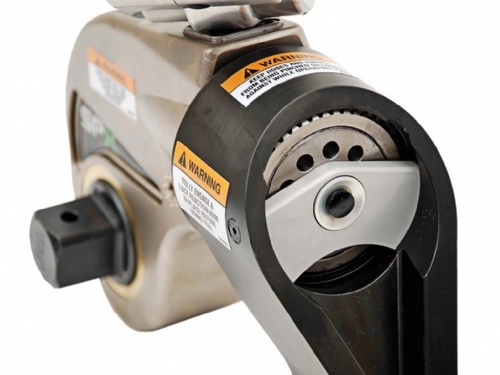

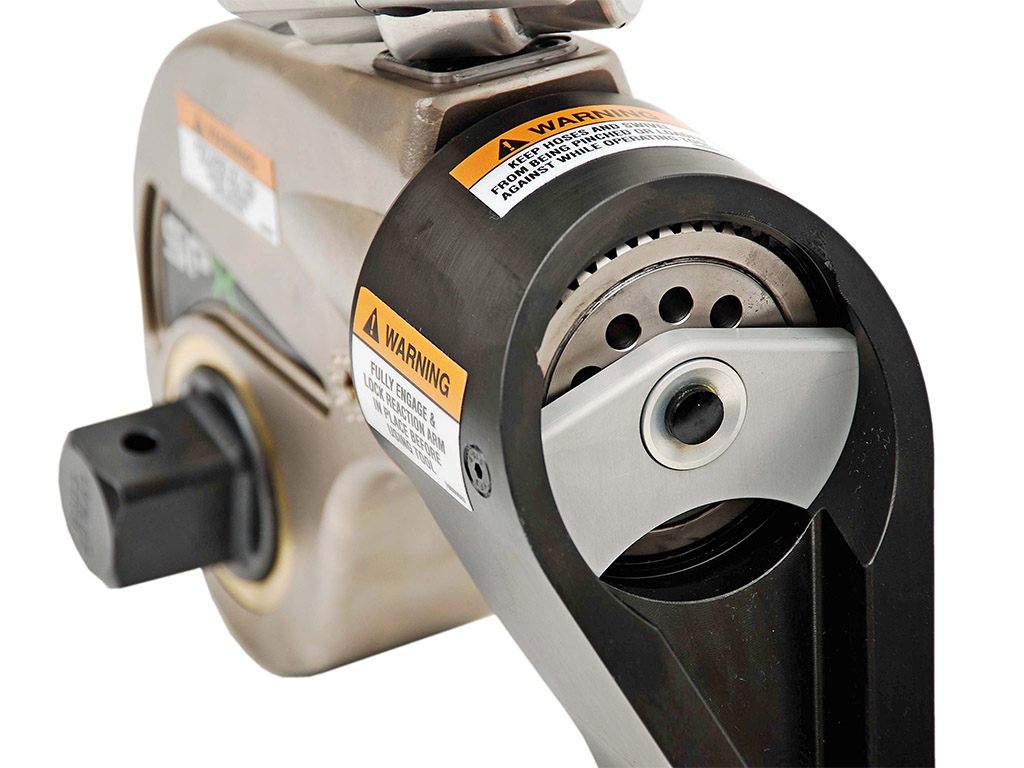

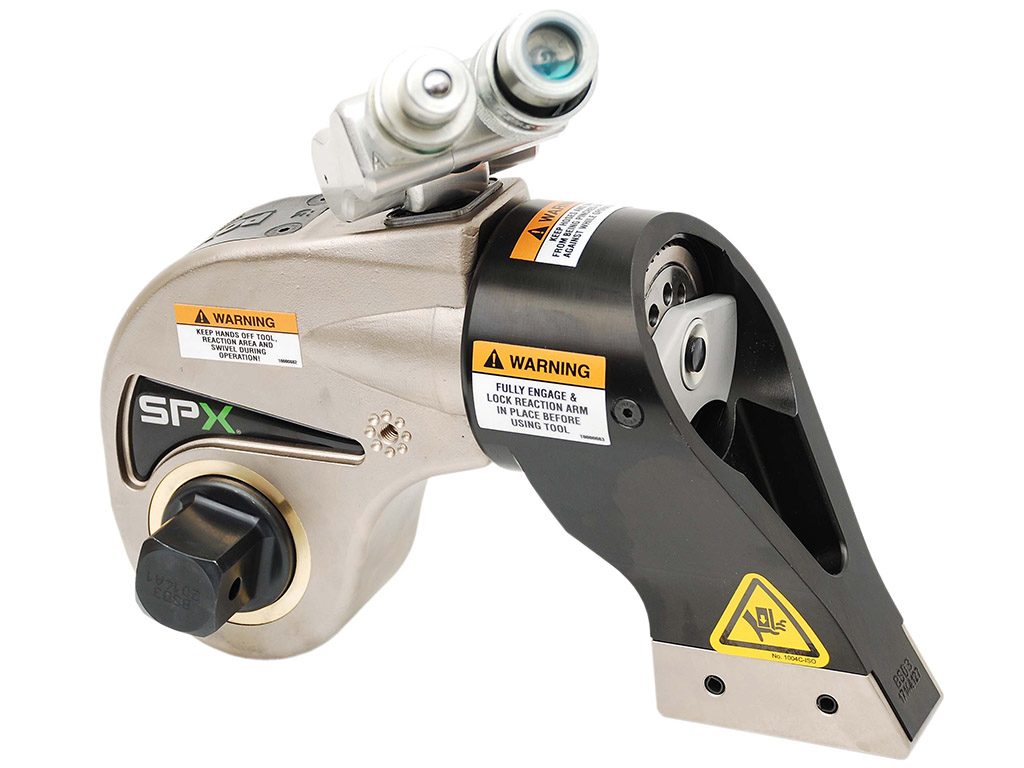

SPX Flow TWSD11 Hydraulic Torque Wrench
14.850 N.m Hydraulic Torque Wrench, ±%3, Square Drive 1.1/2”
| Model | TWSD11 |
| Accuracy | ±3% |
| Capacity max. | 14.850 N.m |
| Capacity min. | 1.780 N.m |
| Square Drive | 1.1/2” |
| Work. pressure | 700 bar |
| Tool Weight | 13 kg |
| Reaction Arm | 360 x 180 ° rotatable |
| Function | Tighteening - Loosening |
| Tool Material | Stainless Steel |
| Calib. Cert. | Supplied with the tool |
| Brand - Origin | SPX Flow / USA |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Constantly repeated accuracy ±3%
- Capacity range 210 - 72.000 N.m
- Capacity range 170 – 53.000 lb.ft
- TWHC – TWSD - 7 different model
- 700 bar running hydraulic system
- 360°x180° high flow swivel manifold

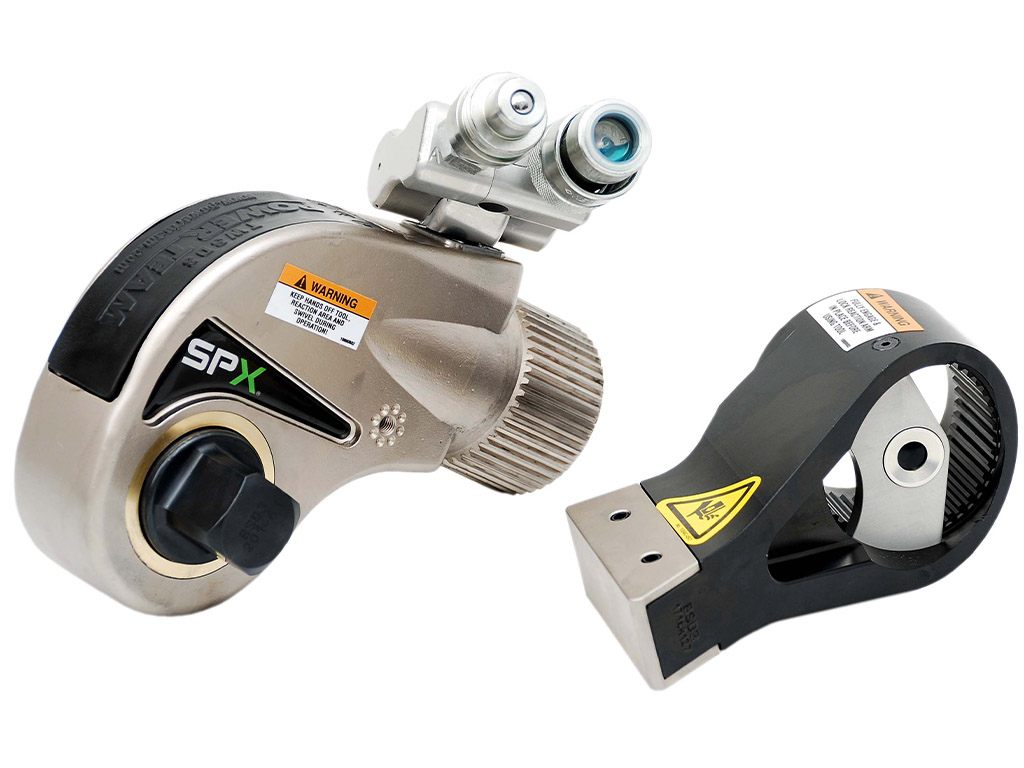

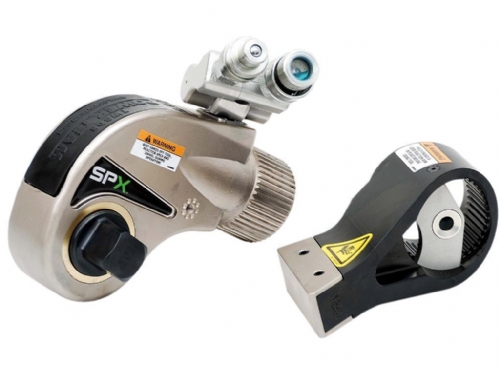

- 360° rotatable, lockable reaction arm

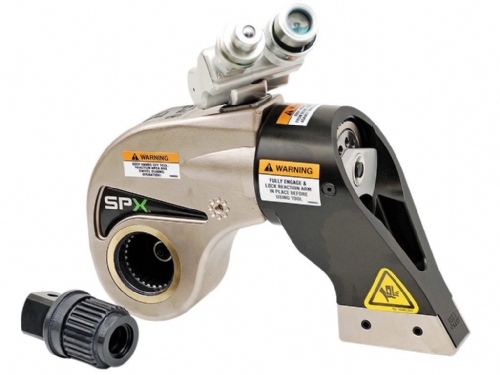

- Easy changable square & hex drives

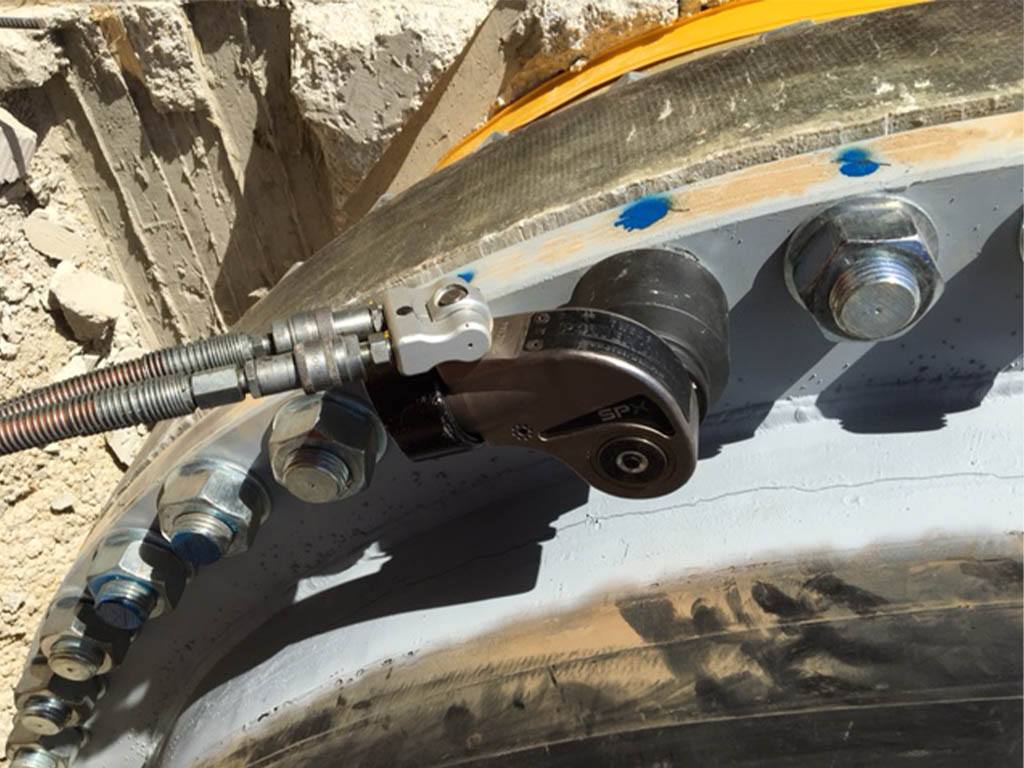

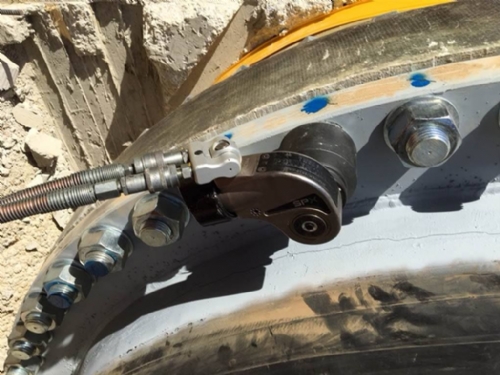

- Designed for heavy duty application
- Simple drive assembly, less downtime
- Fine tooth pawl prevents tool ‘lock-on’
- Fully enclosed drive mechanism for safety
SPX Flow TWSD Series High Cycle Hydraulic Torque Wrenches
| Model | Torque Range | Square Drive | Dimensions (mm) | Weight | |||||||
| # | N.m | lb.ft | inch | L1 | L2 | L3 | H1 | R | W1 | W2 | kg |
| TWSD1 | 210 - 1.770 | 155 - 1.300 | 3/4" | 139 | 170 | 112 | 145 | 28 | 33 | 86 | 2.3 |
| TWSD11 | 1.780 - 14.850 | 1320 - 10.940 | 1-1/2" | 234 | 292 | 178 | 241 | 56 | 61 | 165 | 13.1 |
| TWSD25 | 3.990 - 33.200 | 2.940 - 24.500 | 2-1/2" | 305 | 376 | 231 | 315 | 71 | 76 | 200 | 29.5 |
Quality means Lower Cost of Ownership:
• Designed for high cycle life: 2-3x more than existing technology
• Increased reliability: Simple drive assembly means less downtime
• Corrosion resistant material for use in harsh environments
Enhanced Usability:
• Compact nose radius allows the tool to fit in tighter, hard-to-reach spaces
• Low weight, high strength design
• Fast operation, long stroke and optimum flow
• Multi-direction high flow swivel manifold
• Push button square drive reversal and reaction arm positioning
• Push-button release of square drive & reaction arm for all models except TWHC50.
Designed with Safety in Mind:
• Fully enclosed drive mechanism for operator safety
• Swivel manifold internal relief valve prevents retract side over-pressurization
• Fine tooth pawl prevents tool ‘lock-on’
