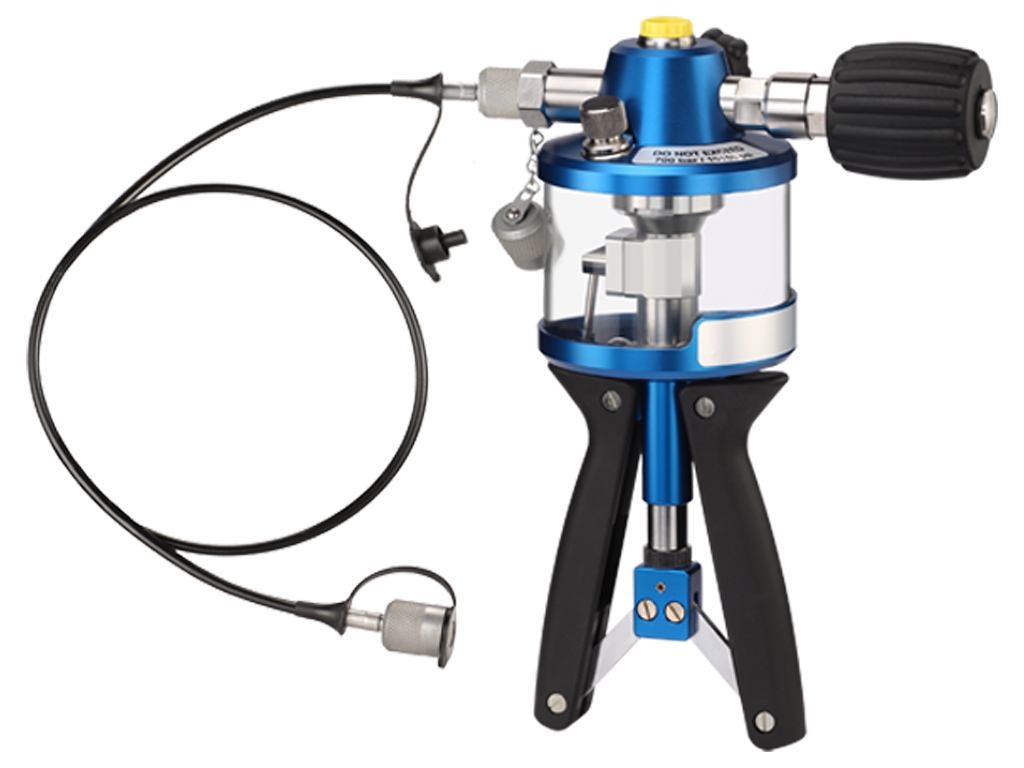

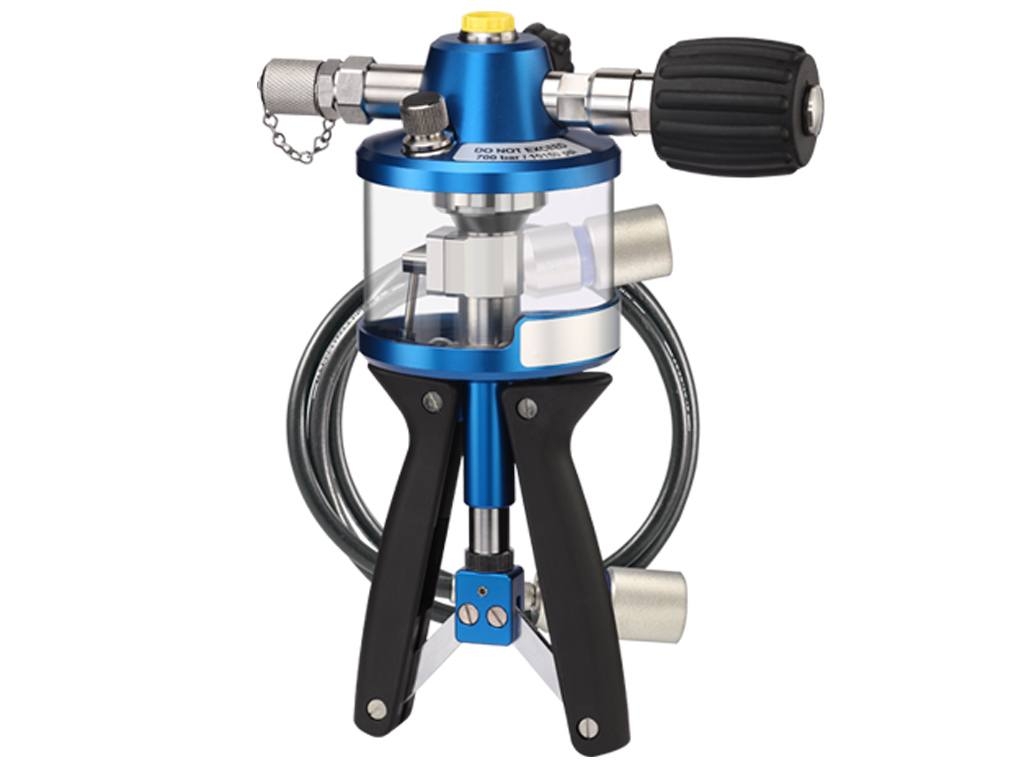

EP-P700 Hydraulic Pressure Comparison Pump

700 Bar Hydraulic Pressure Calibration Pump, Single Speed

Model no EP-P700
Description Hydraulic pressure pump
Pressure range 0…700 Bar
Generate %85 vakuum
Medium Mineral Oil / distilled Water
Pump type Single speed
Oil outputs 2 x hand-tight quick connectors
Body Material Stainless Steel
Dimensions 255x225x85mm
Tool weight 1.7 kg
Brand Europascal
Origin USA
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
225644
Verify Security Code:

Features
  • Test pressure range 0…. 700 bar
  • Distilled Water or Hydraulic Fluid
  • Fine pressure ajustment available
  • Designed for gauge calibration
  • Mobile and independent use
  • Portable, only 1.7 kg, (7.0 lb)
  • Built-in Reservoir for Hydraulic Oil
  • Stable pressure due isolation valve
  • Smoothly, quick pressure adjustment
  • Durable and minimal maintenance
  • Easy connecting and disconnecting
  • Hand Pump with Complete Case
Technical Specifications

Hydraulic Test Pump With Fine Adjustment Features

For precise setting in the low mbar range a large-volume regulating valve with ultrafine thread pitch is used, allowing settings in low pressure ranges.

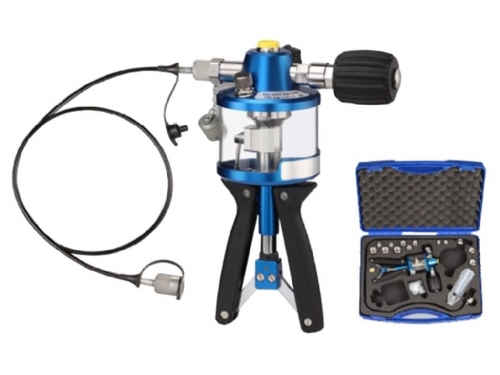

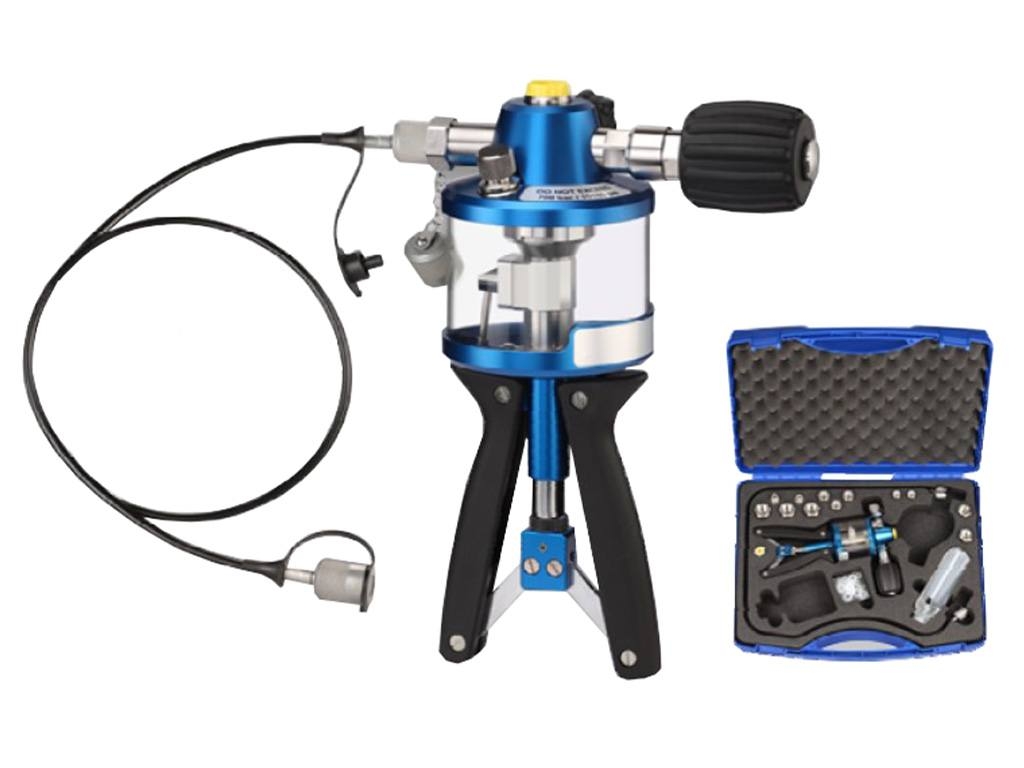

Hand Pump with Complete Case

In the case all standard connection threads are available in either inch, conical or metric adapters.The appropriate seal kit is also included in the scope of supply. The transport case with shaped foam material insert contains the complete equipment.

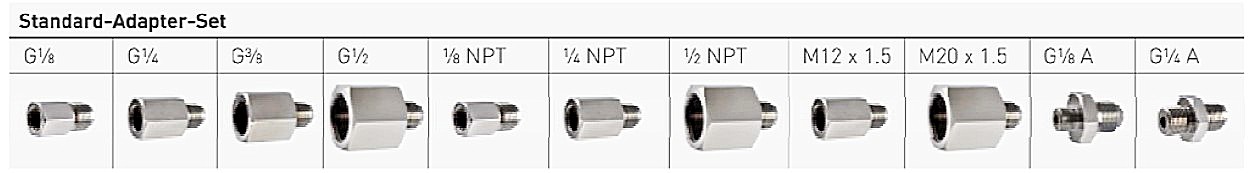

Adapters Included in the Shipment

G1/8” – G1/4” – G3/8” – G1/2” – 1/8” NPT – 1/4” NPT - 1/2” NPT – M12x1.5 – M20X1.5 – G1/8”A – G1/4” A

Hydraulic Pressure Comparison Test Pump EP-P700 PDF
