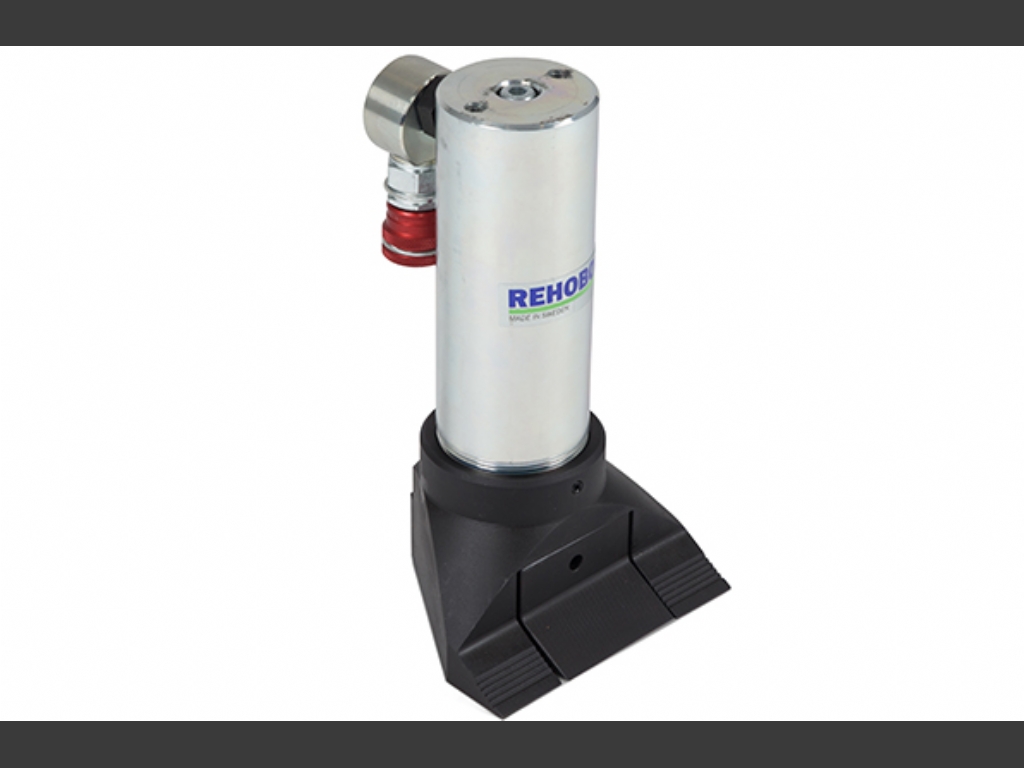

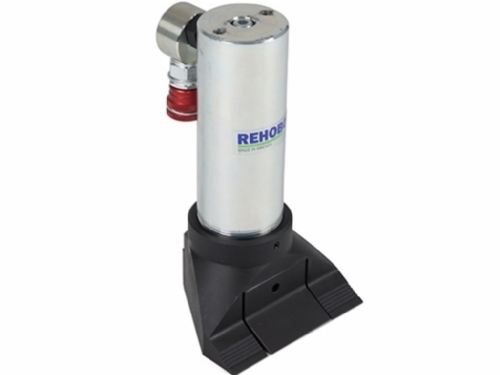

Rehobot DO111

13 Ton Capacity Rehobot Hydraulic Door Opener, 105mm Opening Stroke

Product Code DO111
Spreading capacity 13 ton - 127 kN
Spreading stroke 105 mm - 4.13  inch
Hydraulic piston  Spring return
Working pressure 800 bar - 11603 psi
Stroke oil volume 167  cm³ -10.19 in³
Tool weight 4.9 kg - 10.8 lbs
800 bar handpump + Hose included
Crowbar + hammer included
Manufactured in Sweden
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
653866
Verify Security Code:

Features


  • Door spreading and opening capacity 13 ton
  • Stroke 105 mm, piston head fitted serrated theeth
  • Single acting spring return hydraulic system
  • Complete system working pressure  800 bar
  • Swivel coupling enable greater flexibiltly for easy use
  • The tool can work in any position. Horizontal or vertical

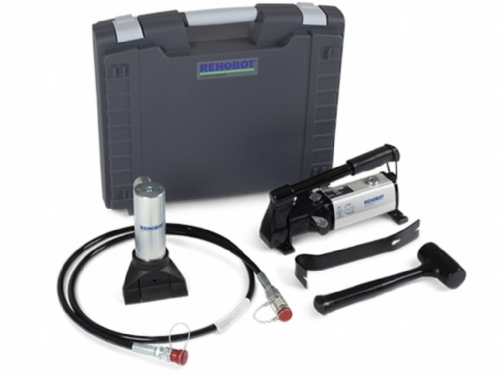

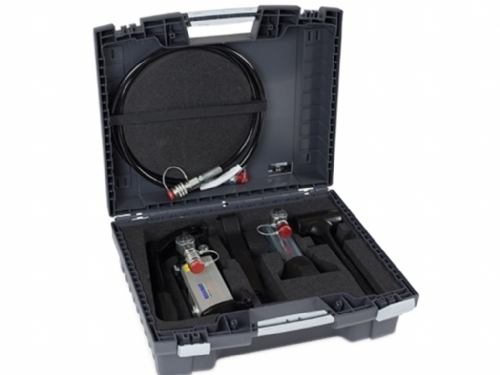

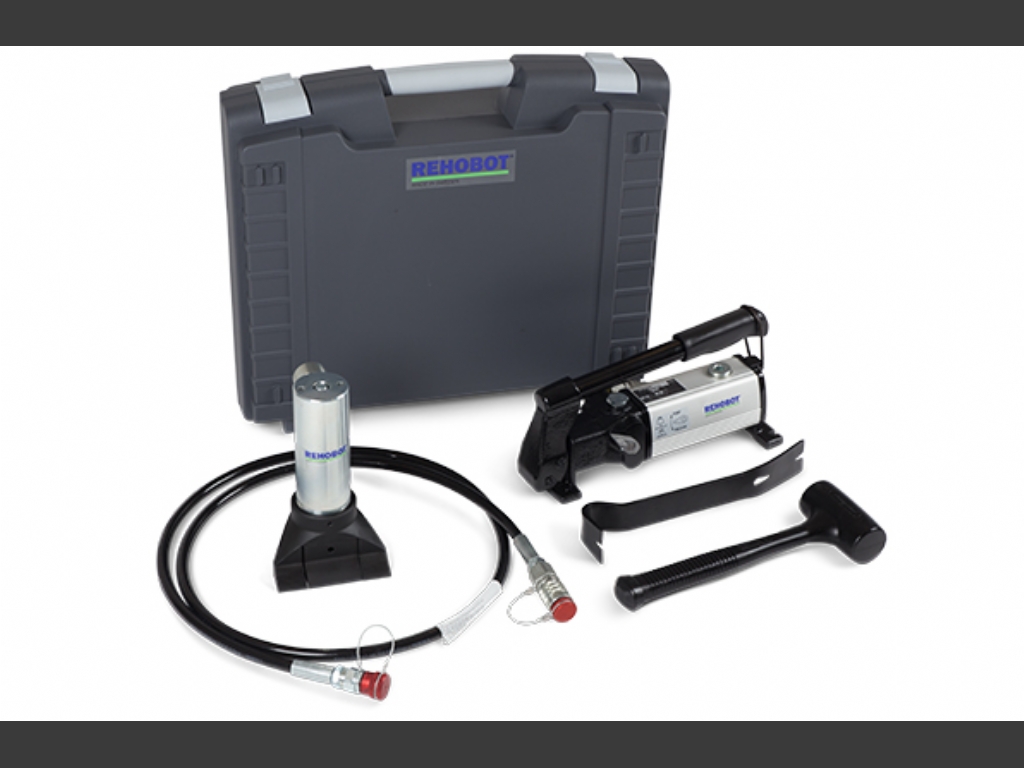

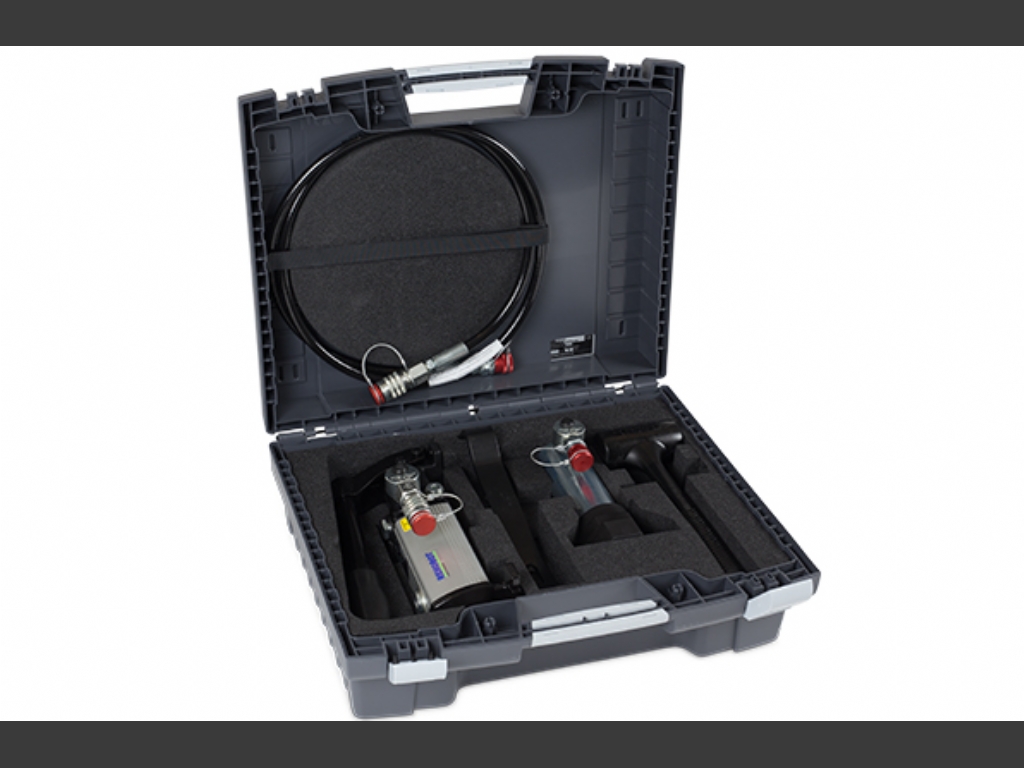

Kit Consists Of;

  • DO111, Door opener tool
  • Hand pump, with swivel coupling
  • 2 m hose with quick couplings
  • Crowbar
  • Urethane hammer
  • Couplings for convinence
  • Carrying case

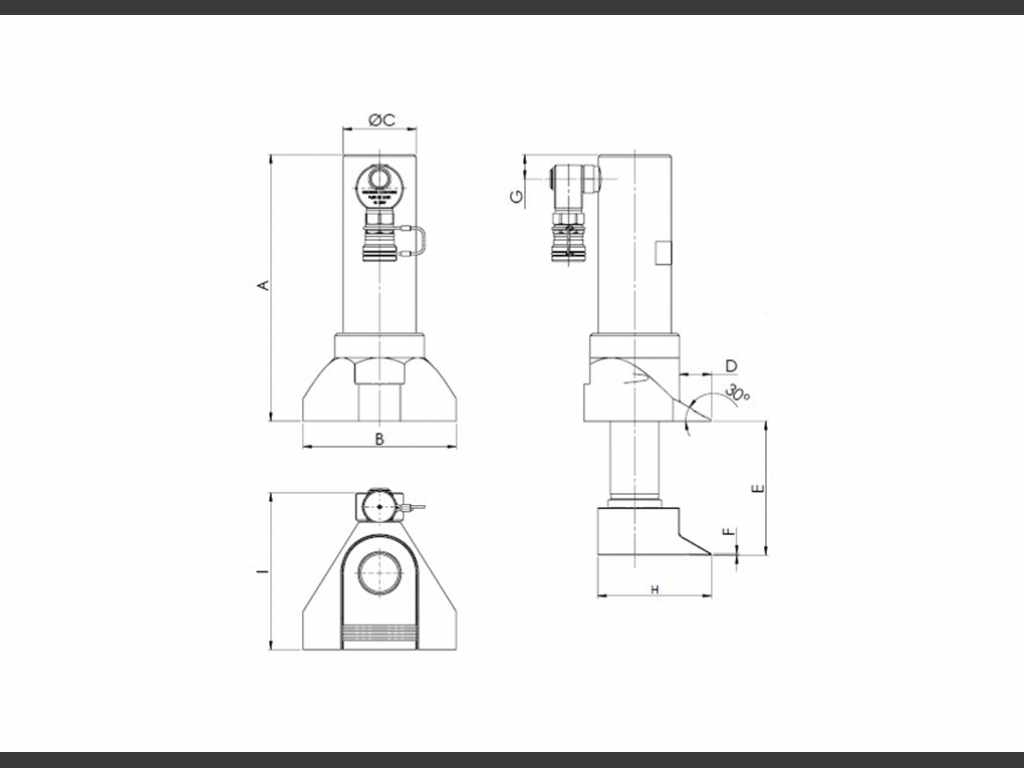

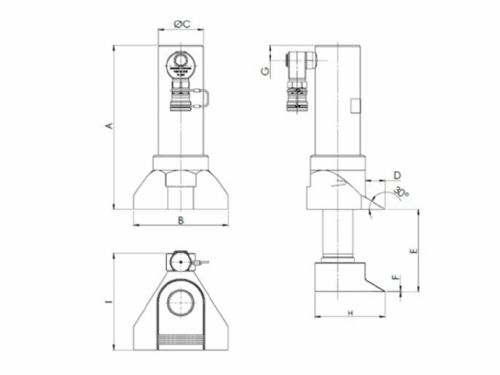

Technical Specifications

Hydraulic Door Opener Technichal Data

A B C D F G H I Weight
mm mm mm mm mm mm mm mm mm Kg
208 120 57.1 25 105 1 19 89 100 4.9
