Norbar 180998 Evotorque Angled Battery Torque Wrench

600 - 4000 N.m Angled Battery Torque Wrench -EBT- / Single Speed

Part No 180998
Model EBT-92-4000
Accuracy ±%3
Torque Range 600 - 4.000 Nm
Torque Range 440 - 2.950 lbf.ft
Drive 1"
Operation Dir. Clockwise & c.clockwise
Display / Type OLED / Two Speed
Speed 2.3 rpm
Power Supply Battery
Calibration Supplied with the tool
Brand - Origin Norbar - England
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
633328
Verify Security Code:

Features
  • Accuracy up to +3%
  • New brushless motor technology
  • Data memory and data transfer capabilities
  • Supplied with a Traceable Calibration Certificate.
  • OLED display ensures visibility in all conditions
  • Torque, Torque&Angle and Audit modes available
  • Supplied with 2 x 18V 5.0 Ah high efficient battery
  • Temp. for charging 0°C - 45°C, for oper. -20°C - 49°C
  • Torque measurement in N.m, Lbf.ft, Kgf.m units
  • 3000 reading memory, time and date stamped
  • Clear indication of successful joint application
  • Free EvoLog PC software for data management




Technical Specifications

Norbar Evotorque EBT Angled Battery Torque Wrench [160 - 4000 N.m]

Single Speed, Evotorque EBT Angled Battery Torque Wrench

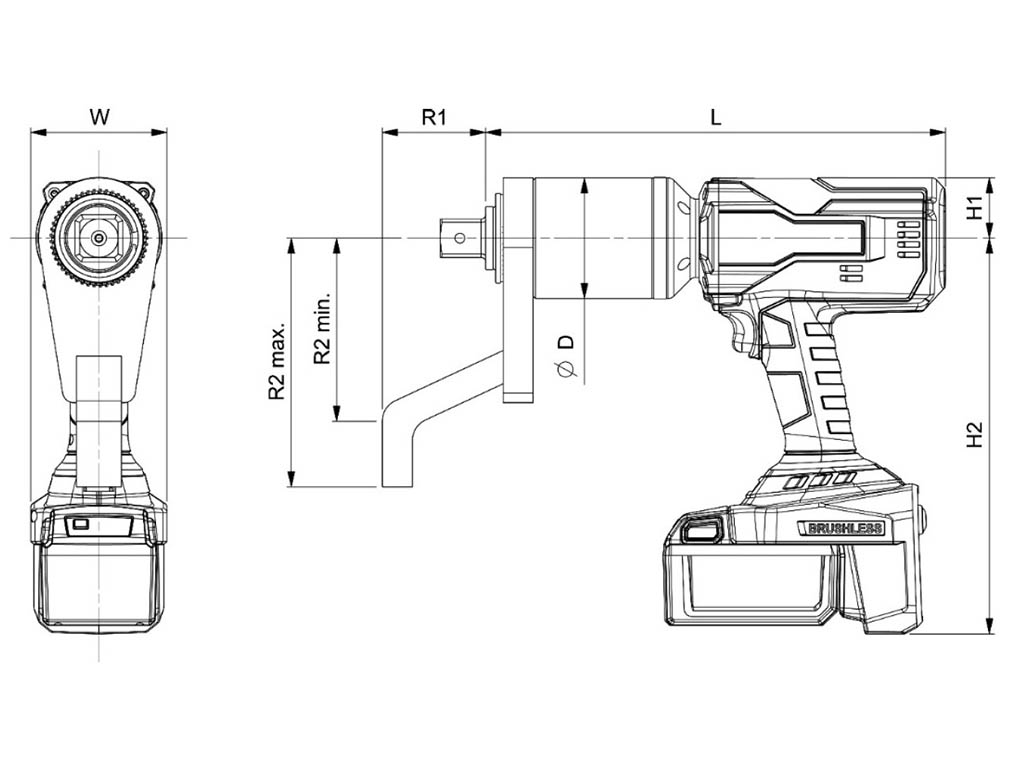

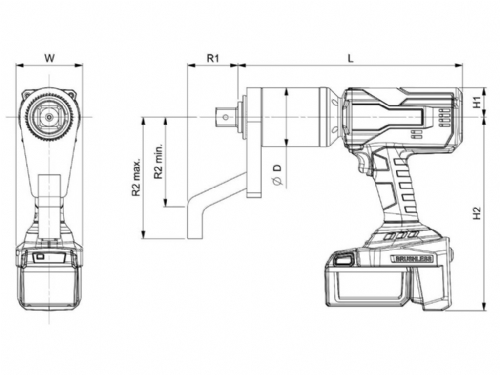

Part No Torque Range Drive Speed  Dmax H1 H2 H3 H4 L L1 L2 R1 R2 min R2 max Weight
#  N.m lbf.ft Inch rpm ø, mm mm mm mm mm mm mm mm mm mm mm kg
180854 160-800 188-600 3/4" 11.2 52 40 262 171 28 271 269 235 59 68 131 9.0
180902 200-1350 150-1000 3/4" -1" 6.5 72 40 262 198 28 298 269 235 76 124 167 11.0
180950 400-2700 295-2000 1" 3.3 80 40 262 191 28 298 269 235 76 124 167 11.2
180998 800-4000 590-2950 1" 2.3 92 40 262 250 28 352 269 235 70 125 175 14.0



Norbar Evotorque Battery Torqe Multiplier

The EvoTorque® Battery Tool (EBT) features a new brushless motor, data memory and data transfer capabilities. Norbar have combined this with their respected gearboxes to deliver a range of fast, reliable, accurate battery torque tools





FAST: EBT uses a powerful motor coupled with either a single speed or auto two speed gearbox for rapid joint completion times.

DURABLE: The industrial motor used by the EBT will keep going where most other battery tools will overheat.

ACCURATE: EBT is a transducer controlled battery powered torque tool designed for accurately applying torque to threaded fasteners. The unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and when necessary, employs dynamic braking to avoid torque over-shoot due to motor inertia, consistently achieving highly accurate results of up to ±3% of setting

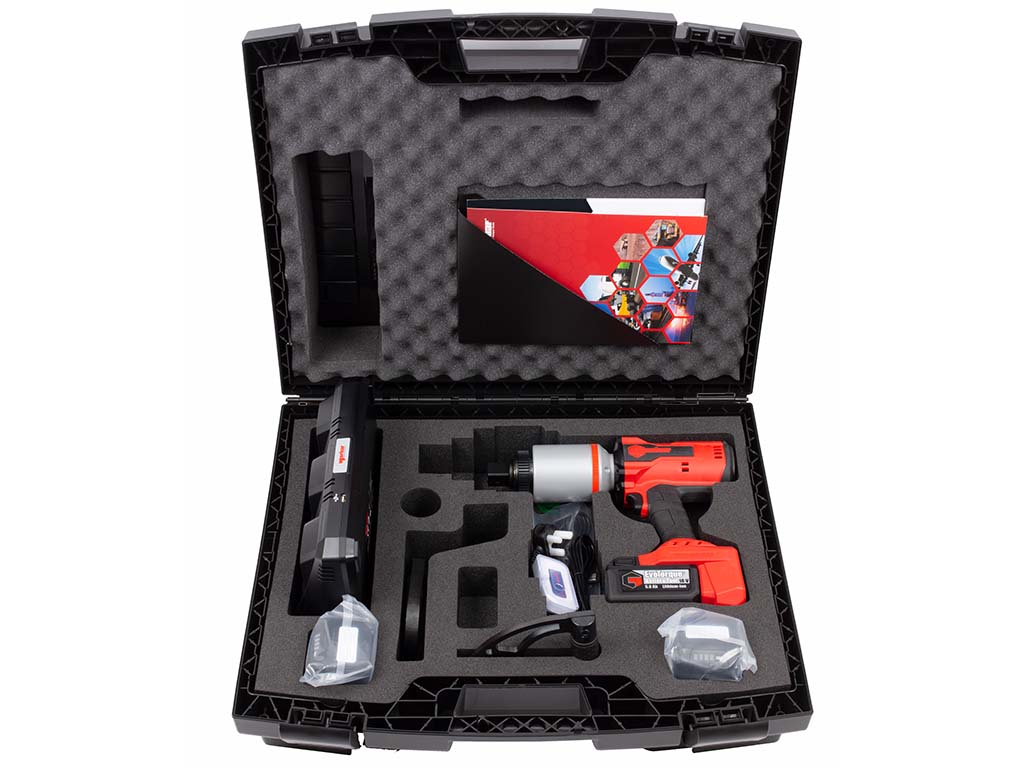

Kit Content:

  • Packed in a pelicase
  • 1 x Battery tool
  • 1 x Crank type reaction arm
  • 1 x 18V 5.0Ah battery (60334)
  • 1 x Quick charger (60335.Kit)
  • 1 x  Manual instruction
  • 1 x  Free EvoLog PC software



Norbar Evotorque Battery Tool Torque Wrench - PDF

Norbar Evotorque Battery Tool Torque Wrench Declaration of Conformity - PDF

Norbar Evotorque Battery Tool Torque Wrench Oparator's Manual - PDF
