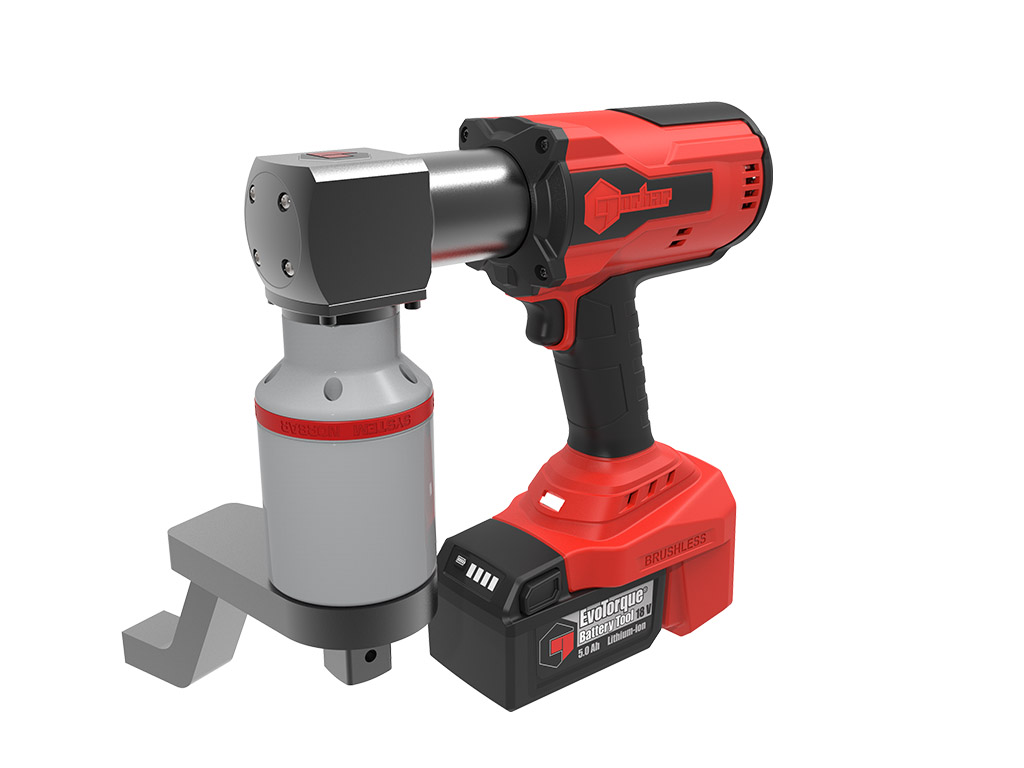

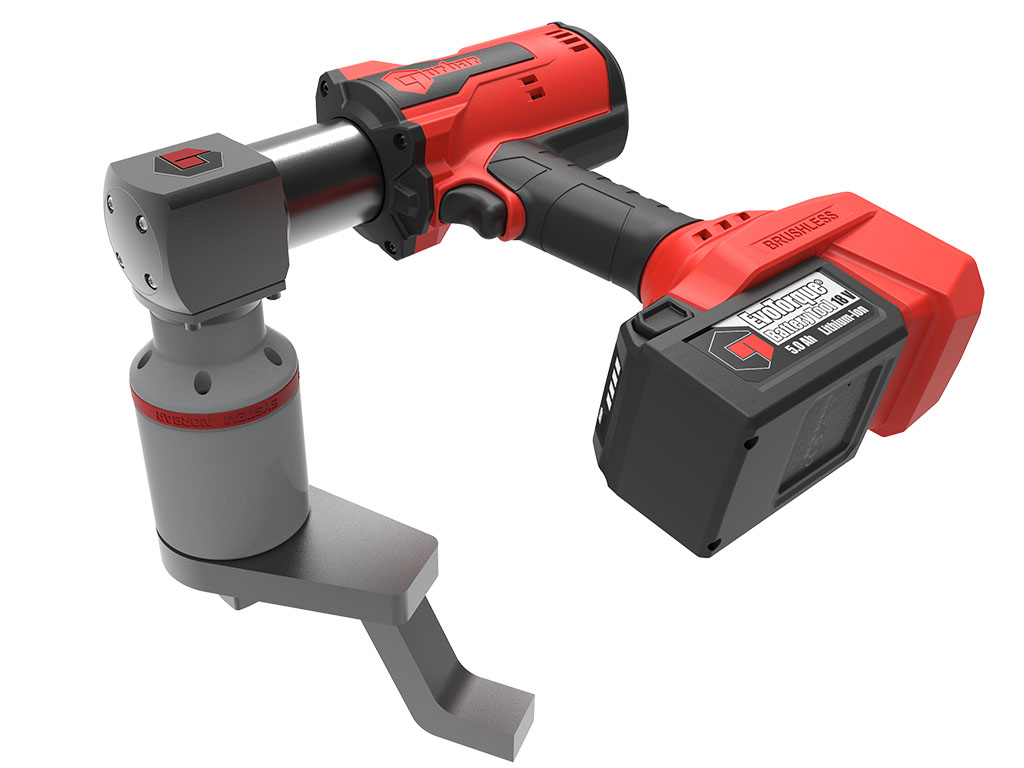

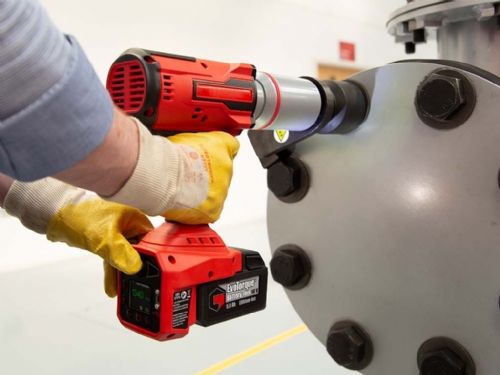

Norbar 180926 Evotorque Angled Battery Torque Wrench
330 - 1350 N.m Angled Battery Torque Wrench -EBT- / Two Speed
| Part No | 180926 |
| Model | ET-72 -1350 Auto |
| Accuracy | ±%3 |
| Torque Range | 330 - 1.350 Nm |
| Torque Range | 250 - 1.000 lbf.ft |
| Drive | 3/4 - 1" |
| Operation Dir. | Clockwise & c.clockwise |
| Display / Type | OLED / Two Speed |
| Speed | 32 rpm |
| Power Supply | Battery |
| Calibration | Supplied with the tool |
| Brand - Origin | Norbar - England |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Accuracy up to +3%
- New brushless motor technology
- Data memory and data transfer capabilities
- Supplied with a Traceable Calibration Certificate.
- OLED display ensures visibility in all conditions
- Torque, Torque&Angle and Audit modes available
- Supplied with 2 x 18V 5.0 Ah high efficient battery
- Temp. for charging 0°C - 45°C, for oper. -20°C - 49°C
- Torque measurement in N.m, Lbf.ft, Kgf.m units
- 3000 reading memory, time and date stamped
- Clear indication of successful joint application
- Free EvoLog PC software for data management
.jpg)
Norbar Evotorque EBT Angled Battery Torque Wrench [330 - 4000 N.m]
Two Speed, Evotorque EBT Angled Battery Torque Wrench

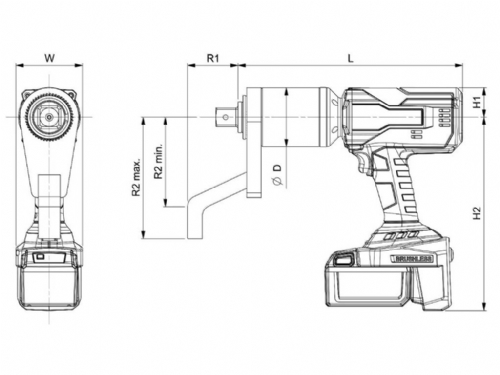

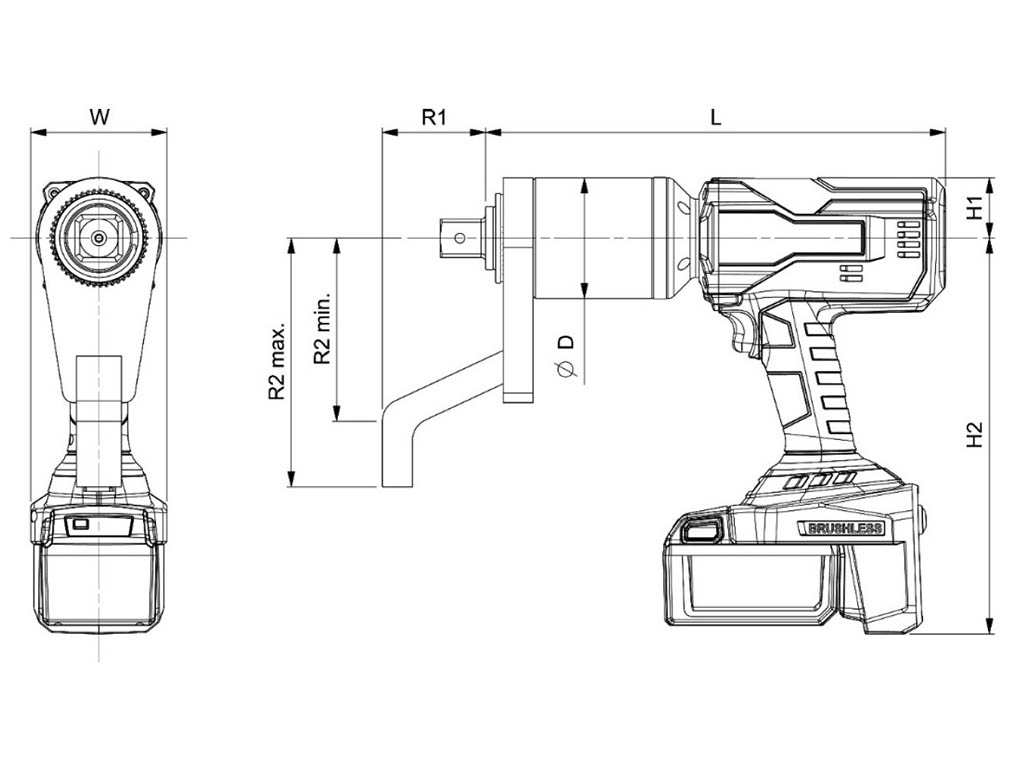

| Part No | Torque Range | Drive | Speed | Dmax | H1 | H2 | H3 | H4 | L | L1 | L2 | R1 | R2 min | R2 max | Weight | |
| # | N.m | lbf.ft | Inch | rpm | ø, mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 180926 | 330- 1350 | 250- 1000 | 3/4" -1" | 6.5 | 72 | 40 | 262 | 217 | 28 | 317 | 269 | 235 | 76 | 124 | 167 | 11.0 |
| 180974 | 670- 2700 | 500- 2000 | 1" | 3.3 | 80 | 40 | 262 | 226 | 28 | 333 | 269 | 235 | 76 | 124 | 167 | 11.2 |
| 181022 | 1000- 4000 | 740- 2960 | 1" | 2.3 | 92 | 40 | 262 | 285 | 28 | 387 | 269 | 235 | 70 | 125 | 175 | 14.0 |
Norbar Evotorque Battery Torque Multiplier
The EvoTorque® Battery Tool (EBT) features a new brushless motor, data memory and data transfer capabilities. Norbar have combined this with their respected gearboxes to deliver a range of fast, reliable, accurate battery torque tools
.jpg)
FAST: EBT uses a powerful motor coupled with either a single speed or auto two speed gearbox for rapid joint completion times.
DURABLE: The industrial motor used by the EBT will keep going where most other battery tools will overheat.
ACCURATE: EBT is a transducer controlled battery powered torque tool designed for accurately applying torque to threaded fasteners. The unique ‘intelligent joint sensing’ technology continually measures the joint during tightening and when necessary, employs dynamic braking to avoid torque over-shoot due to motor inertia, consistently achieving highly accurate results of up to ±3% of setting

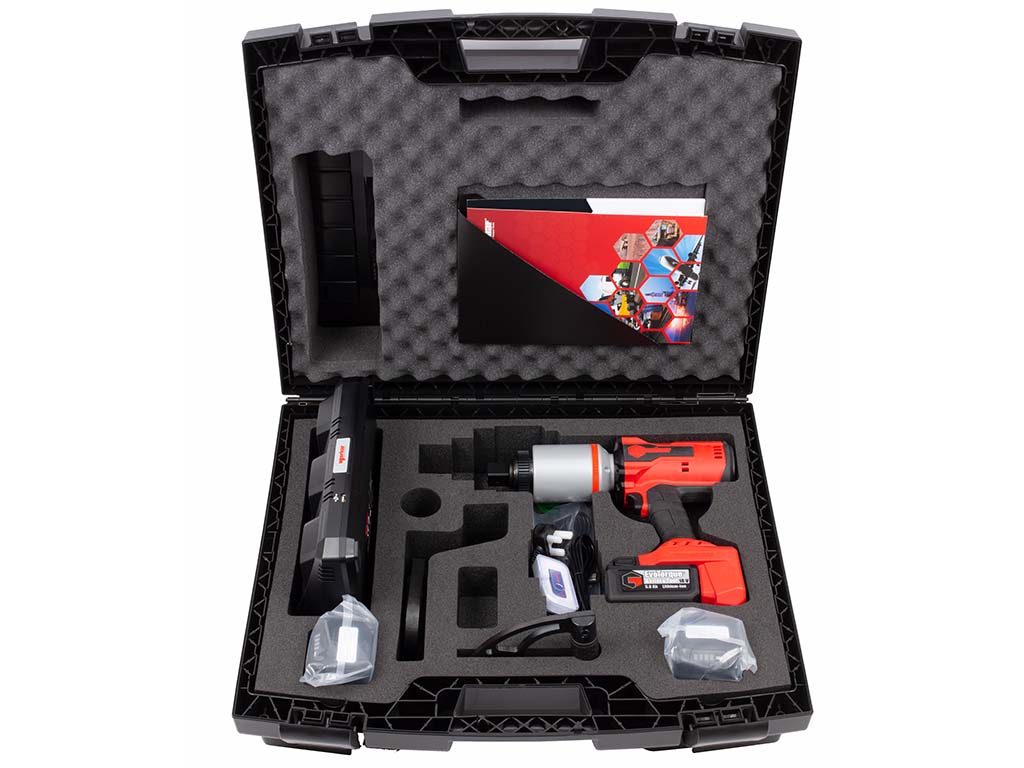

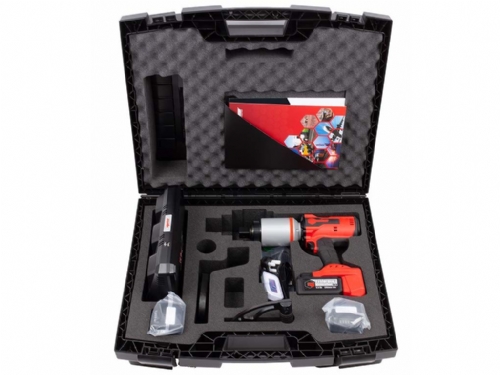

Kit Content:
- Packed in a pelicase
- 1 x Battery tool
- 1 x Crank type reaction arm
- 1 x 18V 5.0Ah battery (60334)

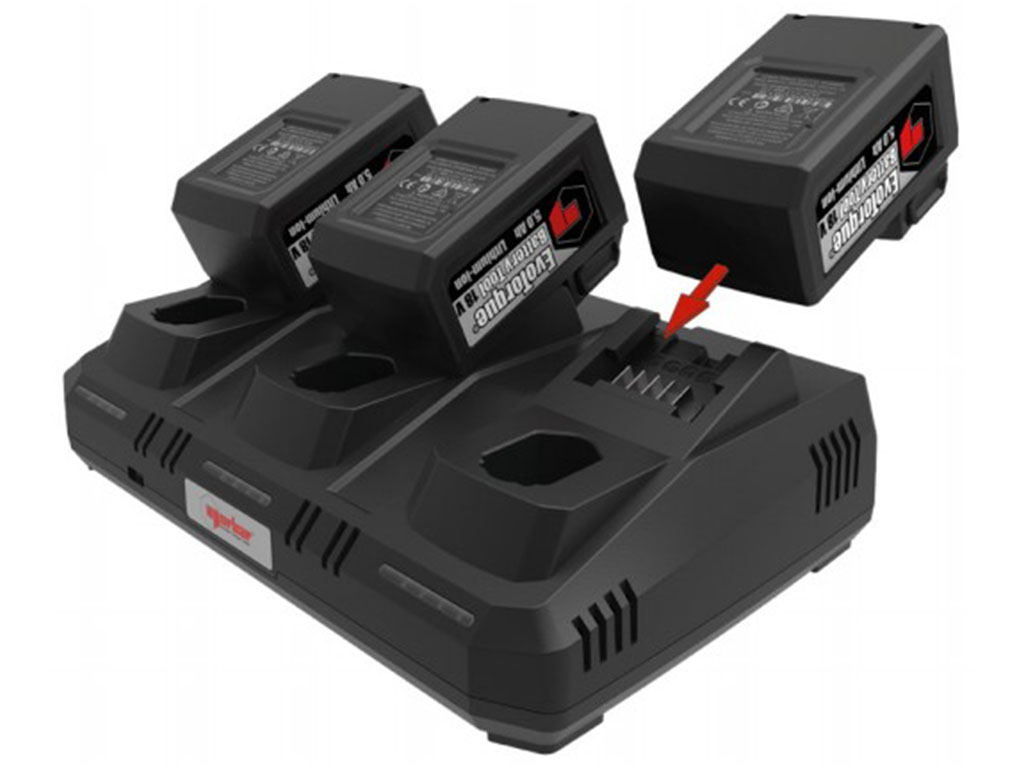

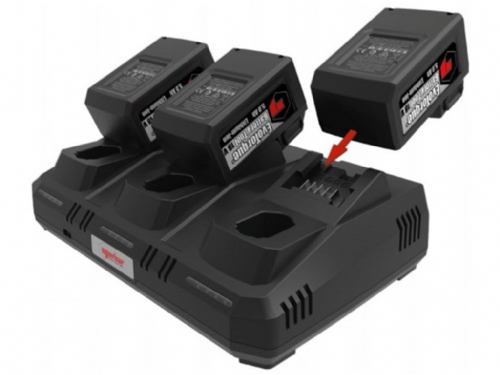

- 1 x Quick charger (60335.Kit)
- 1 x Manual instruction
- 1 x Free EvoLog PC software
Norbar Evotorque Battery Tool Torque Wrench - PDF
Norbar Evotorque Battery Tool Torque Wrench Declaration of Conformity - PDF
Norbar Evotorque Battery Tool Torque Wrench Oparator's Manual - PDF
