Juwel TES 505 Electric Torque Wrench
5000 N.m Electric Torque Wrench, ±%3.5, Square Drive 1.1/2“
| Part No | 50 505 140 |
| Model | TES-505 |
| Accuracy | ±%3.5 |
| Torque Range | 700 - 5000 N.m |
| Drive | 1.1/2" Square |
| Operation Dir. | Clockwise & c.clockwise |
| Operation Pos. | Vertical |
| Max. Revolution | 3 rpm |
| Power Supply | Electricity |
| Calibration | Supplied with the tool |
| Brand - Origin | Juwel / Germany |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Tightening & loosening capacity up to 12.000 Nm
- Accuracy up to ±3.5% with cut off system
- Analog control with 200 different torque settings
- Tool stops when selected torque value reached
- 2 speed gear mechanism for slow & fast operations
- Supplied with a Juwel house calibration certificate.
- Both 220 and 110 volt operation power available
- Freely rototable gearbox enables ergonomic use
- Technichal support & calibration service in Turkey
Technical Specifications
TES Series Heavy Duties Electric Torque Wrenches
| Part No. | Model | Torque Range | Drive (A) | Idle Speed | Sizes (mm) | Weight | ||
| # | # | N.m | inch | r/m (rpm) | H | C | D | Kg |
| 50 245 120 | TES-245 | 360 - 2500 | 1” | 10 | 570 | 75 | 99 | 10.6 |
| 50 355 130 | TES-355 | 360 - 3500 | 1.1/2” | 9 | 580 | 95 | 99 | 11.5 |
| 50 505 140 | TES-505 | 700 - 5000 | 1.1/2” | 3 | 63 | 95 | 99 | 13.7 |
| 50 605 150 | TES-605 | 816 - 6000 | 1.1/2” | 6.5 | 615 | 110 | 135 | 16.9 |
| 50 905 160 | TES-905 | 1024 - 10000 | 1.1/2” | 2.5 | 660 | 110 | 135 | 20.5 |
| 50 915 170 | TES-1205 | 1400 - 12000 | 1.1/2” | 2 | 660 | 115 | 172 | 29 |
- Available from 200 to 15,000 Nm
- Freely turning drive unit
- Quick and precise
- 2-step gear ri./le.
- 200 torque settings
- Modular build with bearings for continuous use
- With a torque deactivation system with an accuracy of +/- 3.5% at consistent screwing application
- Quick, precise, safe and low-noise
- Devices available in 230 Volt and 110 Volt versions
- Newly designed drive motor characterised by its robust and maintenance-friendly structure as well as by high performance reserves
- Right- and left-ward rotation and a 2-step gear; adjustable with 200 torque settings
- Any position of the operating unit possible; drive motor can be freely turned by 360°, which ensures comfortable positioning of the device on the screw connection
- Can optionally be either with a load release. This leads to independent loosening of the torsion between the push-on socket and the support. The drive motor briefly turns into the opposite direction for this. This option is indispensable for short assembly times and offers best work safety.
Juwel TES Series Electric Torque Wrenches PDF

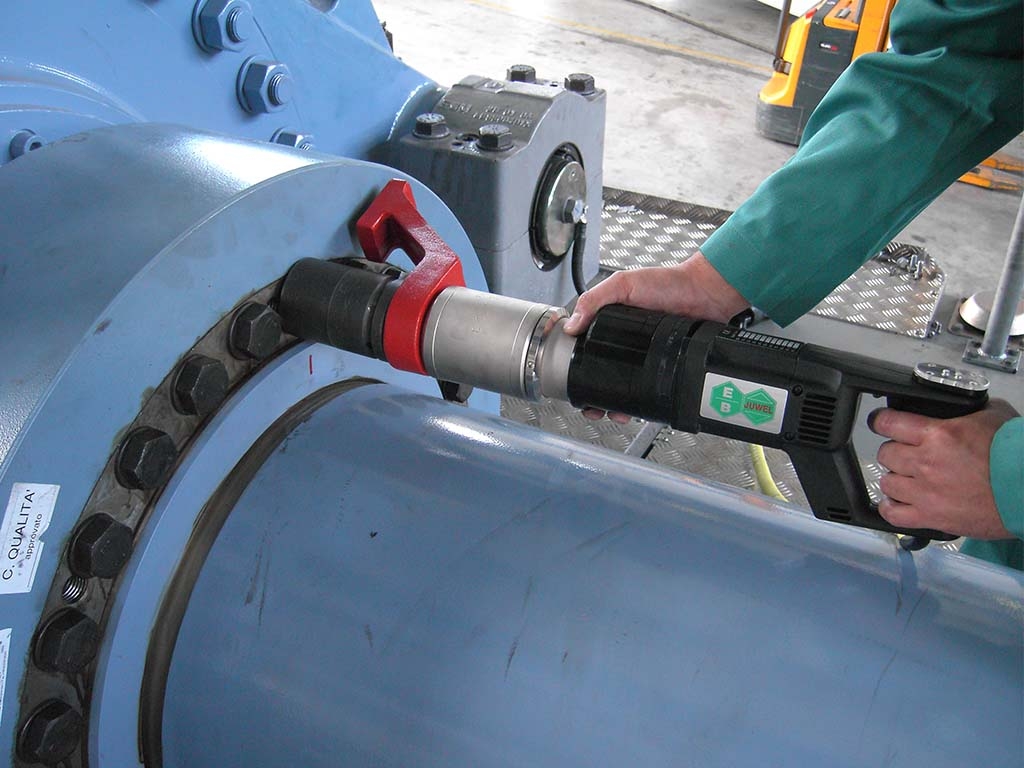

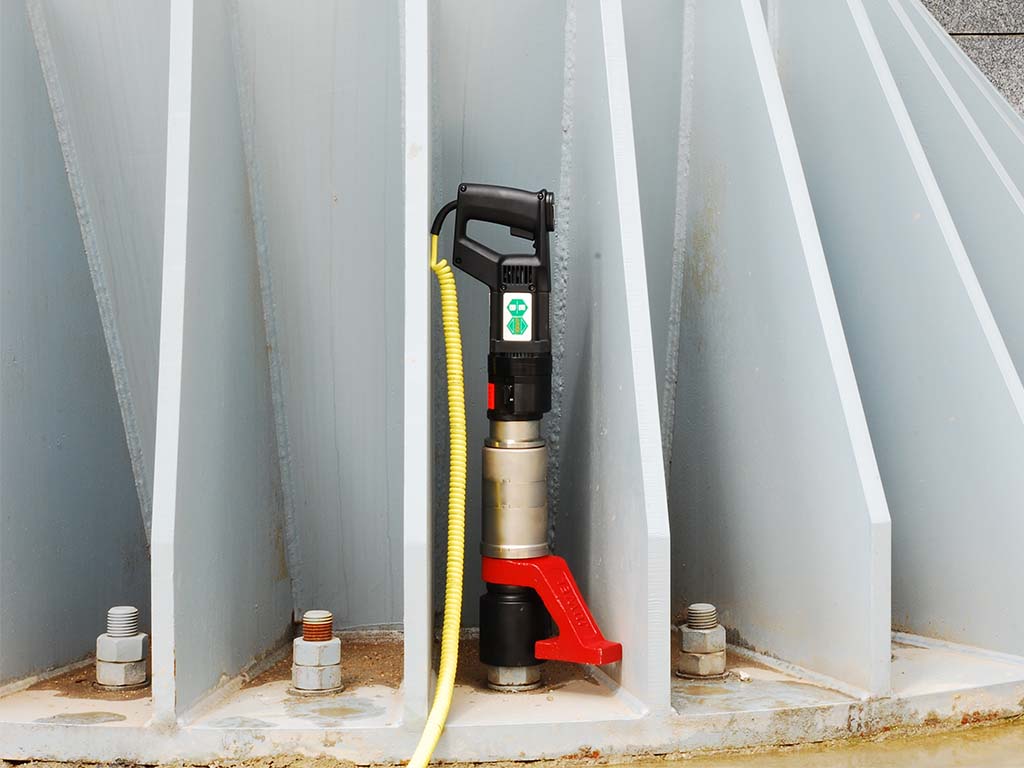

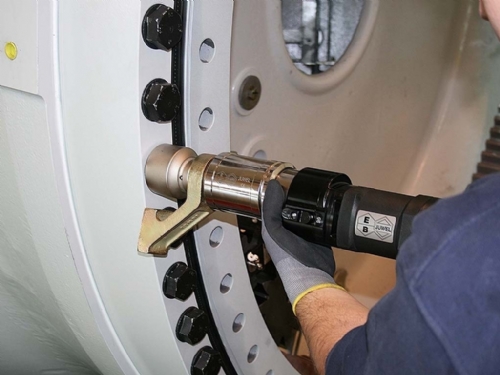

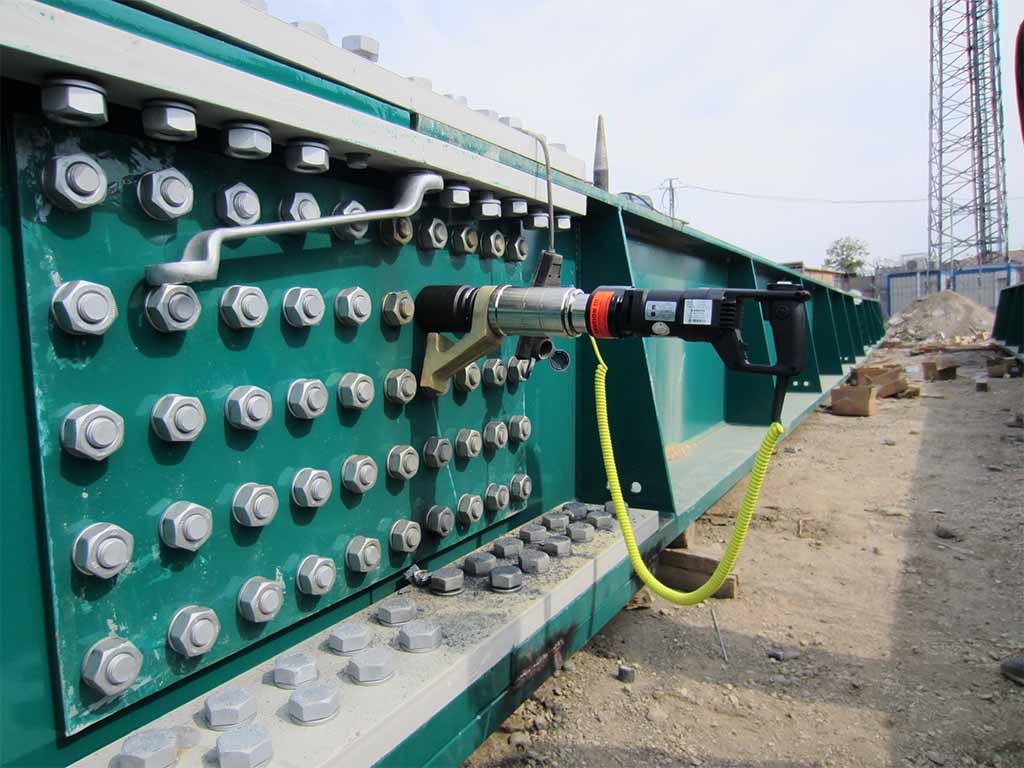

Photos
