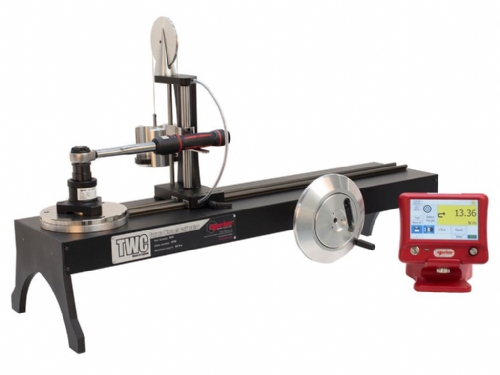

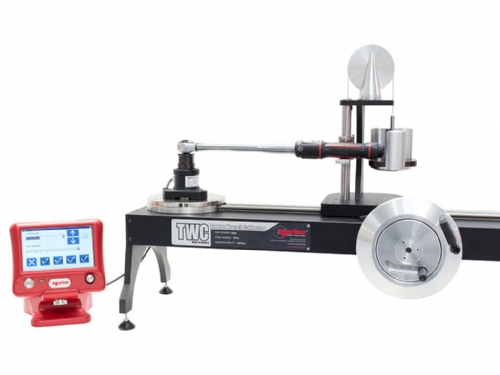

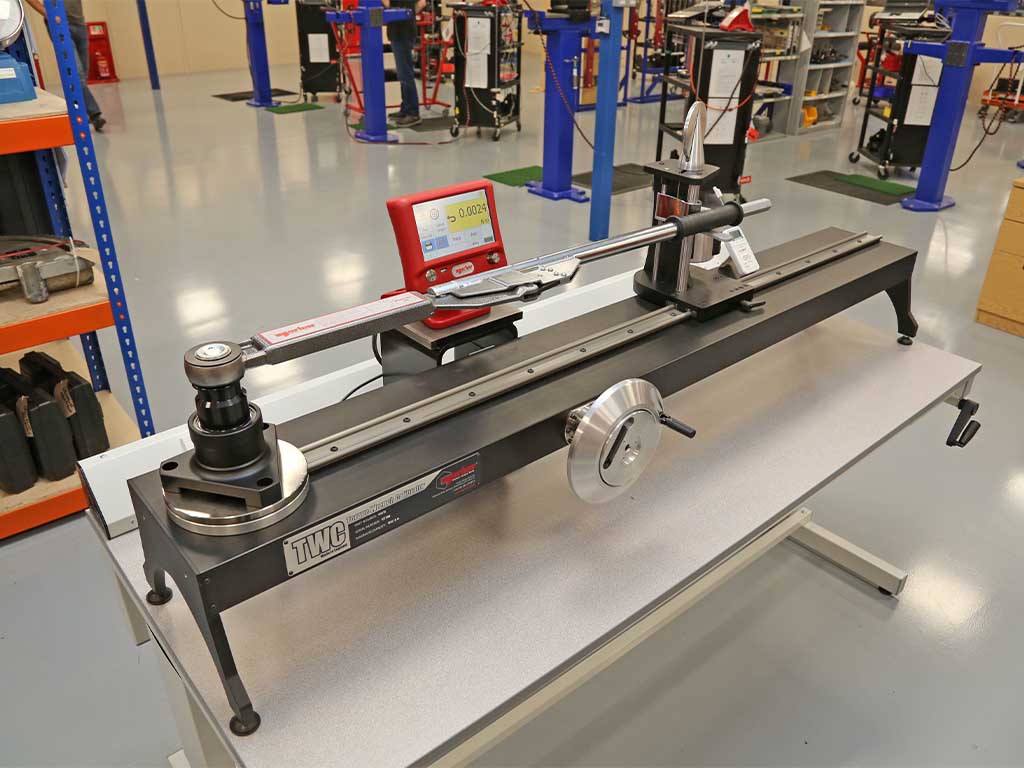

Norbar TWC-400M Torque Wrench Calibrator
400 Nm Manual Torque Wrench Calibrator, Accuracy ±%0.5
| Tool code | 60331 |
| Operates between | 0 - 400 N.m |
| Mechanism | Manual |
| ISO 6789:2017-1 | Compliance |
| ISO 6789:2017-2 | Compliance |
| Accuracy | ±0.5% - [20% - 100% ] |
| Reductor | Two speed |
| Transducer | Static and Flange |
| Display | T-Box XL 3.0 |
| Software | TDSM 4.0 |
| Tool weight | 35 kg |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Accuracy of torque sensors ±0.5%, Class 1
- Torque measurement verification capacity 1 - 400 N.m
- Suitable for click, cam, dial and electronic torque wrenches
- Meets ISO EN DIN 6789-2: 2017 calibration standard
- Smart static transducer or optional FMT tranducer
- Two speed gearbox design for sufficient balance speed
- Counterbalance reaction system for supporting the weight
- Minimizes parasitic force effects that reduced uncertainty
- Lightweight alloy construction for easily transportation
Norbar TWC-400M Manual Torque Wrench Calibrator (0 - 400 Nm)
The Norbar Torque Wrench Calibrator is designed to perform accurate calibrations of Click, Cam, Dial and Electronic torque wrench designs in accordance to ISO 6789:2017.

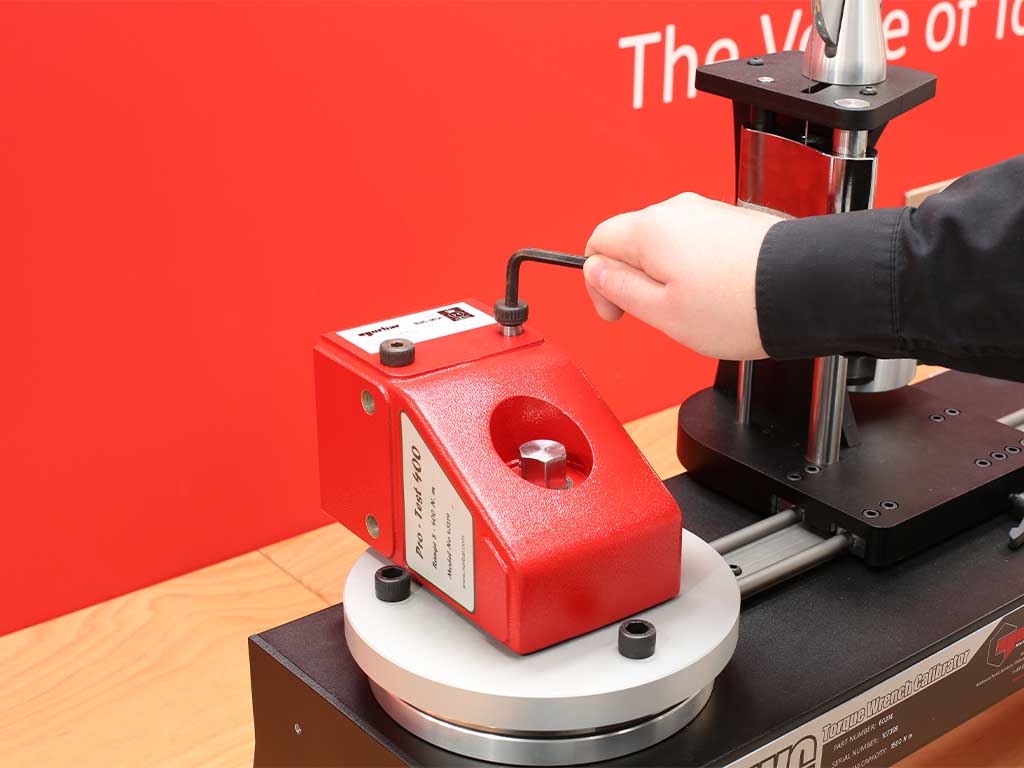

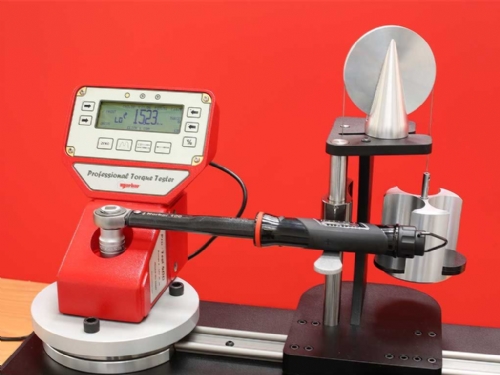

- Compatible transducers include Flange Mounted Transducers, Static Transducers;

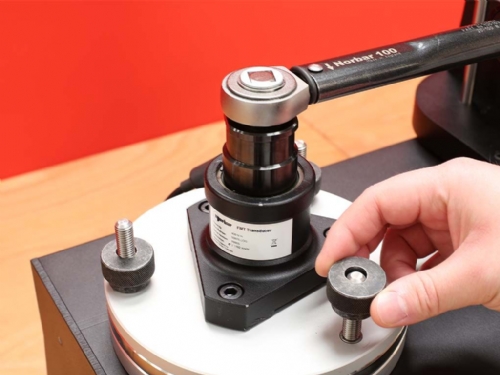

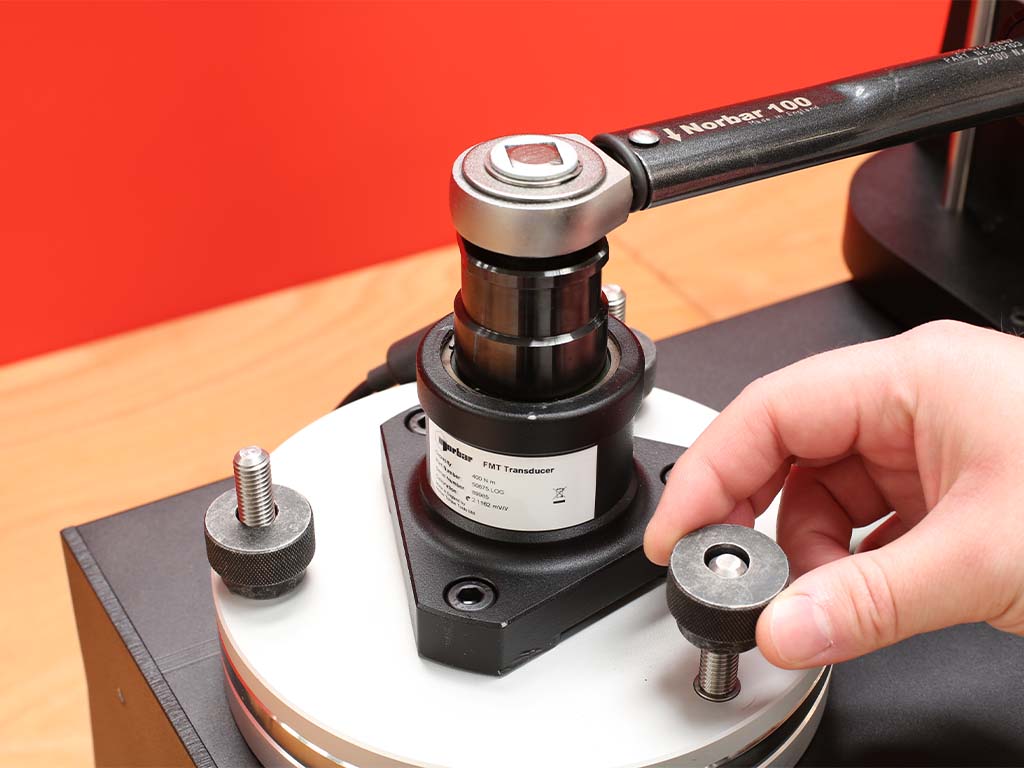

| FLANGE MOUNTED TRANSDUCER OPTIONS | |
|
Part No |
Description |
|
50671.LOG |
0.04 - 2 Nm - FMT Transducer |
|
50672.LOG |
0.5 - 10 N.m - FMT Transducer |
|
50673.LOG |
1.25 - 25 N.m - FMT Transducer |
|
50844.LOG |
3.0 - 60 N.m - FMT Transducer |
|
50674.LOG |
7.5 - 150 N.m - FMT Transducer |
|
50675.LOG |
20 - 400 N.m - FMT Transducer |
.png)
| STATIC TRANSDUCER OPTIONS | |
|
Part No |
Description |
|
50591.LOG |
0.5 - 10 N.m - Static Transducer |
|
50592.LOG |
1.25 - 25 N.m - Static Transducer |
|
50593.LOG |
3.0 - 60 N.m - Static Transducer |
|
50701LOG |
7.5 - 150 N.m - Static Transducer |
|
50596.LOG |
20 - 400 N.m - Static Transducer |
.png)

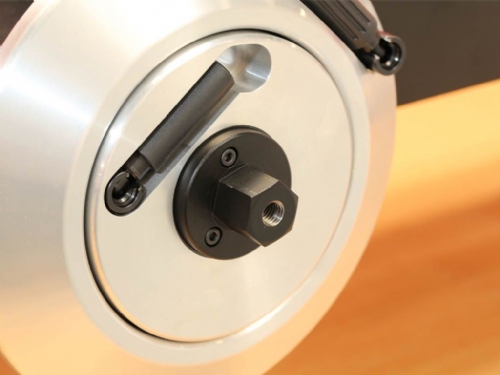

- Two speed gearbox designed for a sufficient balance of speed and control which allows for both fast loading of the torque wrench and a slower more precise loading
- During calibration, the TWC maintains a fixed position on the handle of the torque wrench

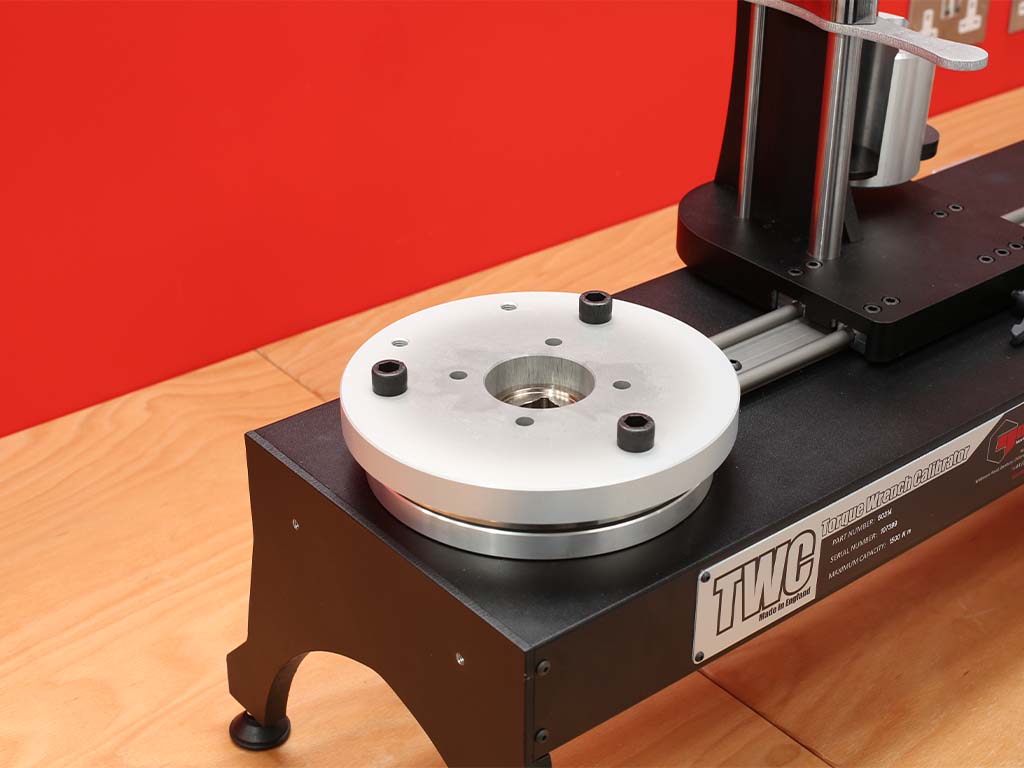

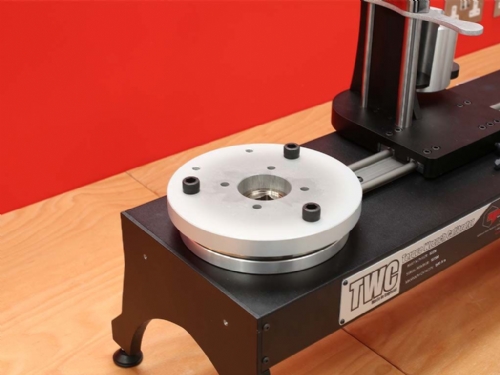

- Rotating transducer design ensures that the load is applied 90° to the torque wrench handle. The benefit of this precise alignment is that forces are applied squarely to the load point of the handle
- Lightweight alloy construction ensures the TWC is easily transported, making it well suited for mobile laboratory applications
- Can produce certification to ISO 6789-2:2017 when used with T-Box XL™ software version 3.0.0.X and TDMS version 4.0.X

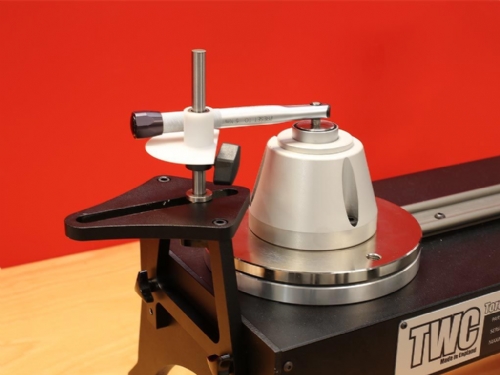

- Counterbalance reaction is designed to support the weight of the wrench so that the weight does not become a parasitic force within the calibration system. The floating nature of the support means that the wrench is able to find its own natural level rather than being constrained as in many other loading devices. Any such constraint will be a parasitic force within the system (Patents apply)
