Norbar 16089.HD Torque Multiplier

1700 N.m Torque Multiplier, Ratio 25:1, Input 1/2“, Output Square Drive 1“

Product Code 16089.HD
Capacity (max) 1700 N.m
Capacity (min) 170 N.m
Ratio 25:1
Accuracy ±4%
Input square 1/2"
Output square  1"
Tool weight 6.7 kg
AWUR Yes
Accredited calibration Available on option
Manufactured In England
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
932064
Verify Security Code:

Features
  • Accuracy  guaranteed better than ±4%,
  • 23 models 1700/6000 N.m
  • Torque multiplication 5:1 - 125:1
  • Single and multi-stage planet gear system
  • Clockwise and counter clockwise operations
  • Small, compact and aesthetics desing
  • High ratios allow the use of a small torque wrench
  • Robust construction, longlife, maintenance free
  • Fitted with Anti Wind-Up Ratchet (AWUR)
  • Heavy duty is ideal for inclusion in the tool kit
  • UKAS accredited calibration may be ordered

Kit Components

  • 1x Torque multiplier
  • 1x Sliding type reaction foot
  • 1x Replacement Square Drive
  • 1x Instruction Manual
  • 1x Plastic carry case
Technical Specifications

Standart Series Torque Multipliers - Anti Wind Up Ratched

Part Torque Range Ratio Input Square Output Square Weight Sizes (mm)
No. N.m Lbf.ft # Inch Inch Kg H L R2 min. R2 max
16088 170-1700 125-1250 25:1 1/2” 3/4” 5.5 - - - -
16089.HD 170-1700 125-1250 25:1 1/2” 1” 6.7 114 303 83 216
16090 340-3400 250-2500 25:1 1/2” 1” 7.5 132 355 86 263
16092 340-3400 250-2500 25:1 1/2” 1.1/2” 7.5 134 355 86 263
16093 340-3400 250-2500 125:1 1/2” 1.1/2” 9.0 159 355 86 263
16091 340-3400 250-2500 125:1 1/2” 1" 9.0 - - - -
16065 600-6000 450-4500 25:1 1/2” 1.1/2” 10.7 162 162 150 331
16068 600-6000 450-4500 125:1 1/2” 1.1/2” 12.2 188 188 150 331

Standart Series Torque Multipliers-Non- Anti Wind Up Ratched
Part Torque Range Ratio Input Square Output Square Weight Sizes (mm)
No. N.m Lbf.ft # Inch Inch Kg H L R2 min. R2 max
16010 170-1700 125-1250 5:1 1/2” 3/4” 3.0 108 303 83 216
16012.HD 170-1700 125-1250 5:1 3/4” 1” 3.2 108 303 83 216
16034.HD 170-1700 125-1250 25:1 1/2” 1” 2.2 108 303 83 216
16030 170-1700 125-1250 5:1 1/2" 1" 3.2 - - - -
16014 340-3400 250-2500 5:1 3/4” 1” 4.7 119 355 86 263
16028 340-3400 250-2500 25:1 1/2” 1” 6.4 119 355 86 263
16016 340-3400 250-2500 5:1 3/4” 1.1/2” 4.7 119 355 86 263
16024 340-3400 250-2500 25:1 1/2” 1.1/2” 6.4 119 355 86 263
16064.75 340-3400 250-2500 75:1 1/2” 1” 7.9 - - - -
16064 340-3400 250-2500 125:1 1/2” 1” 7.9 - - - -
16067 600-6000 450-4500 5:1 3/4” 1.1/2” 8.1 136 423 150 331
16018 600-6000 450-4500 25:1 1/2” 1.1/2” 9.6 157 423 150 331
16068.75 600-6000 450-4500 75:1 1/2” 1.1/2” 11.1 - - - -
16044 600-6000 450-4500 100:1 1/2" Hex 1.1/2” 11.6 - - - -

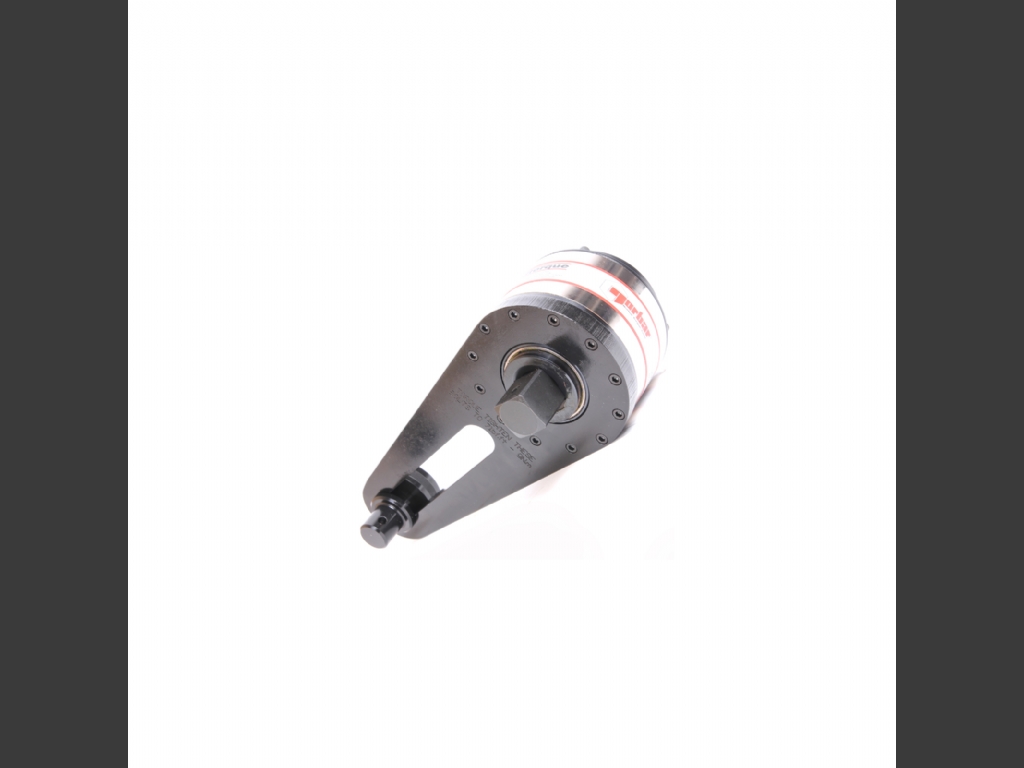

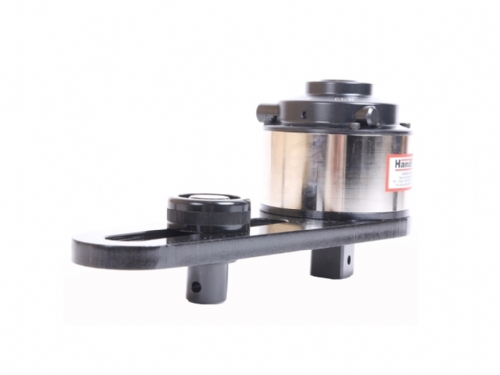

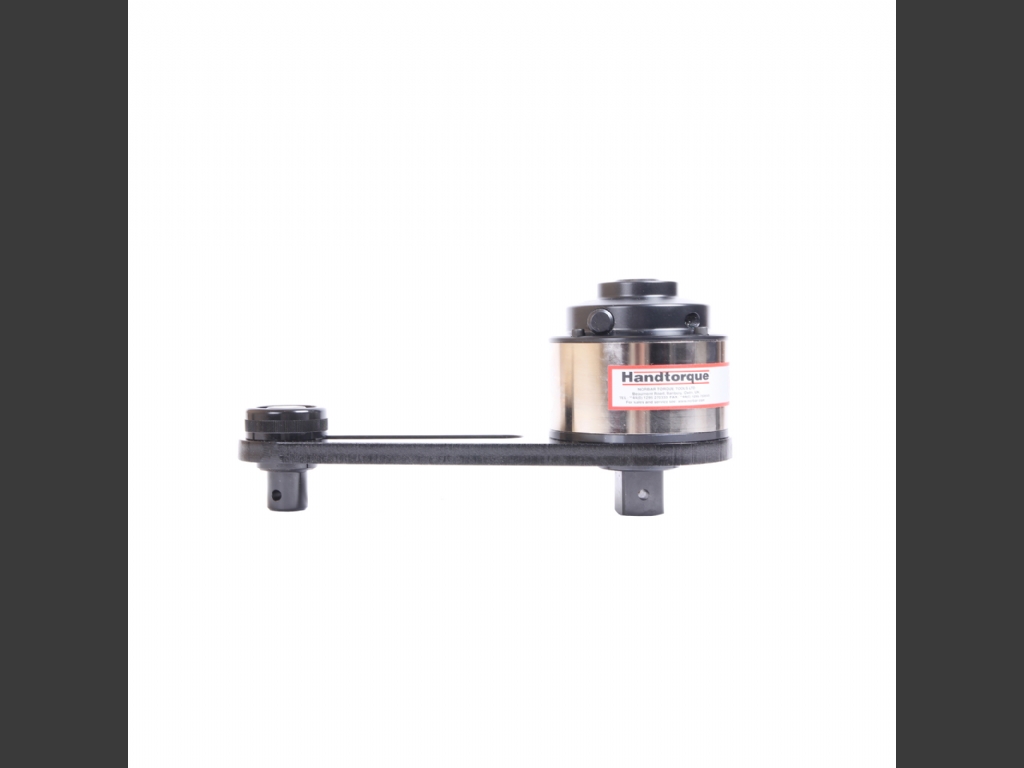

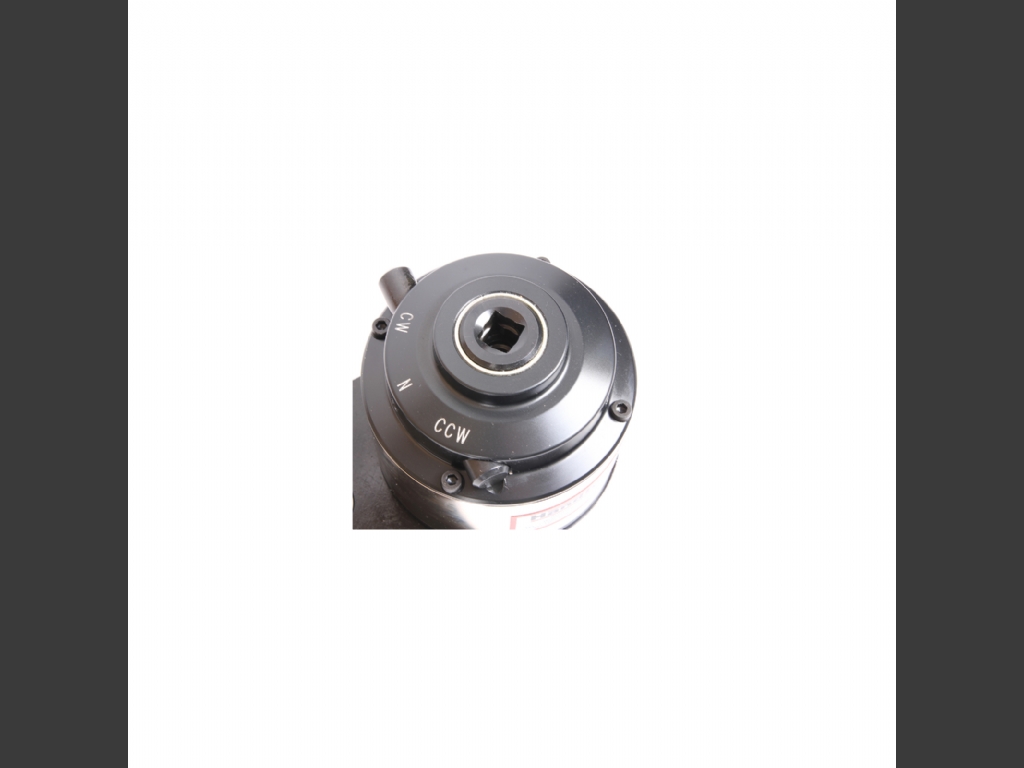

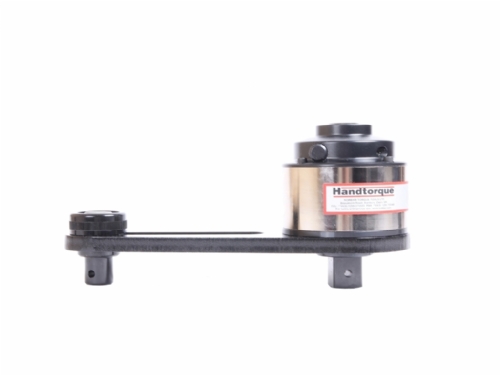

Photos
