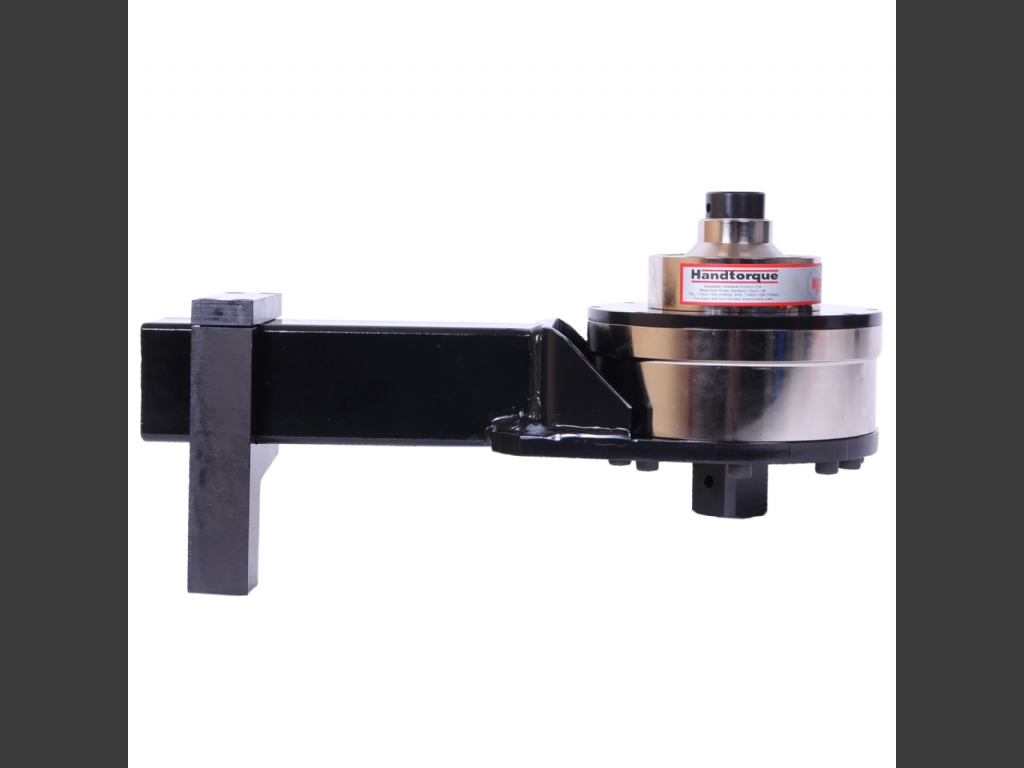

Norbar 16071 Torque Multiplier

9500 N.m Torque Multiplier, Ratio 125:1, Input 1/2“, Output Square Drive 1.1/2“

Product Code 16071
Capacity (max) 9500 N.m
Capacity (min) 950 N.m
Ratio 125:1
Accuracy ±4%
Input square 1/2"
Output square  1.1/2"
Tool weight 18.9 kg
AWUR Yes
Accredited calibration Available on option
Manufactured In England
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
211056
Verify Security Code:

Features
  • Accuracy  guaranteed better than ±4%,
  • 7 different models between 950 – 47500 Nm
  • 25:1 - 125:1 torque multiplication range
  • Single and multi-stage planet gear system
  • Suitable for clockwise and counter clockwise
  • Small, compact and aesthetics desing
  • High ratios allow the use of a small torque wrench
  • Robust construction, dont need maintenance
  • Anti Wind-Up Ratchet (AWUR) fitted to allow safer
  • Heavy duty is ideal for inclusion in the tool kit
  • UKAS accredited calibration may be ordered

Kit Components

  • 1x Torque multiplier
  • 1x Sliding type reaction foot
  • 1x Replacement Square Drive
  • 1x Instruction Manual
  • 1x Plastic carry case

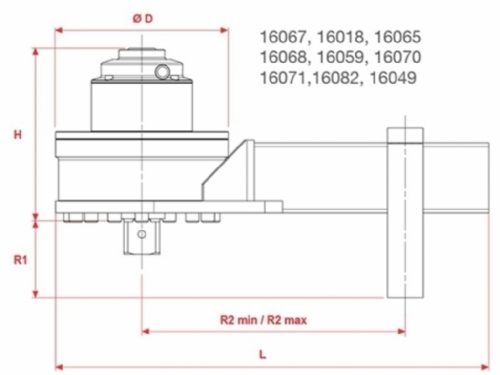

Technical Specifications
Part Torque Range Ratio Locked Input Square Output Square Weight Sizes (mm)
No. N.m Lbf.ft # # Inch Inch Kg H L R2 min. R2 max
16059 950-9500 700-7000 25:1 - 3/4” 1.1/2” 16.3 166 448 175 351
16070 950-9500 700-7000 25:1 AWUR 3/4” 1.1/2” 17.4 162 448 175 351
16071 950-9500 700-7000 125:1 AWUR 1/2” 1.1/2” 18.9 182 448 175 351
16082 2000-20000 1470-14700 25:1 - 3/4” 2.1/2” 31.7 208 609 320 500
16049 2000-20000 1470-14700 125:1 AWUR 1/2” 2.1/2” 32.1 235 609 320 500
18085 3400-34000 2500-25000 87.5:1 AWUR 3/4” 2.1/2” 41.5 281 325 - -
16053 4750-47500 3500-35000 125:1 AWUR 3/4” 2.1/2” 95.2 322 341 - -

AWUR : Anti Wind Up Ratchet (Return Lock System).
