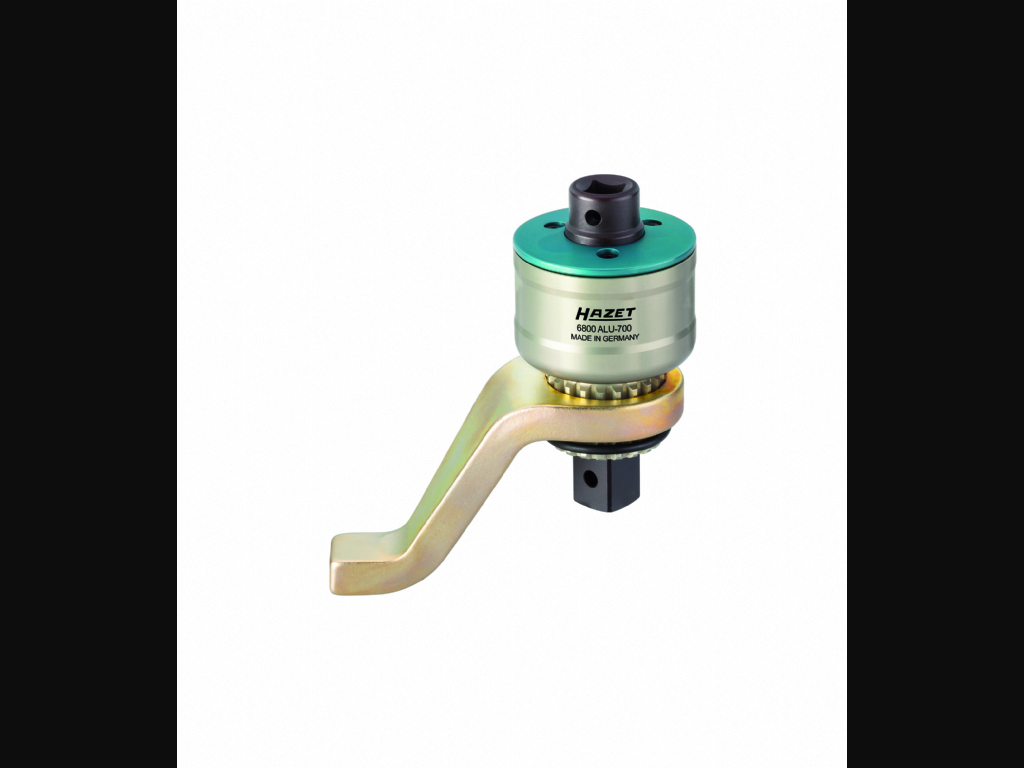

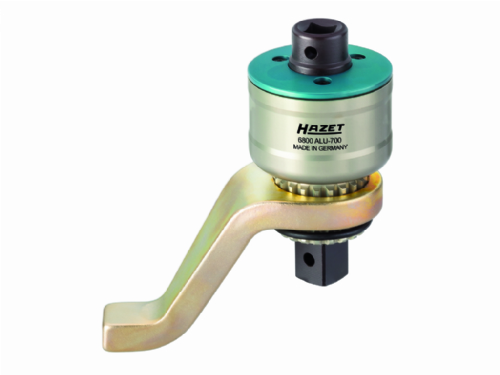

Hazet 6800 ALU-700 Torque Multiplier

700 N.m Hazet Torque Multiplier, Ratio 3.5:1, Input 1/2“, Output Square Drive 3/4“

Product Code 6800 ALU-700
Capacity 1400 N.m
Ratio 3.5:1
Accuracy ±5%
Input square 1/2"
Output square  3/4"
Tool weight 1.6 kg
AWUR Yes
Calibration On option
Manufactured  By Hazet
Made in  Germany
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
866939
Verify Security Code:

Features
  • Accuracy  ±5%
  • 4 models 700, 1400 , 2800 N.m
  • Torque multiplication 3.5:1 ~ 11:1
  • AWUR available only by 2800 N.m

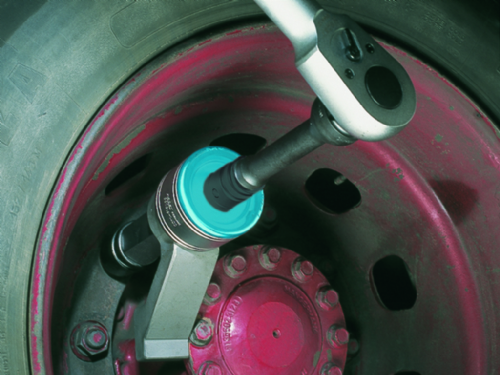

  • Specially designed for truck wheels
  • Single -multi - stage planet gear
  • Robust construction, Longlife
  • Both CW and CCW operations
  • Easy access for narrow spaces
  • Light weight, maintenance free
  • Calibration available on option

Kit Components

  • 1 x Torque multiplier
  • 1 x Cranced reaction arm
  • 1 x Shear pin
  • 1 x User manual
  • 1 x Torque table
  • 1 x Plastic carry case
Technical Specifications

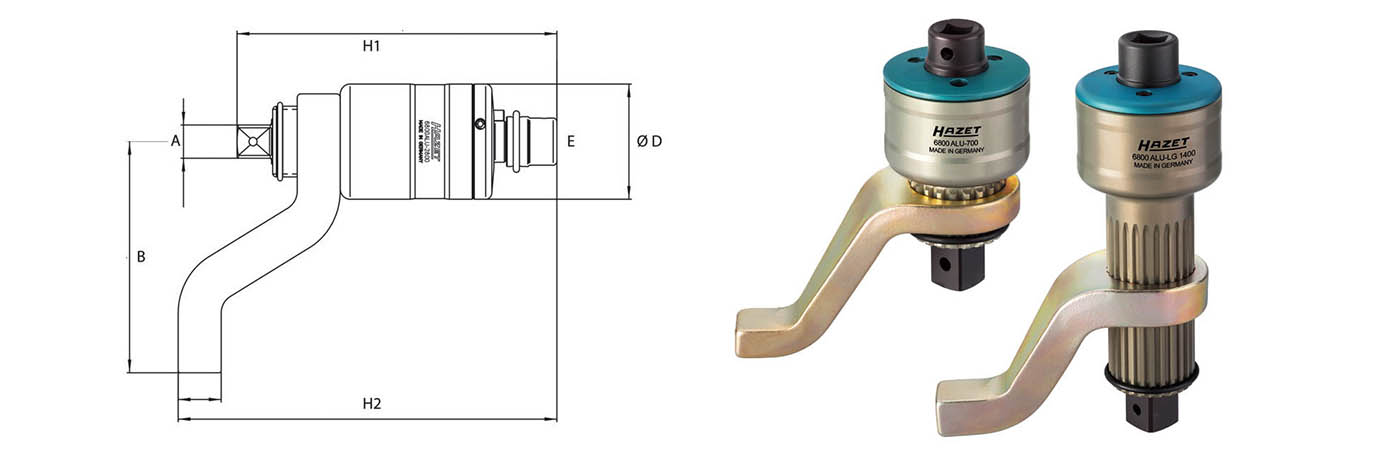

Hazet Aluminium Torque Multiplier Technichal Data

Part Torque Range Ratio Input Square Output Square Lenght Diameter
No. N.m # Inch Inch mm mm
6800 ALU -700 700 3.5:1 1/2" 3/4” 125 67
6800 ALU-1400 1.400 3.5:1 3/4" 1” 172 88
6800 ALU- Lg 1400 1.400 3.5:1 3/4" 1” 252 88
6800 ALU-2800 2.800 11:1 3/4" 1" 260 88
