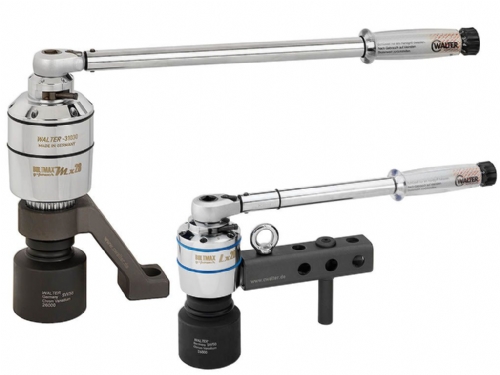

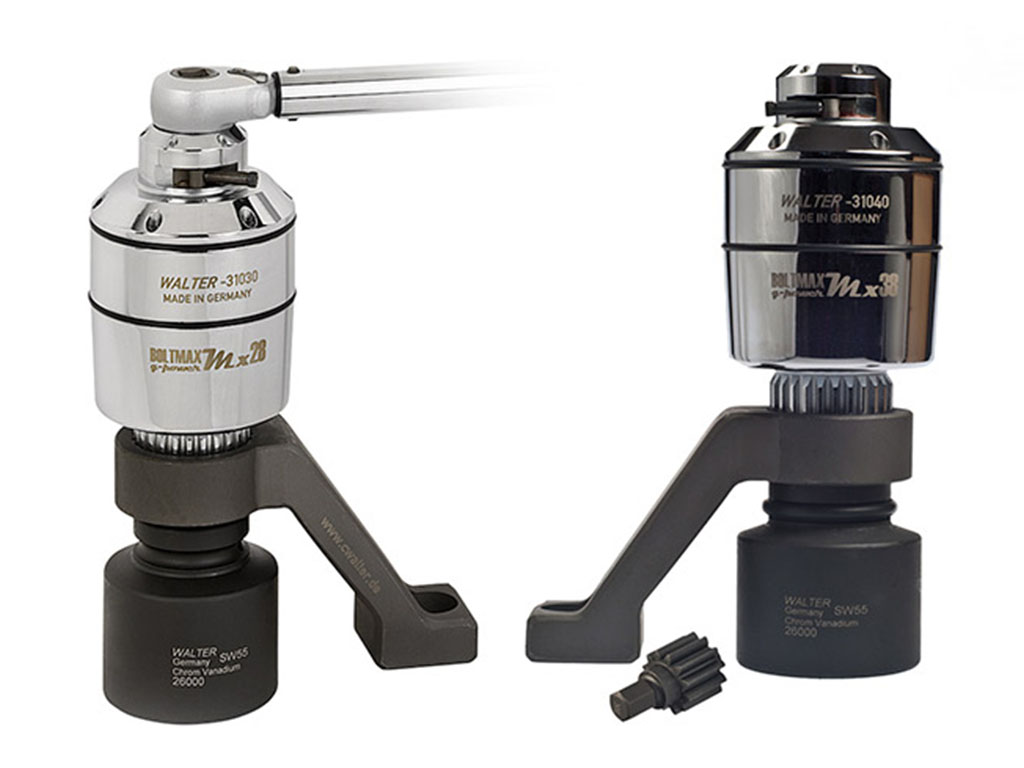

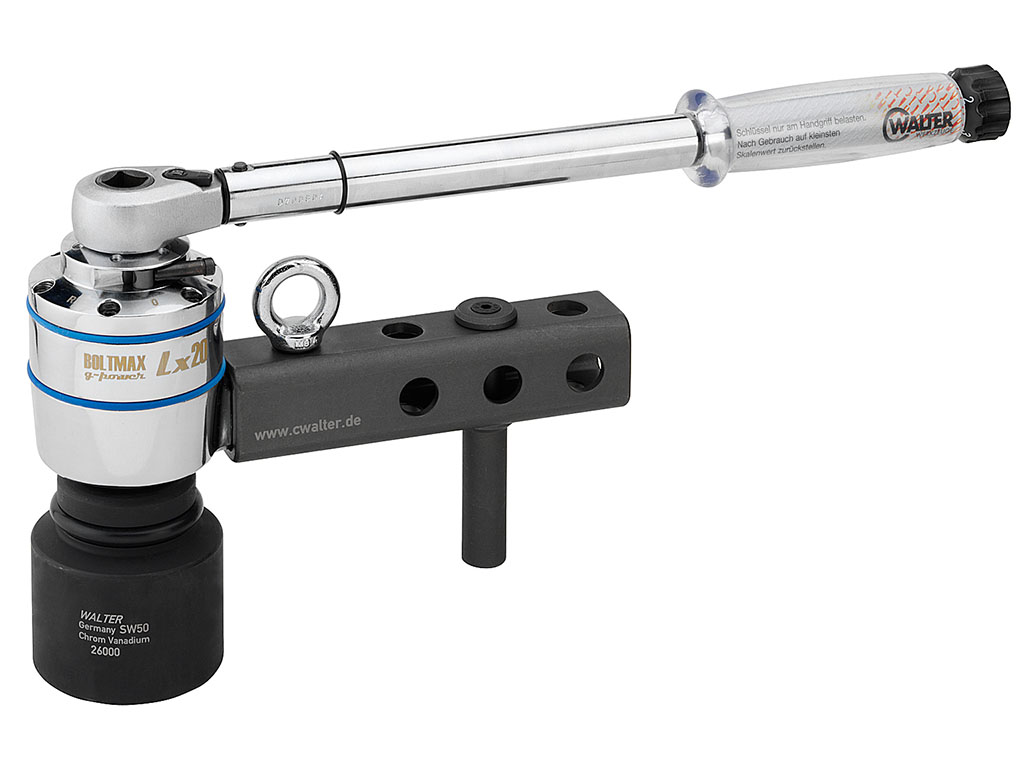

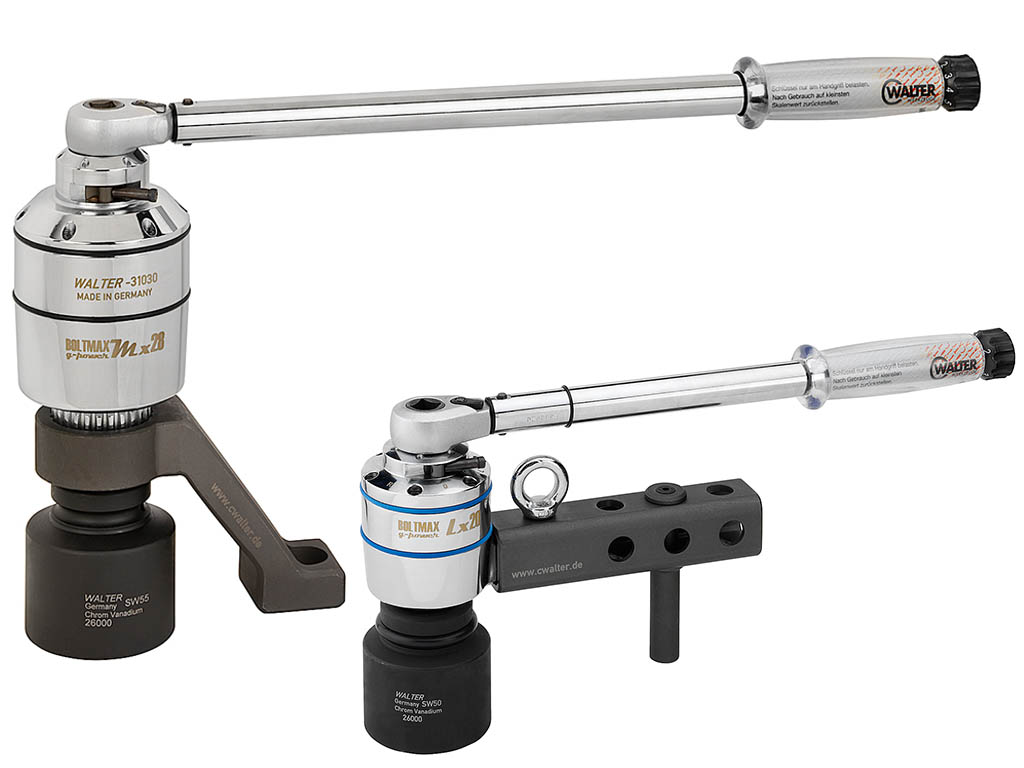

Boltmax MX38 Torque Multiplier

3.800 N.m Boltmax Torque Multiplier, Ratio 13:1, Input 1/2“, Output Square Drive 1“

Product Code MX38
Capacity 3.800 N.m
Multip. Ratio 13:1
Accuracy ±5%
Input square 1/2"
Output square  1"
Tool weight 5.2 kg
AWUR Yes
Calibration On option
Manufactured In Germany
Manufacturer Carl Walter GmbH



Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
174099
Verify Security Code:

Features
  •  Accuracy  ±5%,
  • 8 models  800 / 16000 N.m
  • Torque multiplication 3.5:1 ~ 75:1

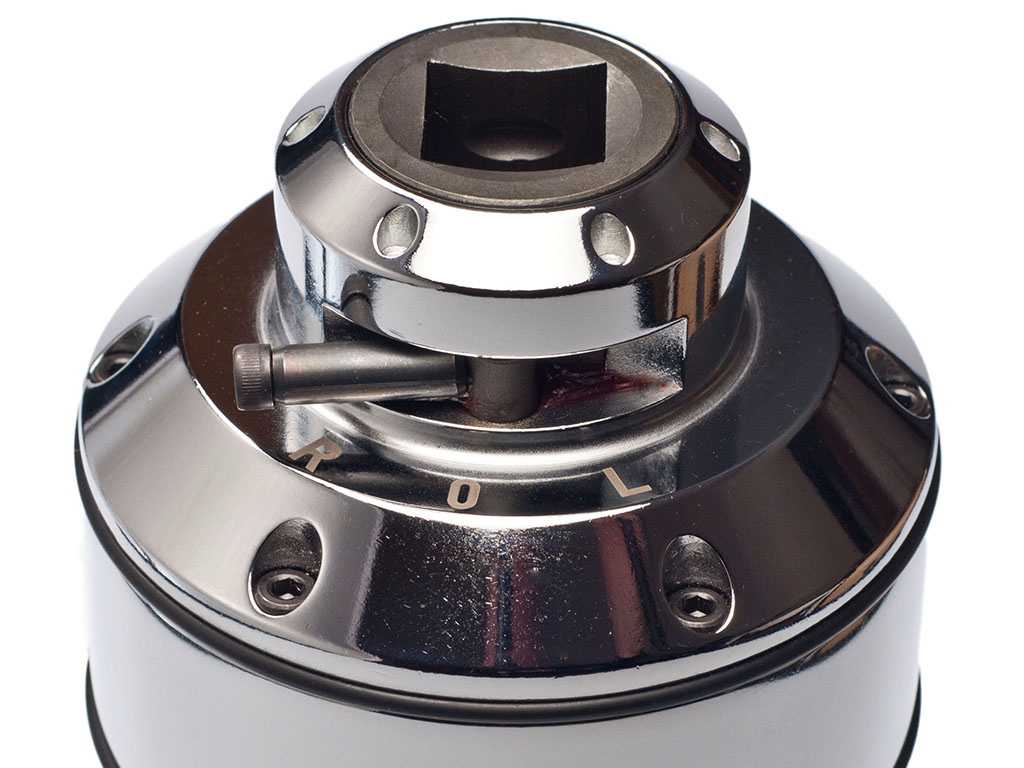

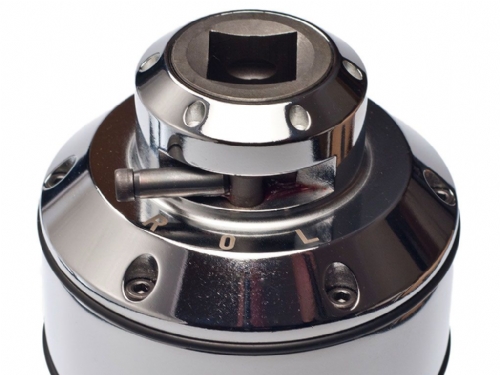

  • Fitted with anti wind-up ratchet
  • Robust construction, Longlife
  • Maintenance free, ergonomic use
  • Single & multi - stage planet gear
  • Both CW and CCW operations
  • Easy access for narrow spaces
  • Calibration available on option

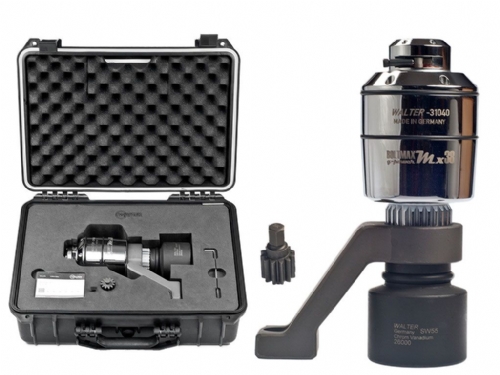

Delivery kits includes:

  • Torque multiplier
  • Cranced reaction arm
  • Spare shear pin
  • User manual EN- DE
  • Bolt Quality torque table
  • Maltipication torque table
  • Plastic carry case

Technical Specifications

Boltmax Mechanichal Torque Multipliers

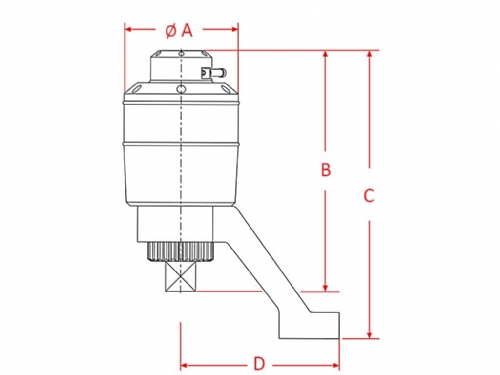

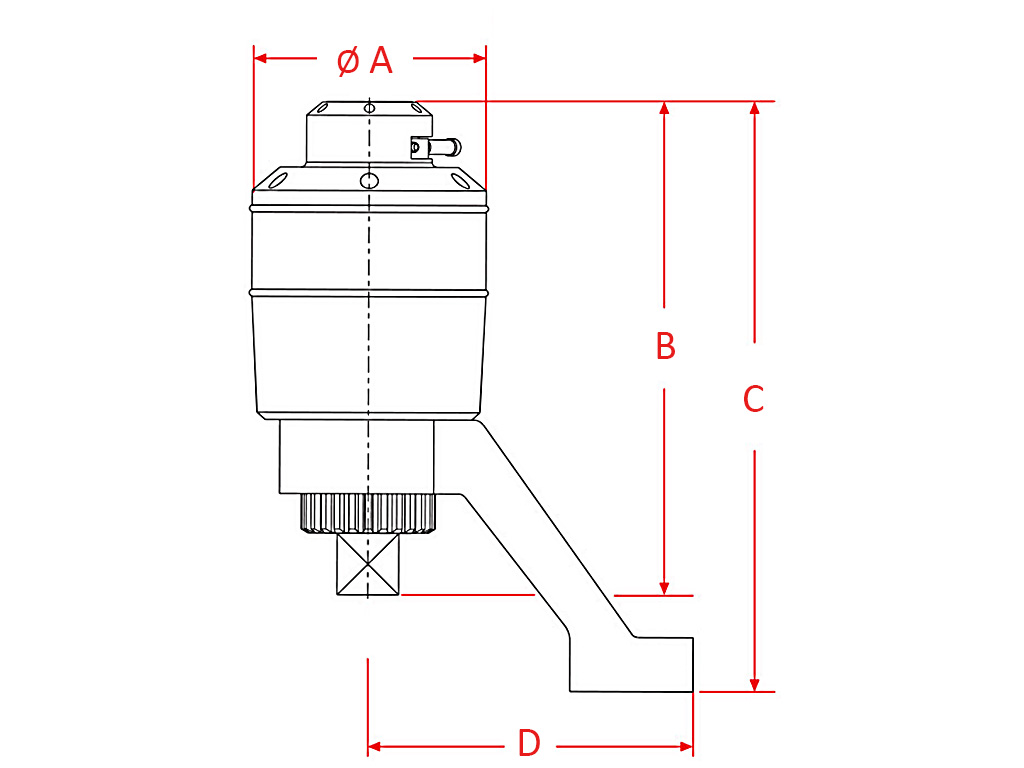

Part Torque Range Ratio Locked Input Square Output Square Weight Sizes (mm)
No. N.m # # Inch Inch kg A B C D
Mx8 800 3.5:1 - 1/2" 3/4" 1.3 65 105 132 130
Mx18 1800 3.6:1 - 3/4" 1" 3.0 90 150 188 132
Mx28 2800 13:1 RS 1/2" 1" 5.2 95 200 240 132
Mx38 3800 13:1 RS 1/2" 1" 5.2 95 200 240 132
Mx50 5000 17:1 RS 1/2" 1.1/2" 7.0 120 215 272 150
Mx80 8000 49:1 RS 1/2" 1.1/2" 11.5 132 268 344 200
Mx120 12000 58:1 RS 1/2" 1.1/2" 14.0 156 272 348 200
Mx160 16000 75:1 RS 1/2" 2.1/2" 26.0 215 292 370 225
