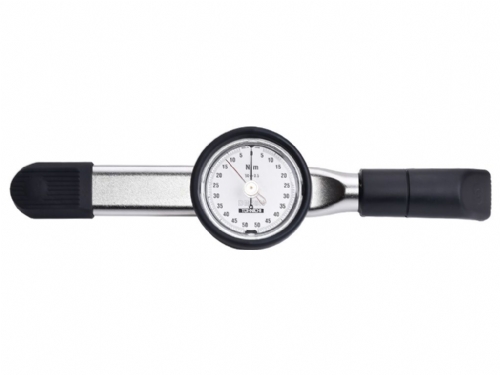

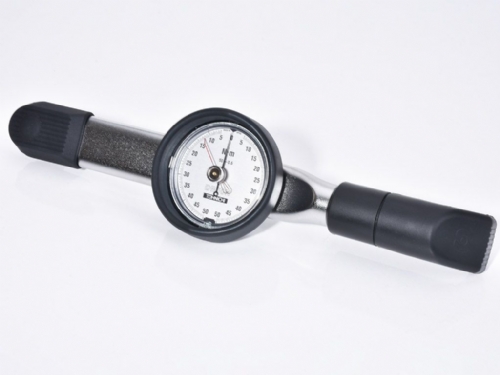

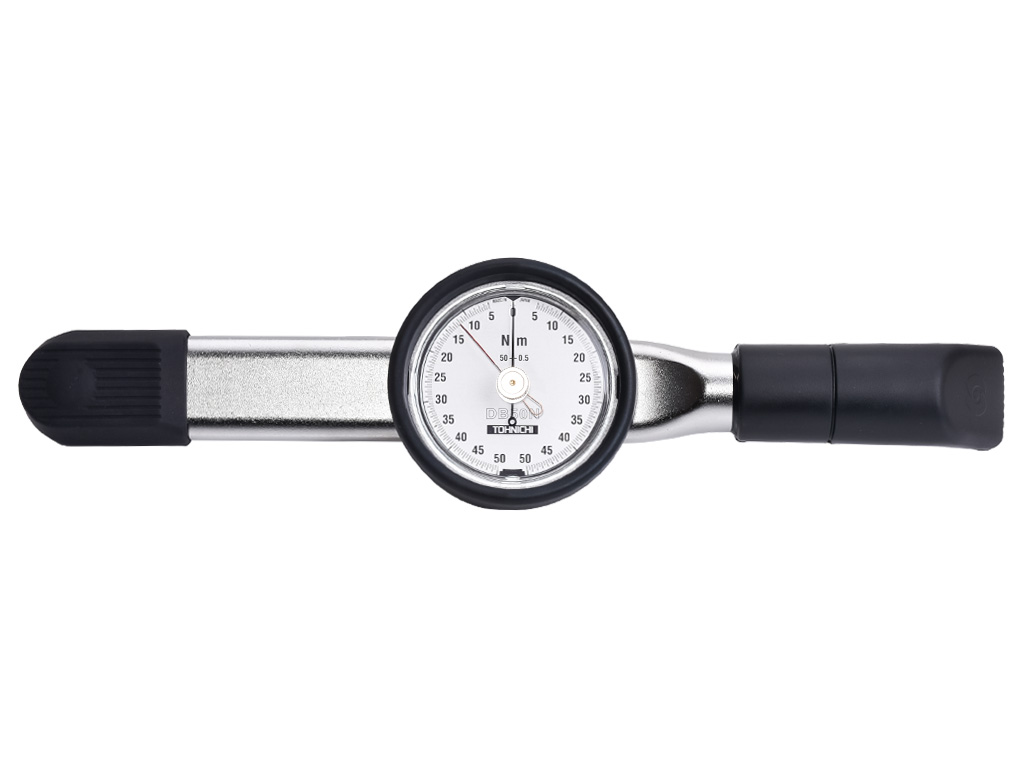

Tohnichi DB50N-S Dial Torque Wrench
Range 5 - 50 Nm [%3 - 3/8“]
| Model No | DB50N-S |
| Cap. Range | 5 - 50 Nm |
| Accuracy | ±%3 |
| Square Drive | 3/8'' |
| Graduation | 0.05 |
| Max. Handforce | 21.21 kg |

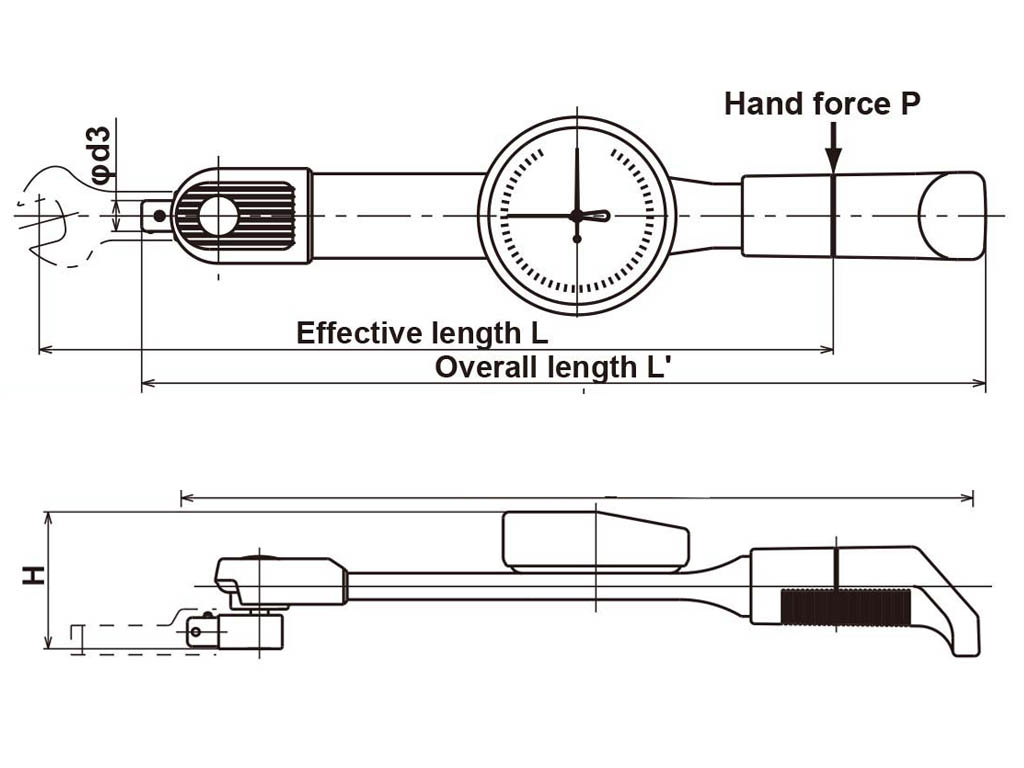

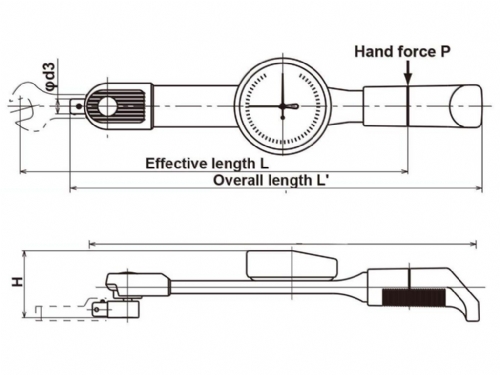

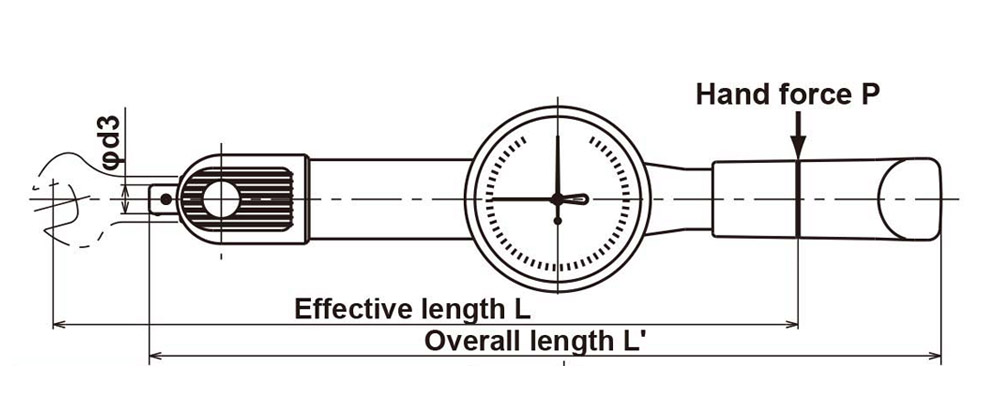

| Effective Length | 240 mm |
| Overall Lenght | 320 mm |
| Dial Diameter | 69 mm |
| Tool Weight | 0.6 kg |
| Brand - Origin | Japan- Tohnichi |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Wide range and high accuracy %3
- Torque ranges 5～50 Nm
- Every model has high graduation
- Metric and Imperial models available
- Ideal for torque quality inspections
- Easy to follow values on the big dial
- DB series are not length dependent
- Equipped with Memory pointer
- Designed for high accuracy
- Compliant with of ISO 6789 Type I Class B.
- Manufactured in Japan by Tohnichi
Technical Specifications
Tohnichi DB50N-S Dial Indicating Torque Wrench
| Model No | Capacity Range | Accuracy | Square Drive | Graduation | Max. Handforce | Dial Diameter | Length | Weight | |
| Units | N.m | % | inch | * | N | kg | ømm | mm | kg |
| DB1.5N4-S | 0.2～1.5 | 3% | 1/4" | 0.02 | 8.8 | 0.89 | 69 | 205 | 0.4 |
| DB3N4-S | 0.3～3 | 3% | 1/4" | 0.05 | 17.6 | 1.79 | 69 | 205 | 0.4 |
| DB6N4-S | 0.6～6 | 3% | 1/4" | 0.01 | 35.6 | 3.59 | 69 | 205 | 0.4 |
| DB12N4-S | 1～12 | 3% | 1/4" | 0.02 | 70.6 | 7.19 | 69 | 205 | 0.4 |
| DB25N - 1/4-S | 3.5～25 | 3% | 1/4" | 0.05 | 125 | 12.74 | 69 | 245 | 0.4 |
| DB25N-S | 3.5～25 | 3% | 3/8" | 0.05 | 125 | 12.74 | 69 | 245 | 0.4 |
| DB50N-S | 5～50 | 3% | 3/8'' | 0.05 | 208 | 21.21 | 69 | 320 | 0.6 |
| DB100N- 3/8-S | 10～100 | 3% | 3/8'' | 1 | 323 | 32.9 | 69 | 400 | 0.7 |
| DB100N-S | 10～100 | 3% | 1/2'' | 1 | 323 | 32.9 | 69 | 400 | 0.7 |
.jpg)
- Wide range and high accuracy
- Dial indicating torque wrench.
- Ideal for torque quality inspections

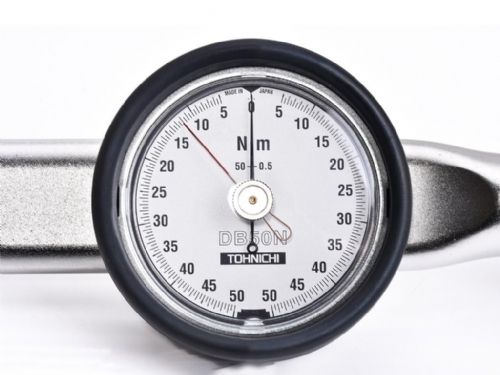

- Easy to ready dial face has follower hand memory pointer that stays on peak torque for convenient reference
- Use for tightening purposes by simply rotating the dial to the desired torque. Completed tightening is achieved when the pointer indicates "0".
- DB is not length dependent. Therefore, accuracy is consistent regardless of where the hand is placed during operation.
- The dial indicator has a full-surround protective cover to prevent damage to external objects (except DB420N, DBE, and DBR series models).
- DB25N to DB280N models have a resin grip. Lowest torque range models have index finger handles designed to guide you to use light hand force to avoid possible over-torque.
- DBE has an extension handle.
- For DBR models, applies load by lever block or winch.
- Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class B.
(3).jpg)
