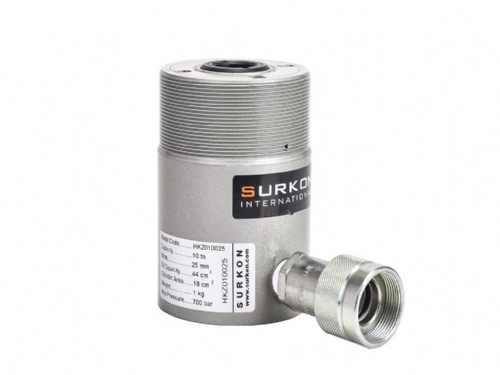

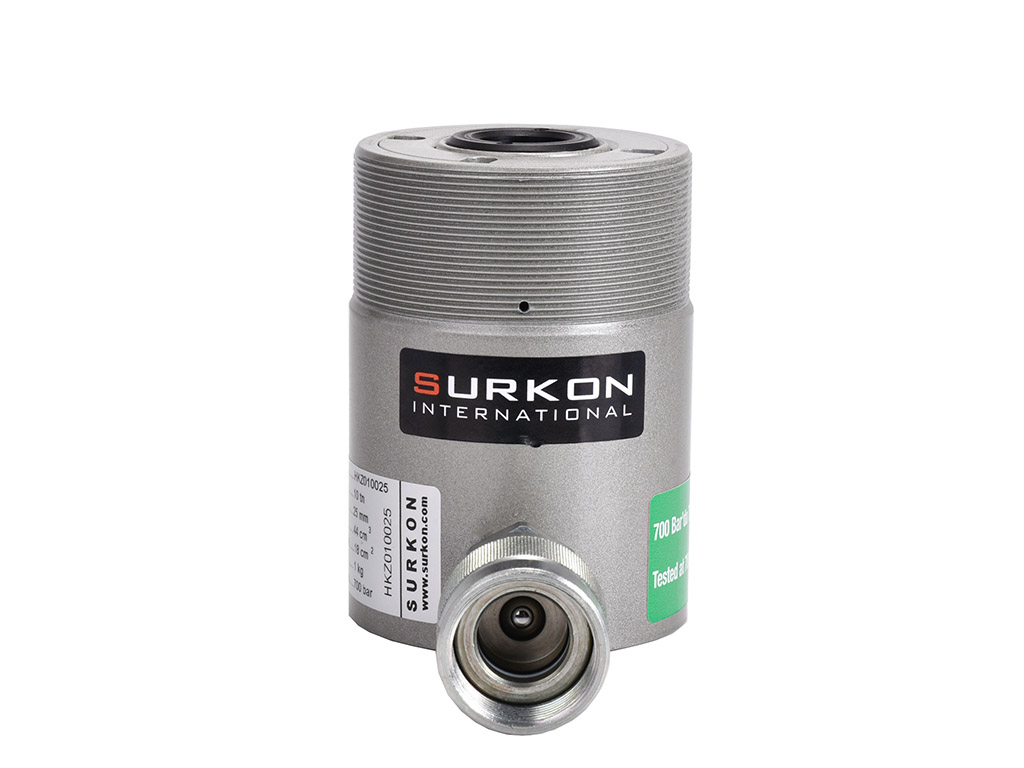

Surkon HKZ010025 Hollow Piston Cylinder

12 ton, 25 mm Stroke, S/A - S/R Hole Diameter Ø21 mm

Model No	HKZ010025
Capacity	12 ton
Stroke	25 mm
Cylinder Type	S/A, Hollow Piston
Operating Type	Spring Return
Effective Area	17.6 cm²
Oil Volume	44 cm³
Height	110 mm
Hole Dia.	ø21 mm
Out Dia.	Ø76 mm
Weight	3,2 kg
Origin/Brand	Turkey/Surkon

Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Features

Capacity from 10 ton up to 100 ton
Stroke from 15 mm up to 150 mm
Hole diameter from 21 mm up to 81 mm
Maximum operating pressure 700 bar
Single acting, spring return hydraulic system
Designed for pull and push applications
Applicable vertical and horizontal positions.

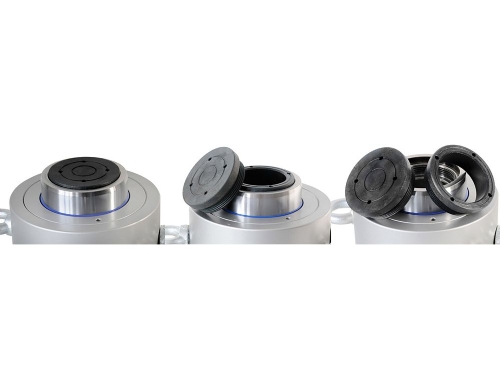

Heavy duty return springs, tilting saddles
Coller threads, planger threads available
Hard-chrome planted plunger with end stop
Coupler and dustcap included on all models
Wiper seal prevents pollution and corrosion

Technical Specifications

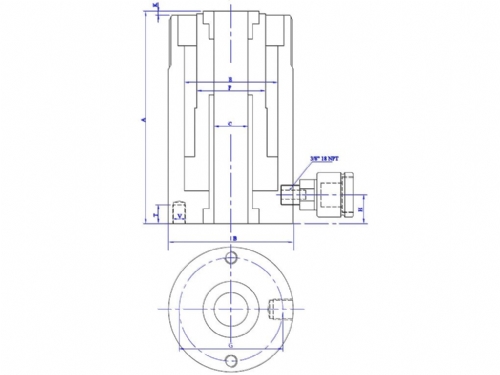

Capacity	Stroke	Code	Effective Area	Oil Volume	Closed Height	Outer Dia.	Hole Dia.	Inner Dia.	Plunger Dia.	Coupling Distance	Prot. of Shaft	Weight
ton	mm	*	cm²	cm³	mm (A)	ø mm (B)	ø mm (C)	ø mm (E)	ø mm (F)	mm (H)	mm (K)	kg
12	15	HKZ010015	17.6	25	65	76	21	55	40	19	2	2.0
12	25	HKZ010025	17.6	44	110	76	21	55	40	19	2	3.2
12	40	HKZ010040	17.6	71	128	76	21	55	40	19	2	3.7
12	80	HKZ010080	17.6	141	205	76	21	55	40	19	2	5.8
12	150	HKZ010150	17.6	270	300	76	21	55	40	19	2	8.5
24	20	HKZ020020	32.3	65	75	95	21	70	52	16	2	2.6
24	50	HKZ020050	34.5	173	170	100	27	75	55	23	3	7.9
24	100	HKZ020100	34.5	346	240	100	27	75	55	23	3	11.0
24	150	HKZ020150	34.5	518	300	100	27	75	55	23	3	13.6
33	50	HKZ030050	47.7	239	180	114	34	90	68	23	2	12.1
33	100	HKZ030100	47.7	477	265	114	34	90	68	23	2	17.8
33	150	HKZ030150	47.7	716	325	114	34	90	68	23	2	21.5
40	50	HKZ040050	51.2	257	185	135	40	95	73	24	2	13.6
40	100	HKZ040100	51.2	513	265	135	40	95	73	24	2	19.1
40	150	HKZ040150	51.2	900	325	135	40	95	73	24	2	26.4
50	50	HKZ050050	71	355	205	145	45	110	85	28	3	20.0
50	100	HKZ050100	71	710	275	145	45	110	85	28	3	25.7
50	150	HKZ050150	71	1065	325	145	45	110	85	28	3	30.0
66	50	HKZ060050	94.2	471	215	175	56	130	95	31	3	31.0
66	75	HKZ060075	94.2	707	255	175	56	130	95	31	3	36.4
66	150	HKZ060150	94.2	1413	340	175	56	130	95	31	3	46.8
80	75	HKZ080075	113.1	848	260	200	73	150	115	35	3	47.3
80	100	HKZ080100	113.1	1130	305	200	73	150	115	35	3	55.1
80	150	HKZ080150	113.1	1696	355	200	73	150	115	35	3	63.5
104	50	HKZ100050	148.4	742	250	225	81	170	130	40	4	57.7
104	100	HKZ100100	148.4	1484	320	225	81	170	130	40	4	72.5
104	150	HKZ100150	148.4	2226	405	225	81	170	130	40	4	85.6
150	150	HKZ150150	235.5	3534	430	265	81	200	160	50	4	145.0

Multi-Purpose Use with Hollow Piston

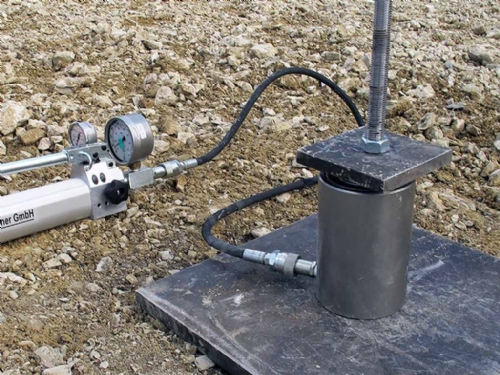

HKZ series hollow piston cylinders are jacks where pulling and pushing force can be applied vertically, horizontally, upside and down in heavy and light industry applications.

Hollow plunger jacks provide a multipurpose solution for tensioning, testing, pulling and lifting. Hollow piston cylinders are offered in single acting spring return and double acting models.

Enerpac Equivalent: RCH121

SPX Powerteam Equivalent: RH121

Hi Force Equivalent: HSS101

HKZ Series Hollow Piston Hydraulic Cylinder - PDF
