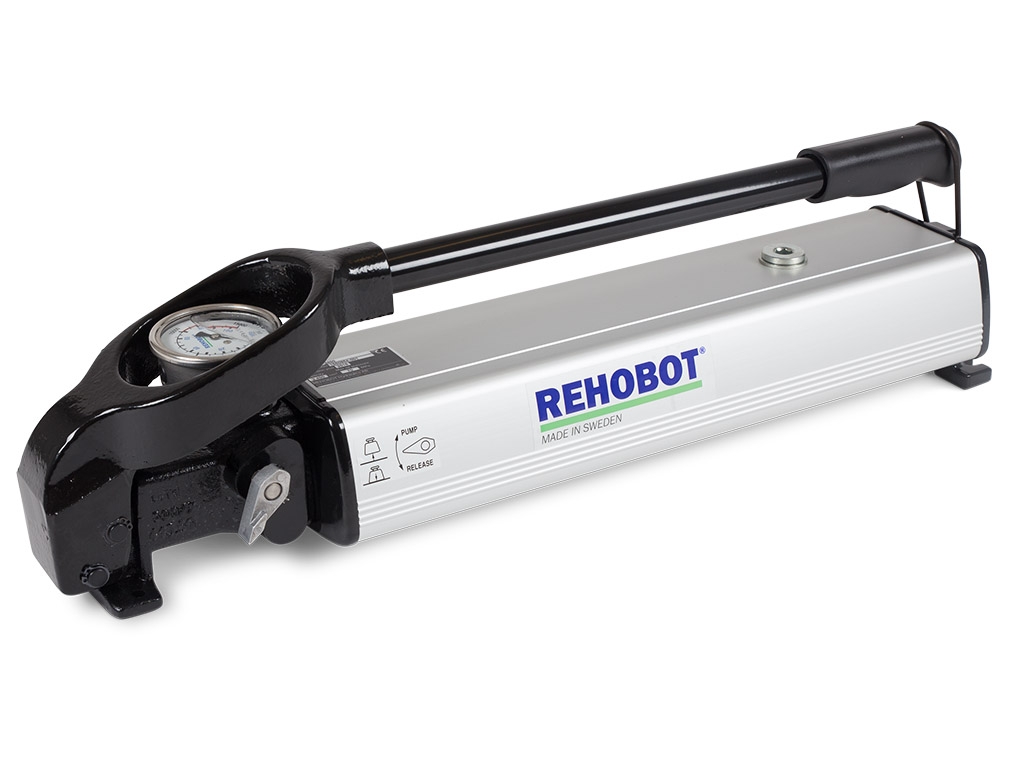

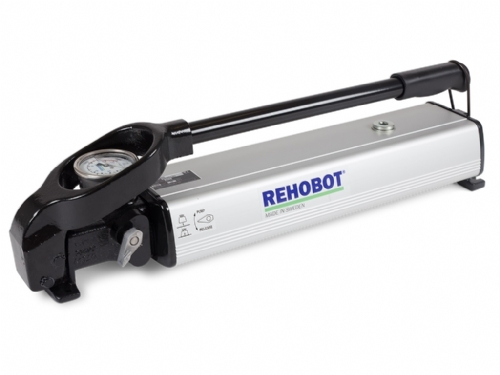

Rehobot PHS280-2400 Hydraulic Hand Pump
2.800 Bar Double Speed Hydraulic Hand Pump - Oil Capacity 2.4 lt.
| Model Code | 44912 |
| Working Pressure | 2.800 Bar |
| Usable Oil | 2.400 cm³ |
| Pump Type | Double Speed |
| Flow on Low Pressure | 20 cm³ |
| Flow on High Pressure | 0.7 cm³ |
| Handle Effort | 54 kg |
| Pressure Output | 1/4” G Female |
| Pressure Gauge | ø100mm - 1000 Bar |
| Tool Weight incl. Oil | 10.5 kg |
| Tool Sizes | 620x170x110 mm |
| Brand / Origin | Rehobot / Sweden |
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
- Double speed, single acting
- 2.800 Bars working pressure
- 2.4 lt tank capacity options
- Automatic changing flow system
- Limited pump efort required
- Simple and functional design
- Oil outgoing port thread G1/4”
- Protected pressure gauge included
- Light weight, ergonomic, user friendly
- Built-in safety valve provides reliability
Rehobot PHS Series 2400 Bar Hydraulic Hand Pumps
2400 Bar Hydraulic Hand Pumps
|
Technical Data |
Unit |
PHS240-2400 |
PHS240-4100 |
PHS280-2400 |
|
Item Code |
** |
44910 |
51490 | 44912 |
|
Working Pressure (Max.) |
bar |
2400 |
2400 |
2800 |
|
Working Pressure (Max.) |
mpa |
240 |
240 |
280 |
|
Working Pressure (Max.) |
psi |
34.809 | 34.809 | 40.600 |
|
Effective Oil Volume |
cm³ |
2400 |
4100 |
2400 |
|
Oil Flow at Low Pressure / Stroke |
cm³ |
20 |
20 |
20 |
|
Oil Flow at High Pressure / Stroke |
cm³ |
0.7 |
0.7 |
0.7 |
|
Maximum Handle Effort at 1000 bar |
kg |
46 | 46 | 54 |
|
Outgoing Port Thread |
G |
1/4" |
1/4" |
1/4" |
|
Gauge Diameter Size |
mm |
100 |
100 |
100 |
|
Gauge Pressure Display Unit |
** |
Mpa /PSI |
Mpa /PSI |
Mpa /PSI |
|
Weight Including Oil |
kg |
10.5 |
14.1 |
10.5 |
|
Sizes (A x B x C x D) |
mm |
620x170x110x80 |
620x170x110x80 |
620x170x110x80 |
The REHOBOT two stage PHS hand pumps come equipped with a pressure gauge as standard. The gauge provides the user with precise control over the pressure being developed. The gauge is directly mounted onto the pump and well protected by the specially designed pump lever. The two stage function makes the pump easier to operate, permitting the cylinder or hydraulic tool to reach its working position significantly faster compared with single stage pumps.
Hand pumps in the PHS series are available with 1000 bar, 1500 bar, 2000 bar and 2800 bar working pressure and with the choice from 300 cm³ up to 2400 cm3 effective oil capacity.
Genaral Features
The pumps are robust and well suited for harsh environments and rough handling as found in workshops and other mobile and industrial environments.
-
Hydraulic return port is standard on all pumps.
-
Robust aluminium tank with low weight and simple oil filling.
-
Needle release valve ensures precise control over lowering operation.
-
Mounting holes for fixed installations and handle locking system for easy carrying.
Oil Outgoing Port
The hydraulic connection interface on all PH pumps is a G1/4" threaded port.
Safety features
The pump is equipped with a safety valve that limits the output pressure. The safety valve is set at the factory to the maximumworking pressure. Internal safety valve prevents the user from overpressure.
Safety Advise
When accessories are selected for a hydraulic system, the working pressure rating for these shall be equal to or higher than the pump unit's maximum working pressure. For hoses we recommend a 3-4 fold safety margin between the hydraulic system's maximum operating pressure and the burst pressure of the hose. It is also important to ensure that the pump's effective oil volume exceeds the total volume of oil in the hydraulic system, preferably with a safety margin of about 20%.
