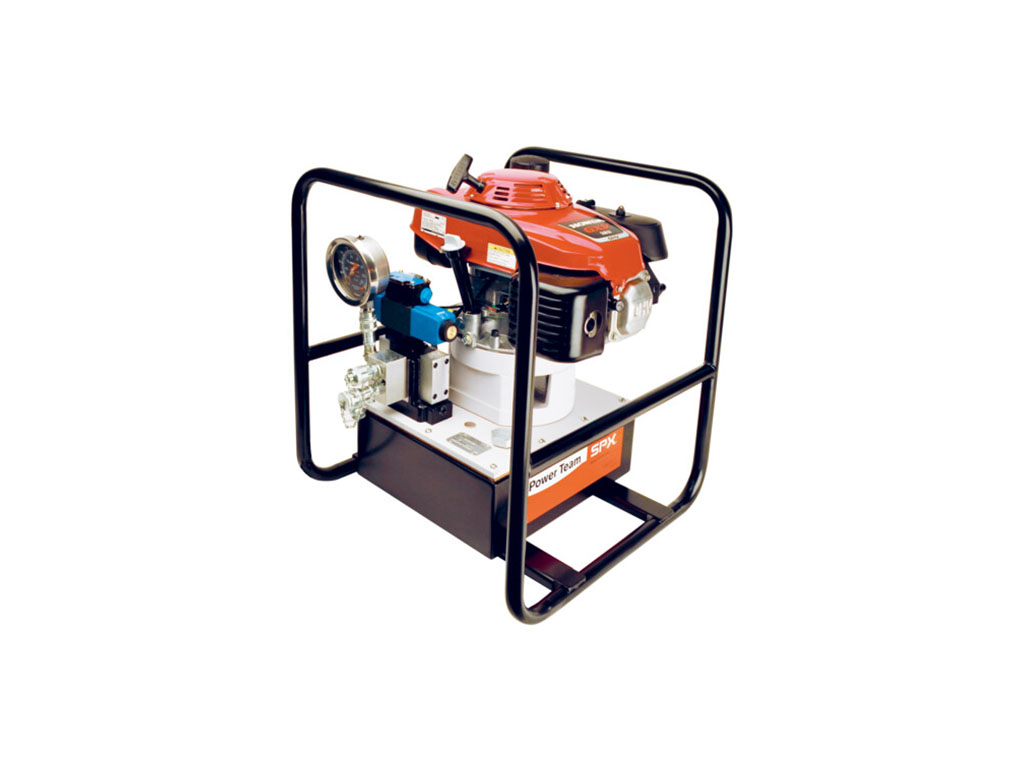

PG1203-CP Single Acting Gasoline Hydraulic Pump

Gasoline Hydraulic Crimping Pump , 700 Bar

Model PG1203-CP
Power 6.0 kW
Pump Type Single Acting
Flow @ 7 Bar 8.0 L/d
Flow @ 700 Bar 2.1 L/d
Valve No 9520
Gasoline Engine Briggs & Stratton
Usable Oil Cap. 11 / 7.0 L
Tool Weight 25 kg

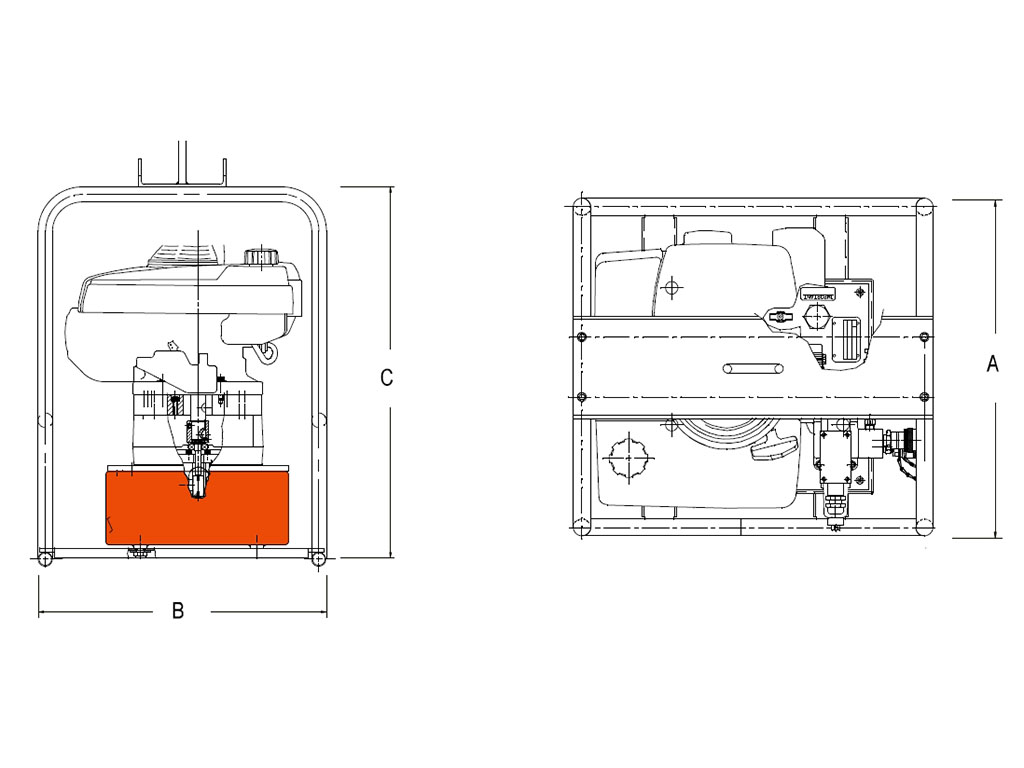

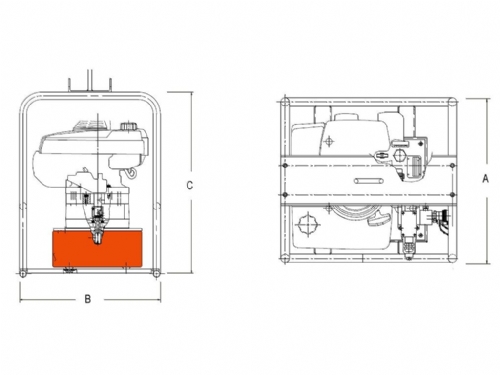

Sizes 502 x 552 x 622 mm
Brand SPX Flow
Origin USA
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
906566
Verify Security Code:

Features
  • Working pressure 700 bar
  • Single acting spring return
  • 3/2 way manual valve
  • Flow 2.1 l/m at 700 bar
  • kW HP Briggs & Stratton engine
  • 700 bar safety relie valve
  • Pressure output 1x3/8” NPT F
  • Tool net weight incl. oil 25 kg
  • For use with single acting tools
  • Useable oil capacity 7 liter net
  • Protective roll cage
  • Manufactured by SPX, origin USA
Technical Specifications

SPX Gasoline Hydraulic Crimping Pump

Model PG1203-CP PG1203/4S-CP
Power 6.0 kW 5.5 kW
Pump Type Tek Etkili Çift Etkili
Flow @ 7 Bar 8.0 L/d
Flow @ 700 Bar 2.1 L/d
Valve No 9520 9506
Gasoline Engine Briggs & Stratton Honda
Usable Oil Cap. 11 / 7.0 L
Tool Weight 25 kg
Sizes 502 x 552 x 622 mm

Two-speed high-performance pumps ideal for construction, structure moving and rigging applications.

  • A logical choice at work sites where electricity or compressed air are unavailable. For single or double-acting cylinders at operating pressures to 10,000 psi.
  • All gasoline engine/hydraulic pumps feature Posi-Check® valve to guard against pressure loss when valve is shifted from “advance” to “hold.”
  • PG1200 Series pumps powered by a Honda 4-cycle, 5.5 hp engine with automatic decompression and electronic ignition. Deliver over 0.5 gallon (130 cu. in.) of oil per minute at 10,000 psi.
  • A 5 gallon reservoir means adequate capacity for multi-cylinder  applications. Dual element air cleaner protects engine from dusty environments.
  • Heavy-duty “roll cage” provides pick-up points for lifting.  Horizontal bars on PG1203, PG1204 and PG1204S protect unit, provide hand holds for carrying.
  • Rubber anti-skid insulation on bottom of reservoir resists skidding and dampens vibration. PG1200M-4 and PG1200M-4D include a pump cart with 12” wheels.
  • Adjustable external pressure regulator.
  • CSA rated for intermittent duty.

PG1203-CP

  • 6 kW Briggs & Stratton engine.
  • Manual control valve.
  • High-pressure safety relief valve.
  • Protective roll cage.
  • For use with single acting tools.

SPX PG120 Gasoline Hydraulic Crimping Pump Product Brochure - PDF
