Larzep SX01011
Low Profile Cylinder

10 Ton, 11 mm Stroke
Single Acting Load Return

Larzep Code SX01011
Capacity 10 ton
Stroke 11 mm
Closed Height 43 mm
Out Diameter Ø56 mm
Effective Area 15 cm²
Oil Volume 16 cm³
Working Pres. 700 Bar
Cylinder Type S/A Load return
Weight 1.6 kg
Origin/Brand Spain / Larzep
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
685223
Verify Security Code:

Features
  • Capacity from 4 to 150 Ton
  • Stroke up to 16 mm
  • SX: Single acting load return
  • SMX: Single acting spring return
  • Used for machinery positioning, heavy lifting, pushing
  • With two parallel faces for horizontal operation
  • Mounting bolt holes for easy fixing
  • Models up to 30 Ton are black nitrated
  • SX models from 50 to 150 Ton have optional tilting saddle



Technical Specifications

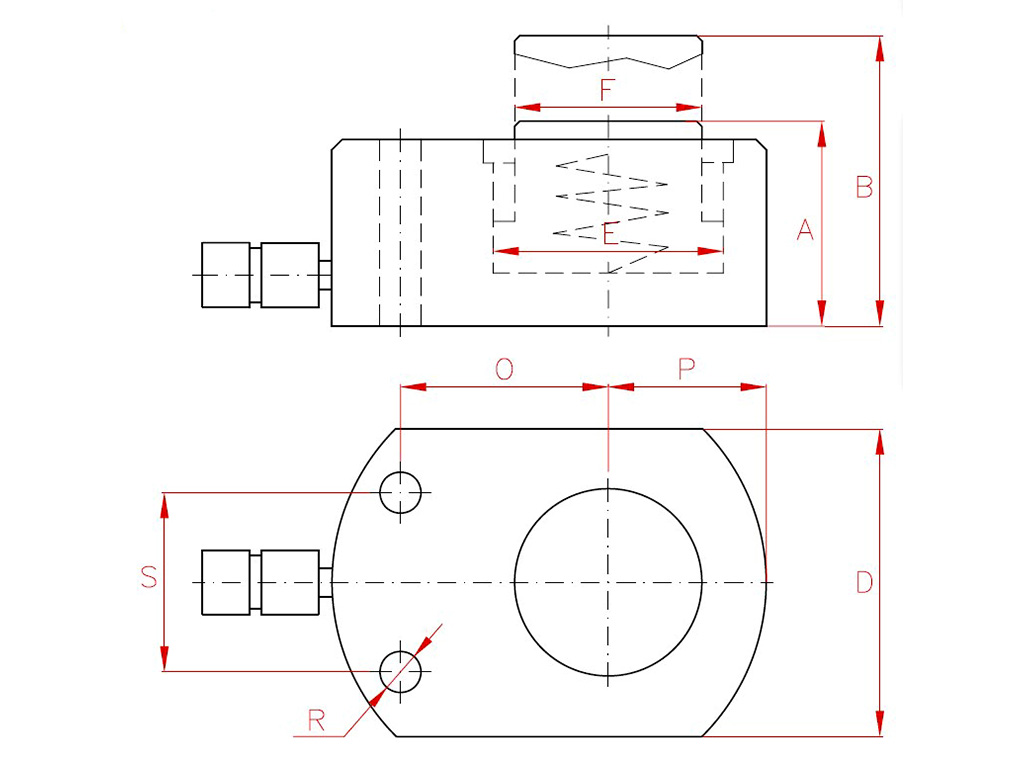

Larzep SX Single Acting Low Height Cylinder

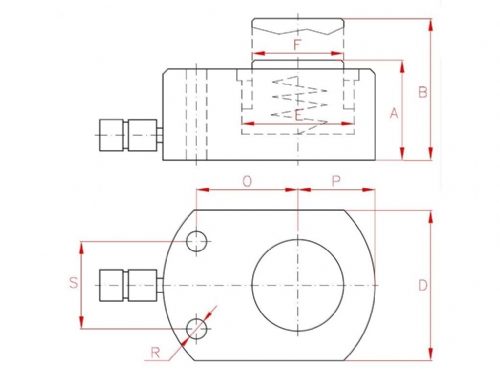

Model No Capacity Stroke Closed Height (A)  Out Diameter(D) Effective Area  Oil Volume Weight
Spring Return Load Return  ton kN mm mm mm cm² cm³ kg
SMX00406 SX00406 4 44 6 33 41 6 4 0,8
SMX00416 SX00416 4 44 16 43 41 6 11 1,2
SMX01011 SX01011 10 100 11 43 56 15 16 1,6
SMX02211 SX02211 22 228 1 52 80 33 37 2,8
SMX03013 SX03013 30 287 13 59 95 42 55 4,1
SMX05016 SX05016 50 487 16 68 114 71 114 6,6
SMX07516 SX07516 75 713 16 79 140 104 167 12,5
SMX10016 SX10016 100 954 16 87 158 139 223 15
SMX15016 SX15016 150 1450 16 100 194 211 338 25

Larzep SMX and SX series jacks are slim and short. SMX jacks have a spring return hydraulic system, SX series jacks have a load return hydraulic system. There are 9 different models from 4 tons up to 150 tons. SMX series low profile cylinders are being used for machinery positioning, heavy load testing and lifting of all kind of heavy loads.



Enerpac Equivalent: RSM100

SPX Powerteam Equivalent: RLS100

Hi Force Equivalent: HPS100


Photos

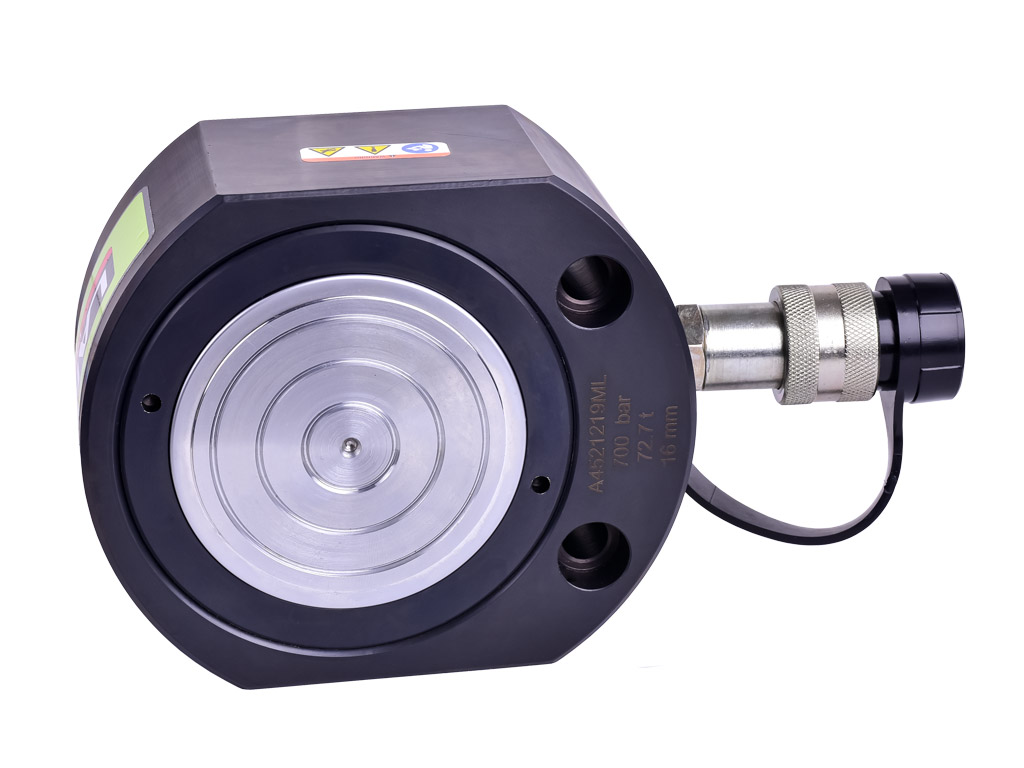

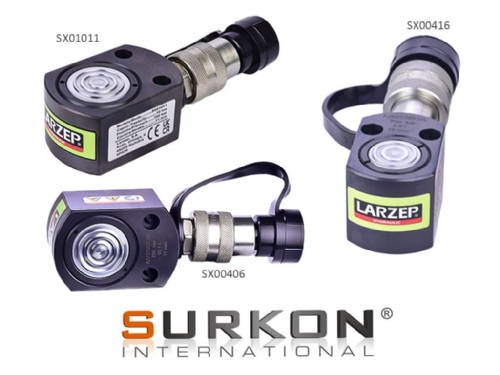

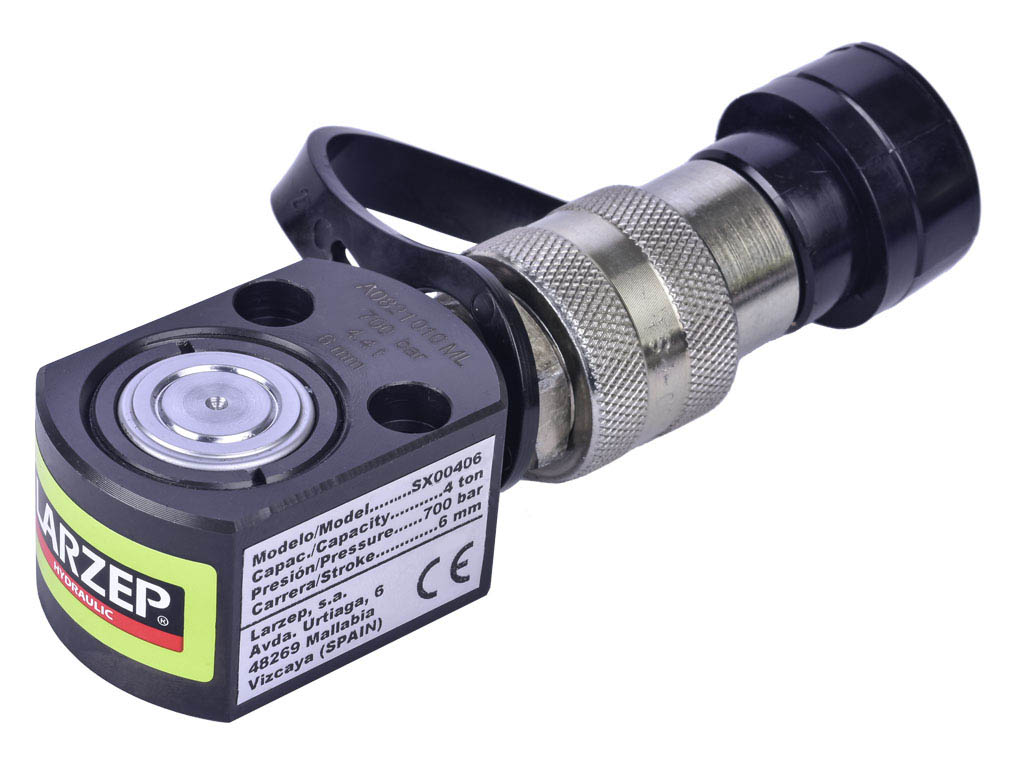

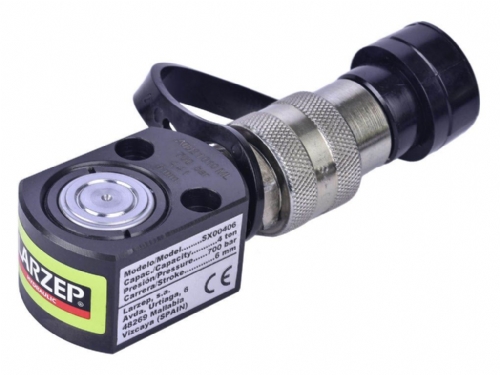

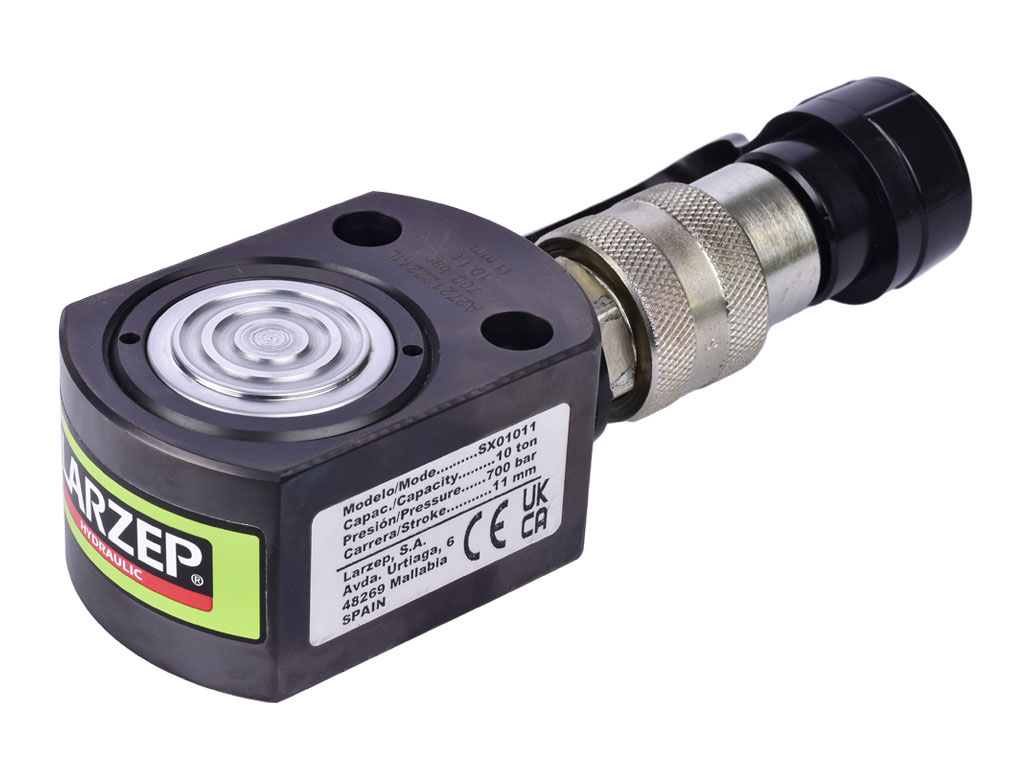

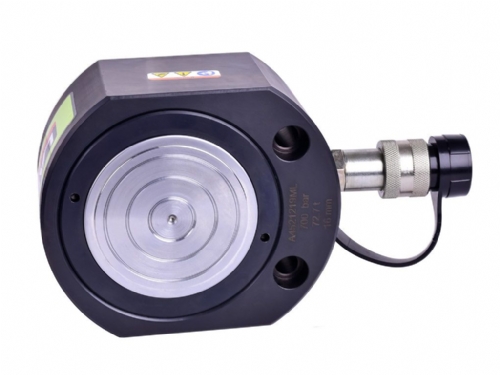

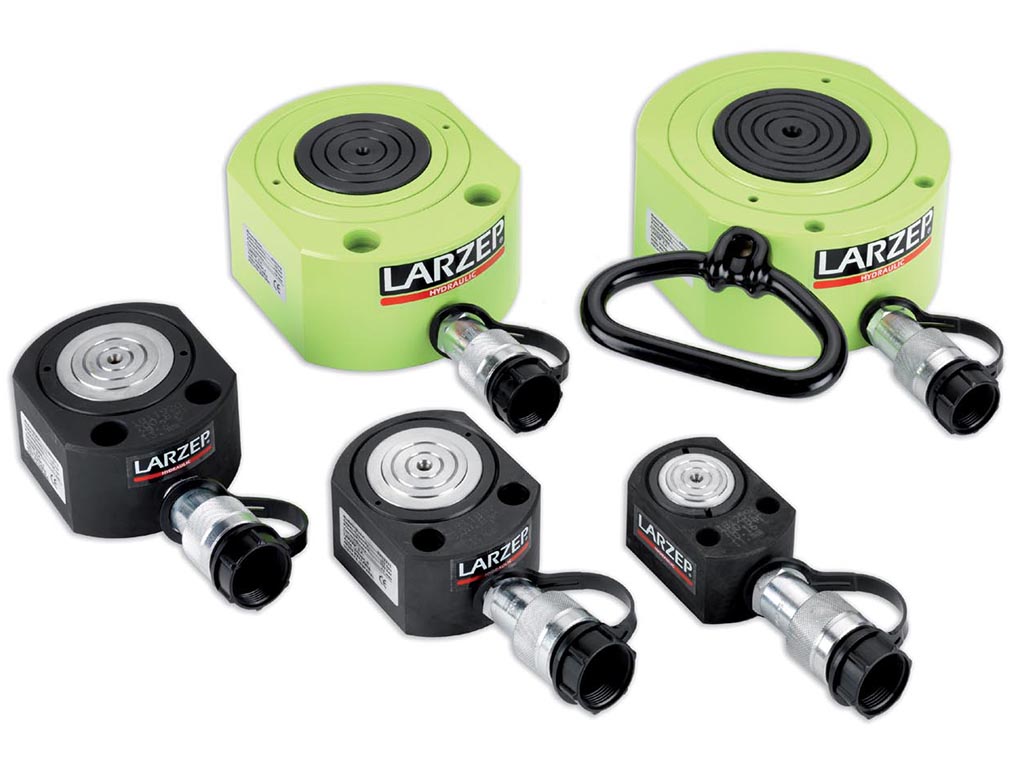

Larzep SX01011 Single Acting Hydraulic Cylinder

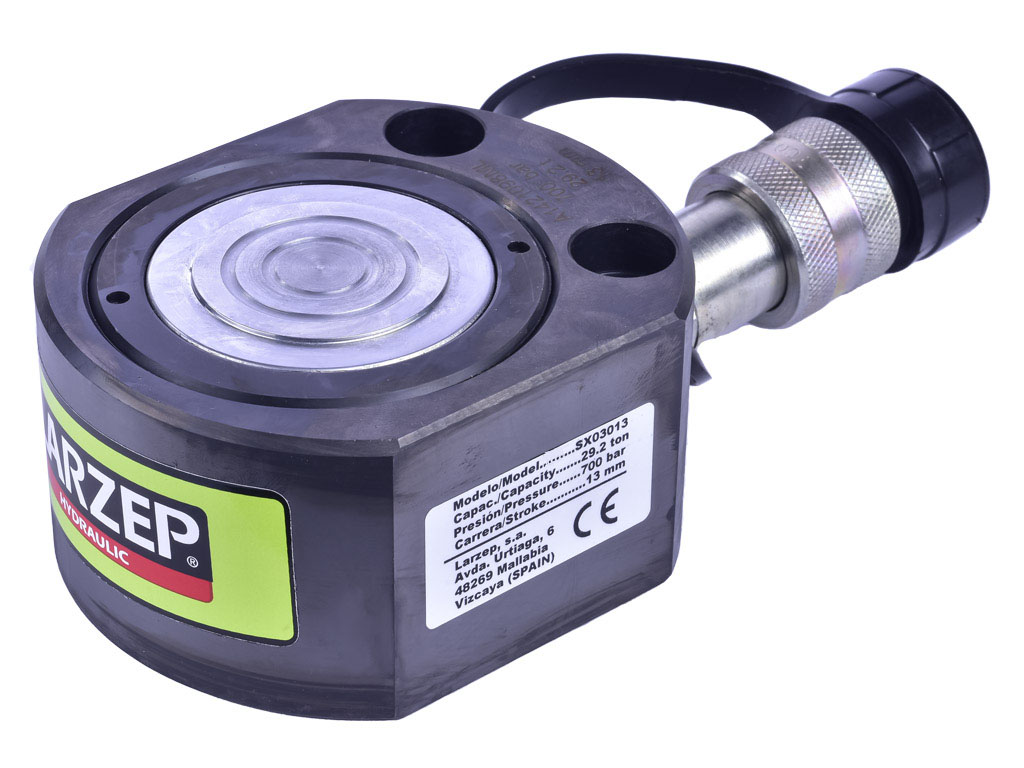

Larzep SX01011 Single Acting Hydraulic Jack

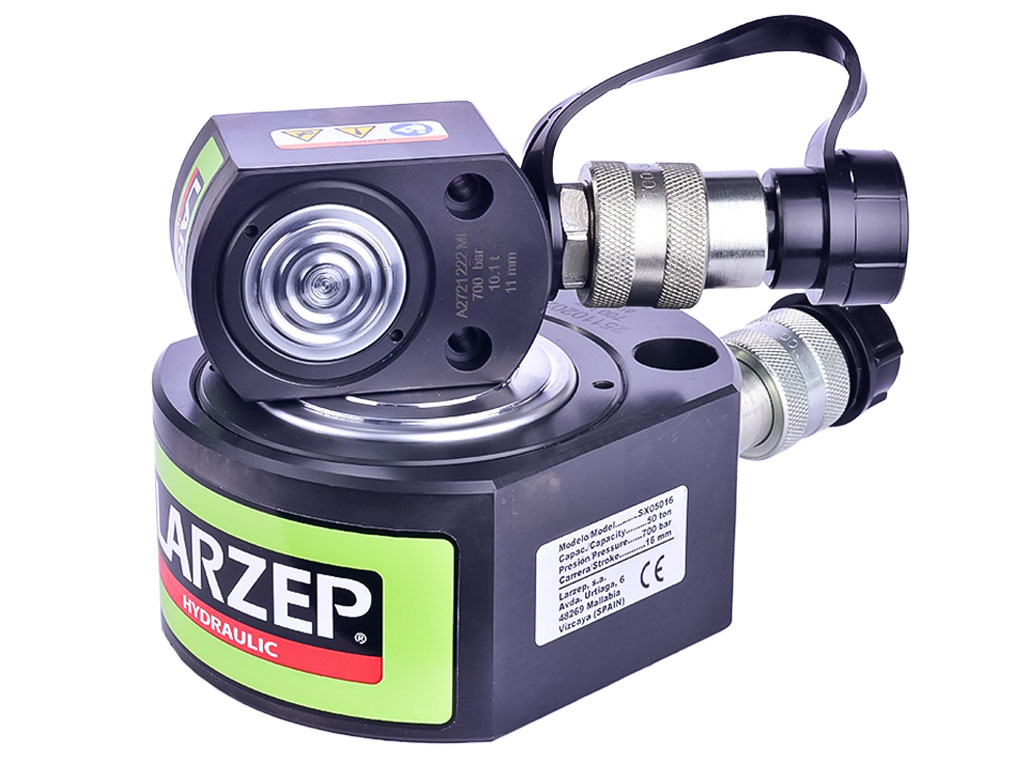

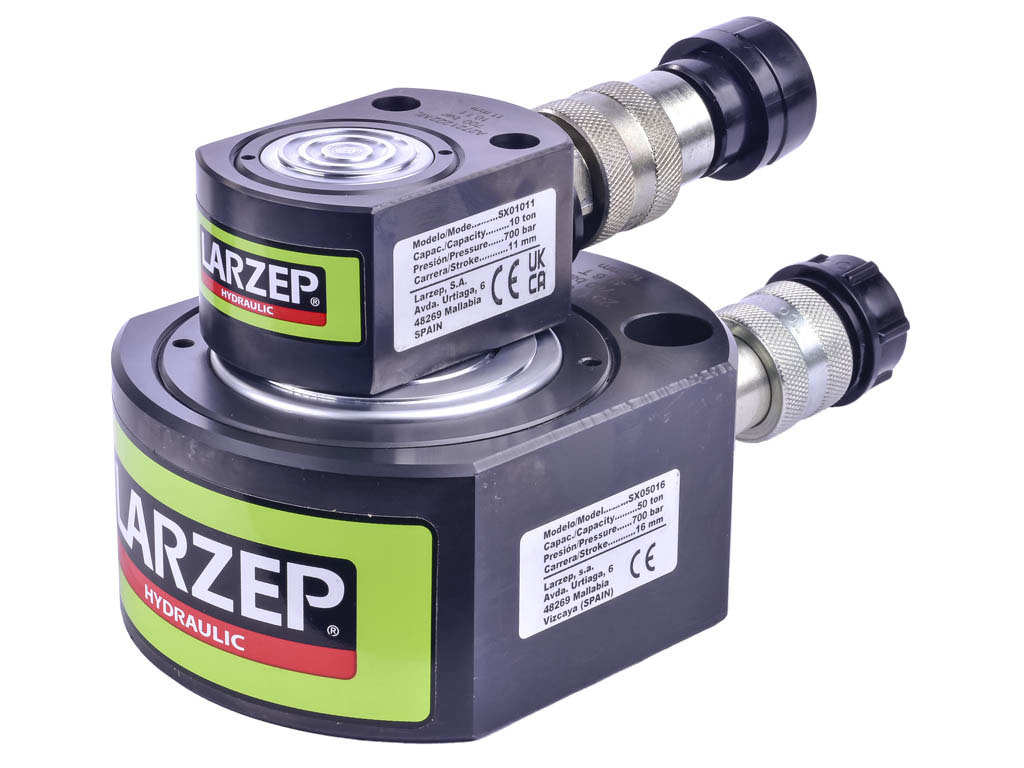

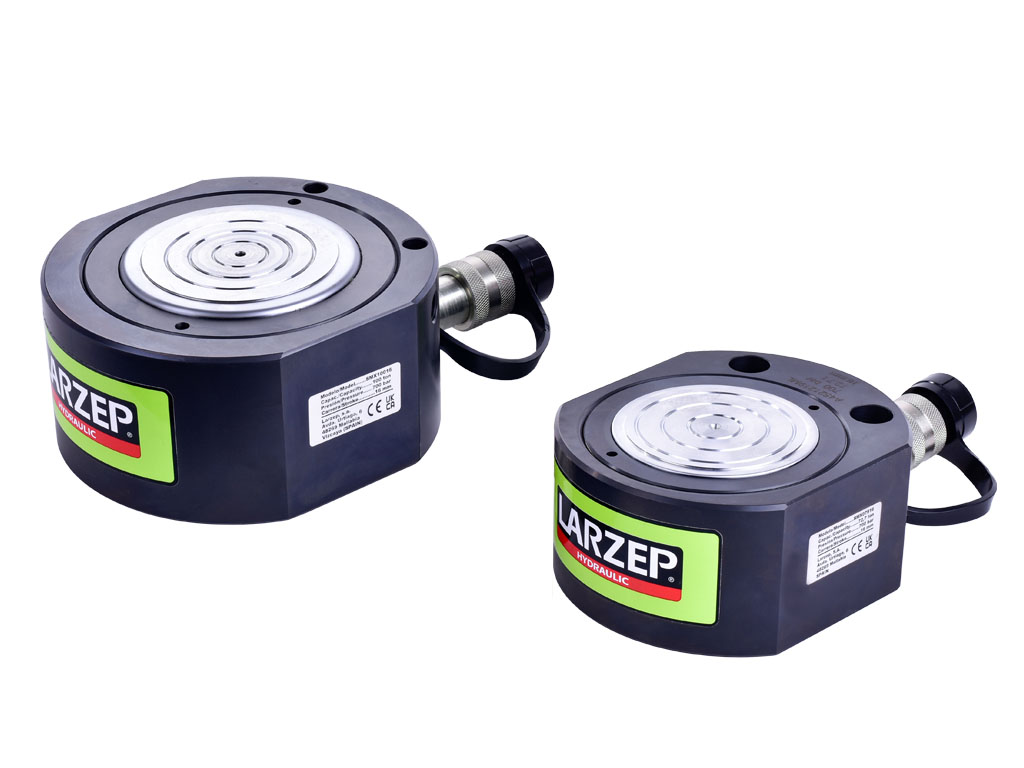

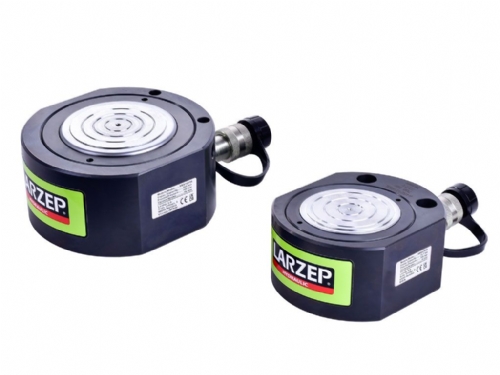

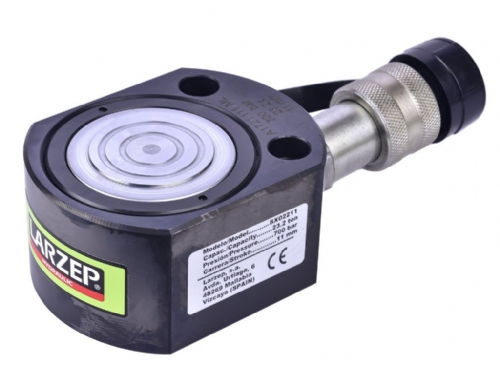

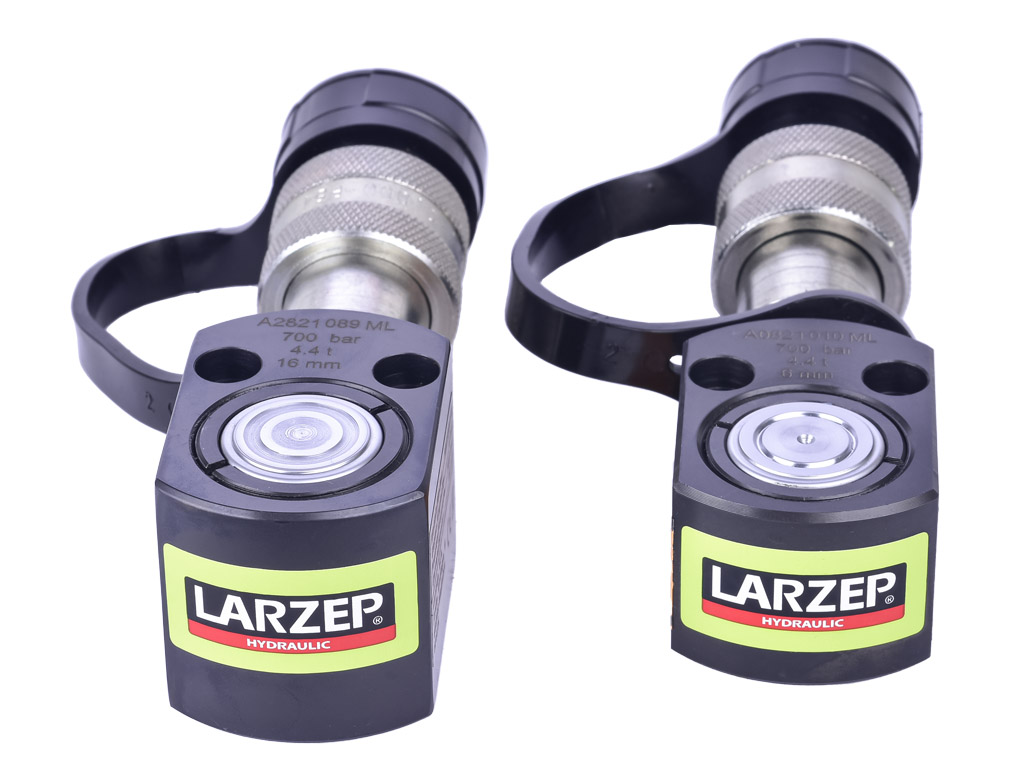

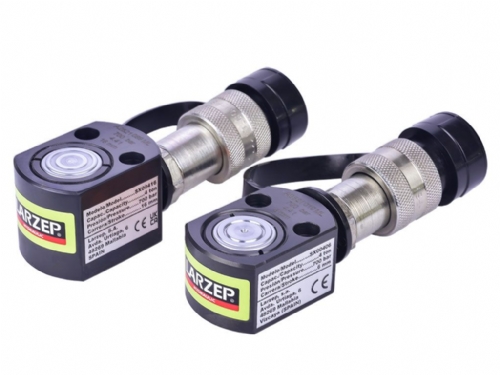

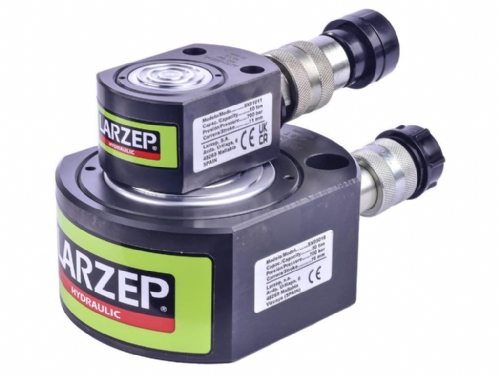

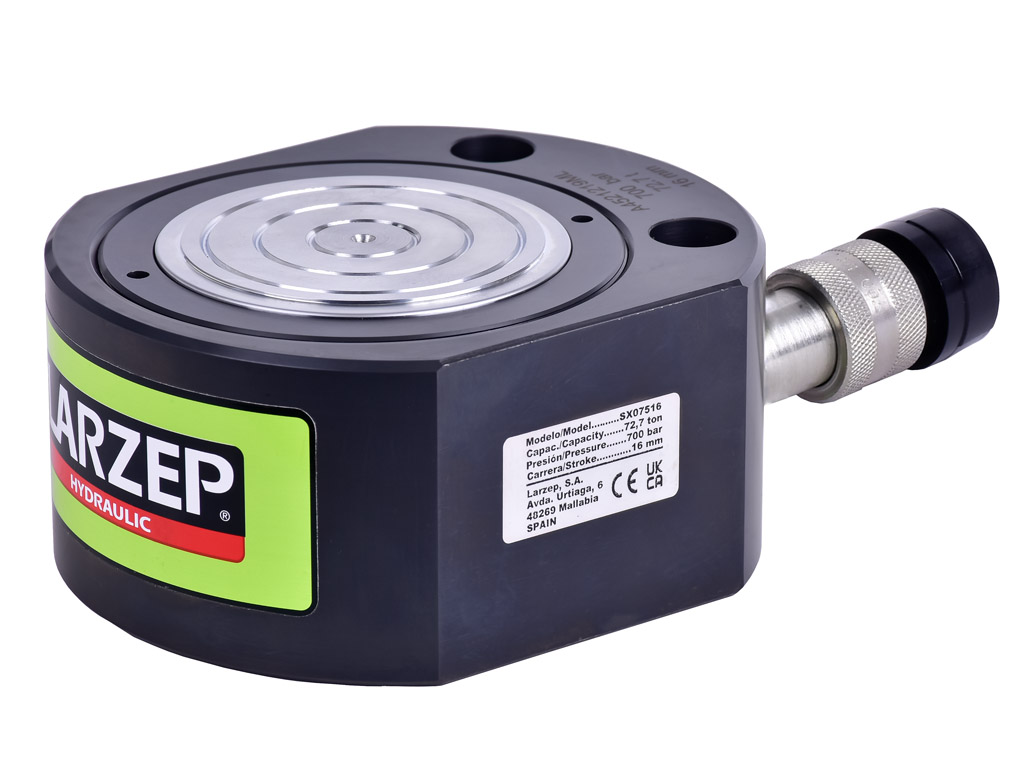

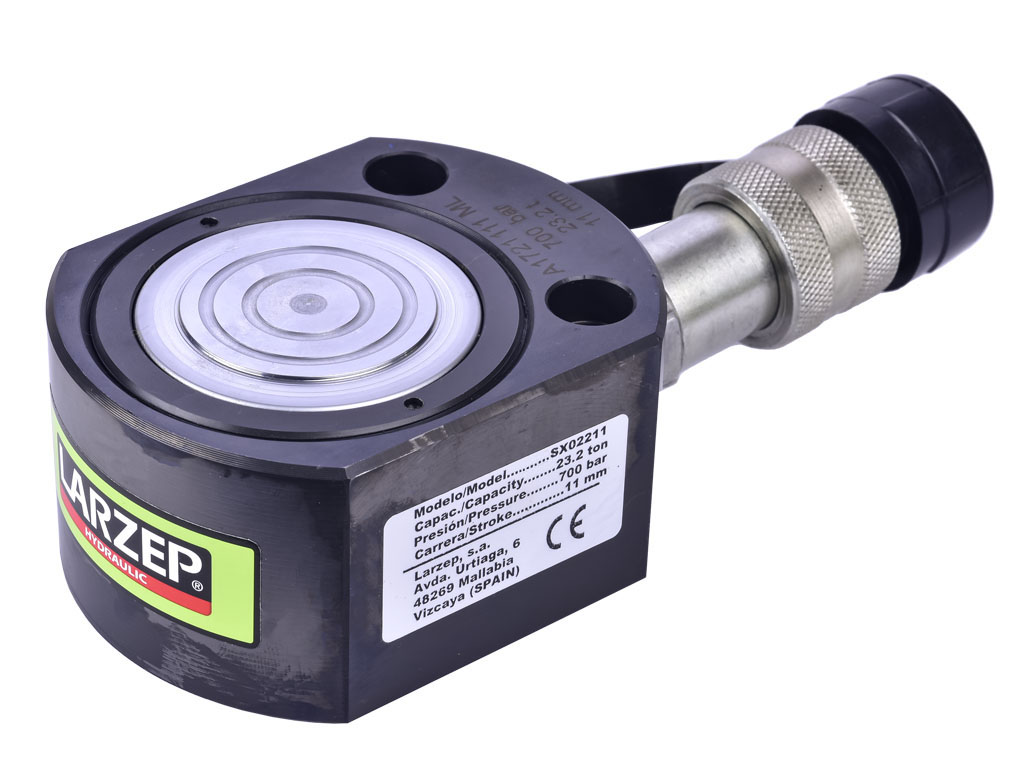

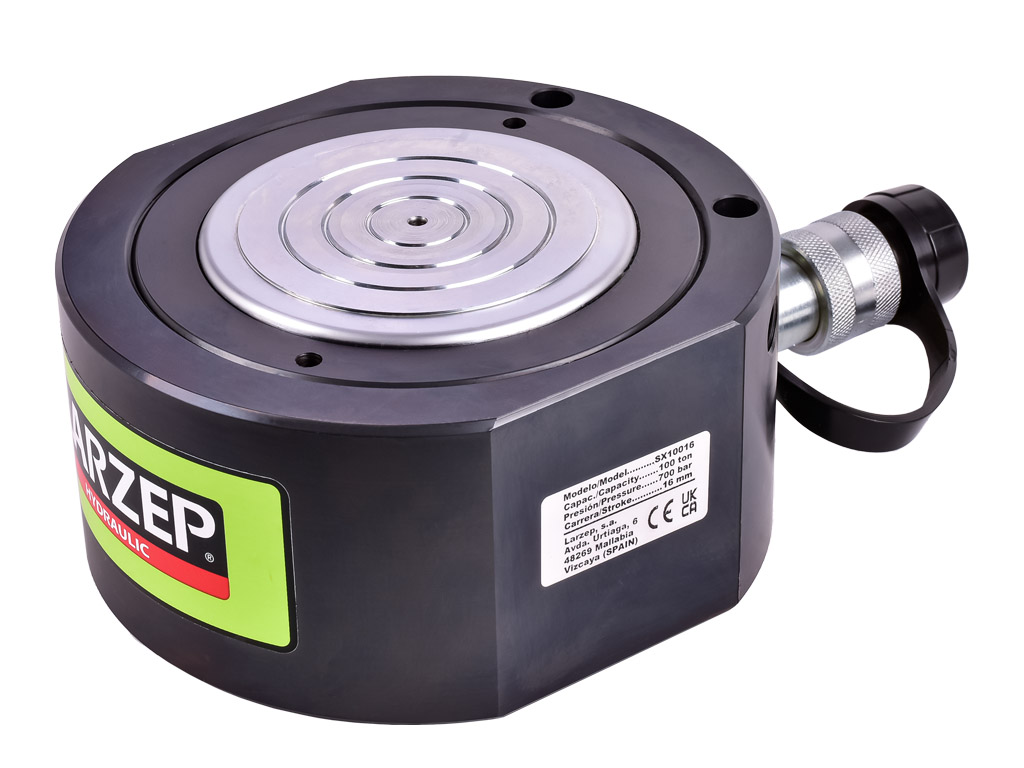

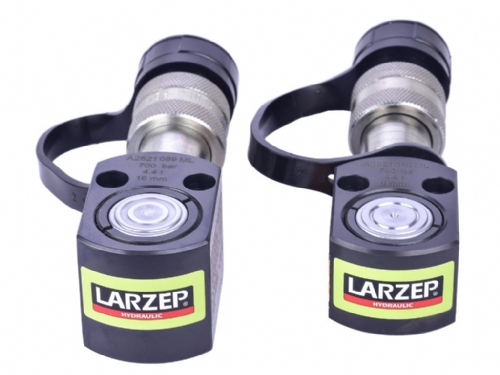

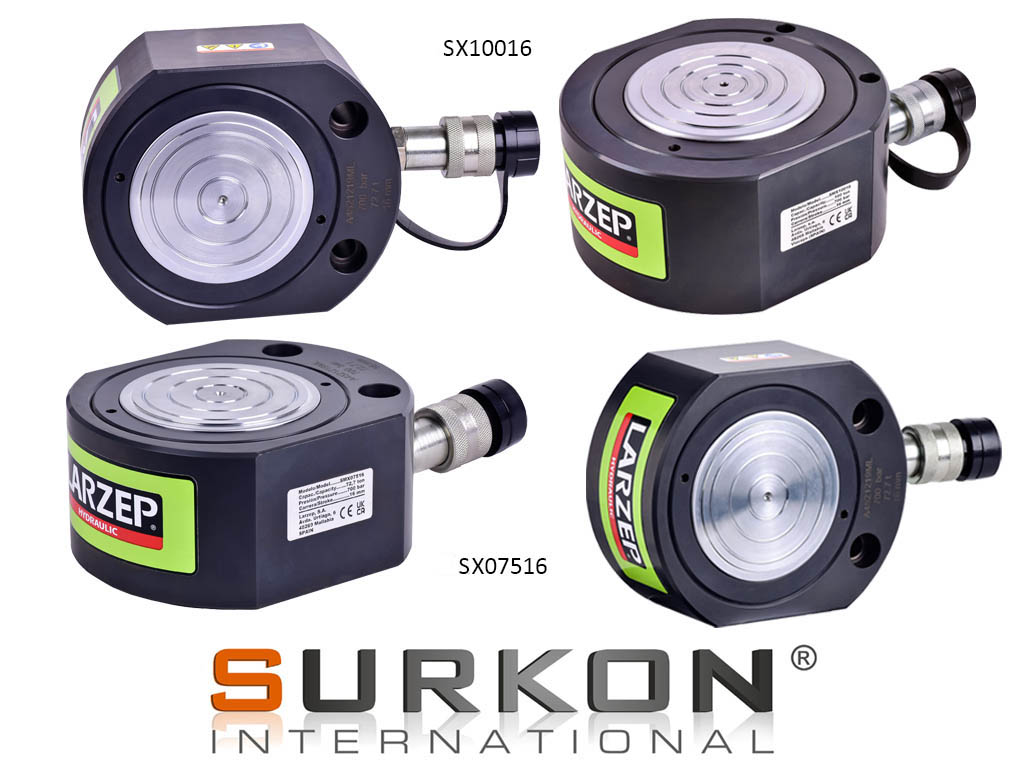

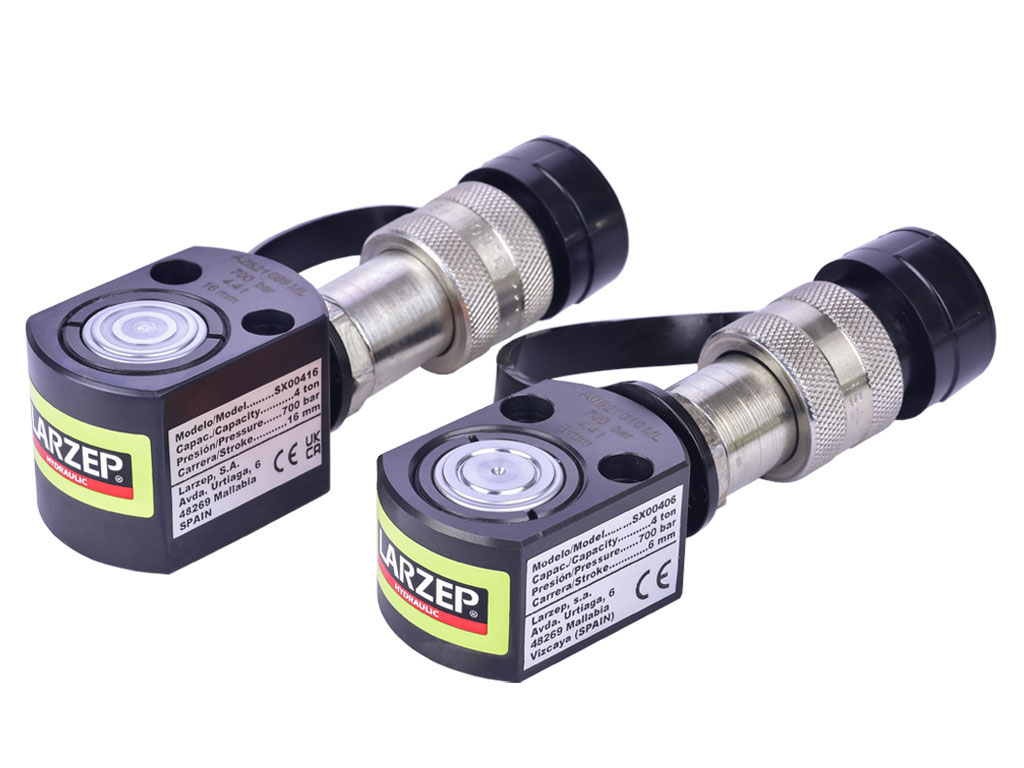

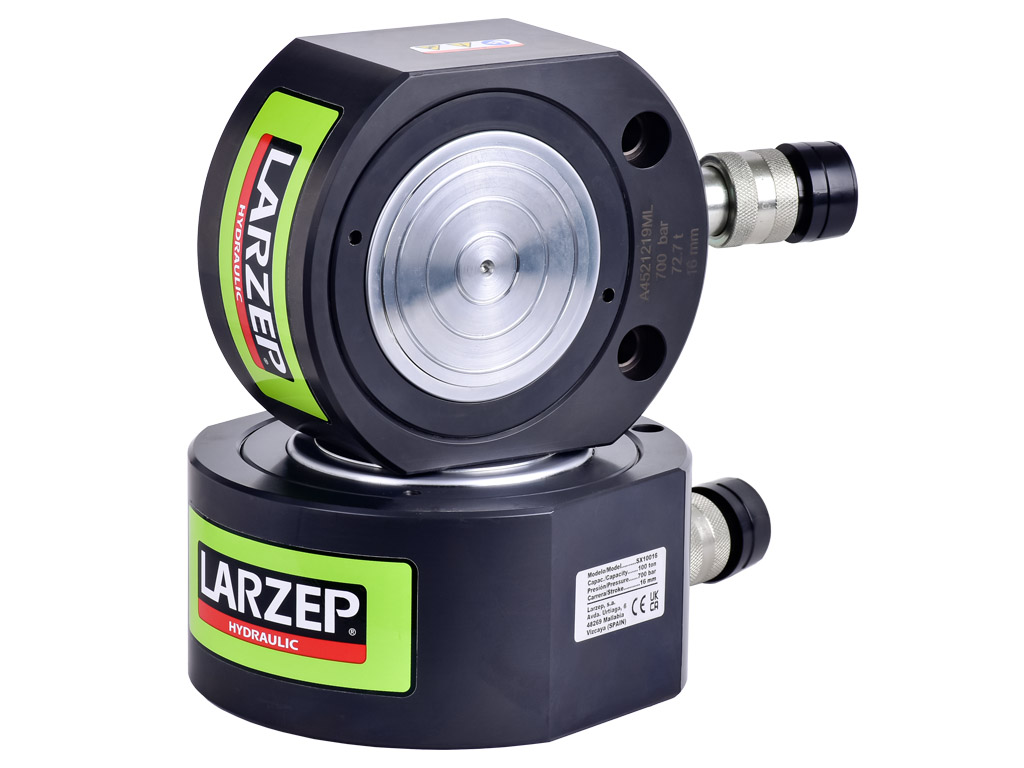

Larzep SX Low Profile Cylinder
Larzep SX Low Profile Jack

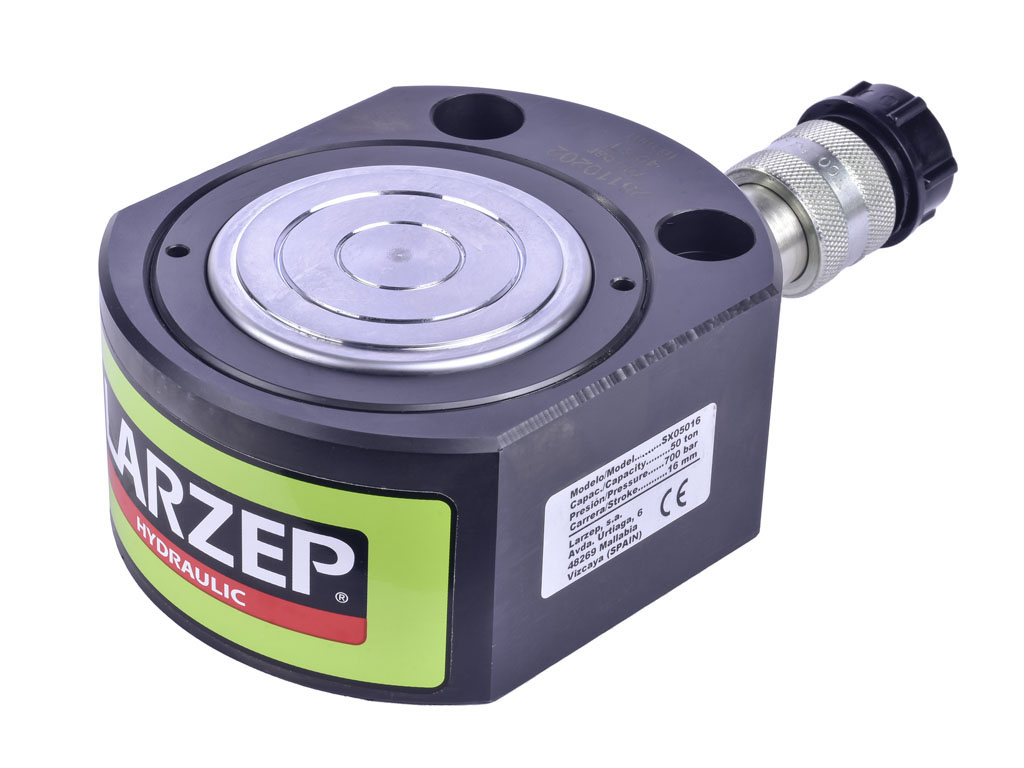

Larzep SX Single Acting Low Profile Hydraulic Cylinder
Larzep SX Single Acting Low Profile Hydraulic Jack

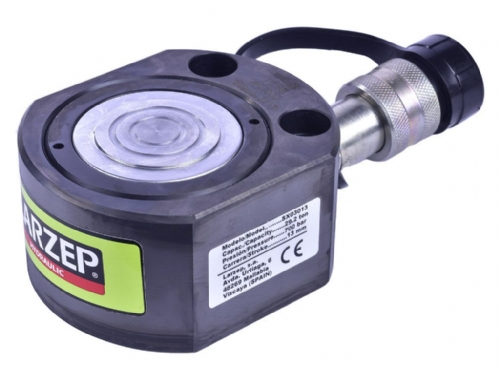

Hydraulic Jack Larzep SX
Hydraulic Cylinder Larzep SX
Larzep SX Single Acting Load Return Low Profile Hydraulic Cylinder
Larzep SX Single Acting Load Return Low Profile Hydraulic Jack
Larzep SX Single Acting Hydraulic Jack
Larzep SX Single Acting Hydraulic Cylinder
Larzep SX Hydraulic Cylinder
Larzep SX Low Profile Hydraulic Cylinder
Larzep SX Low Profile Hydraulic Jack
Larzep SX Low Profile Hydraulic Cylinder
Larzep SX Single Acting Hydraulic Cylinder
Larzep
Larzep

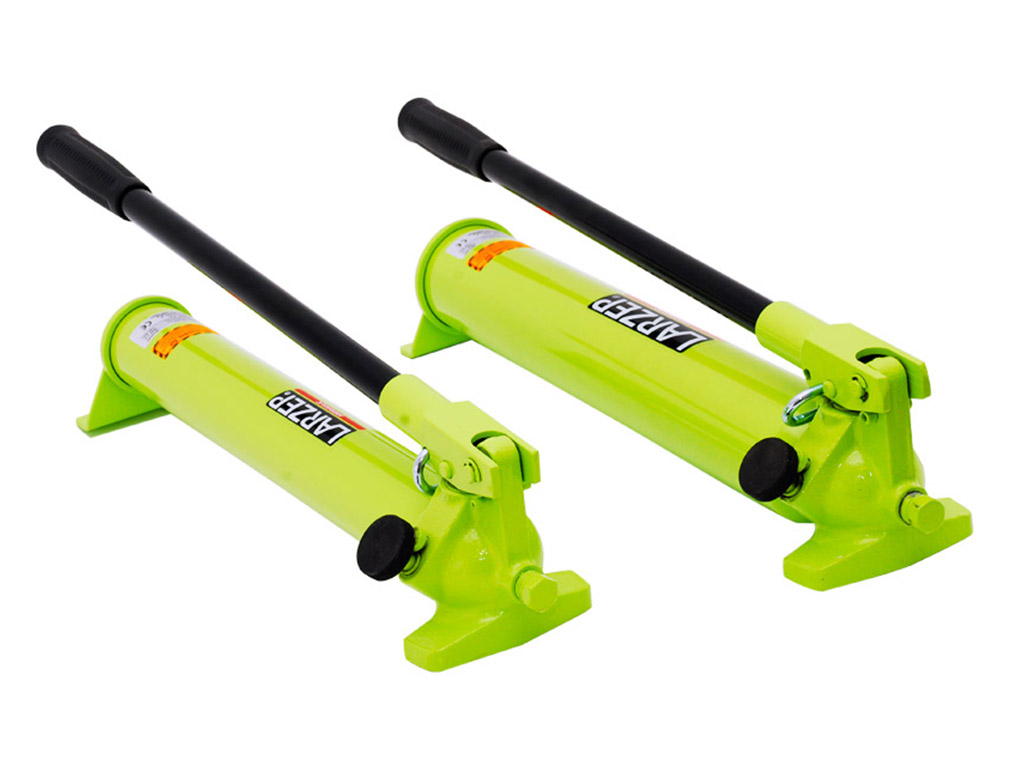

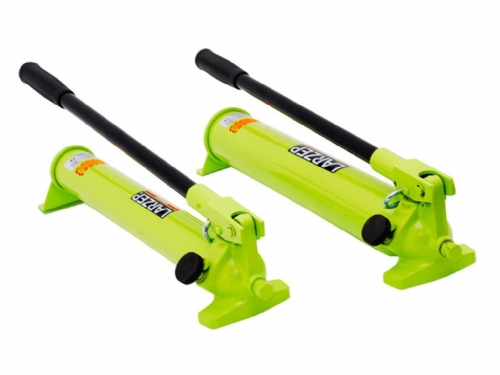

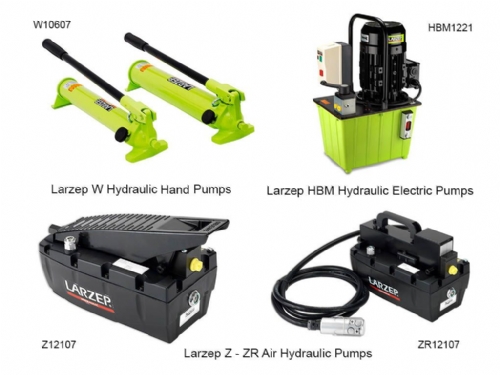

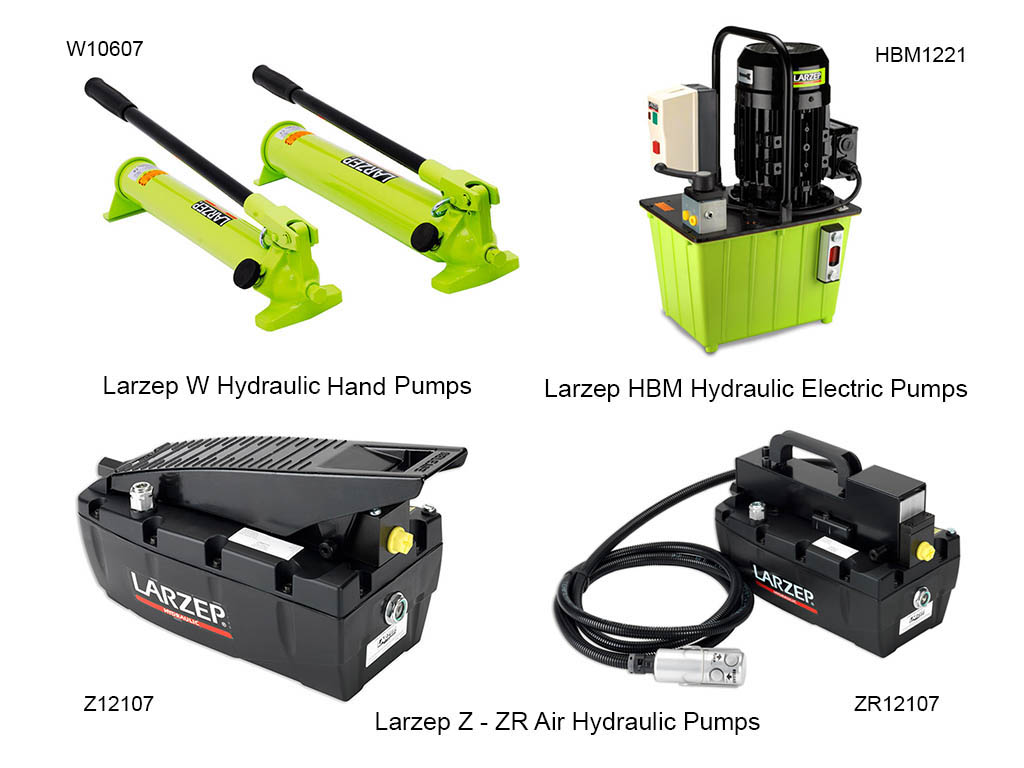

Lazrep Hydraulic Hand Pumps

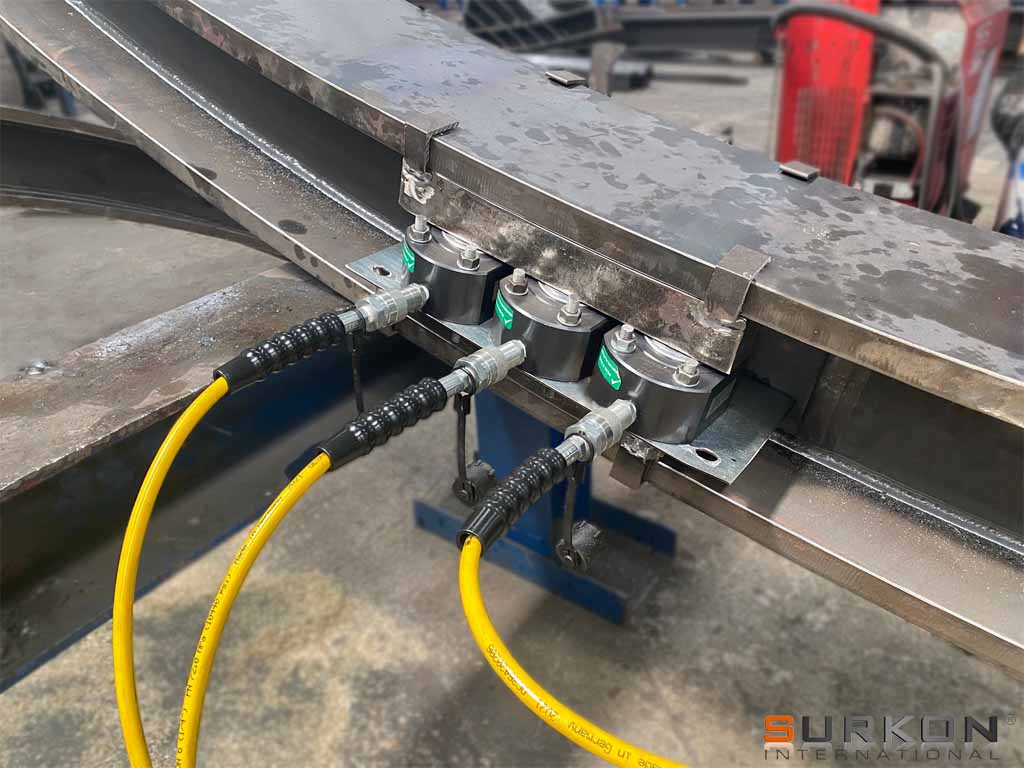

Larzep SX Hydraulic Cylinder Application
Larzep SX Single Acting Load Return Low Profile Hydraulic Cylinder
Load Return Load Cell
700 Bar
10 Ton
Single Acting
Larzep
