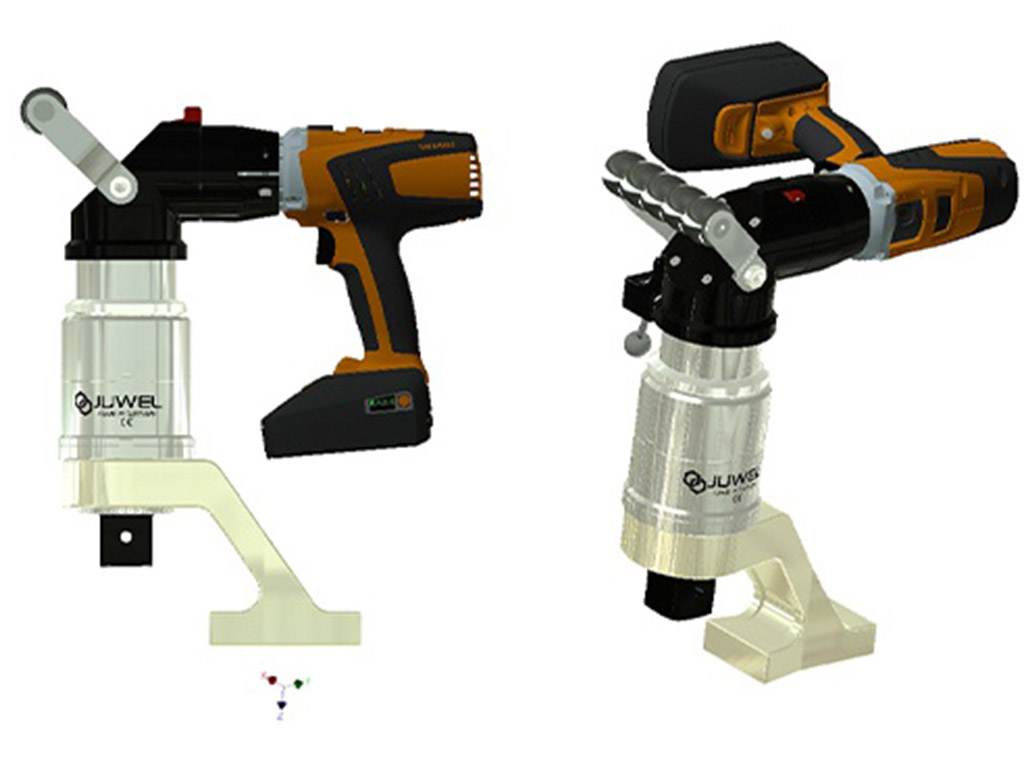

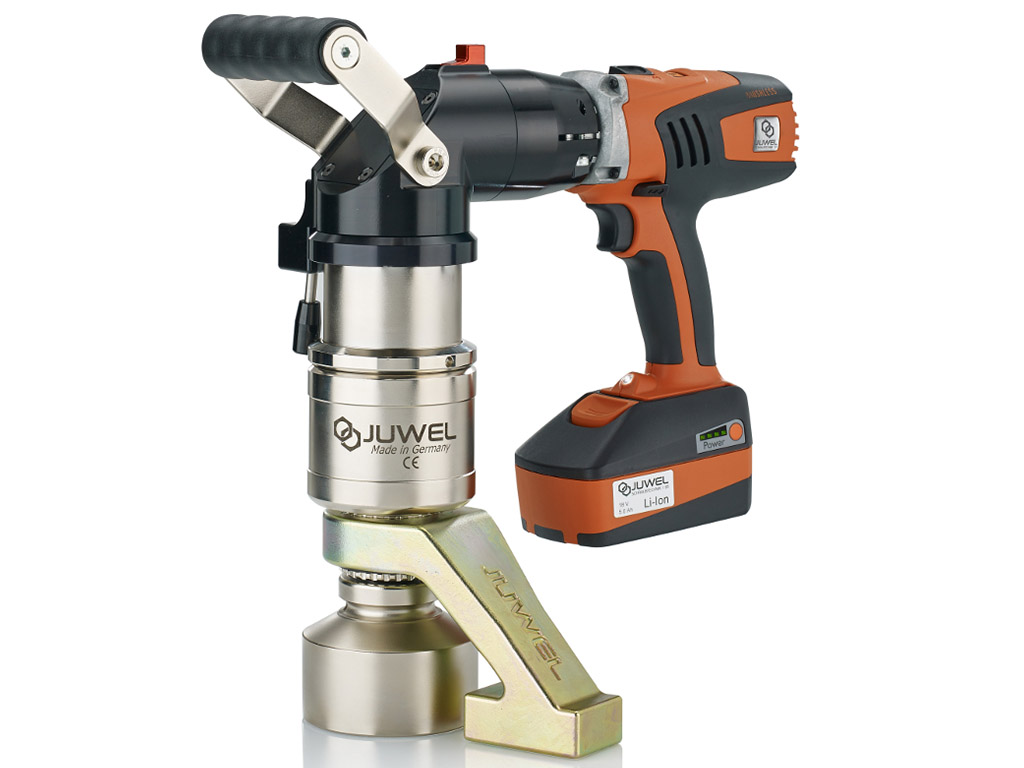

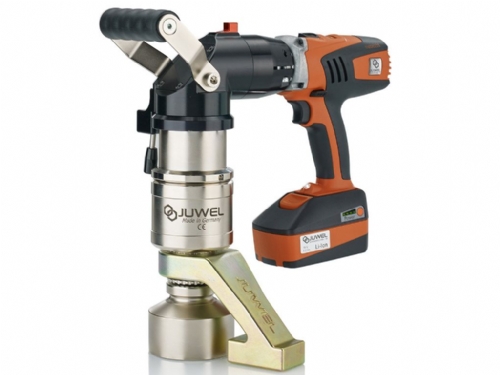

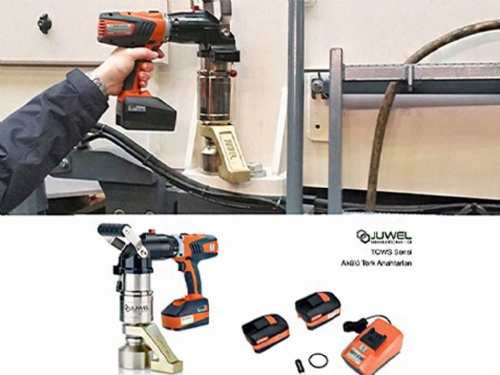

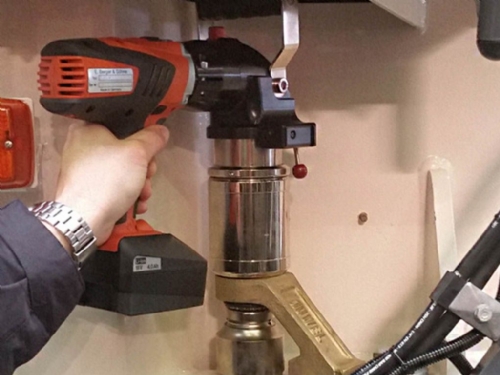

Juwel TQWS-095 Battery Torque Wrench

100 - 950 N.m Angled Type Battery Torque Wrench, Accuracy ±%4, Square Drive 3/4“ - 1“

Part No 62 100 095
Model TQWS-095
Accuracy ±4%
Torque Range 100 - 950 N.m
Drive 3/4" - 1" Square
Operation Dir. Clockwise & c.clockwise
Operation Pos. Multi Functional
Max. Revolution 66 rpm
Power Supply Battery
Calibration Supplied with the tool
Brand - Origin Juwel / Germany
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
774395
Verify Security Code:

Features
  • Accuracy better than ±4%
  • 6 models 100 / 5000 N.m
  • New brushless PowerDrive motor technology
  • Clockwise and counter clockwise operations
  • Rechargeable battery with SafetyCell technology
  • Battery is fully charged in less than 30 minutes
  • 4-gear full metal gear for quick screwing
  • Device is completely dust-protected
  • Support of high-strength aluminium
  • Clear indication of successful joint application
  • Supplied with house calibration certificate
Technical Specifications

 Juwel TQWS Series Angled Type Battery Powered Cordless Torque Wrenches

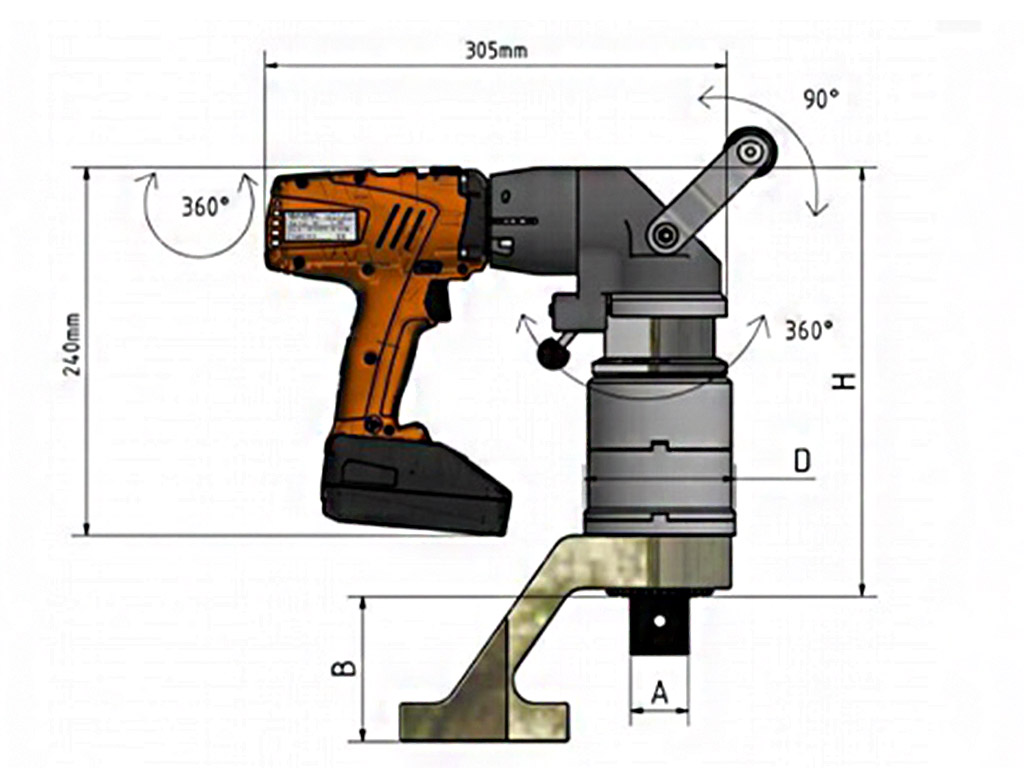

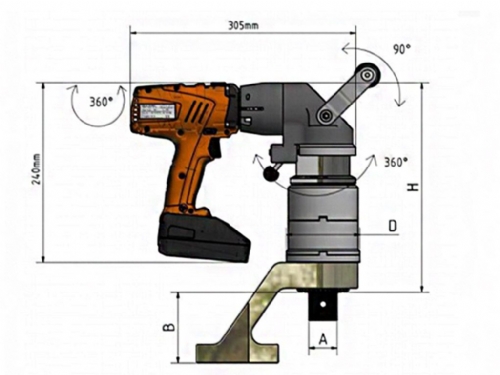

Parça Model Torque Range Drive Min. Speed Max. Speed Sizes (mm) Weight
No # N.m inch rpm rpm L B G Kg
62 100 095  TQWS-095 100-950 3/4"-1" 7.7 66 260 - 265 75 55-75 8.8
62 100 130  TQWS-130 100-1300 1" 4.25 39 262 88 75 9.3
62 100 220  TQWS-220 100-2200 1" 2.1 18 292 88 75 10.1
62 100 300  TQWS-300 100-3000 1" 1.25 12 292 88 75 10.1
62 100 400 TQWS-400 150-4000 1.1/2" 1.25 11 304 99 95 12.0
62 100 500 TQWS-500 200-5000 1.1/2" 0.5 4 336 99 95 14.2

Juwel TQWS Series Angled Type Battery Cordless Torque Wrenches - PDF
