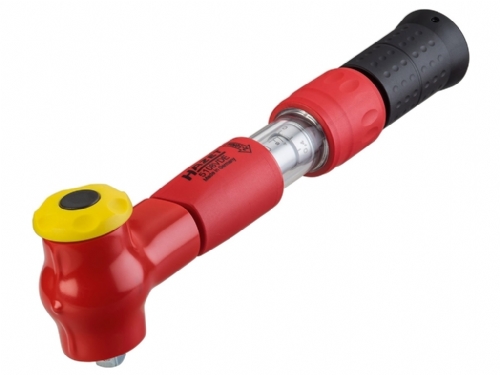

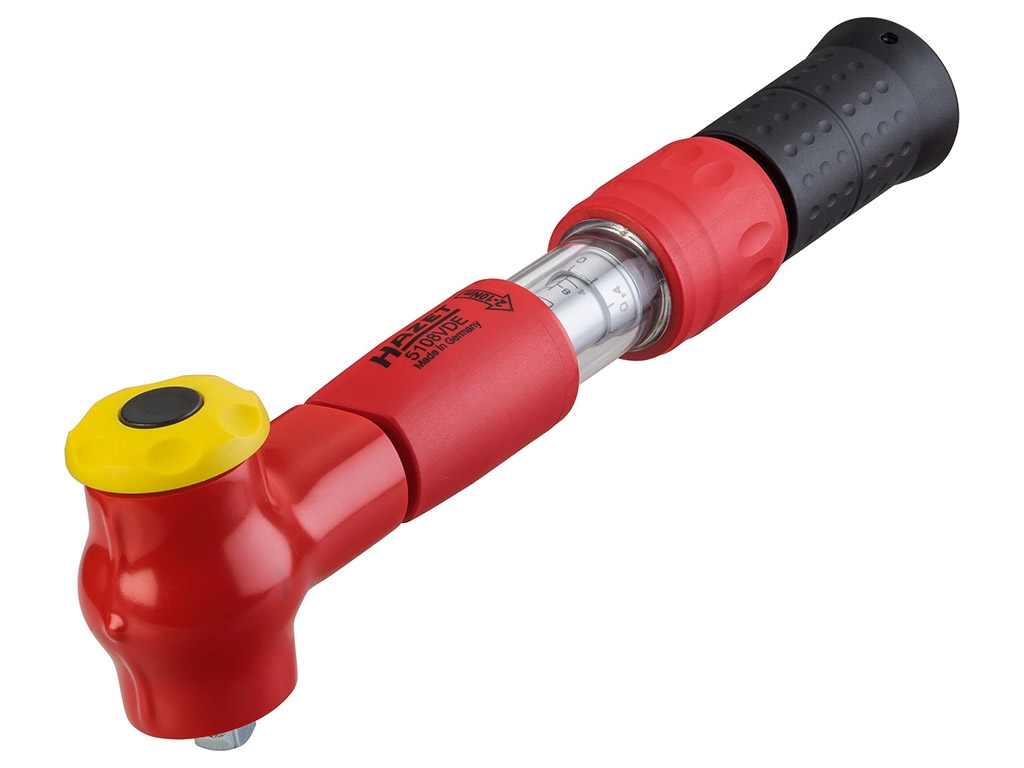

Hazet 5108 VDE Torque Wrench
2 - 10 N.m Insulated Adjustable Torque Wrench, Accuracy ±%6, Square Drive 3/8“
| Part No | 4000896200023 |
| Model | 5108VDE |
| Accuracy | ±%6 |
| Torque Range | 2 - 10 N.m |
| Drive | 3/8" Square |
| Scale | N.m only |
| Operation Dir. | Clockwise & c.clockwise |
| House Calib. | Supplied with the tool |
| Acc. calibration | Optional |
| Lenght / Weight | 275 mm / 0.59 kg |
| Brand / Origin | Hazet / Germany |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Torque ranges 2 – 25 N.m
- Torque accuracy ±6% - ±4%
- Certified to 1000 volts protection
- Meets the requirements of ISO 6789-1:2017
- Complies with IEC 60900:2014 standarts
- Supplied with 3/8” SD reversible ratchet
- Supplied with a Declaration of Conformance
- Delivered with house calibration certificate
- Origin Germany, manufactured by Hazet, CE certified
Technical Specifications
Hazet Insulated Torque Wrenches - [2-25 N.m]
| Part No | Model | Torque Range | Sq. Drive | Resolution | Length | Weight |
| Hazet | N.m | inch | % | mm | kg | |
| 4000896200023 | 5108VDE | 2 - 10 | 3/8" | ±6 | 275 | 0.59 |
| 4000896200139 | 5109VDE | 5 - 25 | 3/8" | ±4 | 305 | 0.64 |
| 4000896229024 | 5121VDE | 20 - 120 | 1/2" | ±4 | 420 | 1.44 |
Photos
