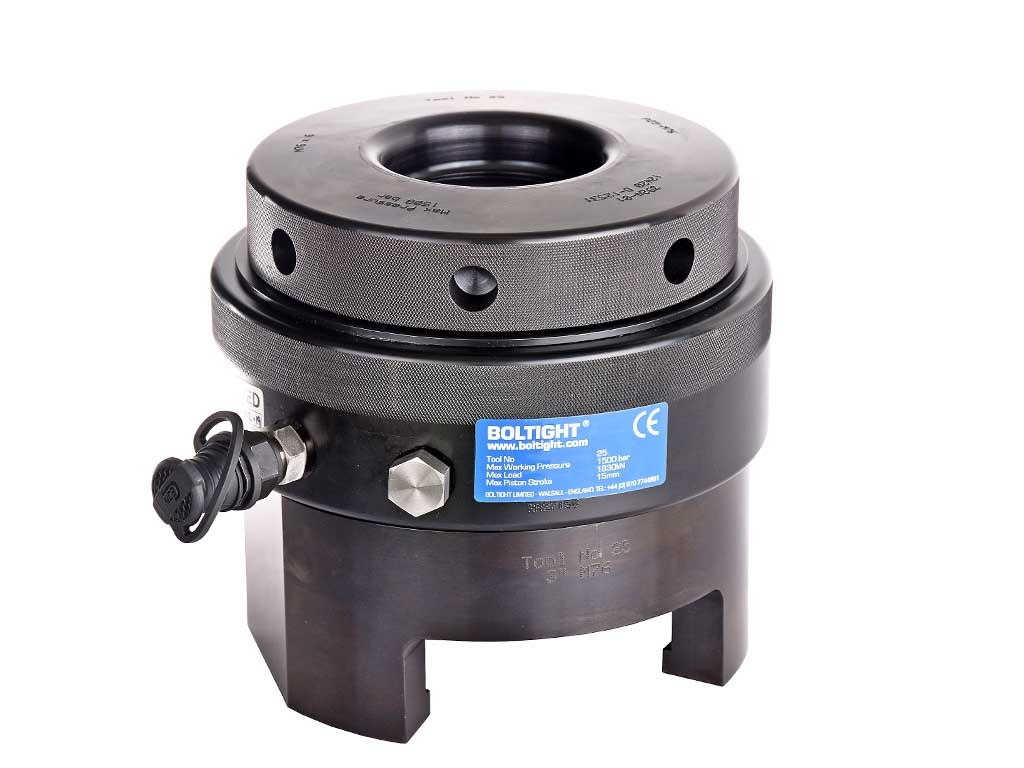

Boltight T26 Hydraulic Bolt Tensioner
2.502 k.N Hydraulic Bolt Tensioner, Load Return Cylinder, [M76–M90], 3“ - 3.1/2“
| Model | T26 |
| Capacity (ton) | 250 Ton |
| Capacity (k.N) | 2502 k.N |
| Bolt Size (metric) | M76 - M90 |
| Bolt Size (imperial) | 3" - 3.1/2" inch |
| Work. Pressure | 1500 Bar |
| Cylinder stroke | 15 mm |
| Hydraulic Area | 166.8 cm² |
| Outside Dia. | 235 mm |
| Tool Weight | 36.1 kg |
| Brand | Boltight - Nord Lock |
| Origin | United Kingdom |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

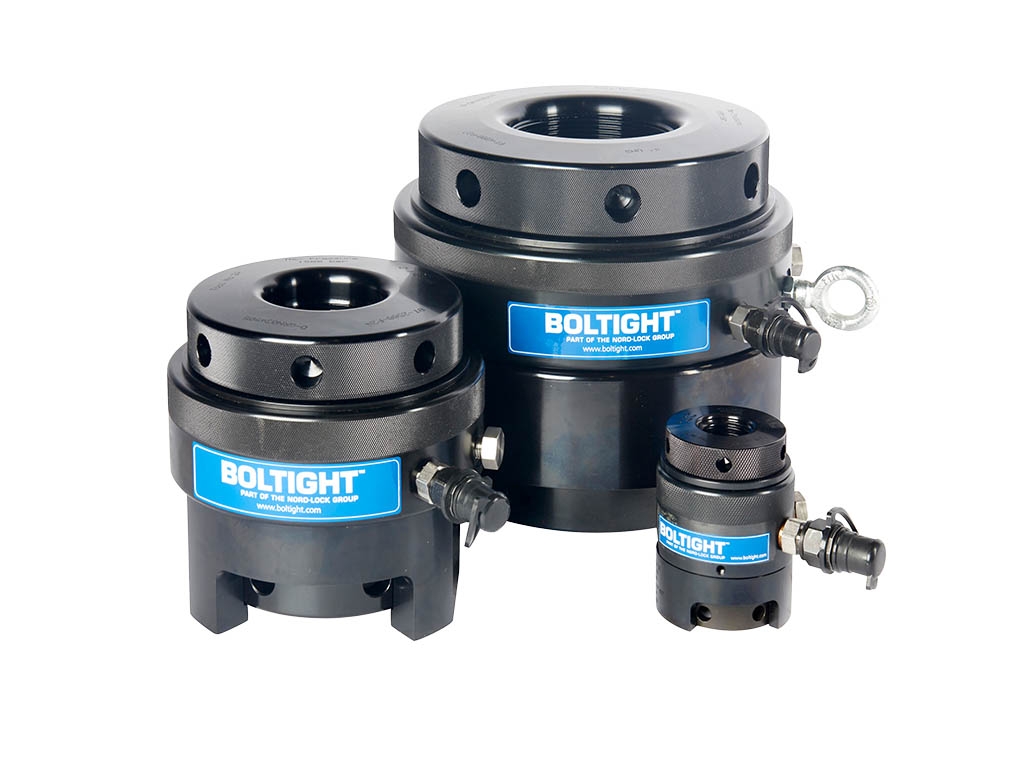

Features
.jpg)
- Load capacity ton 23 – 263 tn
- Load capacity k.N 233 – 2629 k.N
- Compatible with metric bolts M16 – M100
- Compatible with imperial bolts 3/4” – 4.0”
- Load return 1500 bar hydraulic system
- 12 mm stroke and 15 mm stroke available
- Larger or special designs available on request
- Tools are available in metrical and imperial sizes
- Suitable for single or multi-tensioning applications
- Fits most ANSI B16.5, MSS SP-44 and API17D flanges
- Single-twin port options, fitted with Cejn 116 series
- Origin United Kingdom, made by Boltight -Nord Lock
Technical Specifications
Applications including:
Boltight T-Series standard range of topside Hydraulic bolt tensioners are easy to install. Designed to fit most standard flanges (ANSI 16.5, API 605, MSS SP44, etc).

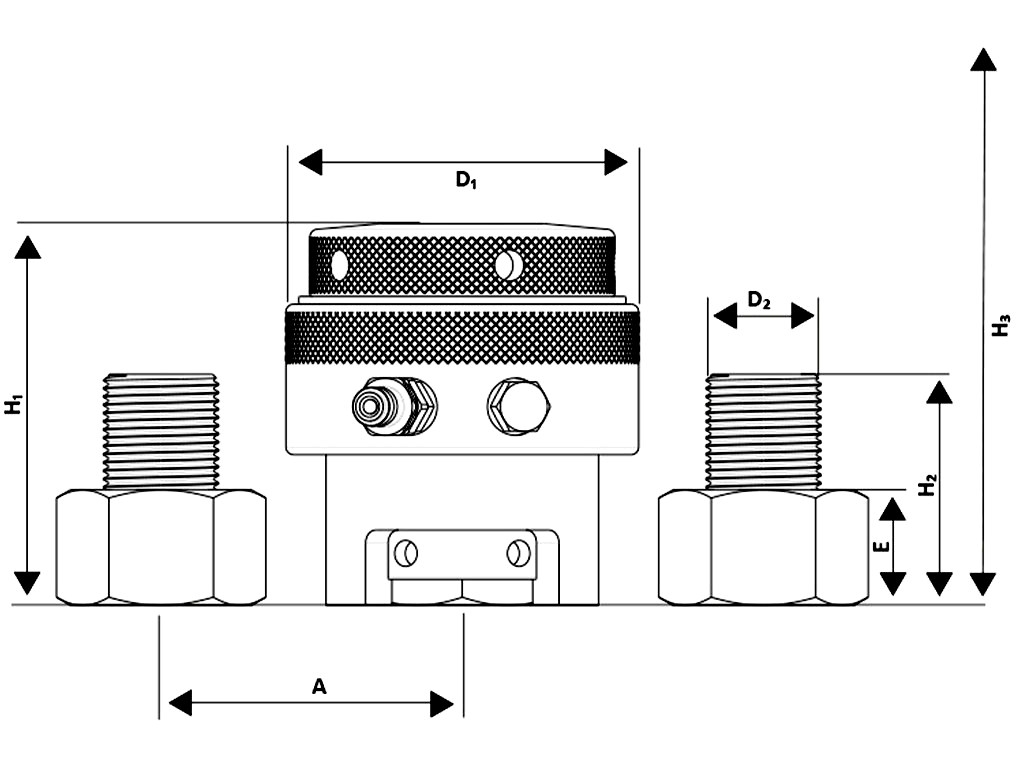

| Model | Capacity | Outside Dia. | Bolt Size | Hydraulic Area | Stroke | Bolt | Thread Pitch | A | H1 | H2 | H3 | E | Weight | ||
| No | Ton | k.N | mm (D1) | metrik (D2) | inch | cm² | mm | mm | Thread Pitch | mm | mm | mm | mm | mm | kg |
|
T26 |
250 |
2502 |
235 | M76 | 3’’ | 166.8 | 15 | 110 | Pitch | 154 | 212 | 76 | 288 | 76 | 36.1 |
| 235 | M80 | 3-1/4’’ | 166.8 | 15 | 115 | 6.0 | 176 | 212 | 80 | 288 | 80 | 36.1 | |||
| 235 | M90 | 3-1/2’’ | 166.8 | 15 | 130 | 6.0 | 185 | 212 | 90 | 288 | 90 | 36.1 | |||

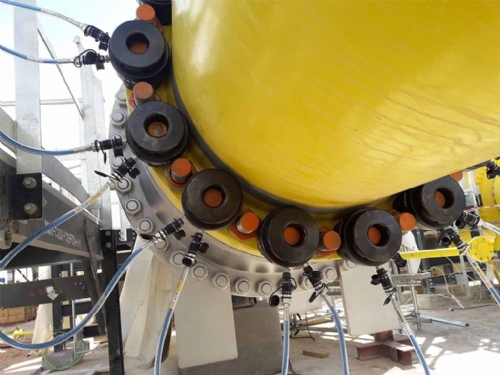

How Bolt Tensioner Works:
.jpg)
Applications including:
- All Oil & Gas Flanges
- Heat Exchangers
- Pressure vessels
- Exchange covers & nozzles
- Boiler feed pump
- Manufacturing machinery
- Cranes
- Clamps
