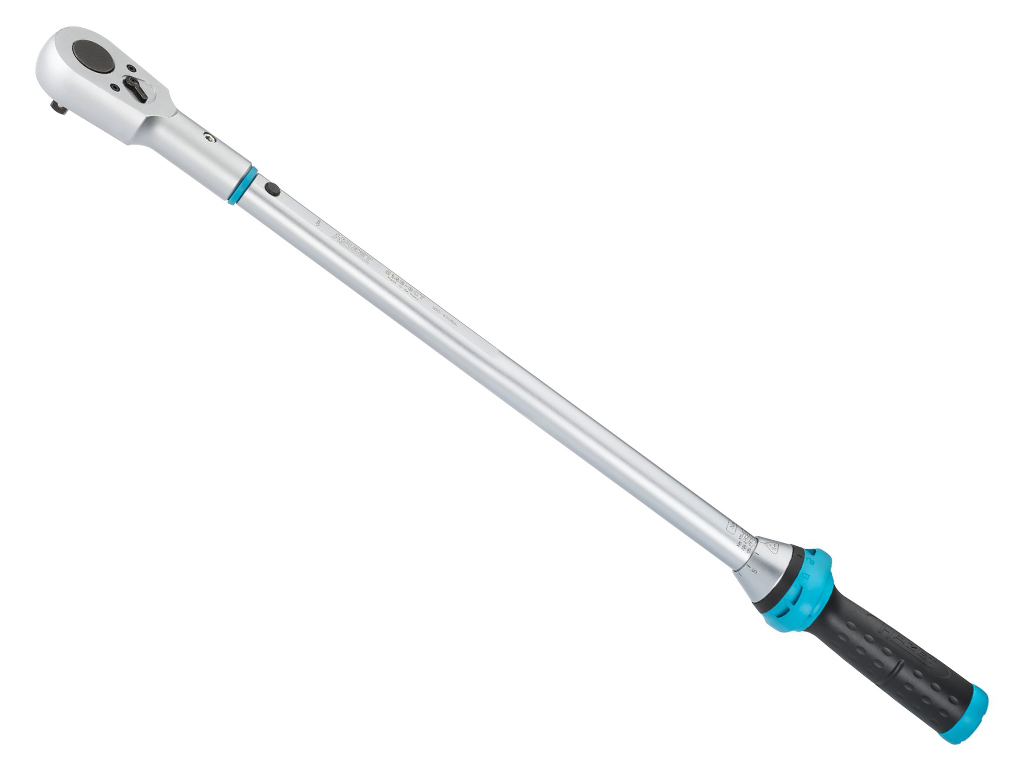

Hazet 5143-3CT Torque Wrench
100 - 400 Nm Hazet Torque Wrench, Accuracy ± %3, Square Drive 1/2''
| Hazet Code | 5143-3CT |
| Torque range | 100 ~ 400 N.m |
| Accuracy | ± 3% |
| Square drive | 1/2" |
| Scale graduation | 2.5 N.m |
| Total length | 790 mm |
| Opening angle | 11.25° |
| Theeth pcs | 32 |
| Standart | ISO 6789-2:2017 |
| Actuating force | 14.8 - 60.3 kg |
| Tool weight | 3.6 kg |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Accuracy ±3% of scale value in direction of actuation
- From 1 upto 800 N.m range covered by 10 models
- Tested in accordance with ISO 6789-2-2017
- Durable for tightening and loosining operations
- Easy to read, high contrast laser marking scale
- Safe Torque release palable and audible “click”
- Designed for heavy duty workshop applications
- House calibration certificate with serial number
- Delivered in sturdy protecting Hexa plastic box
.png)
Product technical specificationsTechnical Specifications

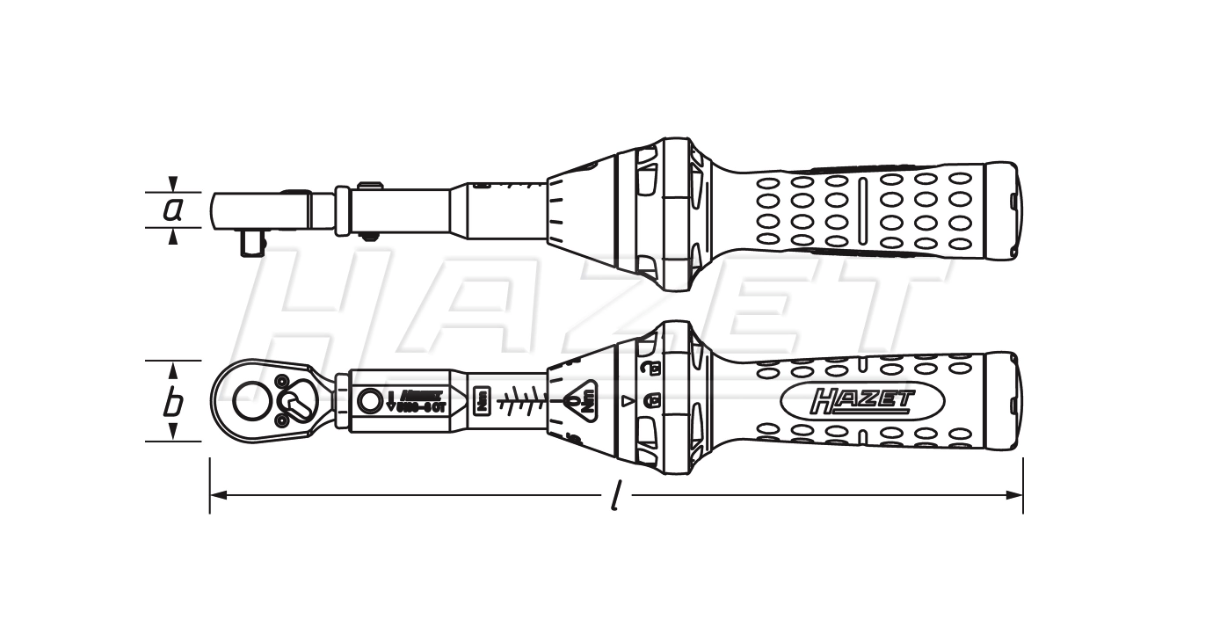

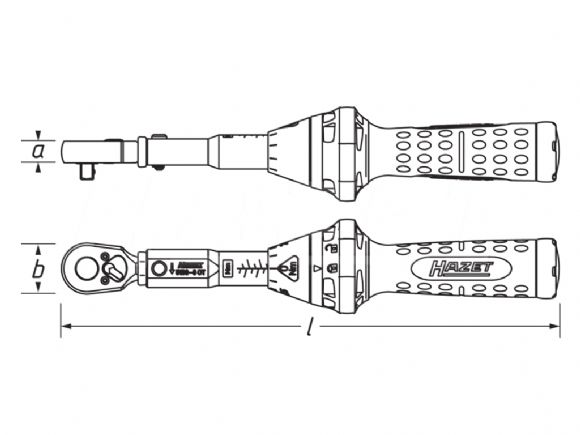

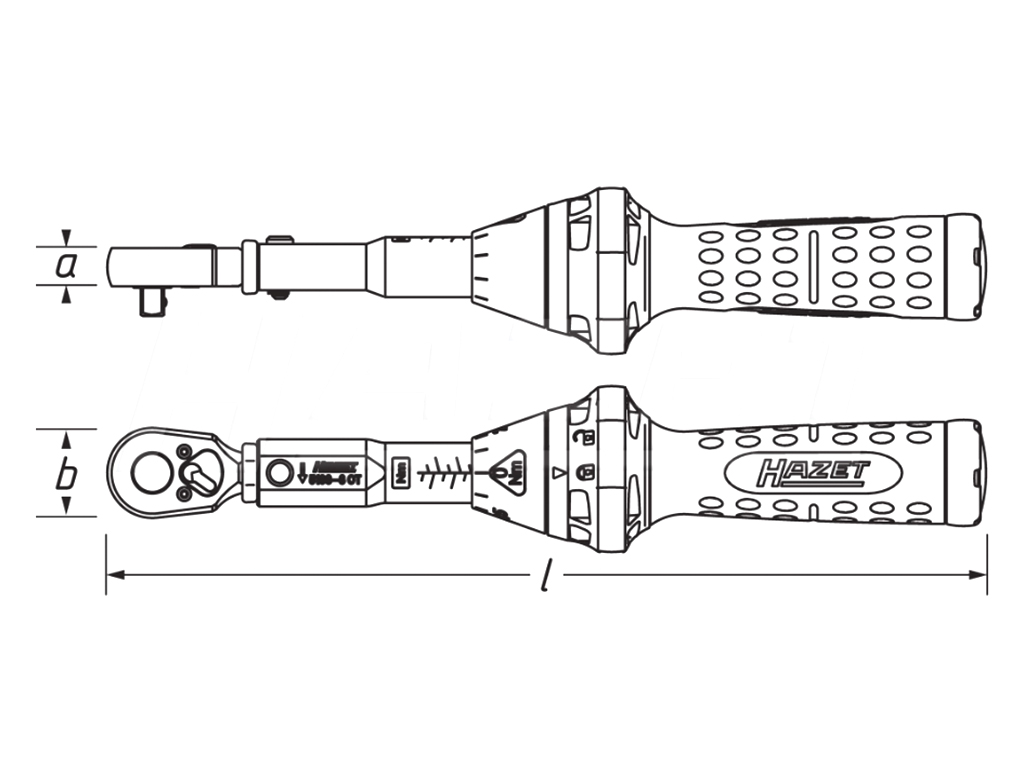

Hazet Torque Wrenches [1 - 800 Nm]
| Hazet | Range | Drive | Accuracy | Resolution | Length | Opening Angle | Number of | Force | a | b |
| Code | N.m | inch | % | N.m | mm | ° | Theeth | N.m | mm | mm |
| 5107-3CT | 1 - 9 | 1/4” | ± %4 | 0.1 | 234 | 18 | 20 | 0.6-5.5 | 10.2 | 24 |
| 5108-3CT | 2.5 - 25 | 1/4” | ± %3 | 0.25 | 234 | 18 | 20 | 1.4-15.3 | 10.2 | 24 |
| 5110-3CT | 10 - 60 | 3/8” | ± %3 | 0.5 | 320 | 12 | 30 | 3.9-25.0 | 14.5 | 32 |
| 5111-3CT | 20 - 120 | 3/8" | ± %3 | 1 | 375 | 12 | 30 | 6.9 – 43.5 | 14.5 | 32 |
| 5120-3CT | 10 - 60 | 1/2” | ± %3 | 0.5 | 320 | 12 | 30 | 3.9-25.0 | 14.5 | 32 |
| 5121-3CT | 20-120 | 1/2” | ± %3 | 1 | 421 | 11.25 | 32 | 6.1-38.0 | 19.6 | 44 |
| 5122-3CT | 40-200 | 1/2” | ± %3 | 1 | 519 | 11.25 | 32 | 9.4-49.5 | 19.6 | 44 |
| 5123-3CT | 60-320 | 1/2” | ± %3 | 2 | 628 | 11.25 | 32 | 11.3-62.2 | 19.6 | 44 |
| 5143-3CT | 100 - 400 | 1/2'' | ± %3 | 2.5 | 790 | 11.25 | 32 | 14.8 - 60.3 | 28.5 | 64 |
| 5145-3CT | 300-800 | 3/4” | ± %3 | 2.5 | 1271 | 11.25 | 32 | 26.2-71.0 | 28.5 | 64 |
