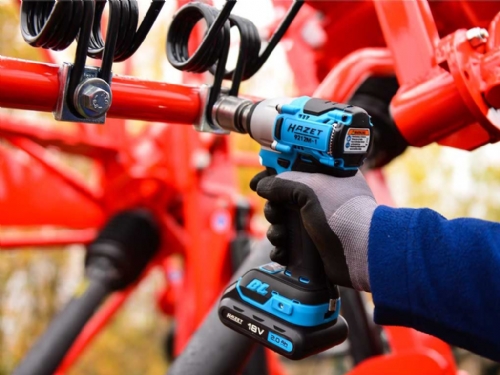

Hazet 9212 M Battery Impact Wrench

270 Nm Cordless Impact Wrench, 1/2’’ Drive

Tool Code 9212 M
Cap. Loosening Max. 270 Nm
Cap. Tightening  Max. 220 Nm
Recommended Torque 220 Nm
Square Drive 1/2“
Sound Level 99.6 dB(A) Lp A
Vibration Level 15.4 m/s²
Bolt Size M16
Li-Ion Battery 18V 5Ah
Revolutions 2500 rpm
Dimensions 228 x 63 x 135 mm
Weight 1.34 kg
Manufacturer Hazet



Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
966671
Verify Security Code:

Features
  • Loosening torque max. 270 N.m
  • Tightening torque max. 220 N.m
  • Recommended torque 220 N.m
  • Square drive size 1/2’’
  • Sound pressure level 99.6 dB(A)
  • Engine revolutions 2500 rpm
  • Vibration acceleration  15.4  m/s²
  • Net weight 1.34 kg, dimensions 228x63x135 mm
  • Li-ion battery with very low self-discharge
  • Trade mark Hazet, manufactured in Germany

Technical Specifications

Hazet Battery/Cordless Impact Wrenches

  9212 9213
Tool Code SPC-010 SPC-1 SPC-1/4 M-010 M-1 M-1/4 10 3 1000 1000/3 1000/4 1000 1000/3 1000/4
Cap. Loosening Max. 200 N.m 220 N.m 500 N.m 1000 N.m 1000 N.m
Cap.Tightening Max. 260 N.m 270 N.m 700 N.m 1400 N.m 1400 N.m
Recommended Torque 200 N.m 220 N.m 500 N.m 1000 N.m 1000 N.m
Kare Sürücü 1/2" 1/2" 1/2" 1/2" 3/4"
Çalışma Gürültüsü 100 dB(A)  99.6 dB(A)  99.4 dB(A)  101 dB(A)  101 dB(A)
Titreşim Seviyesi 14.91 m/s² 15.4 m/s² 20.3 m/s² 17.8 m/s² 17.8 m/s²
Saplama Ölçüsü M16 M16 M16 M24 M24
Li-ion Akü 18V 5Ah 18V 5Ah 18V 5Ah 18V 5Ah 18V 5Ah
Motor Devri 2700 rpm 2500 rpm 2000 rpm 1800 rpm 1800 rpm
Ebatlar 167 x 65 x 187 mm 228 x 63 x 135 mm 204 x 64 x 259 mm 278 x 230 x 89.5 mm 278 x 230 x 89.5 mm
Ağırlık 1.45 kg 1.34 kg 1.85 kg 3.64 kg 3.7 kg
Batarya Sayısı - 1 2 - 1 2 - 1 - 1 2 - 1 2

 Application:
-Work independently

  • High efficiency thanks to brushless motor
  • Handy, short and lightweight tool

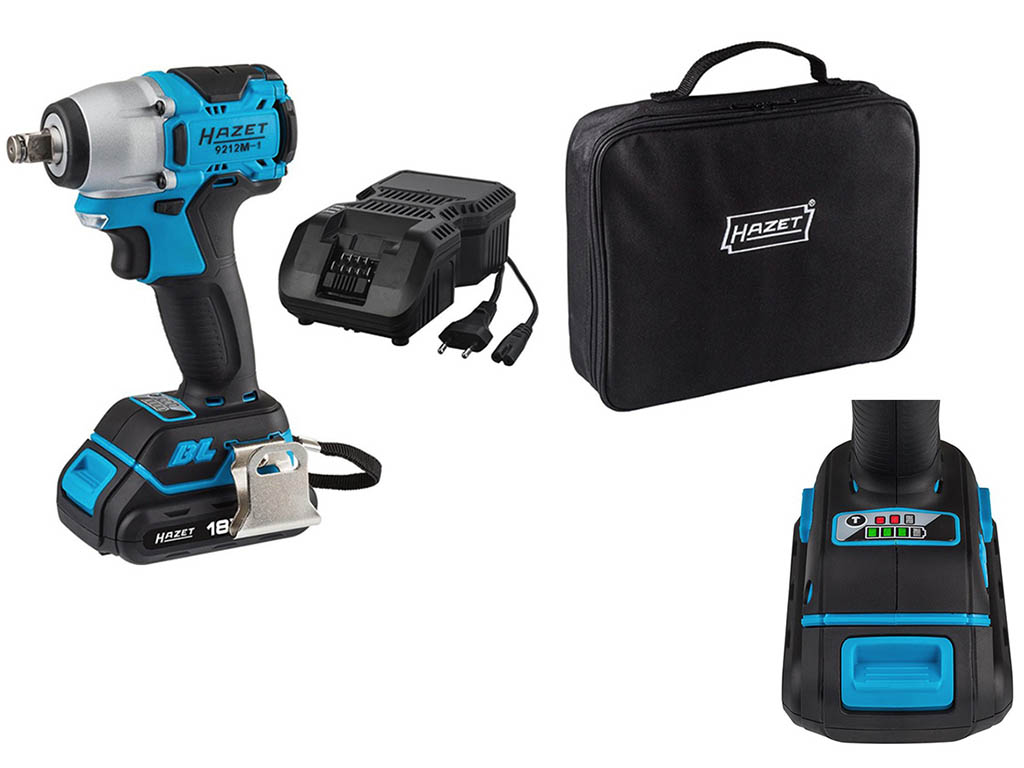

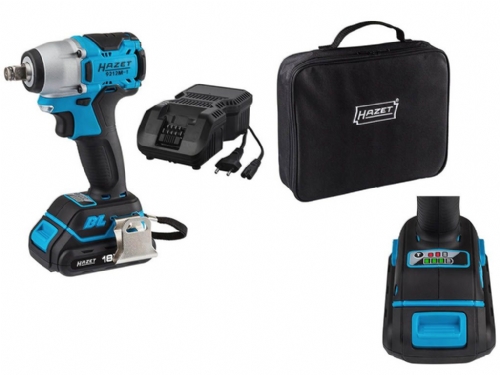

  • Basic unit Mini cordless impact wrench set, without battery
  • There are three power stages to choose from for torque acceleration
    Stage 1: approx. 80 Nm at 700 rpm
    Stage 2: approx. 150 Nm at 1600 rpm
    Stage 3: approx. 220 Nm at 2500 rpm
  • Amperage without load: 4.5 A
  • Charging time ~ 35 minutes
  • Brushless DC motor (BLDC):
    • Longer service life, less wear, no need to change the carbon brushes
    • High efficiency and hence less battery consumption
    • More compact motor enables smaller dimensions
  • Illumination of the work area before the output begins to move
  • Li-Ion battery with very low self-discharge (only 2%) compared to a standard NiMH battery (15 – 25%)
  • Net weight: 0.954 kg (without rechargeable battery)
  • Battery net weight: 0.365 kg
  • Battery charger net weight: 0.66 kg

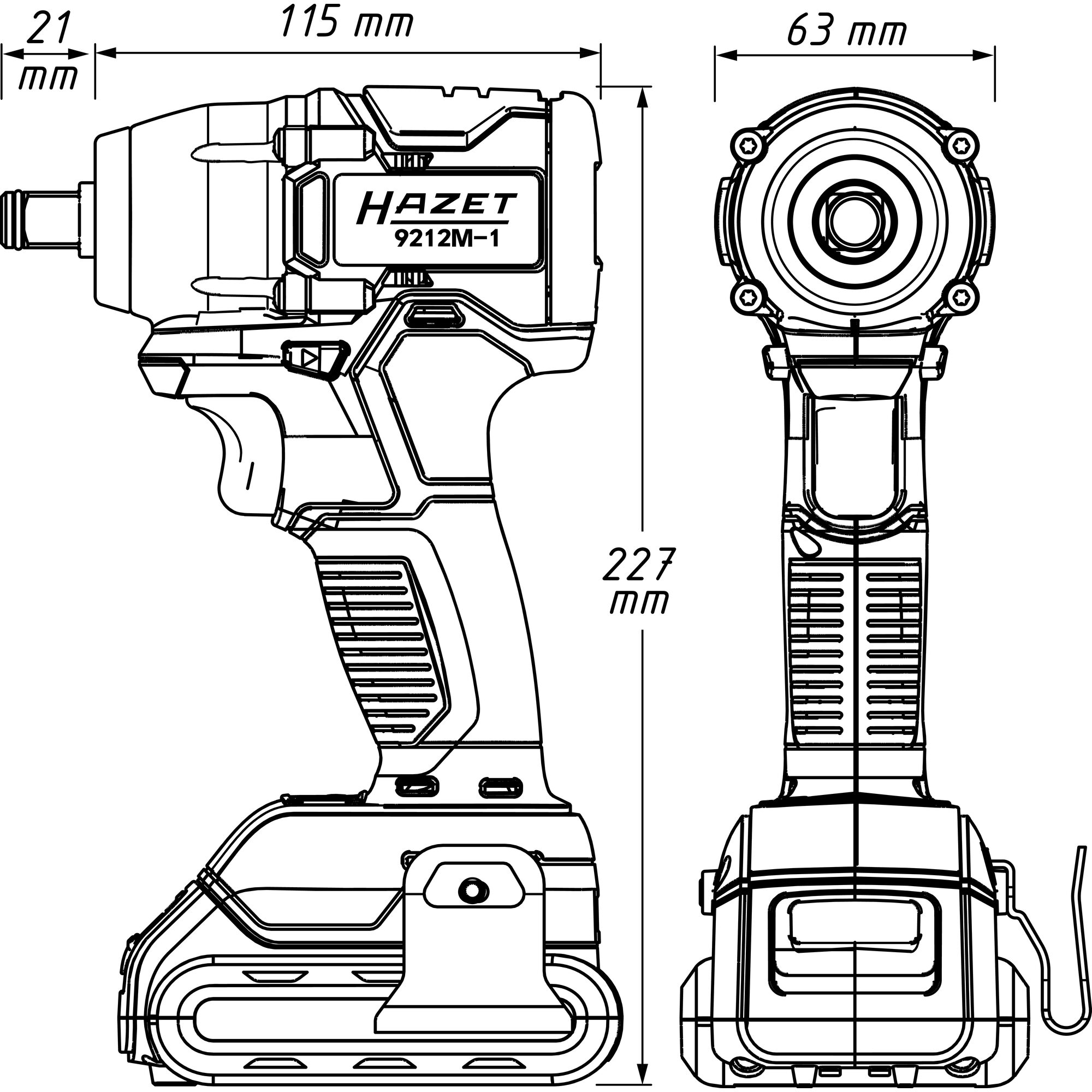

  • Dimensions including rechargeable battery: 228 x 63 x 135 mm
  • Including belt clip, attachable on both sides, and hand strap
  • Recommended torque: 220 Nm
  • Sound power level: 110.6 db(A) Lp W
  • Vibration acceleration: 15.40 m/s2
  • Loosening torque (max) determined with screw size M: 16
  • Output: Square, solid 12.5 mm (1/2 inch)
  • Net weight: 0.95 kg
  • Tightening torque max.: 220 Nm
  • Maximum loosening torque: 270 Nm
  • Sound pressure level: 99.6 dB(A) Lp A
  • Revolutions per minute: 0 – 2500
