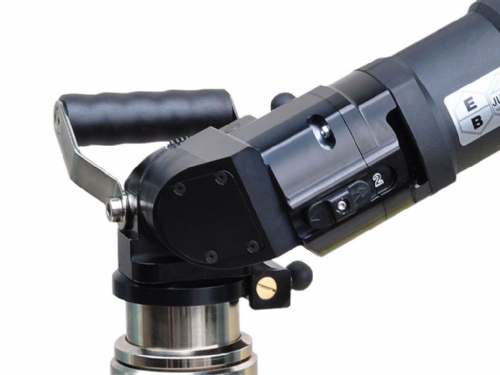

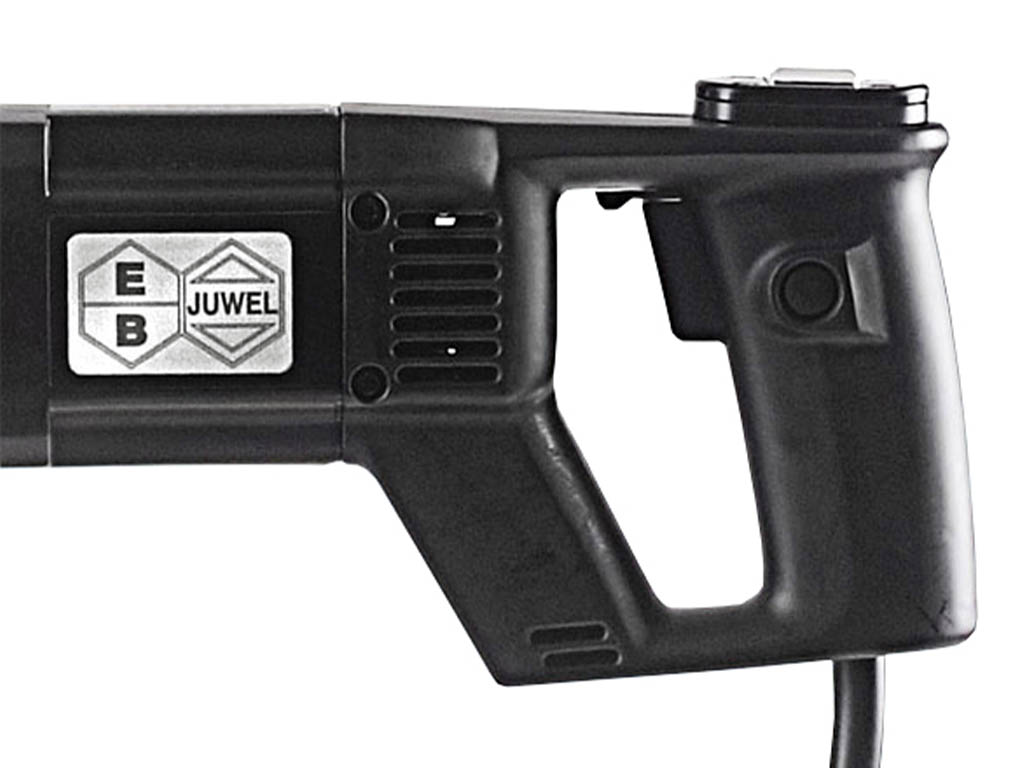

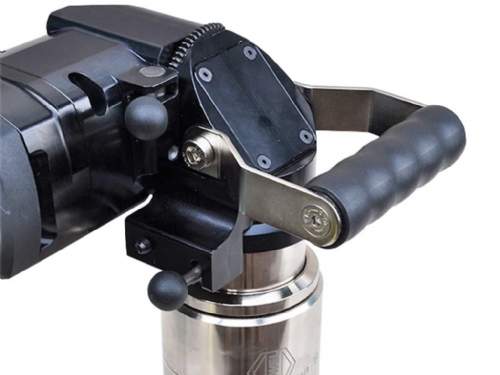

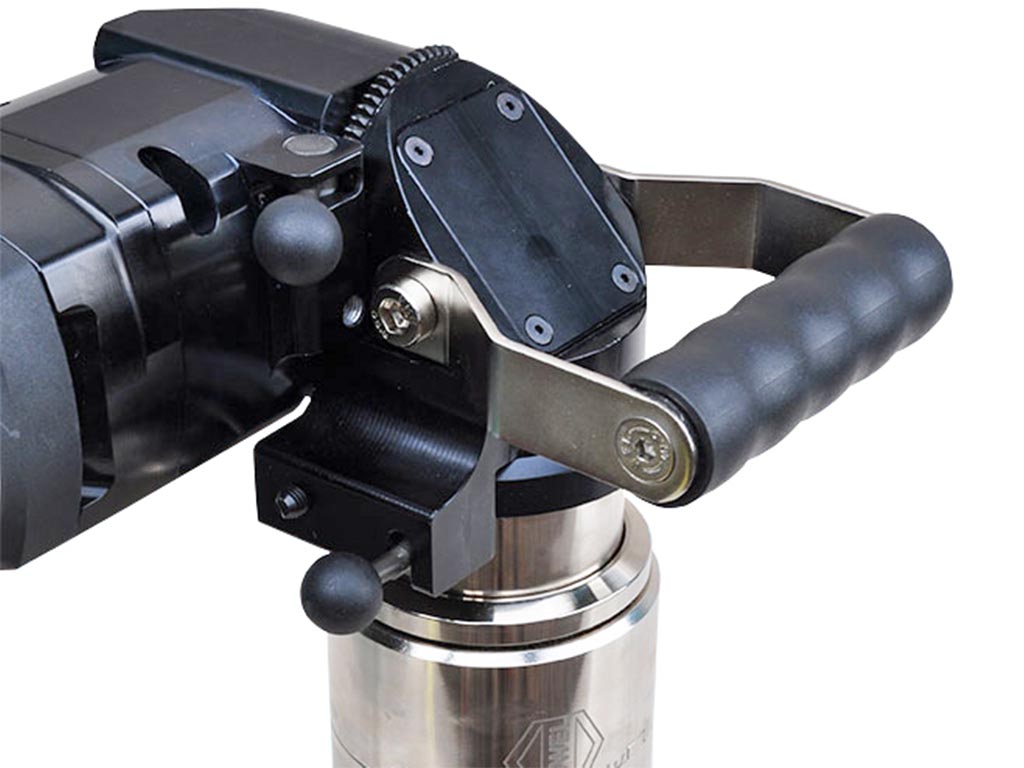

Juwel TESM 505 Electric Torque Wrench

5000 N.m Multifunction Electric Torque Wrench, ±3.5%, Square Drive 1.1/2“

Part No 50 505 140
Model TESM-505
Accuracy ±3.5%
Torque Range 700-5000 N.m
Drive 1.1/2" Square
Operation Dir. Clockwise & c.clockwise
Operation Pos. Multi Funtional
Max. Revolution 3 rpm
Power Supply Electricity
Calibration Supplied with the tool
Brand - Origin Juwel / Germany
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
399655
Verify Security Code:

Features
  • Tightening & loosening capacity up to 5.000 Nm
  • Accuracy up to ±3.5% with cut off system
  • Analog control with 200 different torque settings
  • Tool stops when selected torque value reached
  • 2 speed gear mechanism for slow & fast operations
  • Supplied with a Juwel house calibration certificate.
  • Both 220 and 110 volt operation power available
  • Freely rotatable gearbox enables ergonomic use
  • Technical support & calibration service in Turkey

Technical Specifications

 Juwel TESM Series Heavy Duty Multifuntional Electric Torque Wrenches

  • With its gradual latching of the operating unit, the TESM torque wrench is an indispensable aid for changing systematic strain. The tried and tested modular gear technology, combined with ergonomic and operationally friendly features, turn this wrench into a true all-rounder.

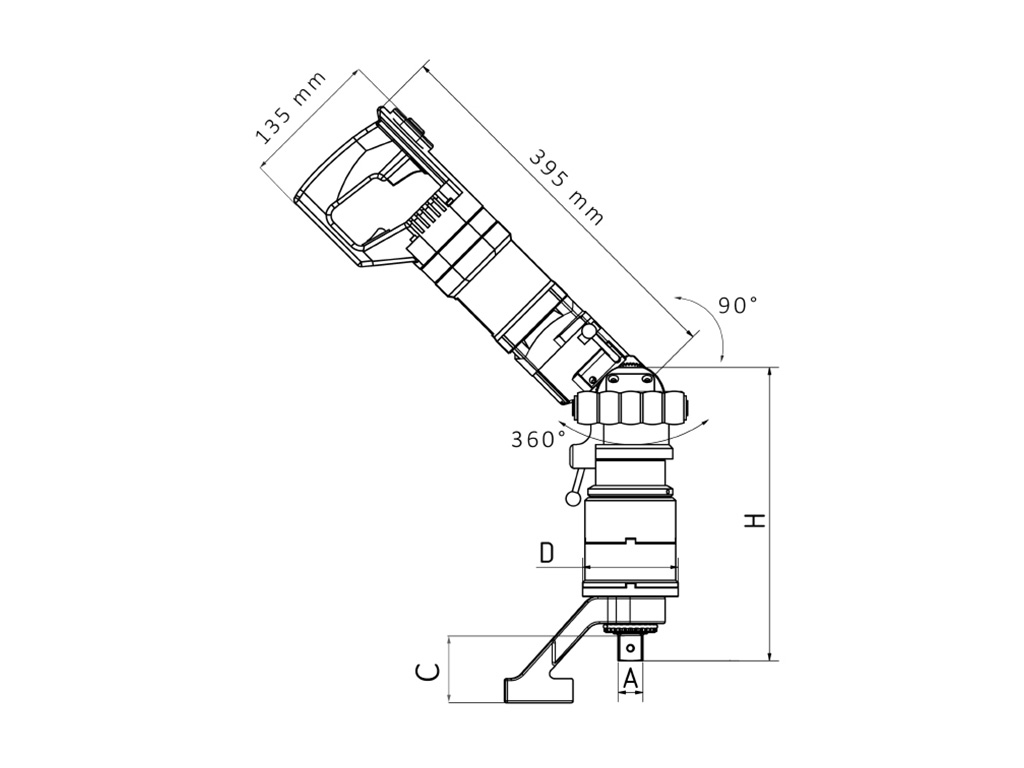

Part No. Model Torque Range Drive (A) Idle Speed Sizes (mm) Weight
# # N.m inch c/m (rpm) H C D Kg
50 085 100 TESM-85 150-850 3/4"-1" 16 265-275 55-75 99 9.8-10
50 105 110 TESM-105 280-1200 1" 14 275 75 99 10
50 245 120 TESM-245 360-2500 1.1/2" 10 305 75 99 13.6
50 355 130 TESM-355 360-3500 1.1/2" 9 315 95 99 14.5
50 505 140 TESM-505 700-5000 1.1/2” 3 365 95 99 16.7
  • Available from 200 to 15,000 Nm

  • Freely turning drive unit
  • Quick and precise
  • 2-step gear ri./le.

  • 200 torque settings
  • Modular build with bearings for continuous use
  • With a torque deactivation system with an accuracy of +/- 3.5% at consistent screwing application
  • Quick, precise, safe and low-noise
  • Devices available in 230 Volt and 110 Volt versions
  • Newly designed drive motor characterised by its robust and maintenance-friendly structure as well as by high performance reserves
  • Right- and left-ward rotation and a 2-step gear; adjustable with 200 torque settings

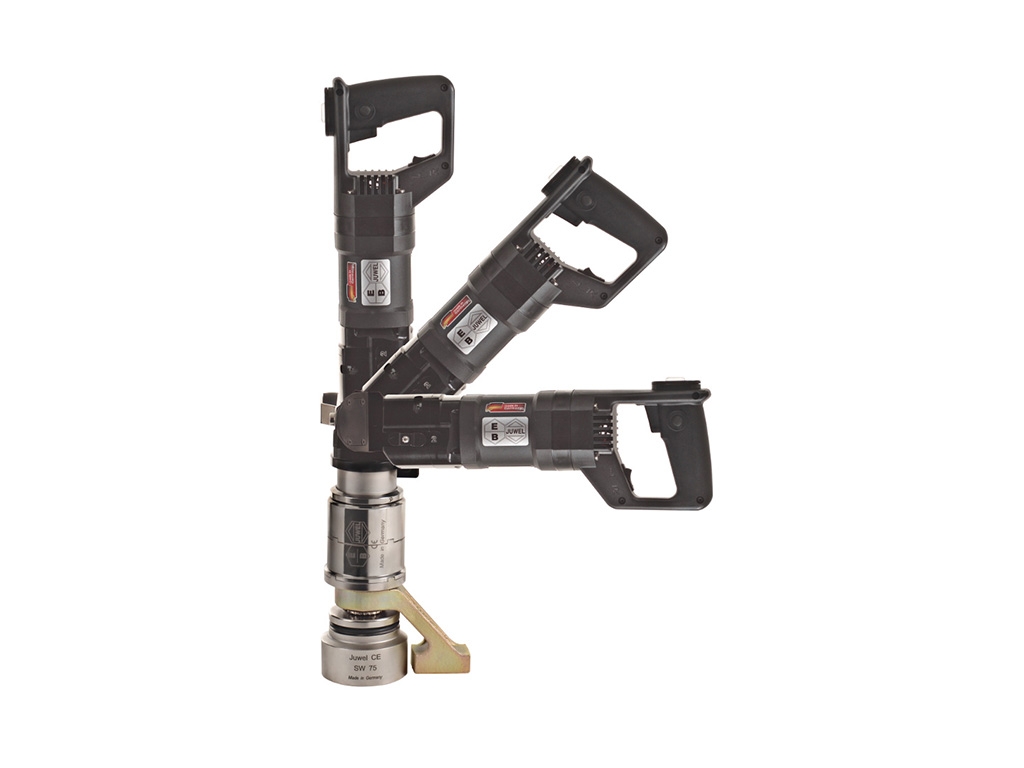

  • Any position of the operating unit possible; drive motor can be freely turned by 360°, which ensures comfortable positioning of the device on the screw connection
  • Can optionally be either with a load release. This leads to independent loosening of the torsion between the push-on socket and the support. The drive motor briefly turns into the opposite direction for this. This option is indispensable for short assembly times and offers best work safety.

Juwel TESM Series Multi-Functional Electric Torque Wrenches - PDF
