Boerkey Turning Heavy Duty Wheels

DT30-P200 - 3 Tons Plastic Wheel

Model Code DT30-P200
Capacity (ton) 3 ton
Capacity (kN) 30 kN
Castor Lenght 220 mm
Castor Weight 150 mm
Height Ø 200 mm
Width 120 mm
Speed max. 100 m/dk
Weight Plastic
Plated 18.5 kg
Castors Type Swivel
Origin / Brand Germany / Boerkey
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
936916
Verify Security Code:

Features
  • Carriying capacity 2 – 6 tons
  • Height of wheels 210 – 335 mm
  • Max speed of load 100 m/min
  • Supplied with swivel castor
  • Can be inserted machine part
  • Impervious to shavings and dust
  • Plastic wheel model available
  • Does not damage to ground
  • Special construction for req.
  • Producer Boerkey, Origin DE
Technical Specifications

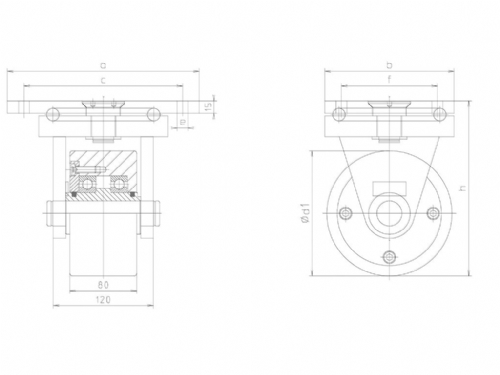

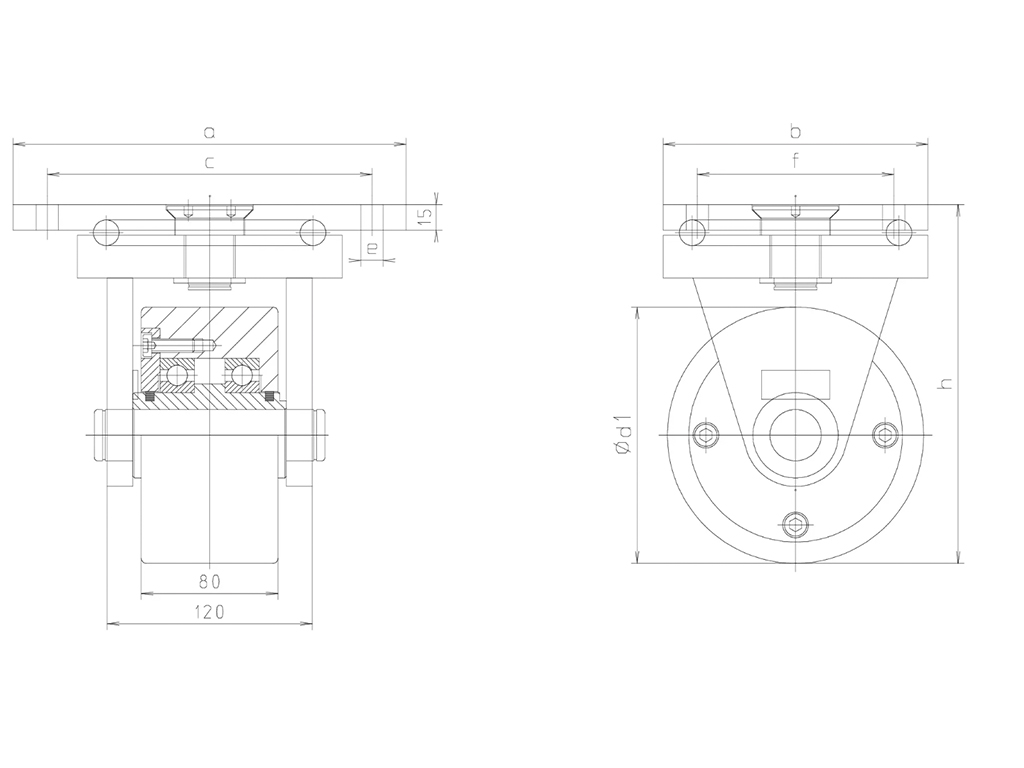

DT - P Series Heavy Duty Wheel Swivel Castors  - Plastic

Surkon Code Boerkey Code a b c Ø d1 Ø e f g h j k Capacity Weight
P Series K Series mm mm mm mm mm mm mm mm mm mm ton kN kg
DT20-P150 SD 150 K 220 150 190 150 14 115 15 210 80 120 2 20 15.4
DT20-P175 SD 175 K 220 150 190 175 14 115 15 235 80 120 2 20 16.9
DT30-P200 SD 200 K 220 150 190 200 14 115 15 260 80 120 3 30 18.5
DT30-P225 SD 225 K 270 210 210 225 18 150 15 285 80 120 3 30 22.9
DT35-P250 SD 250 K 270 210 210 250 18 150 15 310 80 120 3.5 35 24.7
DT35-P275 SD 275 K 270 210 210 275 18 150 15 335 80 120 3.5 35 26.5



Boerkey Swivel Castors Heavy Duty Wheels – Steel or Plastic Plated

  • For transporting loads at a maximum speed of 100 m/min
  • For turning corners
  • Frequently used on construction sites

Characteristics

  • Solid steel construction of the rotating mountings
  • Can be combined with other castors



Photos

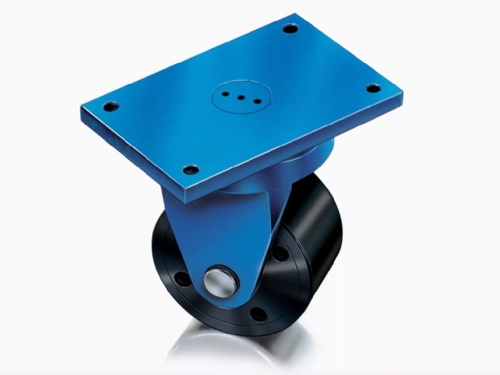

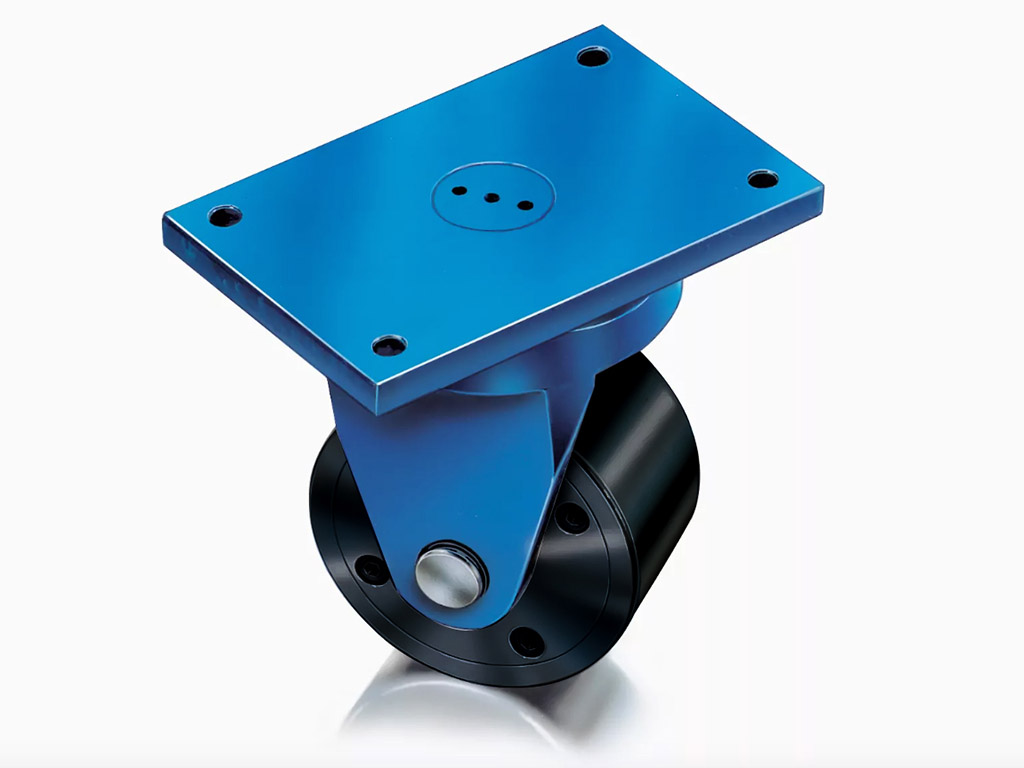

Boerkey Swivel Castors Heavy Duty Wheel
Boerkey Swivel Castors Heavy Duty Wheel
Boerkey
3 Ton
Plastic
200 mm
Castors
30 kN
Swivel Castor
