Boerkey Heavy Duty Wheels

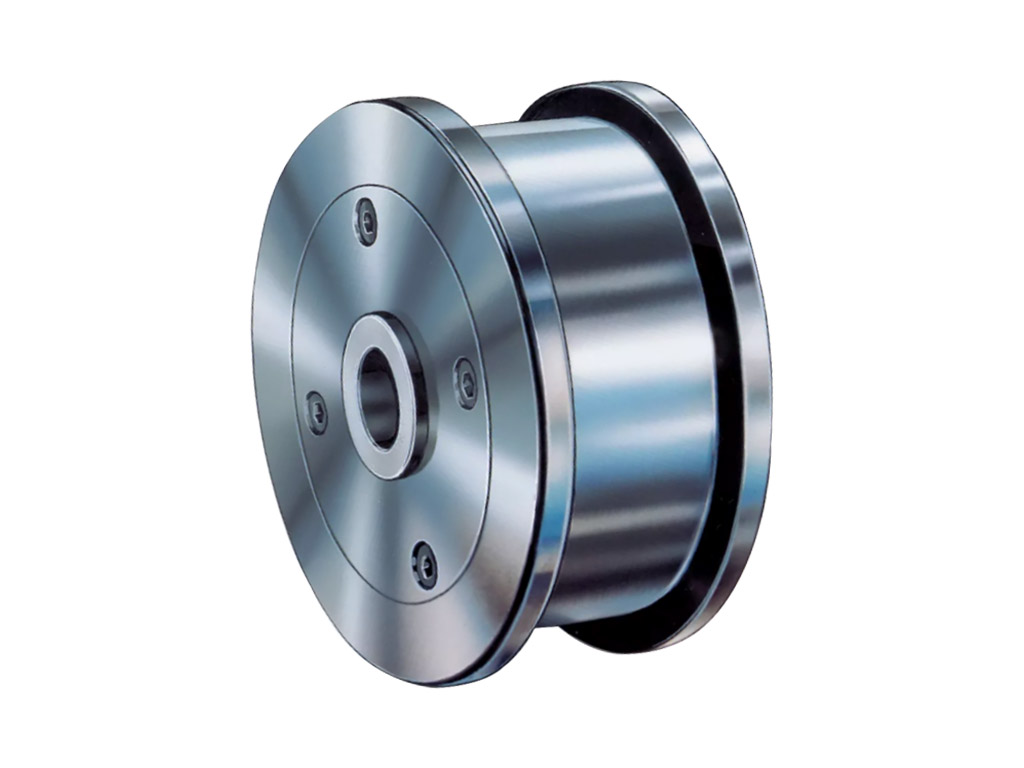

T50-CRI225 - 5 Tons Steel Wheel
| Model Code | T50-CRI225 |
| Capacity (ton) | 5 ton |
| Capacity (kN) | 50 kN |
| Min. Hole Dia. | 30 mm |
| Max. Hole Dia. | 50 mm |
| Dia. of Wheel | Ø 225 mm |
| Width | 90 mm |
| Speed | max. 100 m/dk |
| Weight | 25.1 kg |
| Plated | Stainless-Steel |
| Flanges | Double flanges |
| Origin / Brand | Germany / Boerkey |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Carriying capacity 2 – 6.5 tons
- Dia. of wheels 125 – 250 mm
- Max speed of load 100 m/min
- Suitable for fixed castor
- Can be inserted machine part
- Impervious to shavings and dust
- Construction with ball bearings
- Does not damage to ground
- Special construction for req.
- Producer Boerkey, Origin DE
Technical Specifications
,-s-a-(b)p-serisi-cizim(1).png)
CRI Series Heavy Duty Wheel Without Castors - Stainless Steel
| Surkon Code | Boerkey Code | a | b | c | Ø d1 | Ø d2 | Ø d3 | Ø d4 | X Max. | Suitable Castors | Capacity | Weight | |
| 2 Flanges | 2 Flanges | mm | mm | mm | mm | mm | mm | mm | mm | # | ton | kN | kg |
| T40-CRI150 | 150 S-B/P | 80 | 90 | 67.5 | 150 | 175 | 30 | 50 | 55 | ST..-CRI… | 4 | 40 | 10.9 |
| T40-CRI175 | 175 S-B/P | 80 | 90 | 67.5 | 175 | 200 | 30 | 50 | 55 | ST..-CRI… | 4 | 40 | 14.9 |
| T50-CRI200 | 200 S-B/P | 80 | 90 | 67.5 | 200 | 225 | 30 | 50 | 55 | ST..-CRI… | 5 | 50 | 19.6 |
| T50-CRI225 | 225 S-B/P | 80 | 90 | 67.5 | 225 | 275 | 30 | 50 | 55 | ST..-CRI… | 5 | 50 | 25.1 |
| T65-CRI250 | 250 S-B/P | 80 | 90 | 67.5 | 250 | 300 | 30 | 50 | 55 | ST..-CRI… | 6.5 | 65 | 31.1 |
Boerkey Heavy Duty Wheels - Single Flange or Double Flanges
- For use on profiles (girders / rails)
- Can be inserted as a machine part
- For transporting loads at a maximum speed of 100 m/min
- With one flange wheel (CB) or with 2 flange wheels (CI)
- The maximum distance between 2 flange wheels X = 55mm for the serial wheel
- When choosing 2 flange wheels, please state the dimension X
Characteristics
- Solid steel construction with ball bearings (C) or self-aligning roller bearings (CR)
- Delivered also as fixed castor
- Special construction to suit customer requirements
Hints on use
- Maintenance-free construction, used particularly in machine factories
- Narrower distance between flange wheels if required, distances >55mm on request
- Can be combined with fixed castors
- Body of the wheel hardened optional with model …C (extra charge) and standard with model … CR (without additional charge)
Boerkey Heavy Duty Wheel Without Castor Product Brochure - PDF
Photos
