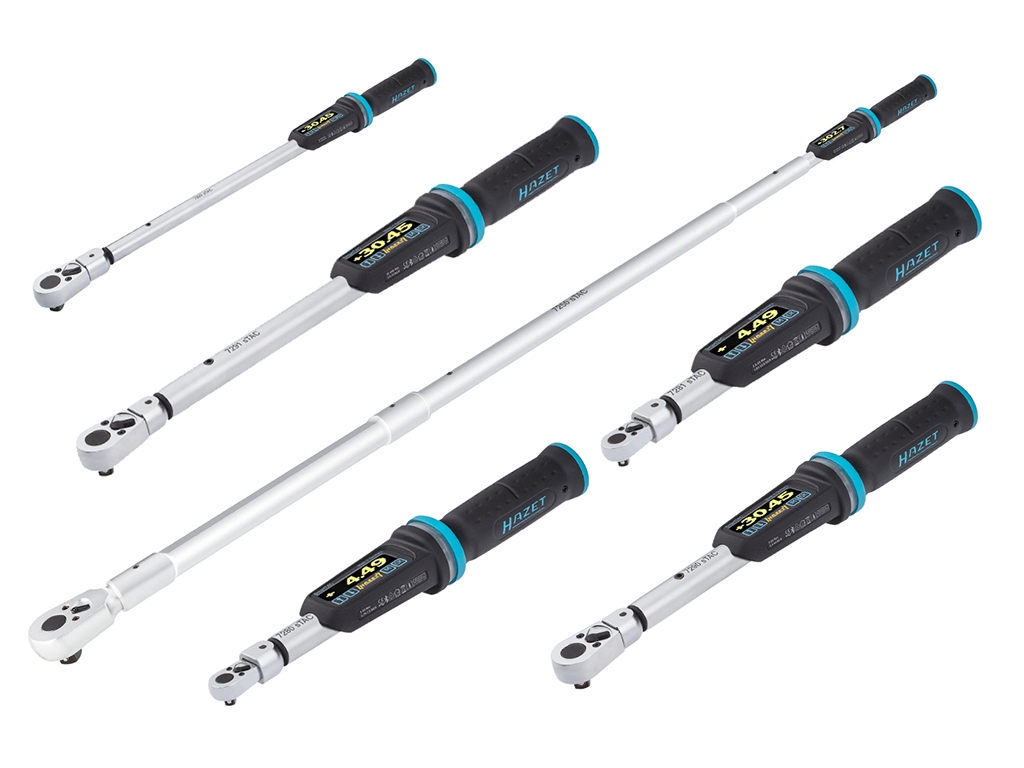

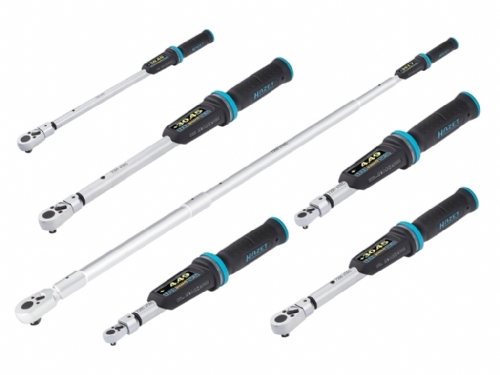

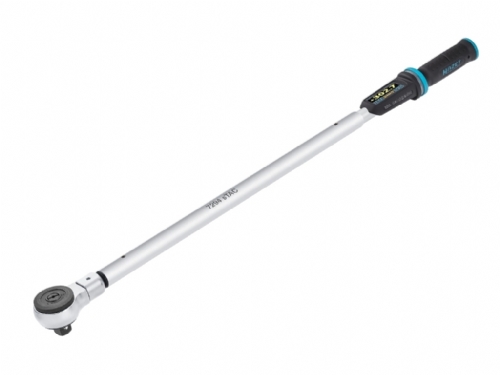

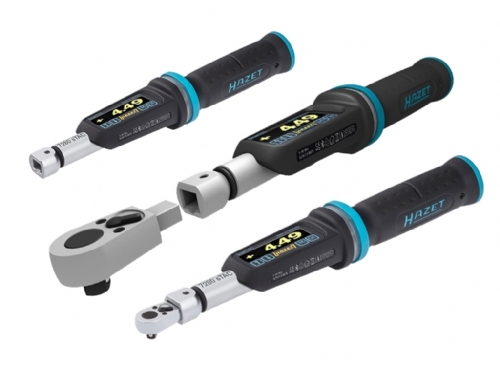

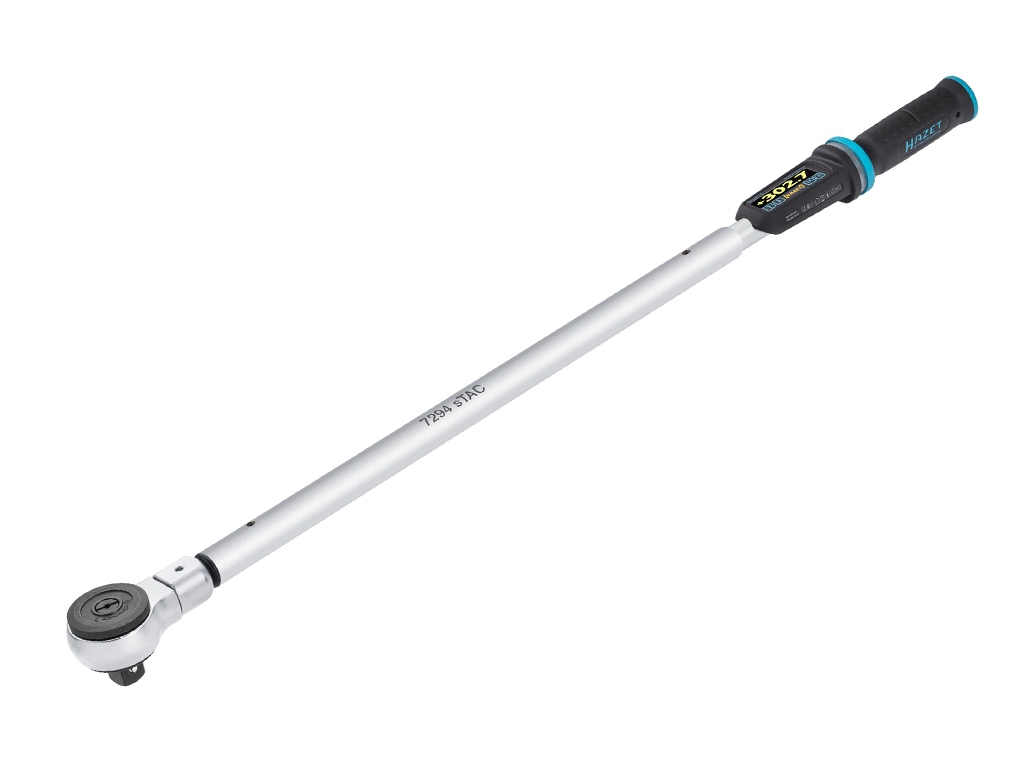

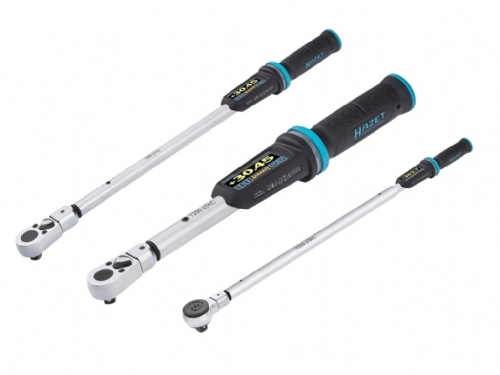

Hazet 7294-2 sTAC Bluetooth Electronic Torque Wrench

40 ~ 400 Nm Bluetooth Electronic Torque Wrench, Accuracy ±1%, Sq. Drive 3/4“

Hazet Code 7292-2 sTAC
Range 40 ~ 400 N.m
Accuracy ±1%
Square Drive 1/2" -  14x18mm
Storage 3000 reading
Communication Bluetooth
Calibration By Hazet
Meets standart ISO 6789-2:2017
Tool length 945 mm
Tool weight 2.9  kg
Brand / Origin Hazet / Germany
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
45697
Verify Security Code:

Features
  • Smart technology – Ready for Industry 4.0
  • Display deviation in right and left torque from  ±1% / ±1 digit
  • Display deviation in right and left rotation angle: ±1% / ±1°
  • Calibration certificate in accordance with DIN EN ISO 6789-2:2017
  • Release accuracy tolerance according to ISO 6789-2:2017
  • Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m
  • Menu languages: German, English, French, Italian, Chinese
  • Large, high-contrast illuminated OLED display, dimmable and 180° rotatable
  • Spray-water-proof display and membrane keyboard. Protection class IP 40
  • Memory capacity, including date and time - up to 3000 measurements
Technical Specifications

Hazet Bluetooth Electronic Torque Wrench [1.0 - 1000 N.m]

Hazet Range Range Insert Drive Square Drive Tolerance  Length Opening Number of Applied Force Weight
Code N.m lbf.ft mm inch Torque & Angle mm Angle Theeth Kg kg
7280-2 sTAC 1 ~ 10 0.75 ~ 7.5 9x12 1/4"  ±2% / ±2° 260 18° 20 0.5 - 4.6 0,48
7281-2 sTAC 2.5 ~ 25 1.85 ~ 18.5 9x12 1/4"  ±2% / ±2° 260 18° 20 1.1 - 11.4 0,48
7290-2STAC 5.0 ~ 60 3.5 ~ 44 9x12 3/8"  ±1% / ±1° 302 12° 30 1.8 – 22.2 0,64
7291-2STAC 10 ~ 100 7.5 ~ 75 9x12 3/8"  ±1% / ±1° 383 12° 30 2.9 – 28.7 0,72
7292-2STAC 20 ~ 200 15 ~ 150 14x18 1/2"  ±1% / ±1° 520 11.25° 32 4.1 – 40.7 1,1
7294-2STAC 40 ~ 400 30 ~ 300 14x18 1/2"  ±1% / ±1° 945 11.25° 32 4.4 – 43.8 2,9
7295-2STAC 65 ~ 650 48 ~ 480 14x18 3/4"  ±1% / ±1° 1141 11.25° 32 5.9 – 58.7 4,6
7250-2STAC 200 ~ 1000 150 ~ 750 14x18 3/4"  ±1% / ±1° 1772 11.25° 32 12.2 – 60.8 8,4



Features of Hazet Bluetooth Torque Wrench

  • Rotation angle range adding: 0 to 999°
  • Torque tolerance for OK display (green): adjustable ±1 to 10%
  • Rotation angle tolerance for OK display (green): adjustable 1 to 90°
  • Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m
  • Lets you select or program the effective length for other insert tools from 0 to 250 m
  • (requirement for correct torque / rotation angle measurements)
  • Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with “traffic light function” that is visible from all around
  • Threshold value, pre-warning level: adjustable 50 to 99%
  • Adjustable signaling, On/Off audible signal (buzzer) and vibration
  • Reset function, restore to factory setting
  • Stand-by time: adjustable 1 to 10 min.
  • Indication of battery condition and memory
  • Memory capacity, including date and time: up to 3000 measurements
  • Offers possibility to program flow charts and sets of parameters: 25 and 25
  • 2 control functions: programmable torque control for angle tightening and angle control for torque tightening
  • Menu locking against unintentional change, four-digit code is personally selected
  • Display of the software version with serial numbers, calibration date and service display / usage counter
  • Menu languages: German, English, French, Italian, Chinese
  • Optional on request: Programming and evaluation software for laptop and PC
  • SmartTAC app for Android end devices for series 7000-2 sTAC
  • In preparation: SmartTAC app for Apple IOS end devices
  • The HAZET SmartTAC torque wrenches with built-in angle gauge of the 7000-2 sTAC series with Bluetooth interface have valid radio licences in all EU countries as well as in Switzerland, Norway, China, India, South Korea and Turkey and may be sold there. Radio licences for Mexico, South Africa, USA and Canada are currently in preparation.
  • Other countries on request.
  • For countries without radio licences, we offer the 7000-5 sTAC series SmartTAC torque wrench without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface.
  • Release accuracy tolerance according to ISO 6789-2:2017
  • Made in Germany
