Part No | 62 006 065 |
Model | TQA-065 |
Accuracy | ±%4 |
Torque Range | 50 - 650 N.m |
Drive | 3/4" Square |
Operation Dir. | Clockwise & c.clockwise |
Operation Pos. | Vertical |
Max. Revolution | 70 rpm |
Power Supply | Battery |

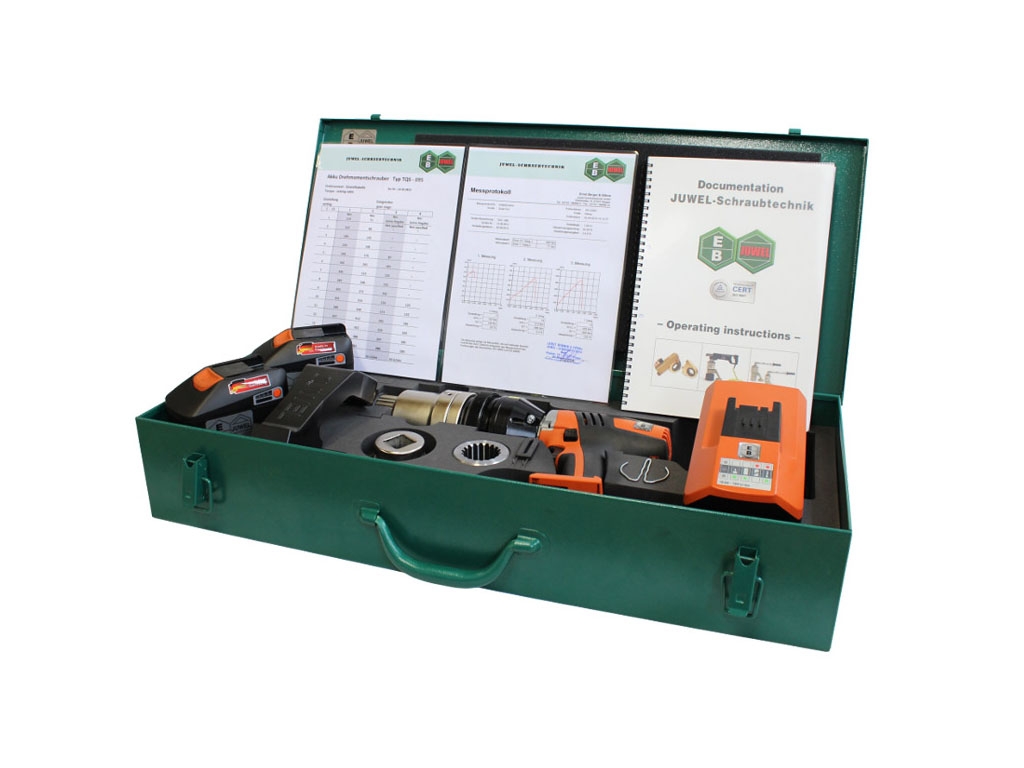

Calibration | Supplied with the tool |
Brand - Origin | Juwel / Germany |

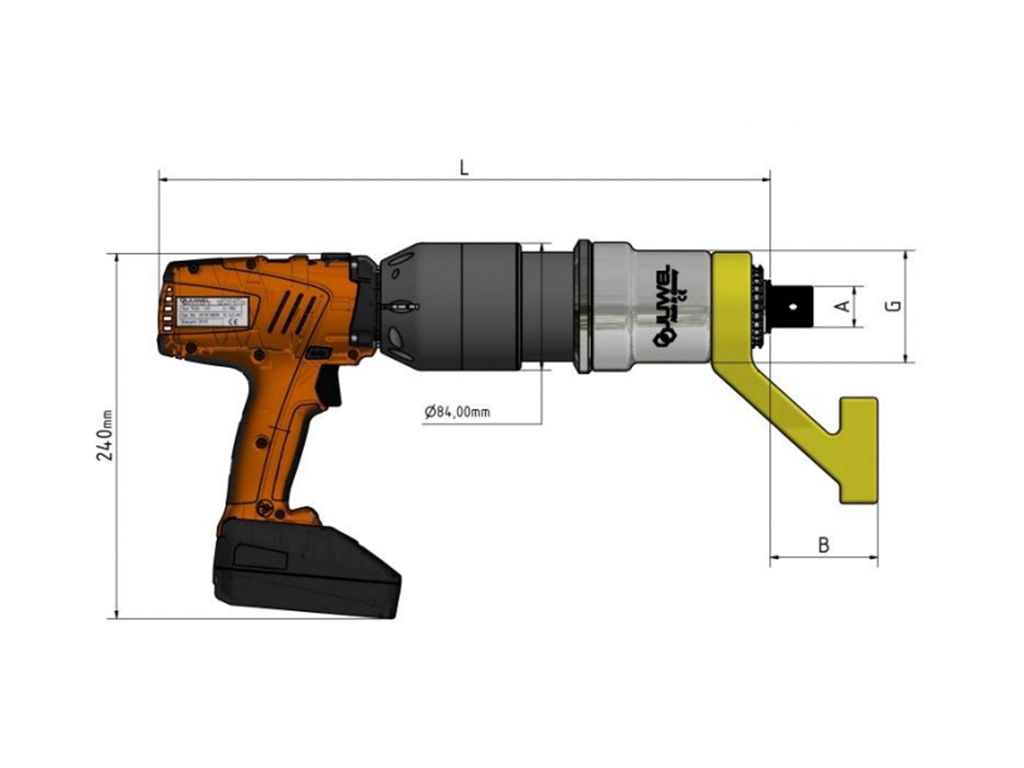

Part | Model | Torque Range | Drive | Min. Speed | Max. Speed | Sizes (mm) | Weight | ||
No. | # | N.m | inch | rpm | rpm | L | B | G | Kg |
62 006 065 | TQA-065 | 50 - 650 | 3/4" | 8 | 70 | 397 | 55/75 | 75 | 4.75 |
62 006 095 | TQA-095 | 100 - 950 | 3/4"-1" | 7.7 | 66 | 400 | 55/75 | 75 | 6.8 |
62 006 130 | TQA-130 | 100 - 1300 | 1" | 4.25 | 39 | 400 | 75 | 88 | 6.9 |
62 006 220 | TQA-220 | 100 - 2200 | 1" | 2.1 | 18 | 420 | 75 | 88 | 8.2 |
62 006 300 | TQA-300 | 100 - 3000 | 1" | 1.25 | 12 | 420 | 75 | 88 | 8.3 |
62 006 400 | TQA-400 | 150 - 4000 | 1.1/2" | 1.25 | 11 | 435 | 95 | 99 | 9.5 |
62 006 500 | TQA-500 | 200 - 5000 | 1.1/2" | 0.5 | 4 | 485 | 95 | 99 | 11.7 |
