SPX 9205A Sidewinder Jack
5 Ton Capacity, 38mm Stroke, Low Height
| Code | 9205A |
| Product | Sidewinder Jack |
| Capacity | 5 ton |
| Stroke | 38 mm |
| Closed height | 88,9 mm |
| Saddle diameter | 29 mm |
| Base Size | 73,8 mm |
| Handle effort | 26 kg |
| Weight | 2,4 kg |
| Origin | USA |
| Brand | SPXFLOW |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Technical Specifications

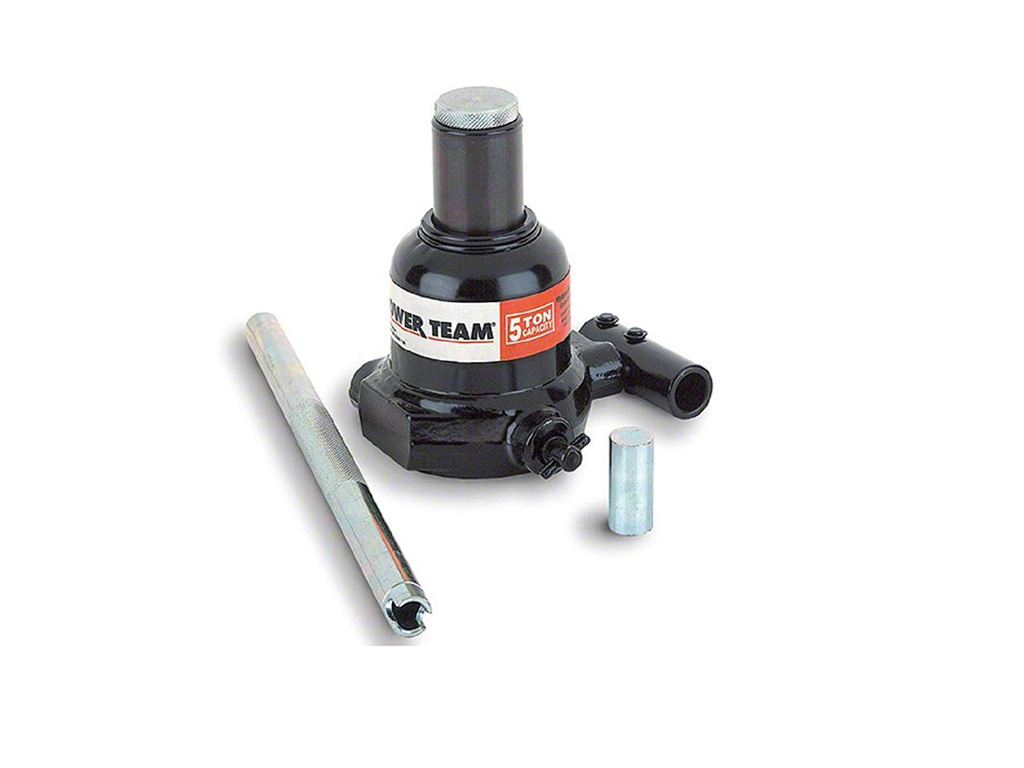

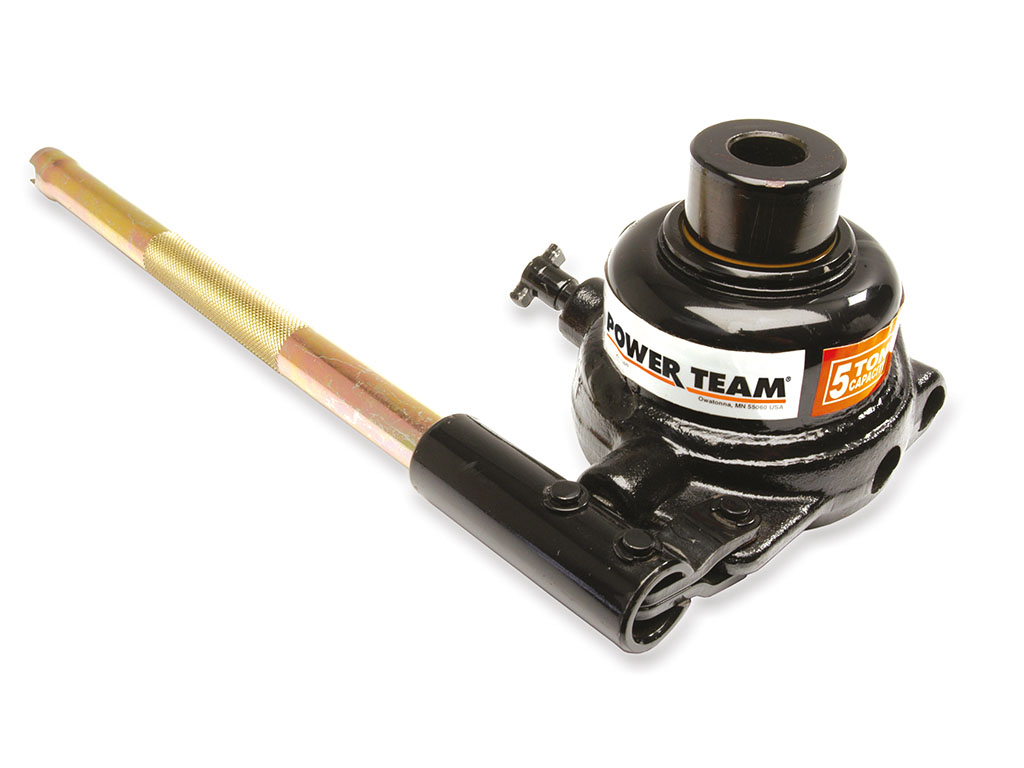

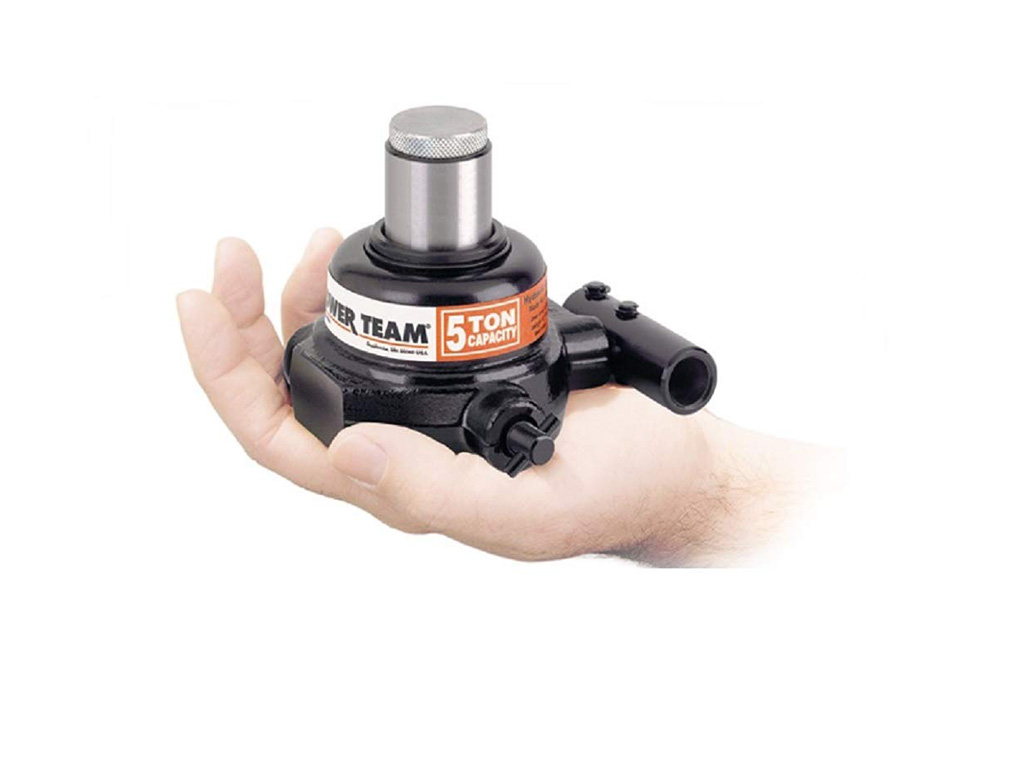

9205A SPXFlow Sidewinder Mini Jack
Sidewinder Mini Jacks
Retracted height of just 29/16" for the smallest jack and 51/8" for the 20 ton, allows you to slip this jack into the narrowest of crevices.
- Jacks operate either horizontally or vertically. Handles function inline with base for easier use in confined spaces.
- The perfect addition to any toolbox, this remarkable little jack has multiple uses that are limited only by your imagination.

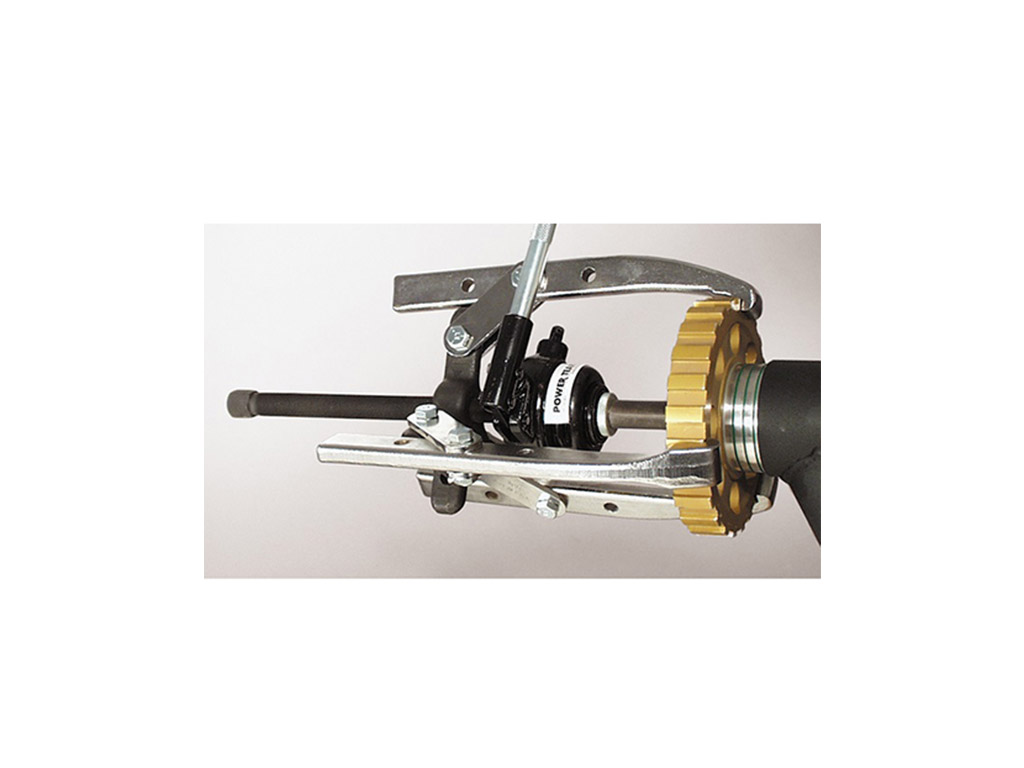

Use it as a jack or a spreader. Use it to turn your mechanical gear puller (puller capacity must match jack capacity) into a ydraulic puller. Use it vertically or horizontally in limited clearance.
| Model Code | Capacity | Stroke | Closed Height | Saddle Diameter | Base Size | Handle Length | Handle Effort | Weight |
| SPXFLOW | (ton) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (kg) |
| 9105A | 5 | 19 | 63,5 | 29 | 73,8 | 240 | 26 | 1,9 |
| 9205A | 5 | 38 | 88,9 | 29 | 73,8 | 240 | 26 | 2,4 |
| 9210A | 10 | 30 | 120,7 | 42,1 | 109,9 | 440 | 28 | 5,5 |
| 9220A | 10 | 30 | 130,2 | 52,8 | 119,9 | 605 | 35 | 8 |
