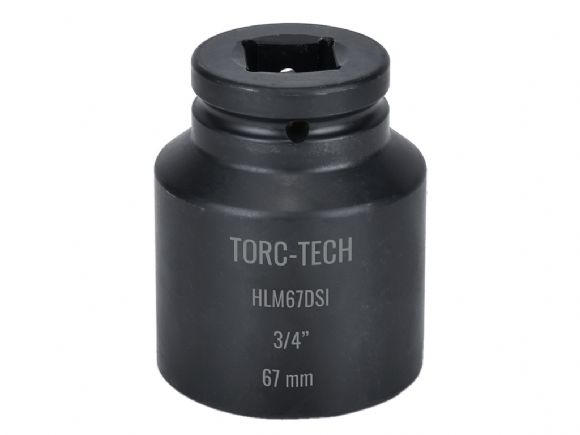

67 mm 3/4“ Impact Socket

HLM67DSI - A/F 67 mm - M42 - OAL 75 mm

Model Code HLM67DSI
Square Drive 3/4”
Metric Size M42
Socket Type 6 - point
Wrench Size 67 mm
Socket Length 75 mm
Diameter D2ø 67 mm
Material Heat Treated Steel
Hardness 40-45 HRC
Brand Surkon
3/4 inch Heavy Duty Air Impact Socket Datasheet
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Heavy-duty air sockets, 6 and 12 point
  • Metrical and imperial sizes
  • Socket Square Drive: 3/4”
  • Metric size ranges M8- M42
  • A/F size ranges 13 mm – 65 mm
  • Powertools suitable sizes
  • DI series short size 60 mm
  • DSI series standart size 75mm
  • DDI series deep size 95 mm
  • Made of high quality steel
  • Processed by CNC machine
  • Warranty time 12 month
  • Material hardness 40-45 HRC
  • Brand Surkon, made in Turkey


Product technical specificationsTechnical Specifications

Surkon Heavy Duty Air Impact Sockets 3/4”

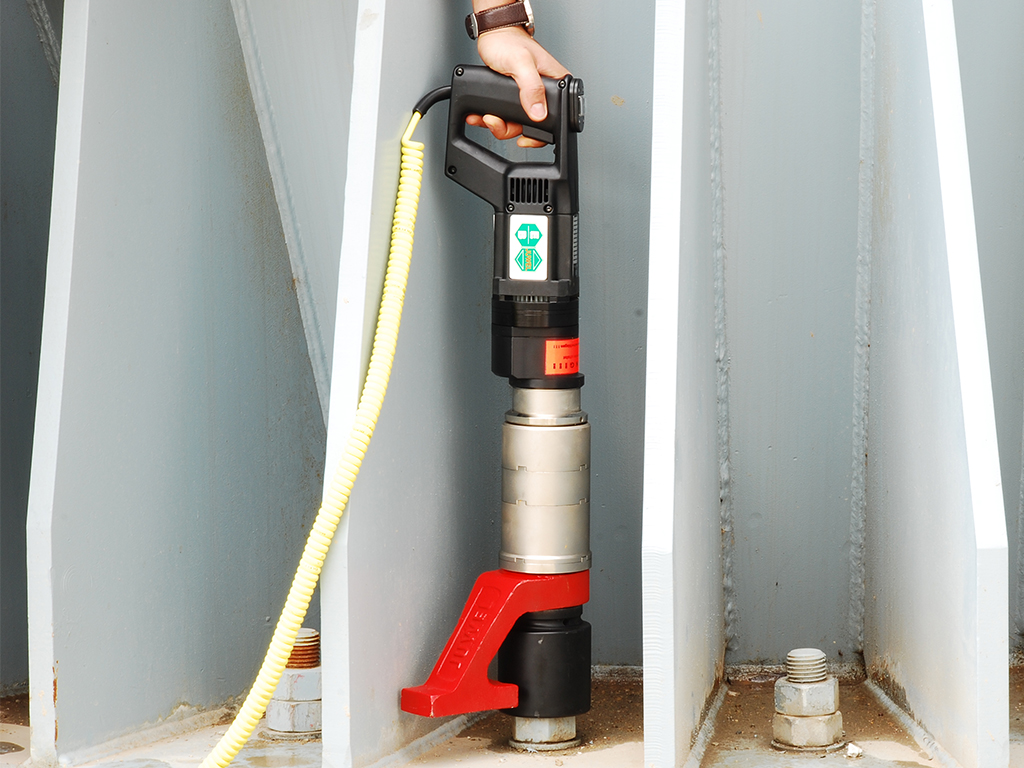

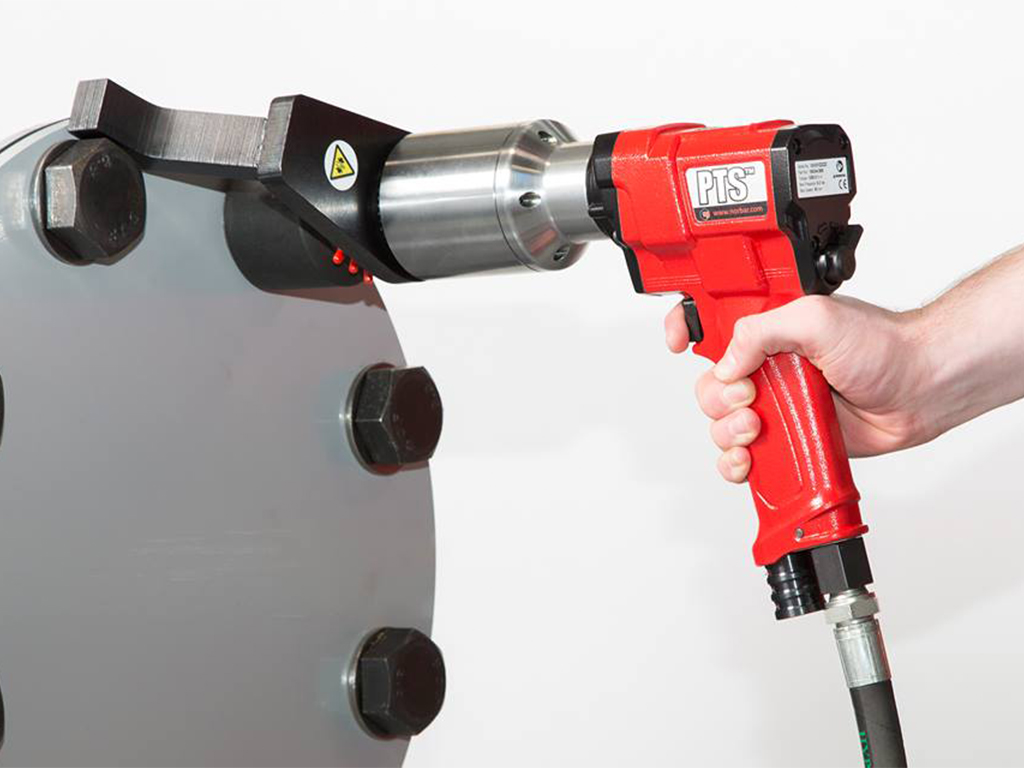

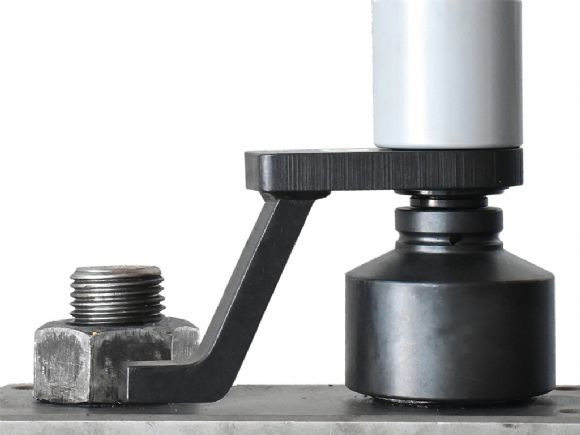

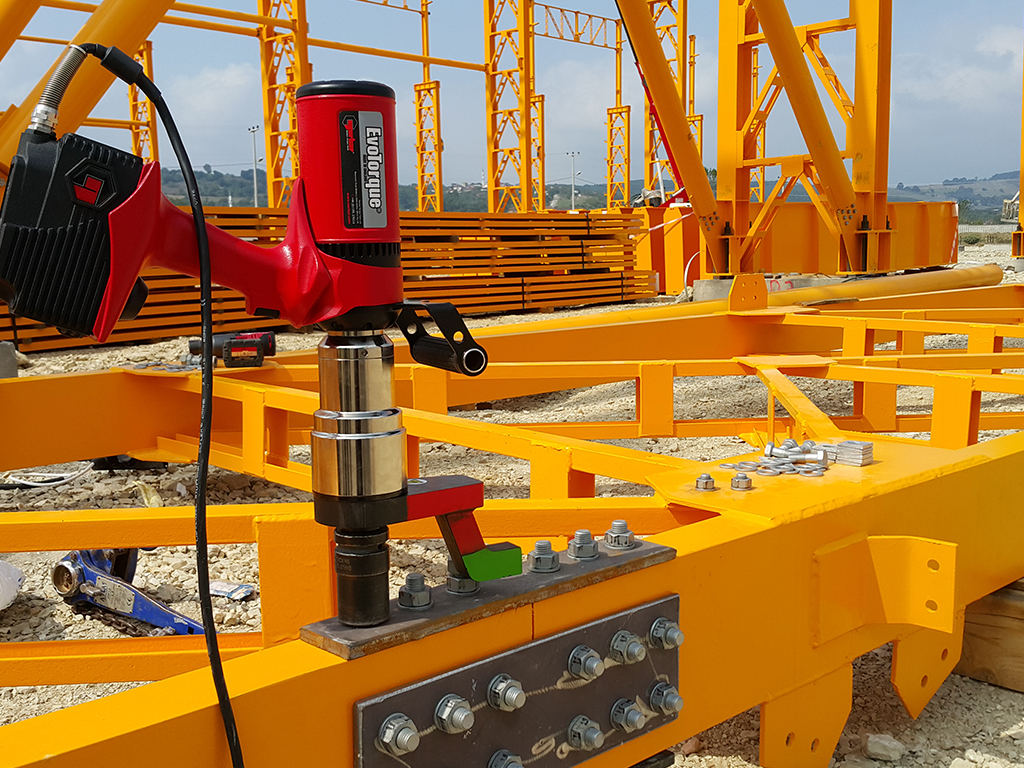

Surkon heavy-duty air impact sockets are designed and manufactured for use with electric, battery-powered, hydraulic, and pneumatic torque tools. The length of each socket is determined based on the support point of the torque tool to be used. If the socket is too short or too long for the tool, it may cause problems during torqueing. Sockets with incorrect lengths may not make proper contact with the support point, resulting in misalignment and jamming. This jamming prevents the tool from reaching the desired torque value and may damage the tool itself. It also poses a safety risk for the user.


Heavy Duty Socket Production in Türkiye

Surkon heavy-duty air impact sockets are manufactured in Türkiye from heat-treated steel using CNC technology. After heat treatment, the hardness of the sockets ranges between 40-45 HRC, which is the internationally accepted standard for such products. Surkon manufactures sockets with square drive sizes of 3/4”, 1”, 1.1/2”, 2.1/2”, and 3.1/2”. Custom sockets can also be produced upon customer request.

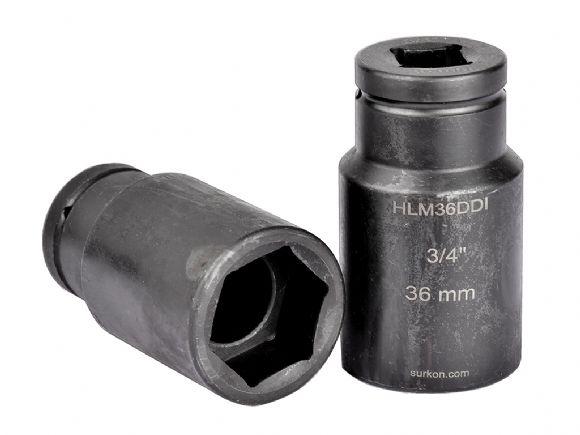

Surkon heavy-duty air sockets are available in three different lengths:

  • DSI refers OAL 75 mm sockets, and
  • DDI refers OAL 95 mm deep sockets.

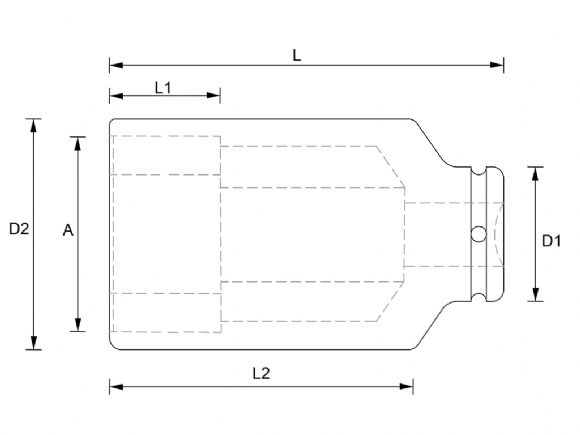

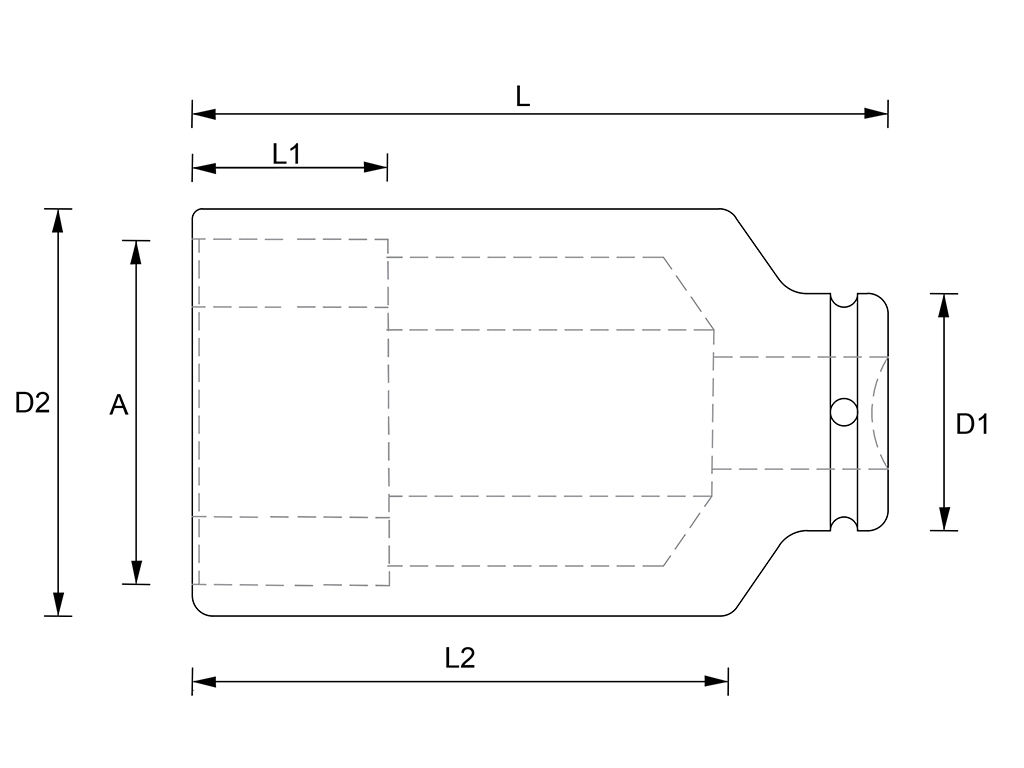

Model Sizes
# A Metrik L L1 L2 D1 Ø D2 Ø Weight kg
HLM13DSI 13 M8 75 9 35 44 30 0.20
HLM17DSI 17 M10 75 9 35 44 30 0.21
HLM18DSI 18 M10 75 9 43 44 31 0.21
HLM19DSI 19 M12 75 10 40 44 32 0.22
HLM20DSI 20 M12 75 10 40 44 32 0.23
HLM21DSI 21 M12 75 10 40 44 32 0.24
HLM22DSI 22 M14 75 12 42 44 35 0.22
HLM24DSI 24 M16 75 13 46 44 38 0.23
HLM27DSI 27 M18 75 15 44 44 42 0.23
HLM30DSI 30 M20 75 16 53 44 44 0.30
HLM32DSI 32 M22 75 18 50 44 44 0.32
HLM33DSI 33 M22 75 22 50 44 50 0.40
HLM34DSI 34 M22 75 22 50 44 50 0.41
HLM36DSI 36 M24 75 19 50 44 53 0.44
HLM38DSI 38 M24 75 23 50 44 56 0.50
HLM41DSI 41 M27 75 22 50 44 61 0.80
HLM43DSI 43 M30 75 22 50 44 61 0.81
HLM45DSI 45 M30 75 22 50 44 61 0.82
HLM46DSI 46 M30 75 25 48 44 67 0.73
HLM50DSI 50 M33 75 25 50 44 67 0.73
HLM55DSI 55 M39 75 25 50 44 67 0.73
HLM60DSI 60 M39 75 25 50 44 67 0.73
HLM63DSI 63 M39 75 25 50 44 67 0.73
HLM65DSI 65 M42 75 25 50 44 67 0.73
HLM67DSI 67 M42 75 25 50 44 67 0.73
