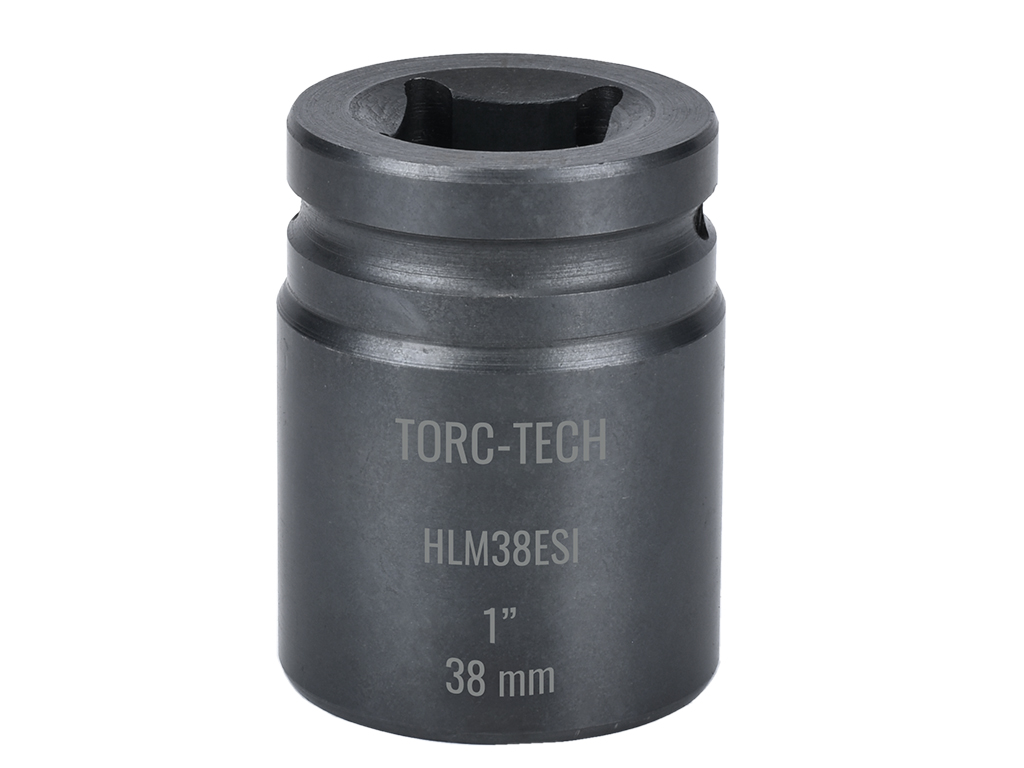

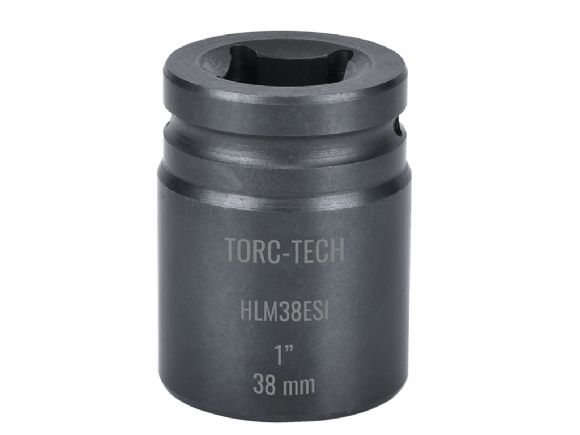

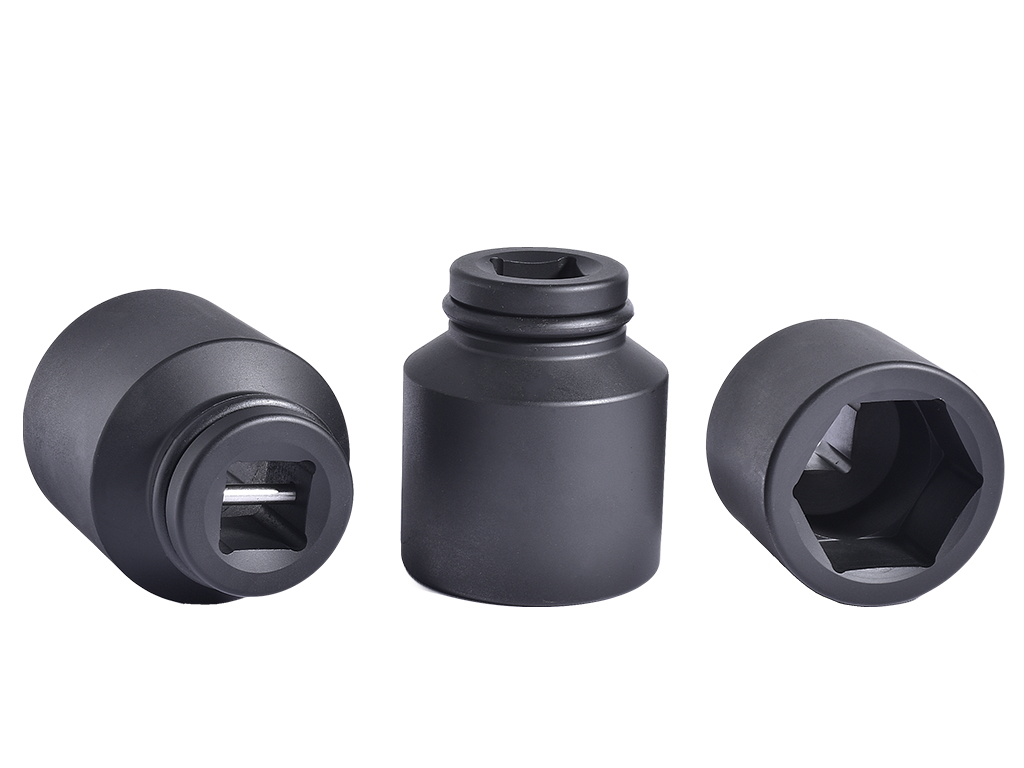

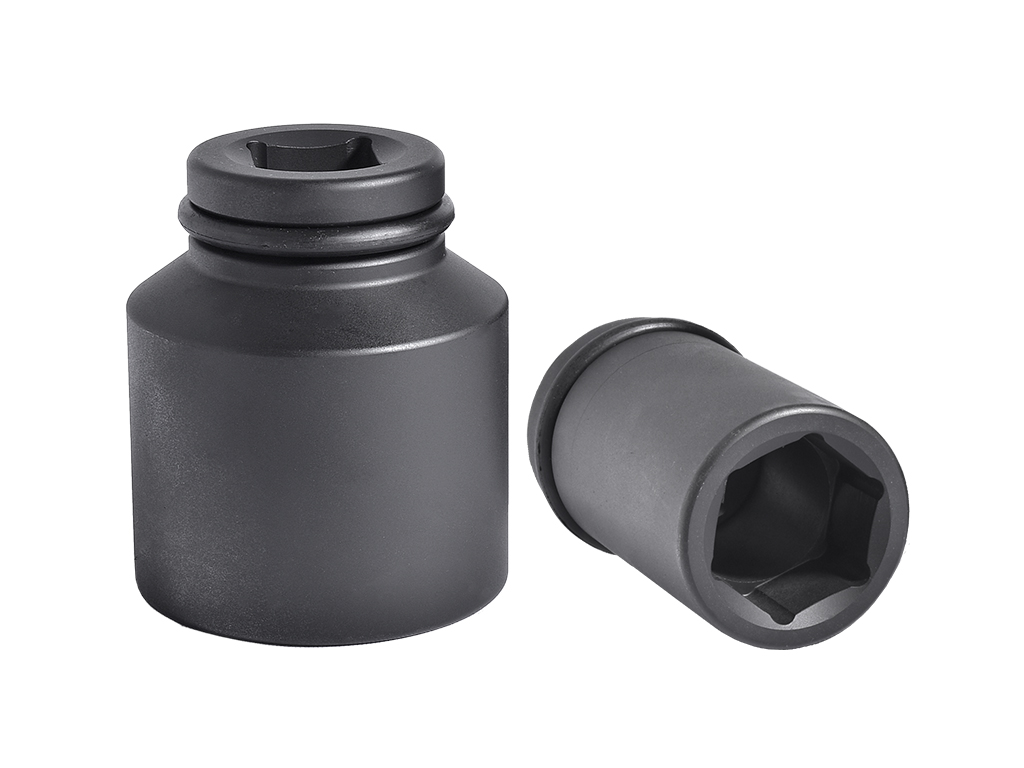

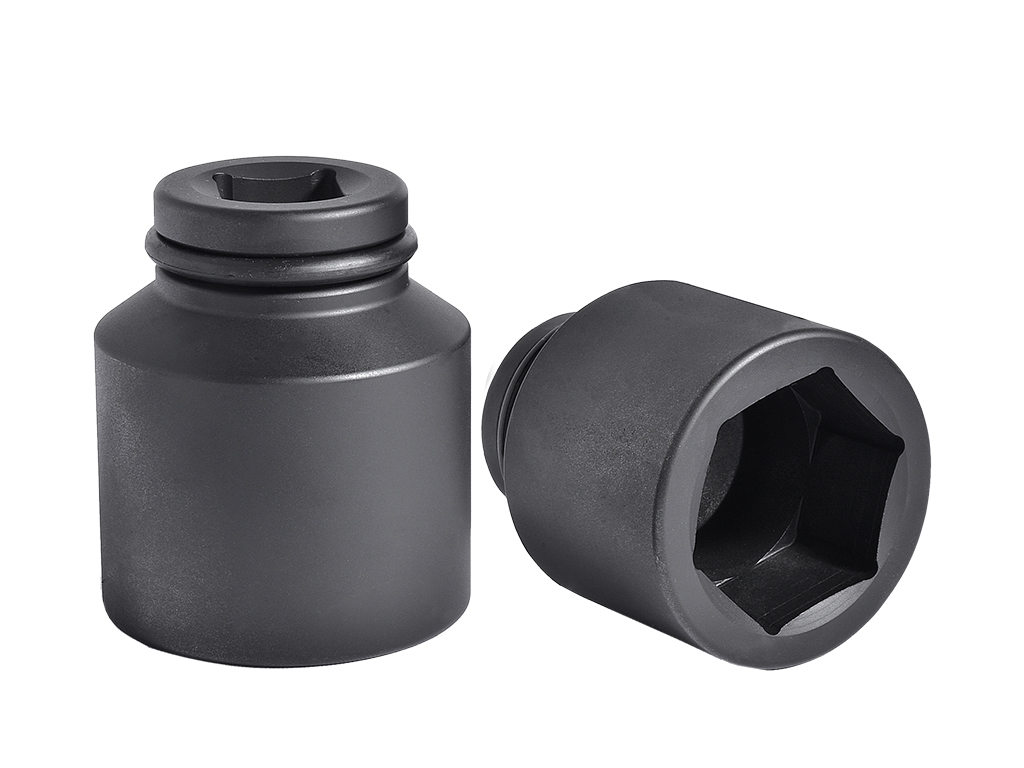

38 mm 1” Impact Socket
HLM38ESI - A/F 38 mm - M24 OAL 75 mm
| Model Code | HLM38ESI |
| Square Drive | 1” |
| Metric Size | M24 |
| Socket Type | 6 - point |
| Wrench Size | 38 mm |
| Socket Length | 75 mm |
| Diameter D2ø | 59 mm |
| Material | Heat Treated Steel |
| Hardness | 40-45 HRC |
| Brand | Surkon |
You can use the form below to place an order.Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
General product informationFeatures
- Heavy Duty, impact, 6 points
- Metrical and imperial sizes
- Socket Square Drive: 1”
- Metric size ranges M10 – M64
- A/F size ranges 17 mm – 95 mm
- Powertools suitable sizes
- ESI series standart size 75 mm
- EDI series deep size 95 mm
- Made of high quality steel
- Processed by CNC machine
- Warranty time 12 month
- Material hardness 40-45 HRC
- Brand Surkon, made in Turkey
Product technical specificationsTechnical Specifications

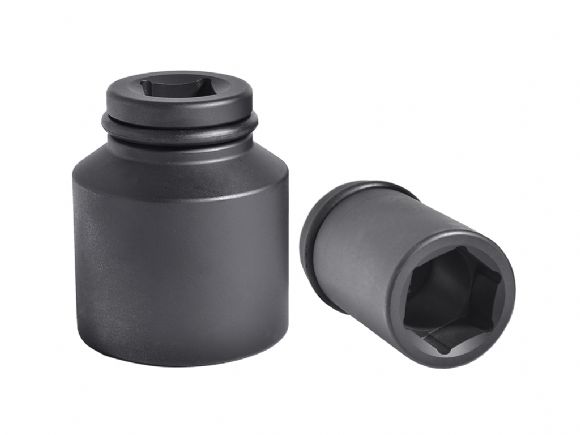

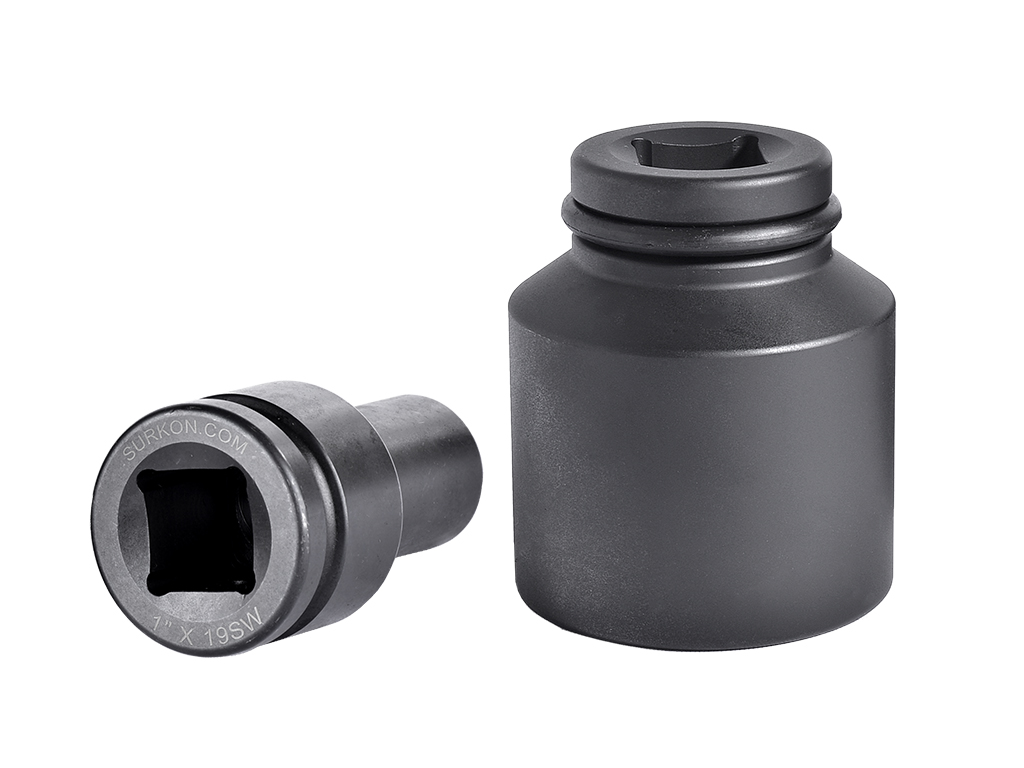

Surkon Heavy Duty Air Impact Sockets 1”

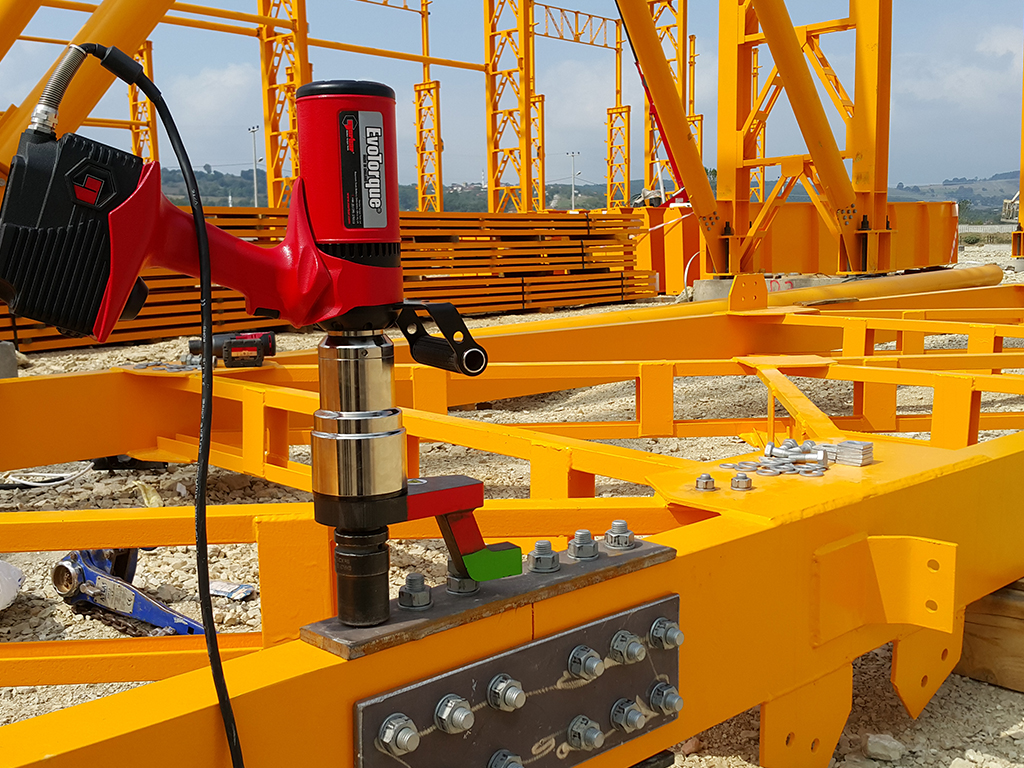

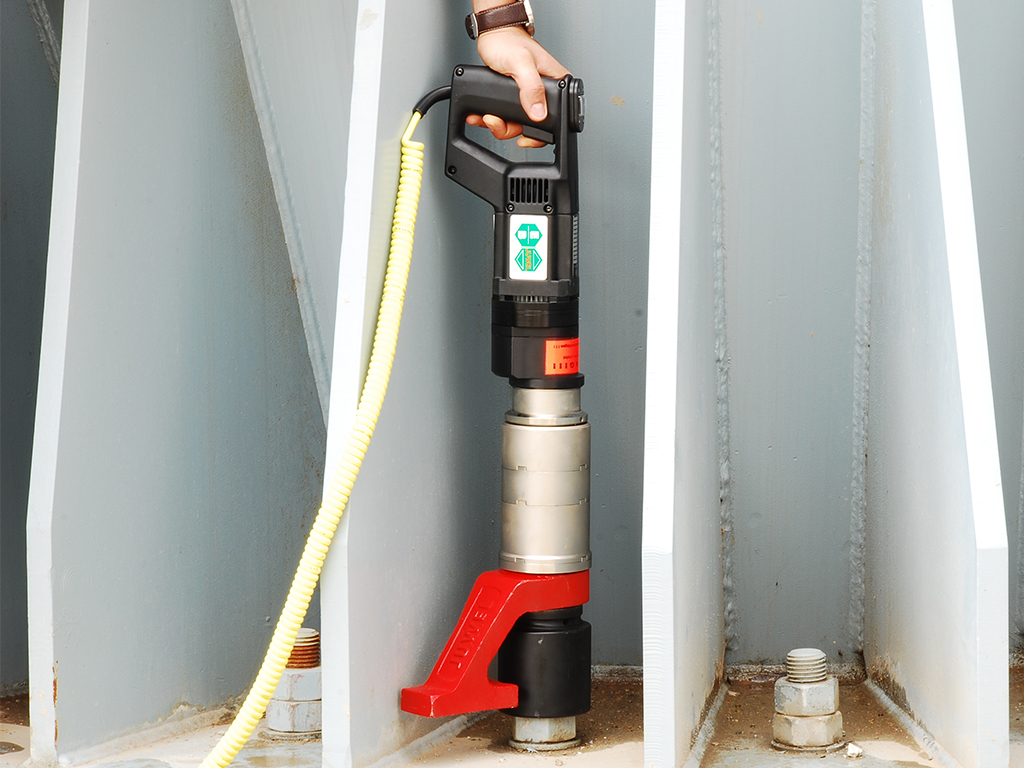

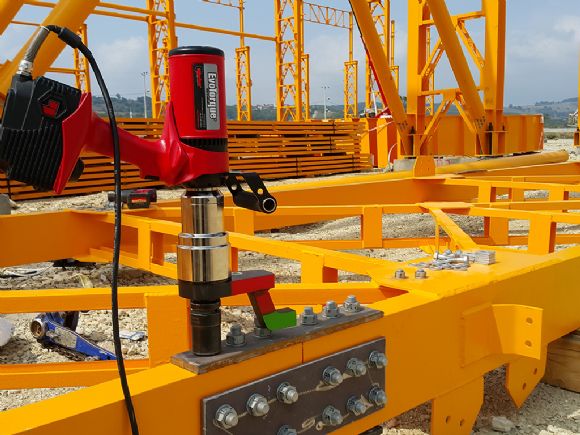

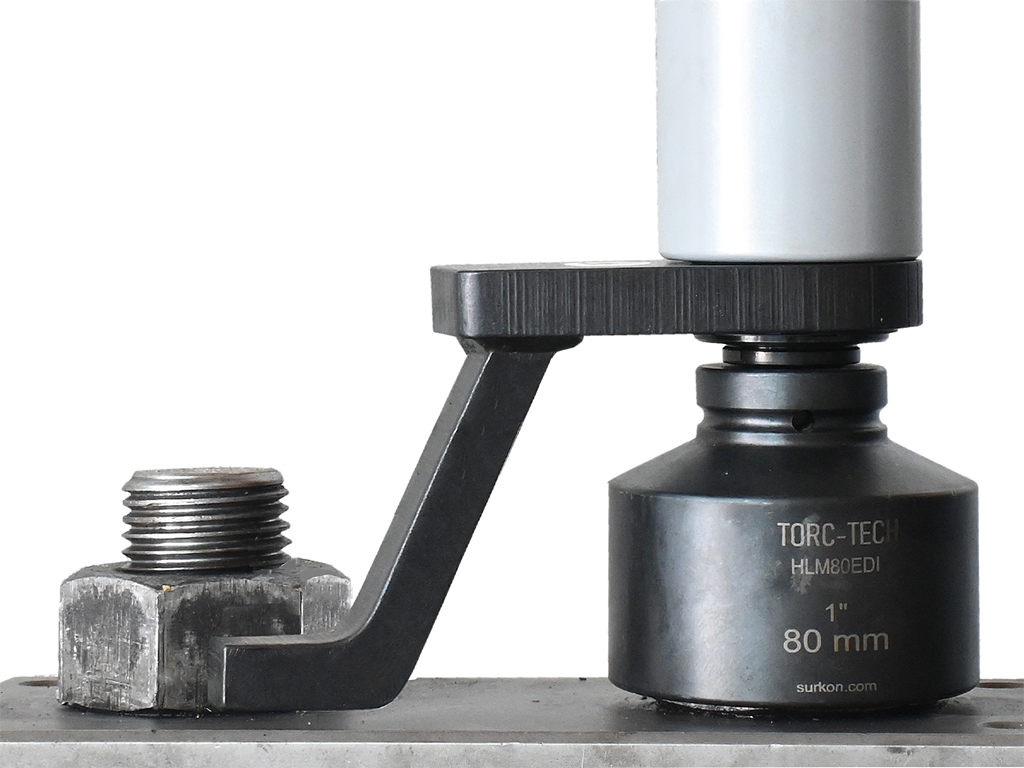

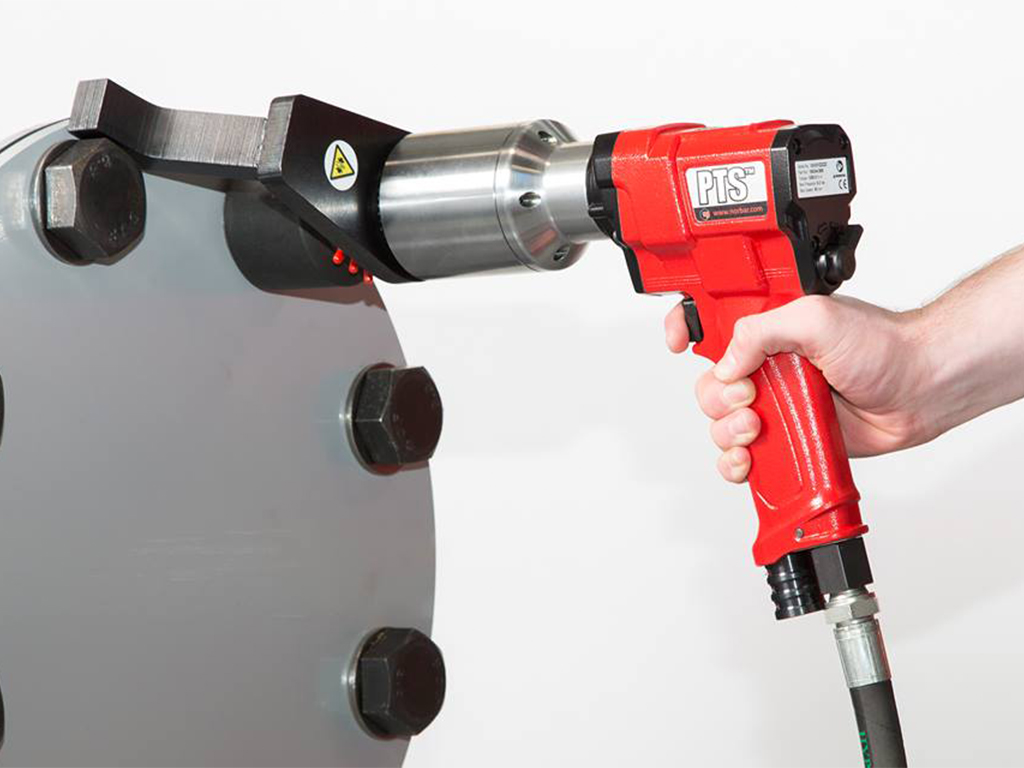

Surkon heavy-duty air impact sockets are designed and manufactured for use with electric, battery-powered, hydraulic, and pneumatic torque tools. The length of each socket is determined based on the support point of the torque tool to be used. If the socket is too short or too long for the tool, it may cause problems during torqueing. Sockets with incorrect lengths may not make proper contact with the support point, resulting in misalignment and jamming. This jamming prevents the tool from reaching the desired torque value and may damage the tool itself. It also poses a safety risk for the user.
Heavy Duty Socket Production in Türkiye
Surkon heavy-duty air impact sockets are manufactured in Türkiye from heat-treated steel using CNC technology. After heat treatment, the hardness of the sockets ranges between 40-45 HRC, which is the internationally accepted standard for such products. Surkon manufactures sockets with square drive sizes of 3/4”, 1”, 1.1/2”, 2.1/2”, and 3.1/2”. Custom sockets can also be produced upon customer request.
Surkon heavy-duty air sockets are available in three different lengths:
Surkon heavy-duty air sockets are available in three different lengths:
- ESI refers to standard 75 mm sockets, and
- EDI represents long 95 mm sockets.
.jpg)

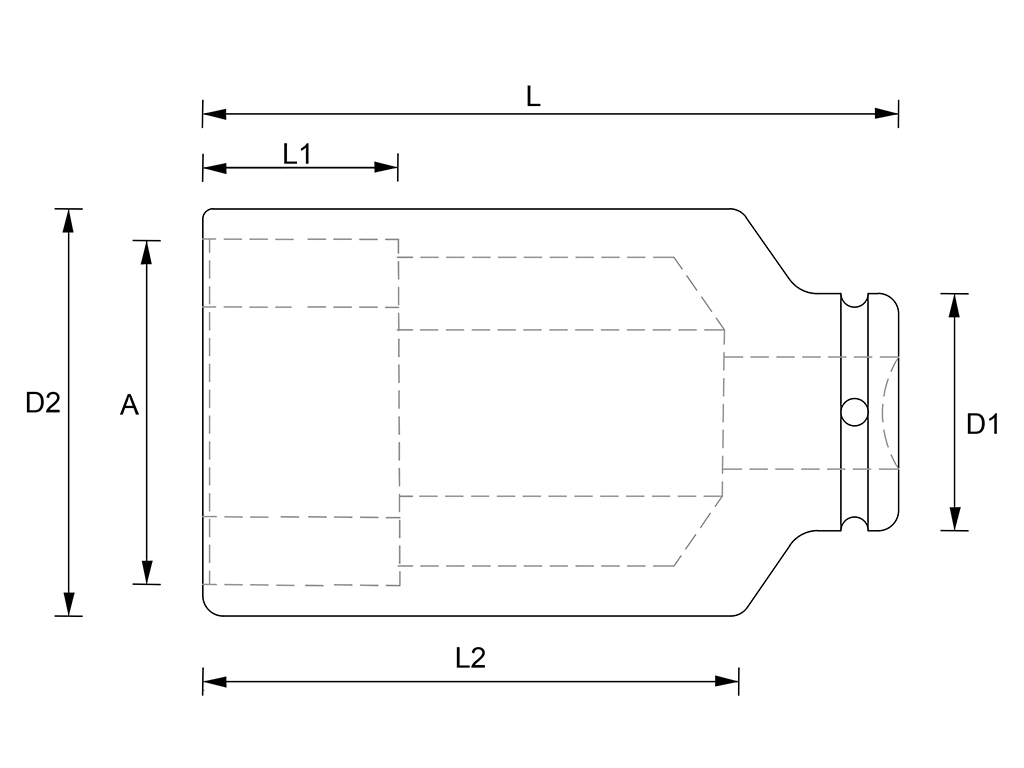

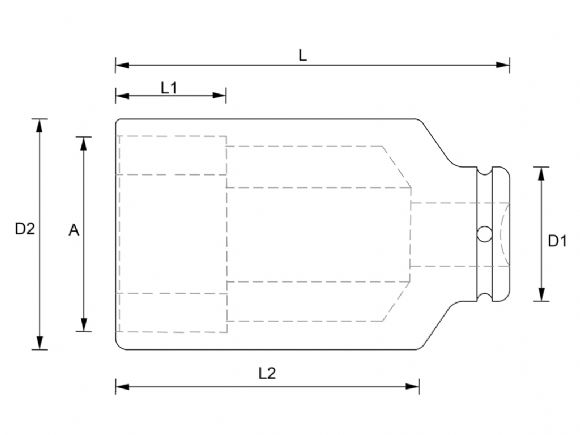

| Model | Sizes mm | ||||||
| # | A | Metric | L | L1 | L2 | D1 Ø | D2 Ø |
| HLM17ESI | 17 | M10 | 75 | 16 | 30 | 54 | 34 |
| HLM18ESI | 18 | M10 | 75 | 17 | 30 | 54 | 34 |
| HLM19ESI | 19 | M12 | 75 | 17 | 30 | 54 | 40 |
| HLM20ESI | 20 | M14 | 75 | 17 | 30 | 54 | 40 |
| HLM21ESI | 21 | M14 | 75 | 17 | 30 | 54 | 41 |
| HLM22ESI | 22 | M14 | 75 | 17 | 30 | 54 | 43 |
| HLM24ESI | 24 | M16 | 75 | 19 | 30 | 54 | 47 |
| HLM27ESI | 27 | M18 | 75 | 19 | 30 | 54 | 49 |
| HLM30ESI | 30 | M20 | 75 | 15 | 40 | 54 | 50 |
| HLM32ESI | 32 | M22 | 75 | 18 | 40 | 54 | 51 |
| HLM33ESI | 33 | M22 | 75 | 18 | 45 | 54 | 53 |
| HLM34ESI | 34 | M22 | 75 | 20 | 46 | 54 | 54 |
| HLM36ESI | 36 | M24 | 75 | 23 | 51 | 54 | 57 |
| HLM38ESI | 38 | M24 | 75 | 21 | 48 | 54 | 59 |
| HLM41ESI | 41 | M27 | 75 | 25 | 48 | 54 | 63 |
| HLM46ESI | 46 | M30 | 75 | 26 | 45 | 54 | 69 |
| HLM50ESI | 50 | M36 | 75 | 27 | 44 | 54 | 64 |
| HLM55ESI | 55 | M39 | 75 | 30 | 45 | 62 | 79 |
| HLM60ESI | 60 | M39 | 75 | 35 | 37 | 54 | 87 |
| HLM65ESI | 65 | M42 | 75 | 35 | 43 | 54 | 93 |
| HLM70ESI | 70 | M45 | 75 | 38 | 42 | 58 | 99 |
| HLM75ESI | 75 | M48 | 75 | 38 | 38 | 58 | 107 |
| HLM80ESI | 80 | M52 | 75 | 38 | 45 | 54 | 105 |
| HLM85ESI | 85 | M56 | 75 | 38 | 45 | 54 | 105 |
| HLM90ESI | 90 | M60 | 75 | 38 | 45 | 54 | 107 |
| HLM95ESI | 95 | M64 | 75 | 38 | 45 | 54 | 107 |
