Hazet 6450DS-34

34 mm Open End Interchangable Torque Head with 14x18mm Drive

Hazet Code 6450DS-34
A/F size 34 mm
Type Open end
Drive 14x18 mm
Max. torque 650 N.m
Surface Chrome-Plated
Total length 73.2 mm
Weight 0,25 kg
Manufacturer Hazet
Made in Germany
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
192242
Verify Security Code:

Technical Specifications

Hazet open end interchangeable heavy duty torque wrench heads. 14x18mm drive  -  From 30mm to 41mm A/F sizes.

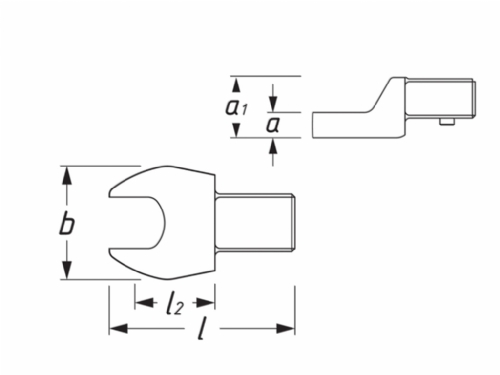

Hazet  A/F Size Drive size Maximum Torque Length Sizes Thickness Width Weigth
Code mm mm N.m L (mm) L2 (mm) a (mm) a1 (mm) b (mm) Kg
6450DS-30 30 14 x 18 650 70 32.5 13 22.2 67.5 0,23
6450DS-32 32 14 x 18 650 71.5 32.5 13 22.2 67.5 0,22
6450DS-34 34 14 x 18 765 73.2 32.5 15 22.5 74 0,25
6450DS-36 36 14 x 18 800 73.1 35 15 22.5 78 0,30
6450DS-41 41 14 x 18 800 79 40 15 22.5 82 0,28



Photos

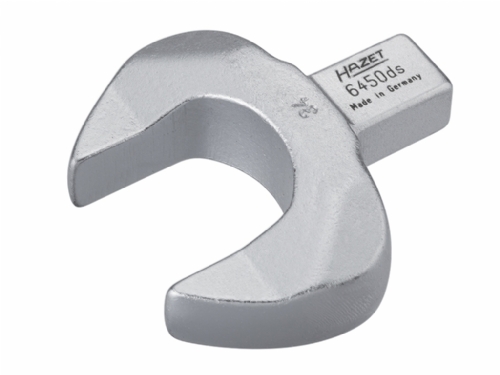

Hazet 6450DS-34
Hazet 6450DS-34
Hazet
14x18
Open End
