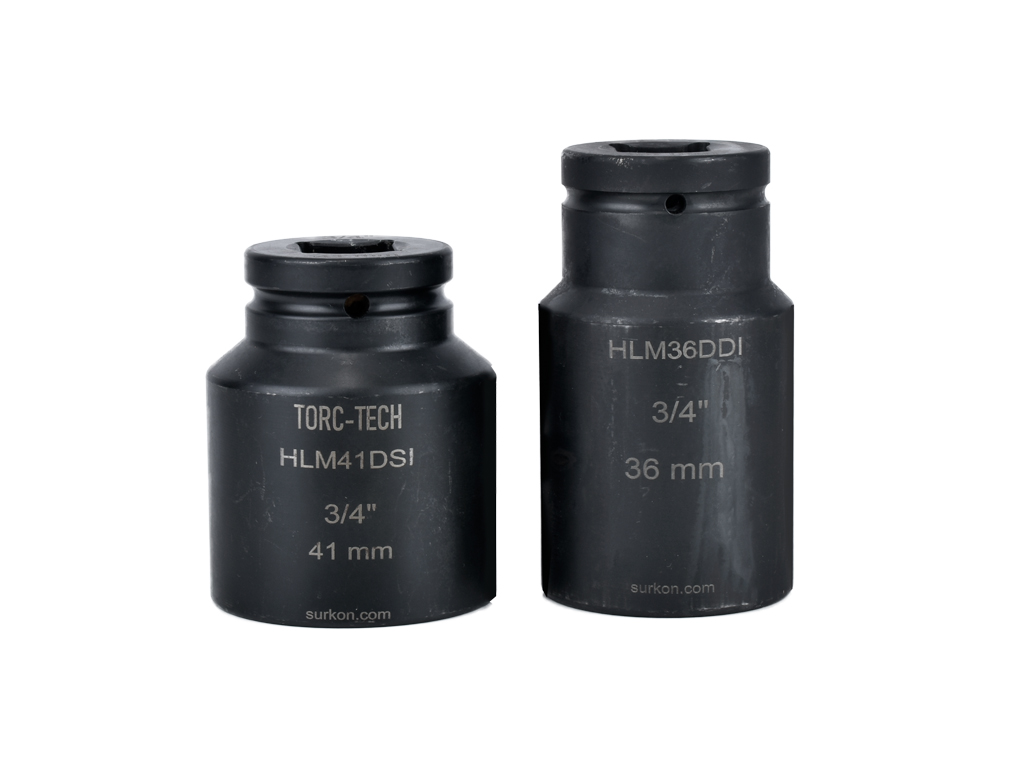

  • Torc-Tech 3/4“ Air Impact Socket
  • Torc-Tech 3/4“ Air Impact Socket Drawing
  • Torc- Tech Air Impact Socket 3/4
  • ¾” Heavy Air Sockets

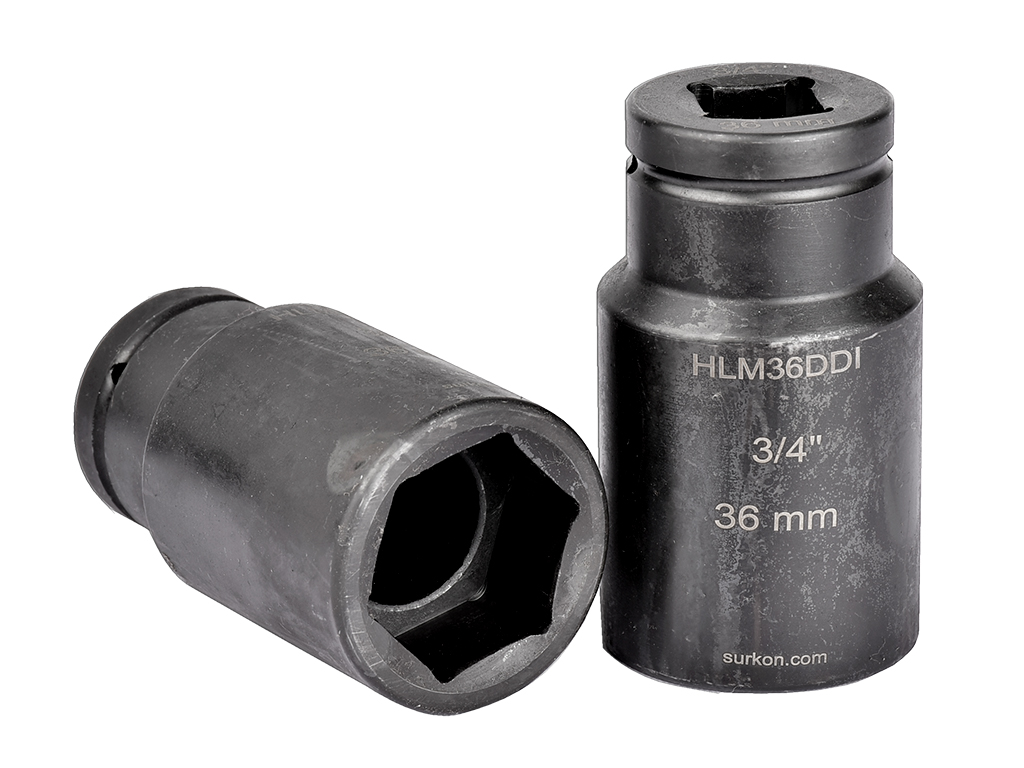

  • Deep Socket ¾
  • Torc-Tech 3/4“ Deep Sockets
  • Air Impact Deep Socket 3/4
  • Air Impact Socket M20

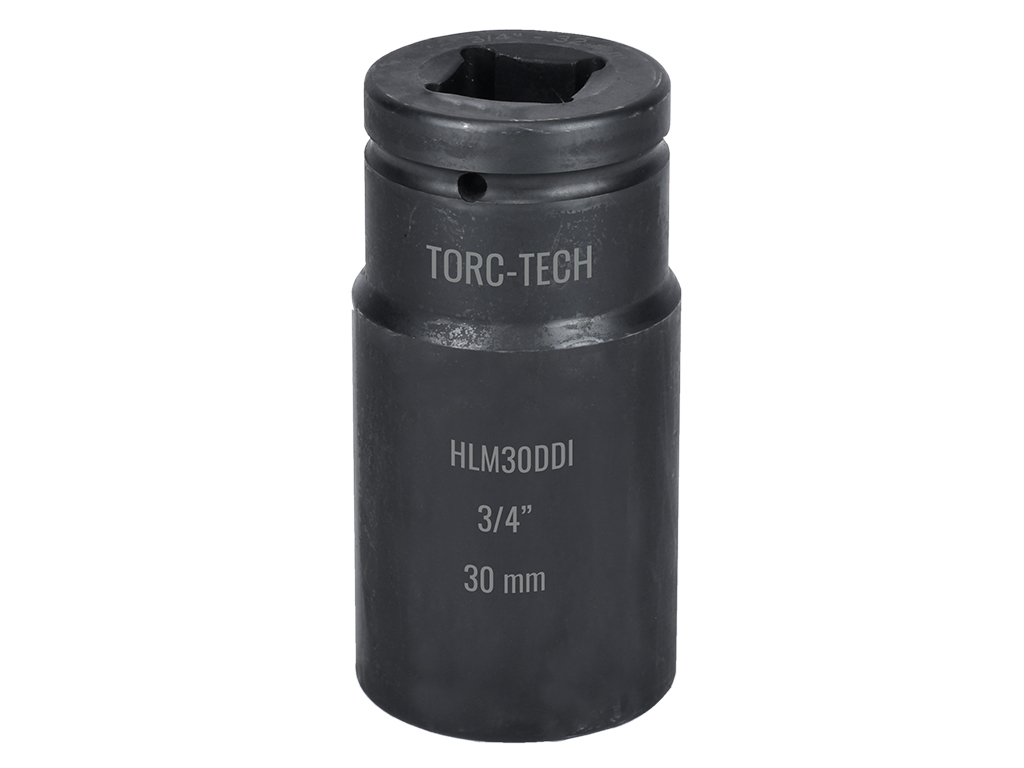

30 mm 3/4“ Impact Socket

HLM30DDI - A/F 30 mm - M20 - OAL 95 mm

Model Code HLM30DDI
Square Drive 3/4”
Metric Size M20
Socket Type 6 - point
Wrench Size 30 mm
Socket Length 95 mm
Diameter D2ø 44 mm
Material Heat Treated Steel
Hardness 40-45 HRC
Brand Surkon
3/4 inch Heavy Duty Air Impact Socket Datasheet
Request a Quote
You can use the form below to place an order.Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

General product informationFeatures

  • Heavy-duty air sockets, 6 and 12 point
  • Metrical and imperial sizes
  • Socket Square Drive: 3/4”
  • Metric size ranges M8- M42
  • A/F size ranges 13 mm – 65 mm
  • Powertools suitable sizes
  • DI series short size 60 mm
  • DSI series standart size 75mm
  • DDI series deep size 95 mm
  • Made of high quality steel
  • Processed by CNC machine
  • Warranty time 12 month
  • Material hardness 40-45 HRC
  • Brand Surkon, made in Turkey


Product technical specificationsTechnical Specifications

Surkon Heavy Duty Air Impact Sockets 3/4”

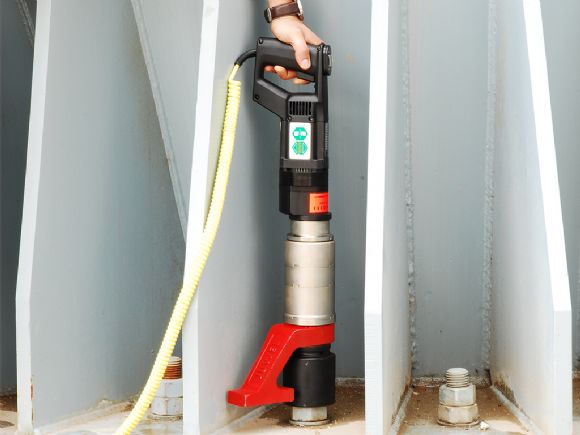

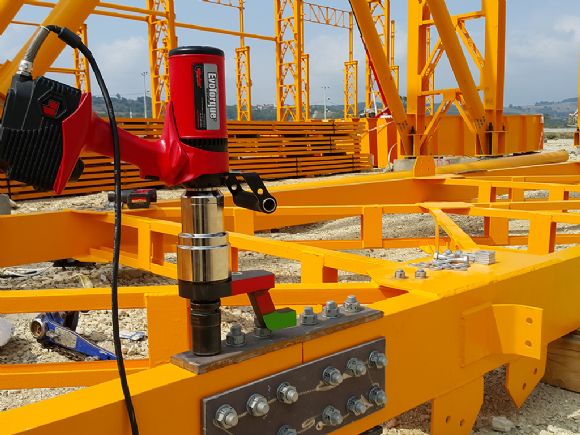

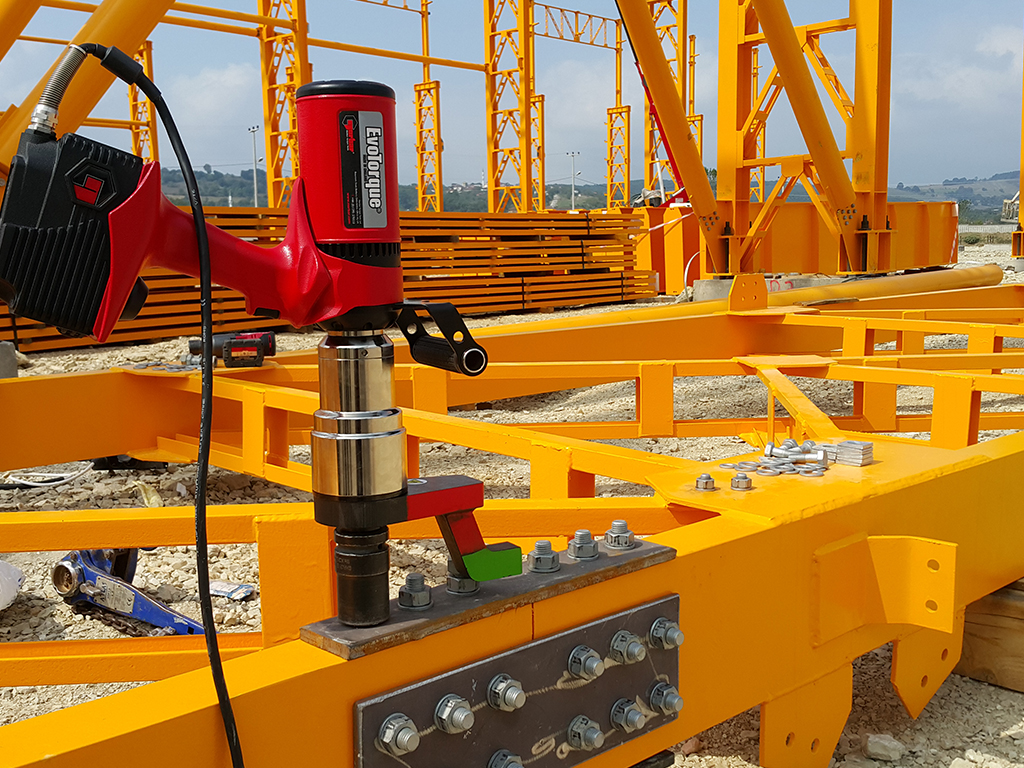

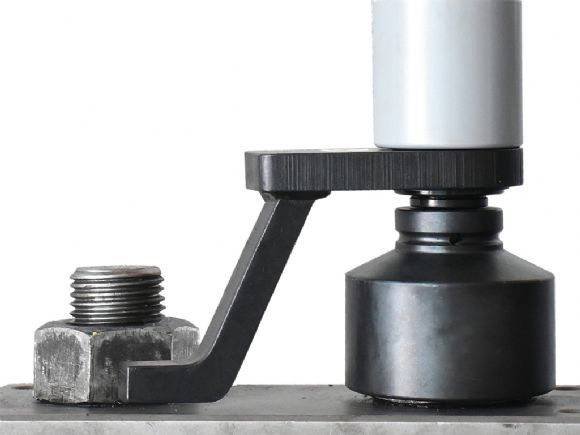

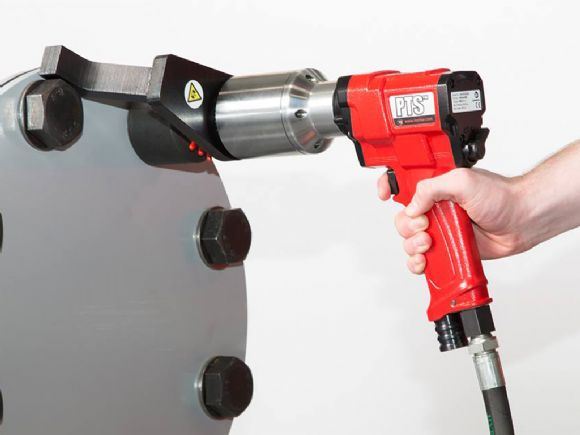

Surkon heavy-duty air impact sockets are designed and manufactured for use with electric, battery-powered, hydraulic, and pneumatic torque tools. The length of each socket is determined based on the support point of the torque tool to be used. If the socket is too short or too long for the tool, it may cause problems during torqueing. Sockets with incorrect lengths may not make proper contact with the support point, resulting in misalignment and jamming. This jamming prevents the tool from reaching the desired torque value and may damage the tool itself. It also poses a safety risk for the user.


Heavy Duty Socket Production in Türkiye

Surkon heavy-duty air impact sockets are manufactured in Türkiye from heat-treated steel using CNC technology. After heat treatment, the hardness of the sockets ranges between 40-45 HRC, which is the internationally accepted standard for such products. Surkon manufactures sockets with square drive sizes of 3/4”, 1”, 1.1/2”, 2.1/2”, and 3.1/2”. Custom sockets can also be produced upon customer request.

Surkon heavy-duty air sockets are available in three different lengths:

  • DSI refers OAL 75 mm sockets, and
  • DDI refers OAL 95 mm deep sockets.

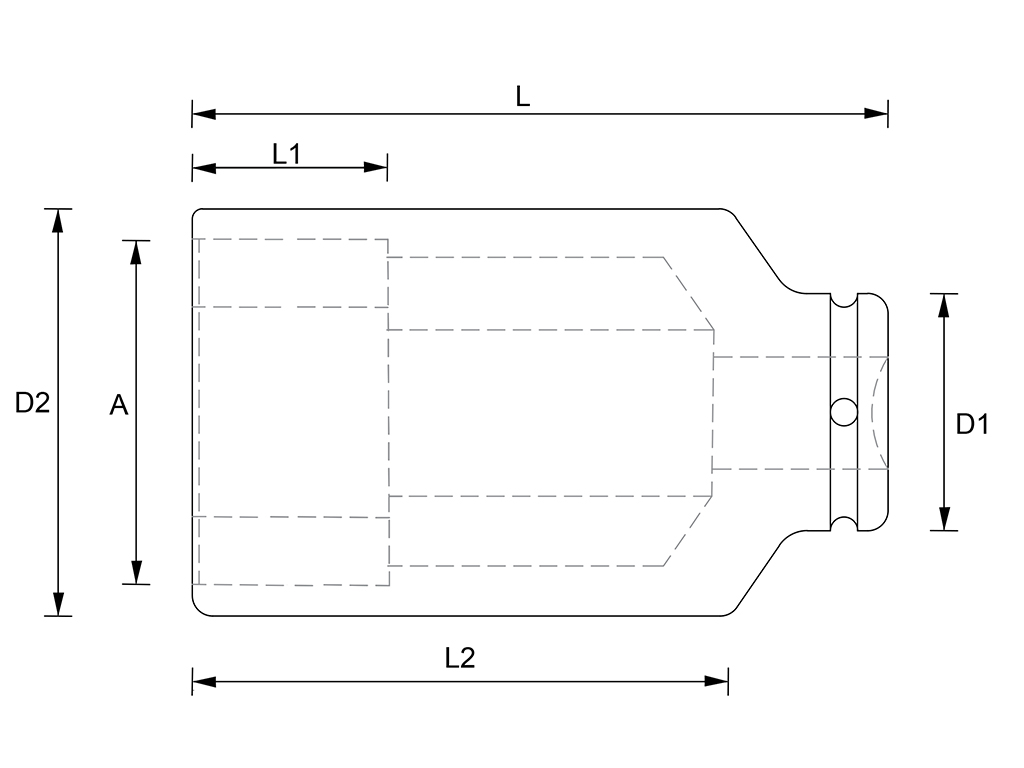

Model Sizes mm
  A Metric L L1 L2 D1 D2 Weight kg
HLM17DDI 17 M10 95 9 35 44 30 0.21
HLM18DDI 18 M10 95 9 43 44 31 0.21
HLM19DDI 19 M12 95 10 40 44 32 0.21
HLM21DDI 21 M14 95 10 40 44 32 0.22
HLM22DDI 22 M14 95 12 42 44 35 0.22
HLM24DDI 24 M16 95 13 46 44 38 0.23
HLM27DDI 27 M18 95 15 44 44 42 0.23
HLM28DDI 28 M20 95 15 44 44 42 0.24
HLM30DDI 30 M20 95 17 62 44 44 0.30
HLM32DDI 32 M22 95 19 61 44 44 0.32
HLM33DDI 33 M22 95 20 61 44 54 0.40
HLM34DDI 34 M24 95 20 61 44 54 0.41
HLM36DDI 36 M24 95 19 60 44 53 0.44
HLM38DDI 38 M24 95 23 60 44 56 0.50
HLM41DDI 41 M27 95 22 60 44 61 0.80
HLM46DDI 46 M30 95 25 60 44 67 0.73
HLM50DDI 50 M33 95 25 62 44 67 0.73
HLM55DDI 55 M39 95 25 62 44 67 0.73
HLM60DDI 60 M39 95 25 63 44 67 0.73
