Hazet 6606D-16

16mm Ratcheting Insert Box-End Torque Head with 14x18mm Drive

Hazet Code 6606D-16
Wrench size 16 mm
Typ Yıldız
Drive 14x18 mm
Max. torque 320 N.m
Opening angle 9°
Total length 81 mm
Weight 0.2 kg
Manufacturer Hazet
Made in Germany
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
986843
Verify Security Code:

Technical Specifications

Hazet ratcheting insert box-end 14x18mm drive interchangeable reversible torque head. Available from 16 to 21mm A/F sizes

Hazet  A/F Size Drive size Rec. Torque Number of Opening Length Sizes Thickness Weigth
Code mm mm N.m Theeth Angel L (mm) L2 (mm) a (mm) a1 (mm) Kg
6606 D-16 16 14x18 320 40 9° 81 36 14.3 20.5 0.2
6606 D-17 17 14x18 320 40 9° 81 36 14.3 20.5 0.2
6606 D-18 18 14x18 320 40 9° 81 36 14.3 20.5 0.2
6606 D-19 19 14x18 320 40 9° 81 36 14.3 20.5 0.2
6606 D-21 21 14x18 320 40 9° 81 36 14.3 20.5 0.19

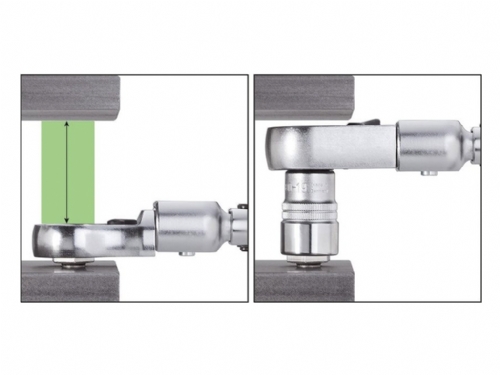

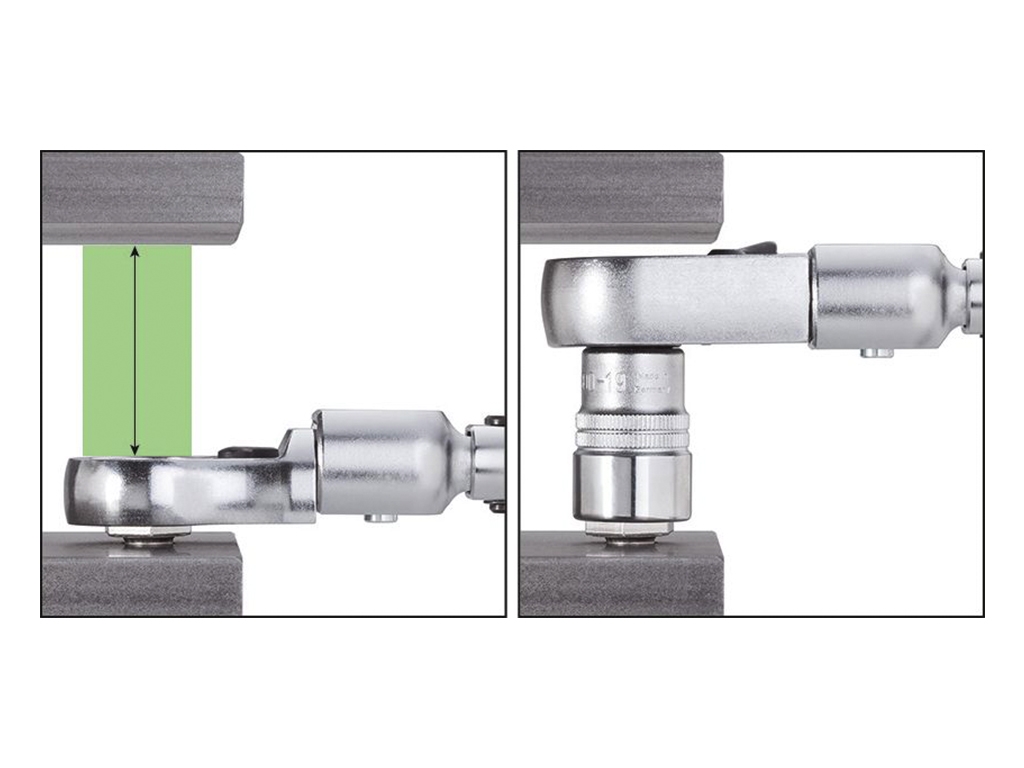

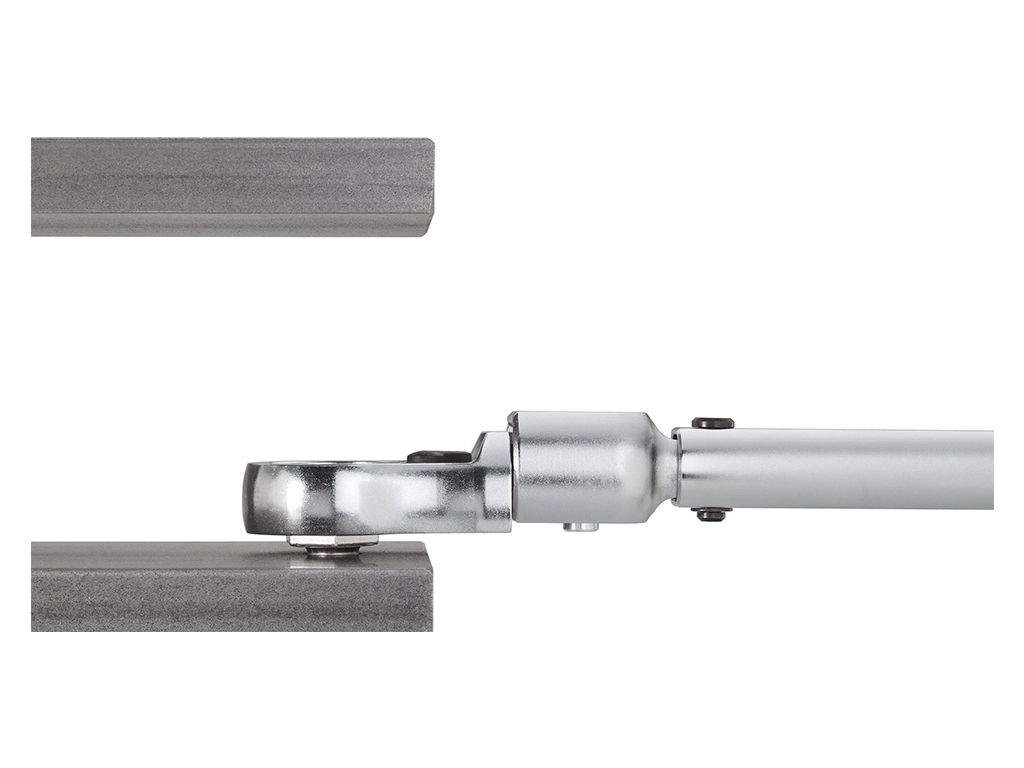

Photos
Hazet 6606D-16
Hazet 6606D-16
Hazet 6606D-16
Hazet 6606D-16
Hazet
14x18
Ring End
