076551 FG8i Red Torque Screwdriver
0.9 - 90 cN.m - 0.8 - 8 Lbf.in, Pre-Set Torque Screwdriver, 1/4“Fem
| Part No | 076551 |
| Model No | FG8i Red |
| Range (N.m) | 0.09 - 0.9 N.m |
| Range (cN.m) | 9 - 90 cN.m |
| Range (lbf.in) | 0.8 - 8 Lbf.in |
| Accuracy | ± 6% |
| Model | Pre-Set / P-Type |
| Bit Holder | 1/4” Fem.hexagon |
| System | Slipery clutch |
| Calibration | Optionally available |

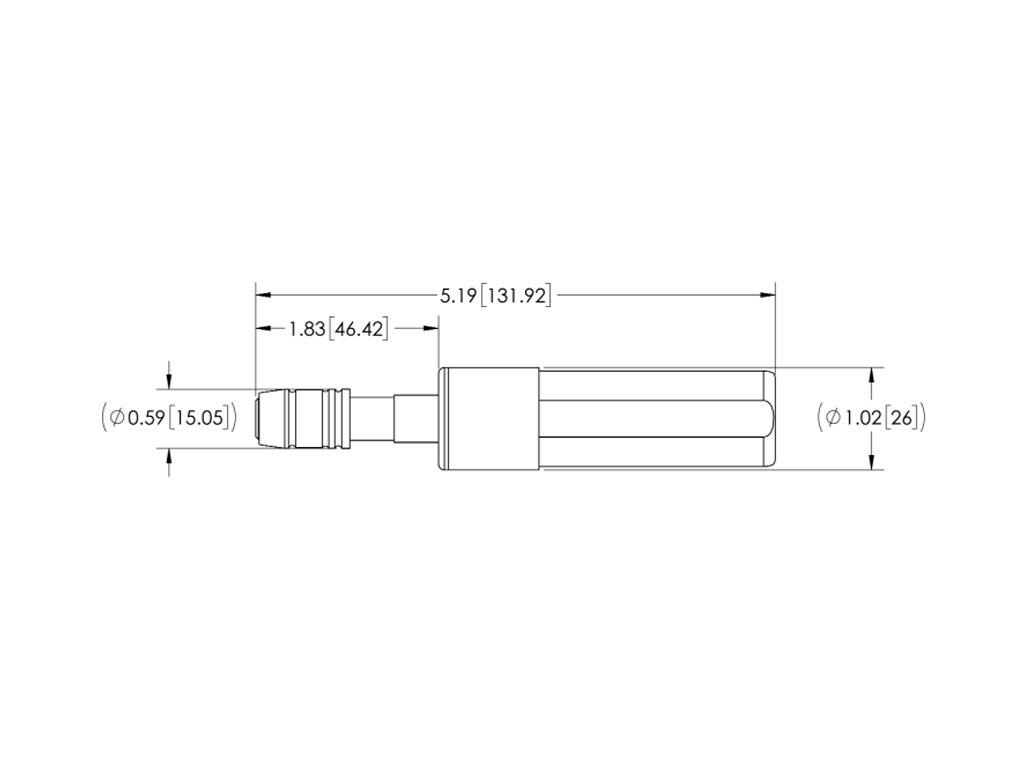

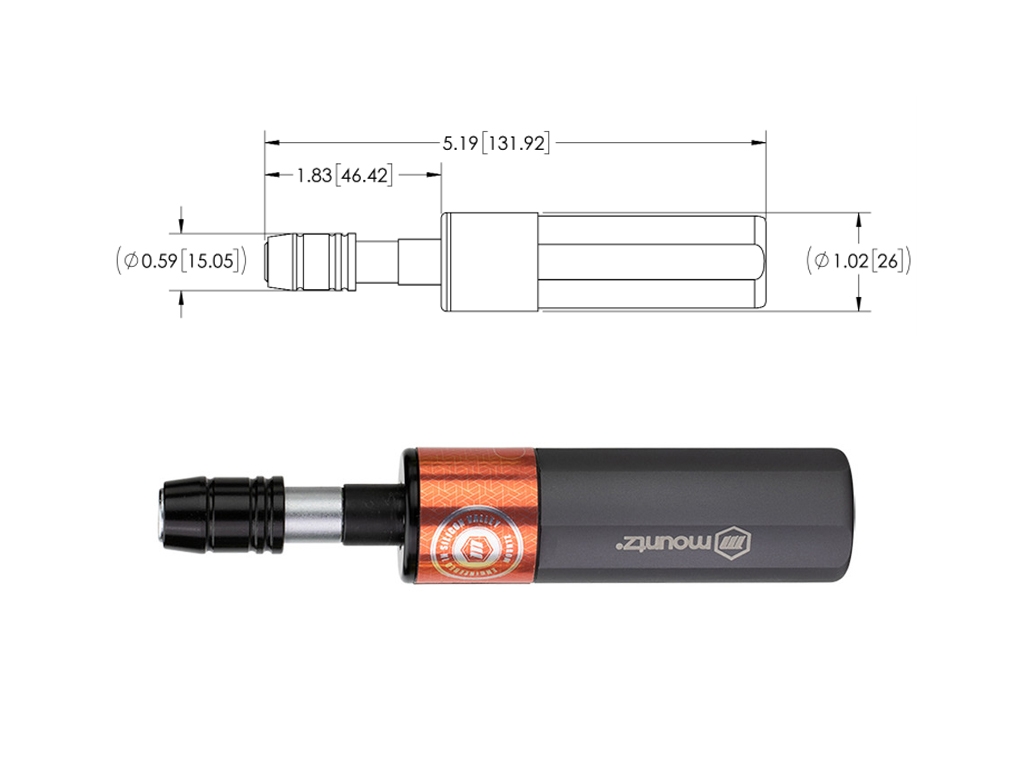

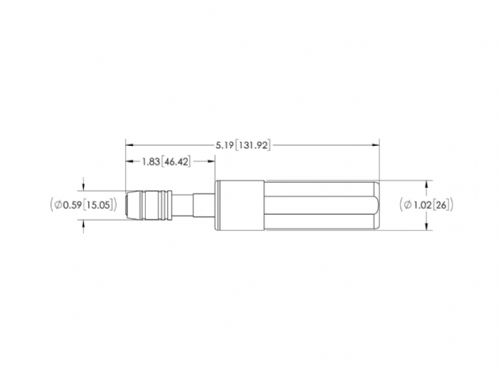

| Lenght / Weight | 132 mm / 0.207 kg |
Request a Quote
Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.
Features
- Torque accuracy ± 6%
- Torque range 0.09 - 14.1 N.m
- Torque range 9 - 1410 cN.m
- Torque range 0.8 - 125 Lbf.in
- Pre-Set production type tool
- Sutible for both direction operation
- Meets requirements ISO 6789-1:2017
- Supplied with 1/4” fem.hex. bit holder
- Torque adjustment made by hex key
- Manufactured in USA, by Mountz Torque
Technical Specifications
Mountz FG Red Series Torque Screwdrivers
| Part | Model | Torque Range | Hex Drive | Lenght | Weight | ||
| No | # | cN.m | N.m | lbf.in | inch | mm | kg |
| 076551 | FG-8i - Red | 9 - 90 | 0.09 - 0.9 | 0.8 - 8 | 1/4" | 132 | 0.207 |
| 076552 | FG-20i - Red | 22 - 226 | 0.22 - 2.26 | 2 - 20 | 1/4" | 132 | 0.207 |
| 076553 | FG-40i - Red | 40 - 450 | 0.4 - 4.5 | 4 - 40 | 1/4" | 160 | 0.326 |
| 076554 | FG-125i - Red | 280 - 1410 | 2.8 - 14.1 | 25 - 125 | 1/4" | 160 | 0.326 |
