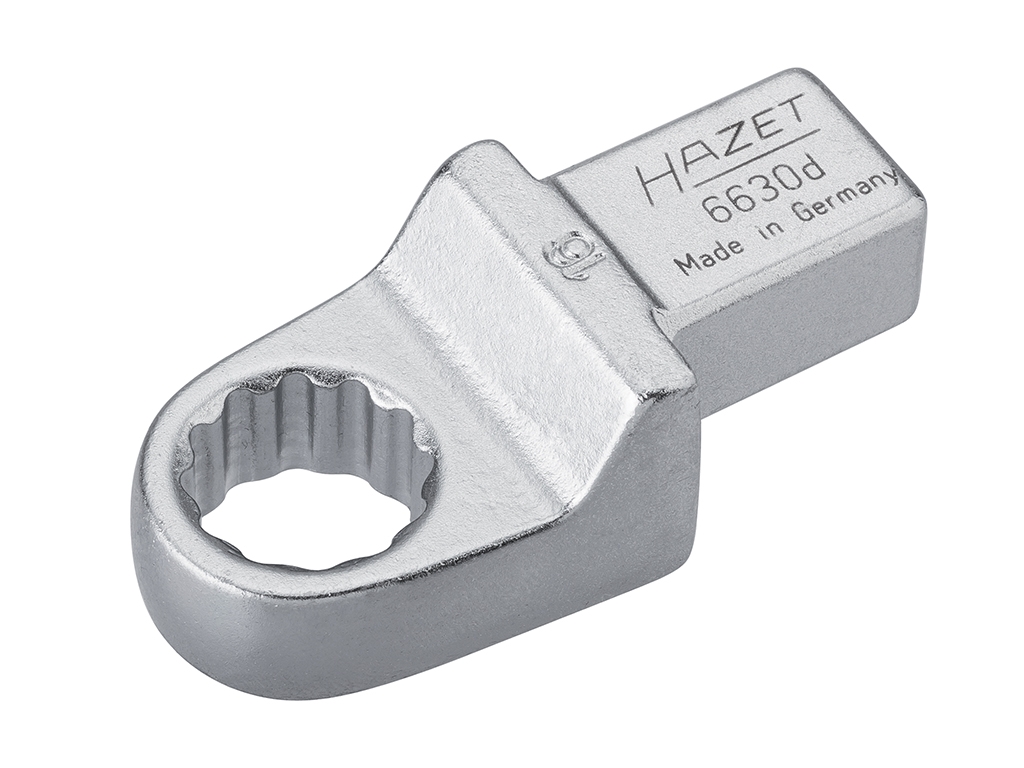

Hazet 6630D-16

16mm Ring End Interchangeable Torque Head with 14x18mm Drive

Hazet Code 6630D-16
A/F size 16 mm
Type Ring end
Drive 14x18 mm
Max. torque 175 N.m
Surface Chrome-Plated
Total length 62.9 mm
Weight 0,13 kg
Manufacturer Hazet
Made in Germany
0
Request a Quote
Request a Quote

Please fill out the form below or call us at +90 312 386 1464 to get in contact with our sales representatives.

Name Surname:
E-mail:
Mobile Phone:
Company Information:
Address:
Quantity:
Your Message:
Security Code:
512478
Verify Security Code:

Technical Specifications

Hazet ring end rectangular 14x18mm drive interchangeable torque inserts. Available from 13mm to 41mm A/F sizes

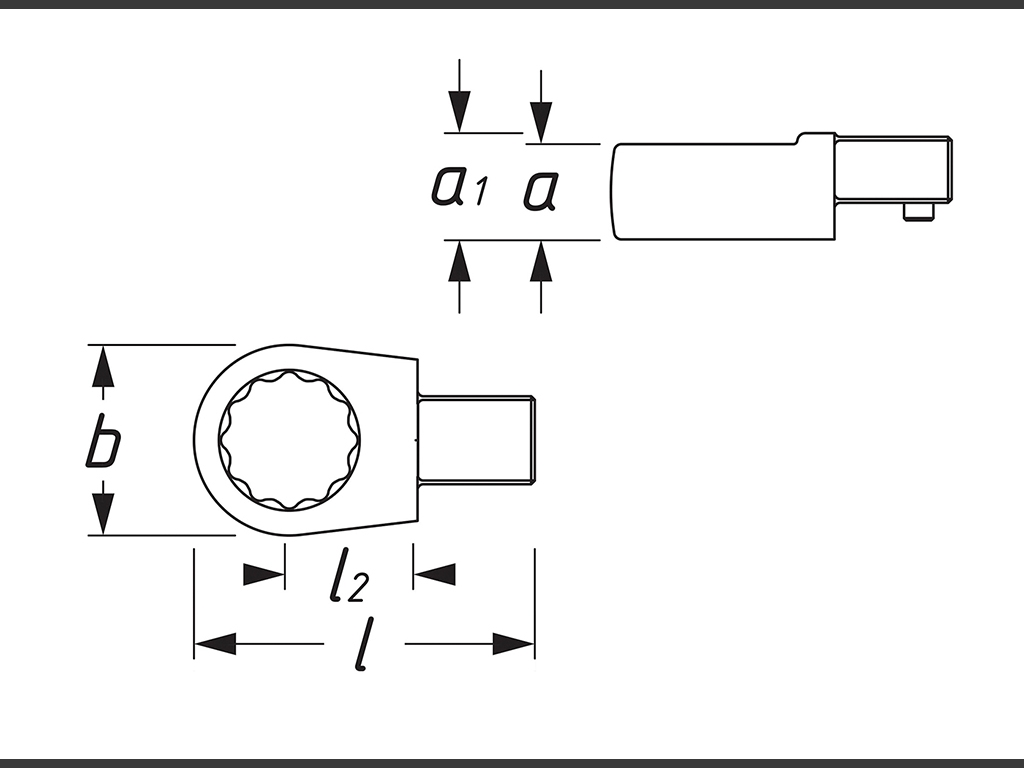

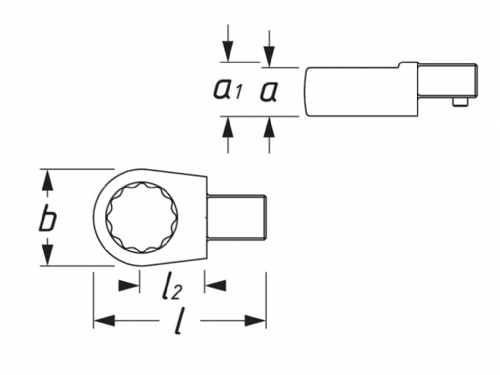

Hazet  A/F Size Drive size Maximum Torque Length Sizes Thickness Width Weigth
Code mm mm N.m L (mm) L2 (mm) a (mm) a1 (mm) b (mm) Kg
6630D-13 13 14 x 18 108 60.8 25 12 21,5 30 0.13
6630D-14 14 14 x 18 128 61.5 25 12 21,5 30 0.13
6630D-15 15 14 x 18 152 62 25 12 21,5 30 0.13
6630D-16 16 14 x 18 175 62.9 25 12 21,5 30 0.13
6630D-17 17 14 x 18 202 63.6 25 12 21,5 30 0.13
6630D-18 18 14 x 18 230 64.3 25 12 21,5 30 0.13
6630D-19 19 14 x 18 262 65.3 25 12 21,5 30.5 0.14
6630D-21 21 14 x 18 330 66.5 25 15 21,5 33 0.14
6630D-22 22 14 x 18 368 67.3 25 15 21,5 34.5 0.15
6630D-24 24 14 x 18 452 68.8 25 15 21,5 37.5 0.15
6630D-27 27 14 x 18 595 76.8 31 17,5 21,5 41,5 0.20
6630D-30 30 14 x 18 762 78.5 31 17,5 21,5 45 0.21
6630D-32 32 14 x 18 800 79.8 31 17,5 21,5 47.5 0.21
6630D-34 34 14 x 18 800 81.3 31 19 21,5 50.5 0.23
6630D-36 36 14 x 18 800 82.5 31 19 21,5 53 0.22
6630D-41 41 14 x 18 800 85.5 31 19 21,5 59 0.23

Photos
Hazet 6630D-16
Hazet 6630D-16
Hazet
14x18
Ring End
